Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

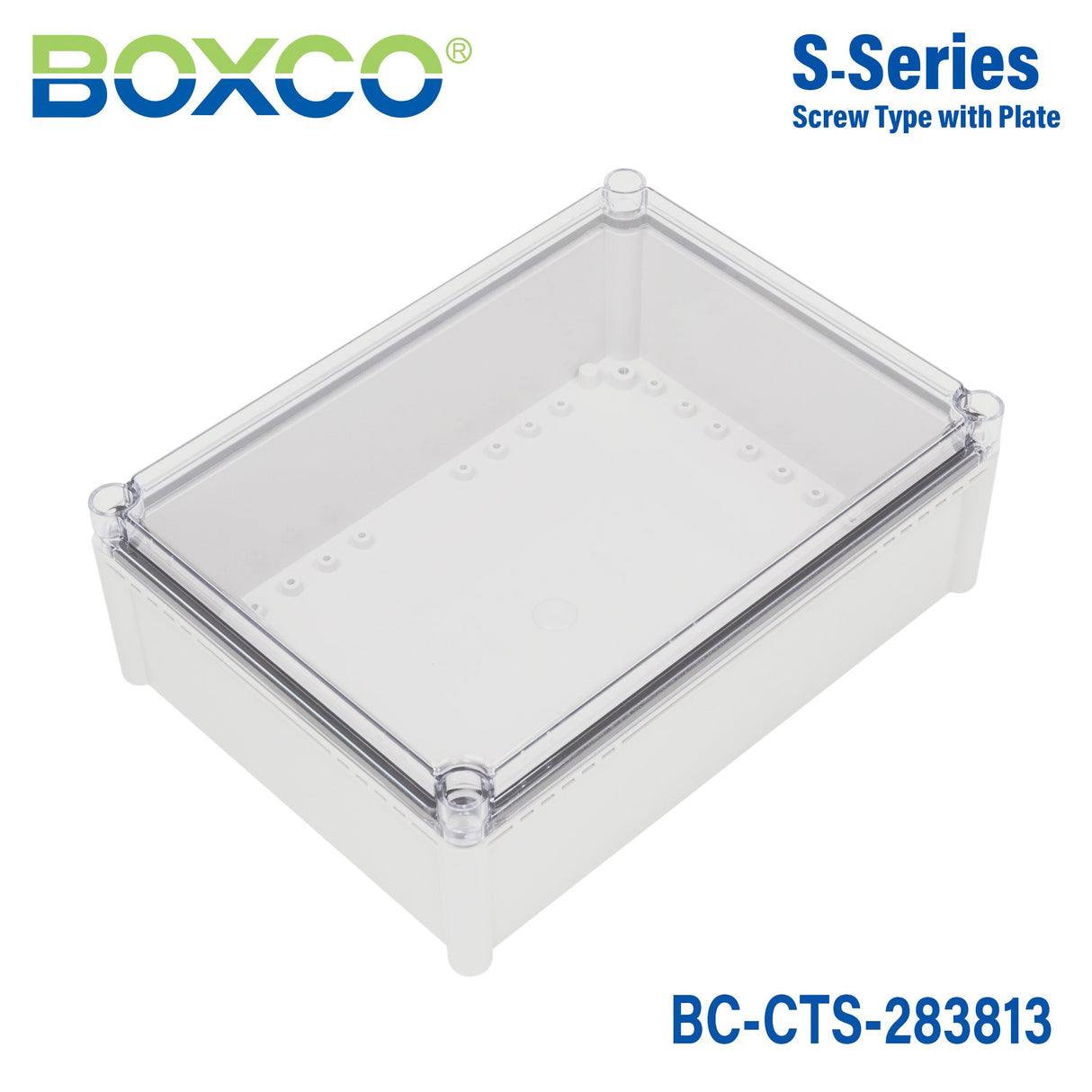

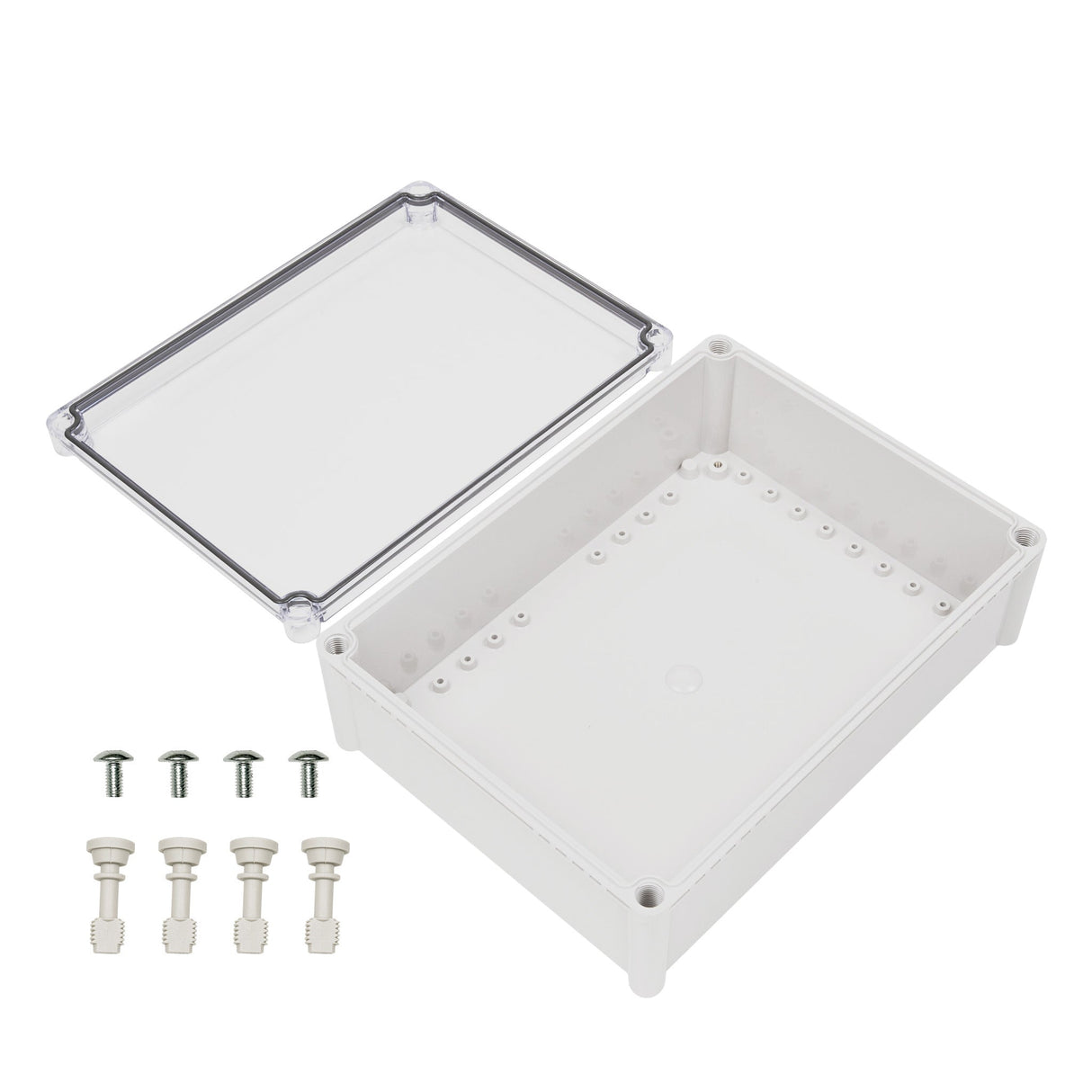

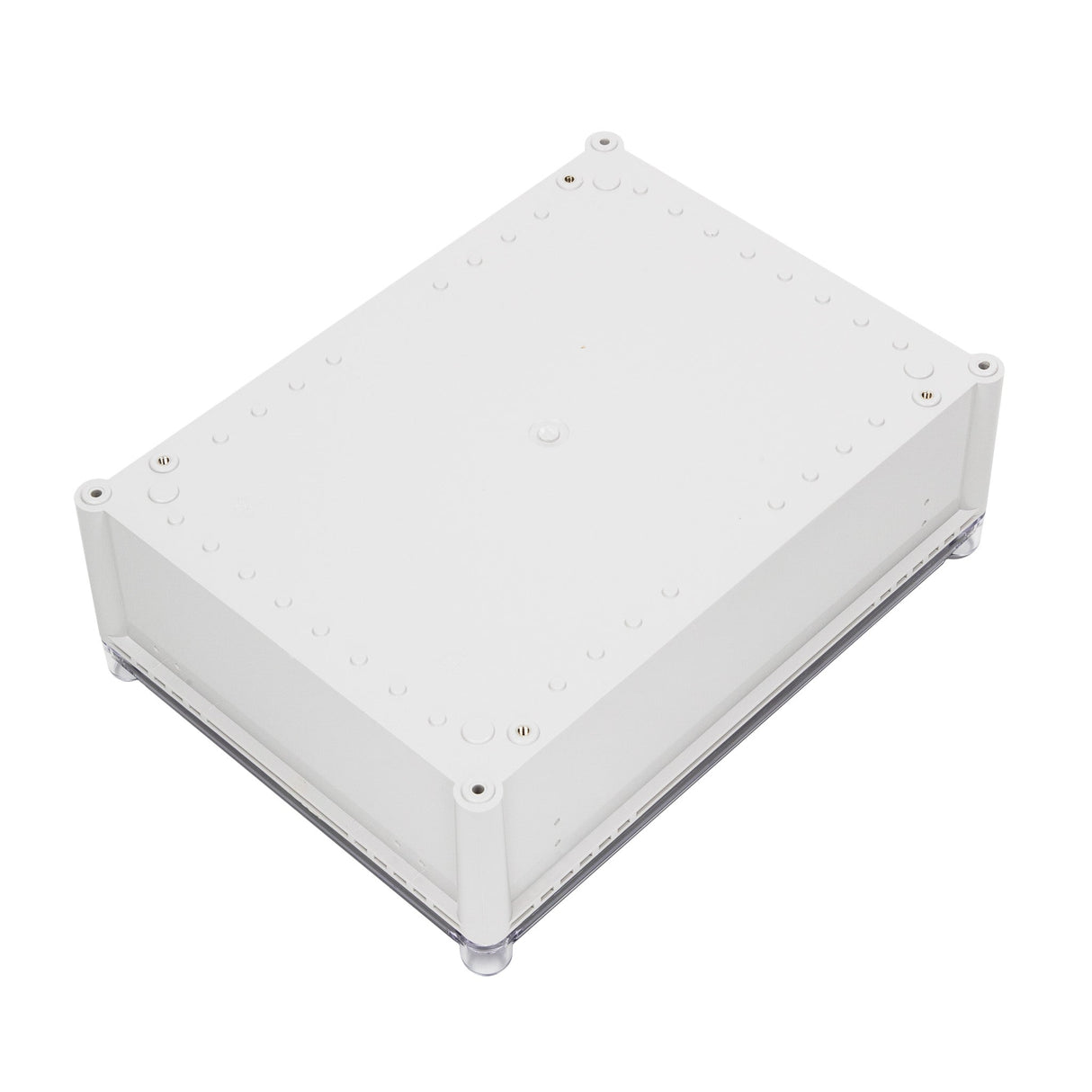

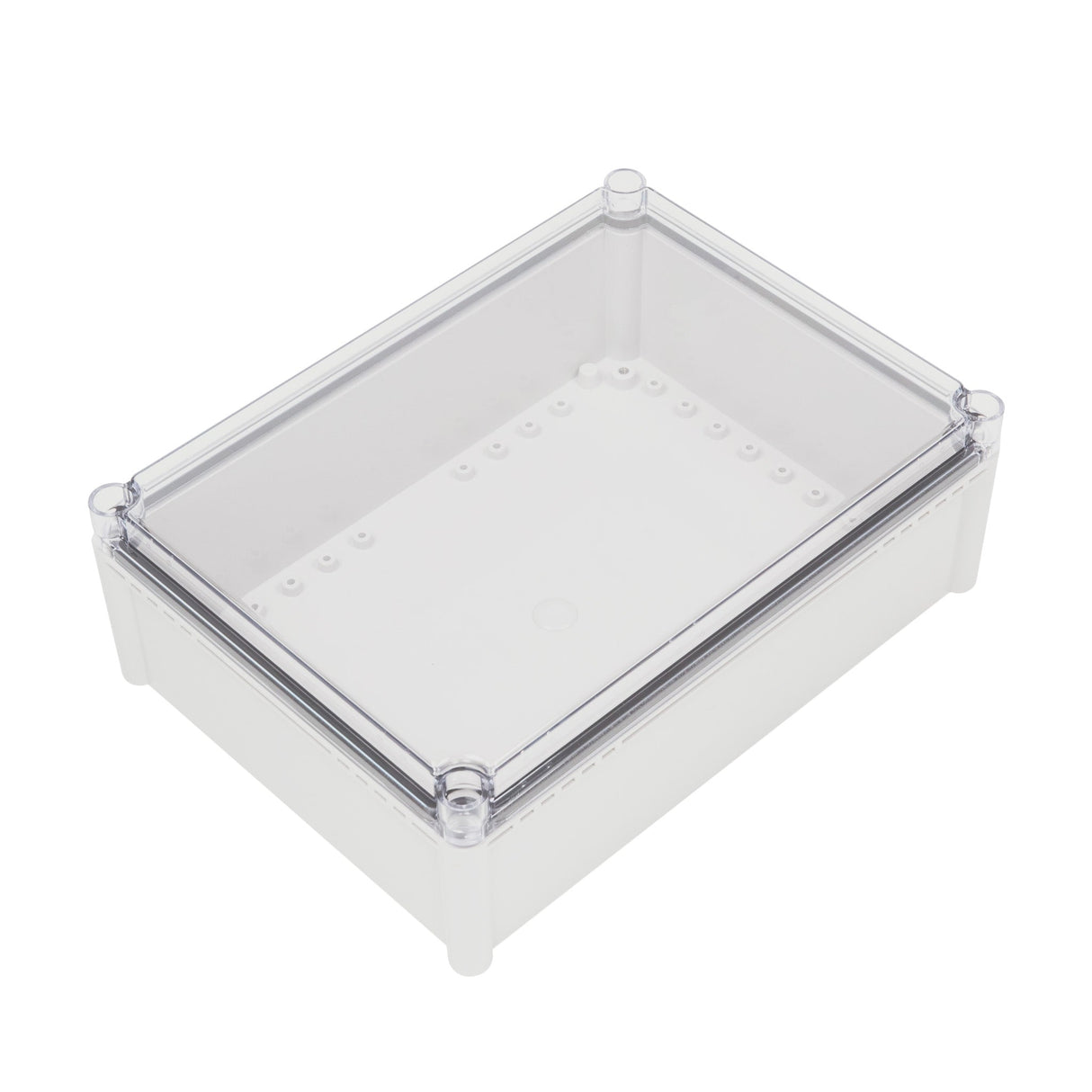

Boxco S-Series 11.02 x 14.96 x 5.12 Inches(280x380x130mm) Plastic E...
For Boxco S-Series, Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features
- Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure
- Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
- Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance
- Cover Bolt Attachment Point – Screw thread was made in injection molding to ensure maximum strength
-
BrandBoxco
-
SeriesBoxco S Series
-
MaterialPC
-
Base ColorGrey
-
Cover ColorTransparent
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~110°C
-
Warranty1 Year
-
Length11.02 in
-
Width14.96 in
-
Height5.12 in
-
Weight3.72 lb
::specification::
Frequently Asked Questions
What applications is this Boxco S-Series plastic enclosure best suited for?
This model is a good fit for protecting control components, monitoring devices, and other electronics that need a sealed non-metallic enclosure. Its IP67 rating, IK08 impact resistance, and UV-stabilized polycarbonate construction make it especially relevant for industrial and outdoor equipment housings. The transparent cover is also useful when operators need to visually inspect indicators or internal components without opening the box.
Is this enclosure suitable for outdoor or washdown environments?
Yes, this enclosure is built for demanding environments where water, dust, and weather exposure matter. It is rated IP67 for sealing performance, and the product description states that a UV stabilizer is added for outdoor use. The operating temperature range of -40 degrees C to 110 degrees C also supports use in both cold and high-heat conditions.
What are the key specifications of this enclosure?
This Boxco S-Series enclosure measures 11.02 x 14.96 x 5.12 inches, which is 280 x 380 x 130 mm. It is made from polycarbonate with a transparent screw-type cover, weighs 1.686 kg, and carries IP67 and IK08 ratings. The listed warranty period is 1 year.
Why would I choose a transparent-cover enclosure instead of a solid-cover version?
A transparent cover helps when you need to view status lights, displays, or internal labeling without opening the enclosure. That can reduce unnecessary access while still allowing quick visual checks. For this model, you still get the same core enclosure format with screw-type closure and environmental protection.
Can this enclosure handle heavier internal equipment or accessory mounting?
This model is designed with features that support internal equipment mounting. The description specifies internal mounting plate attachment points with brass-inserted injection molding, along with pre-molded mounting screw nuts for DIN rail or other equipment. Those details make it better suited for more structured internal layouts than a basic empty box.
What material advantages does this polycarbonate enclosure provide?
The enclosure is described as using high-impact-resistant material that helps resist external impact and reduce breakage during hole and press processing. It also uses anti-static material to help protect sensitive electronic instruments from static electricity. For buyers comparing enclosure materials, that makes this model a practical choice where toughness and electronics protection both matter.
