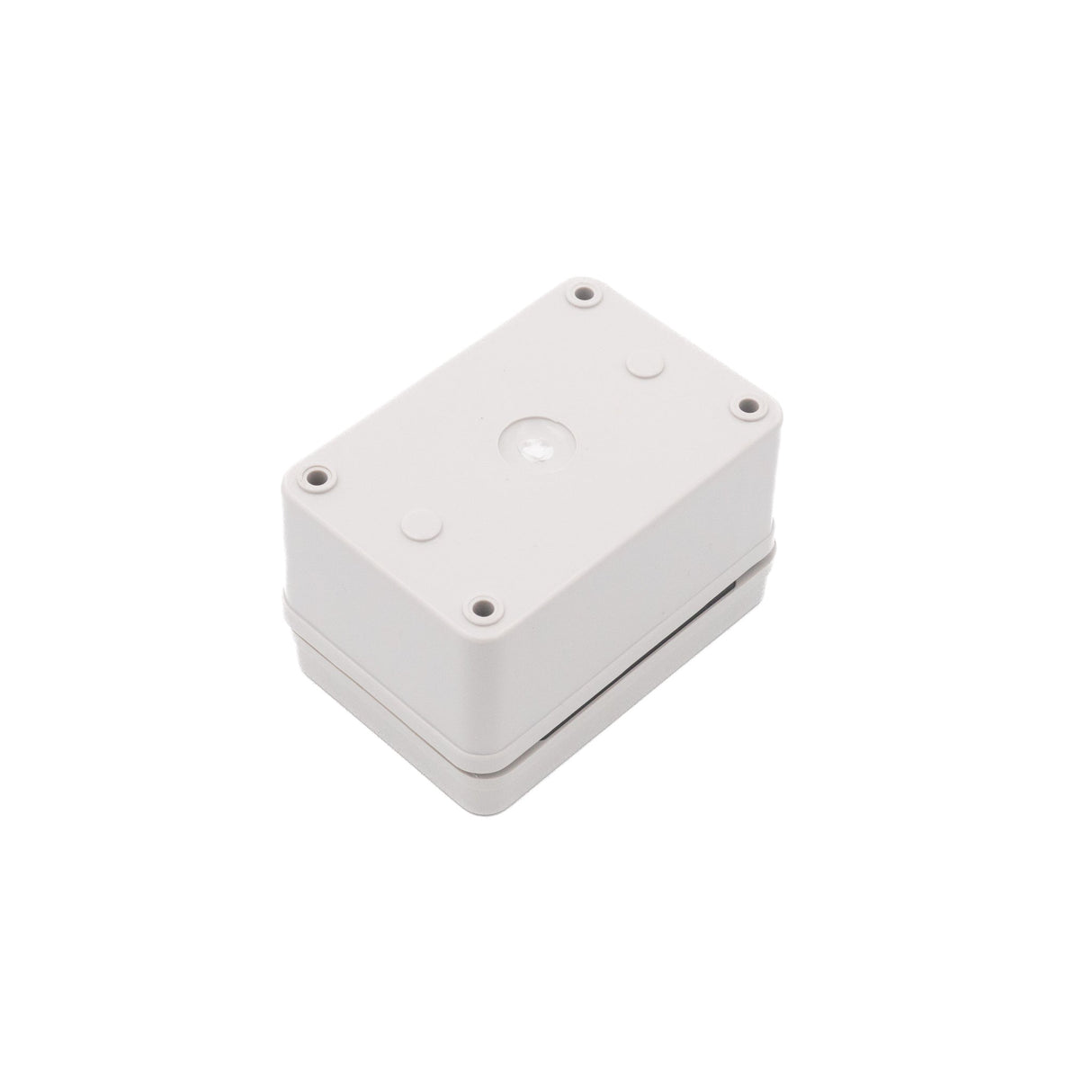

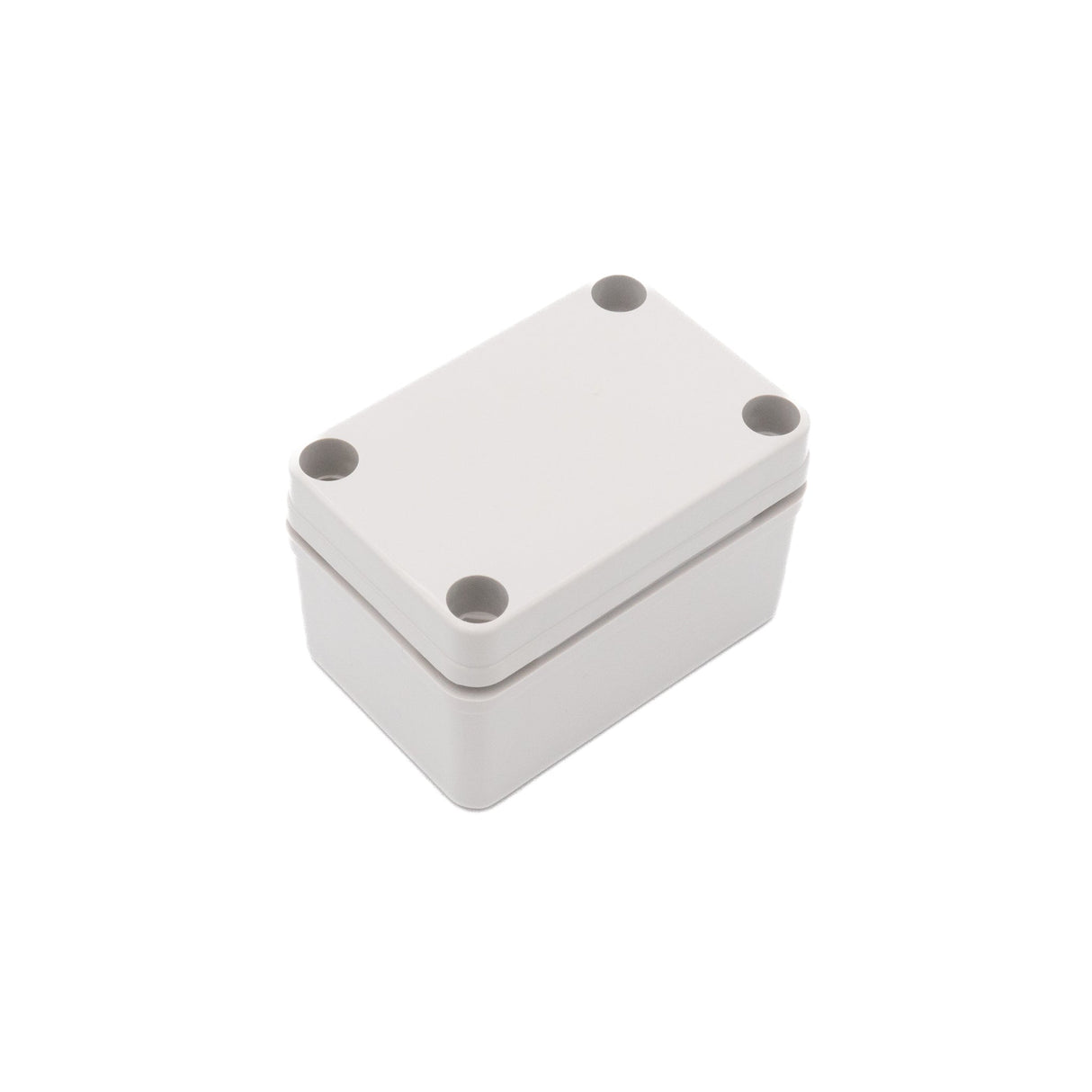

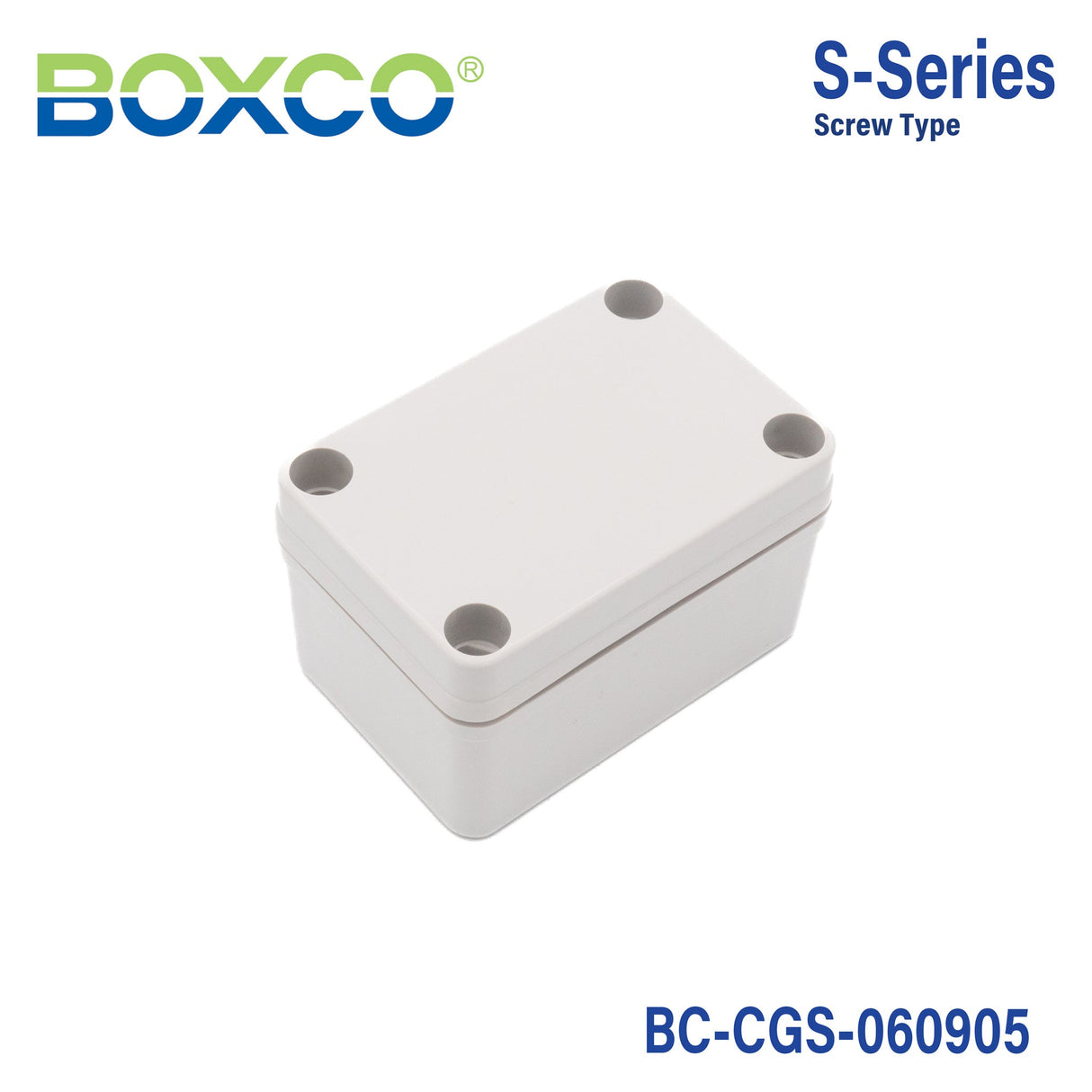

Boxco S-Series 2.56 x 3.74 x 2.17 Inches(65x95x55mm) Plastic Enclos...
For Boxco S-Series, Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features

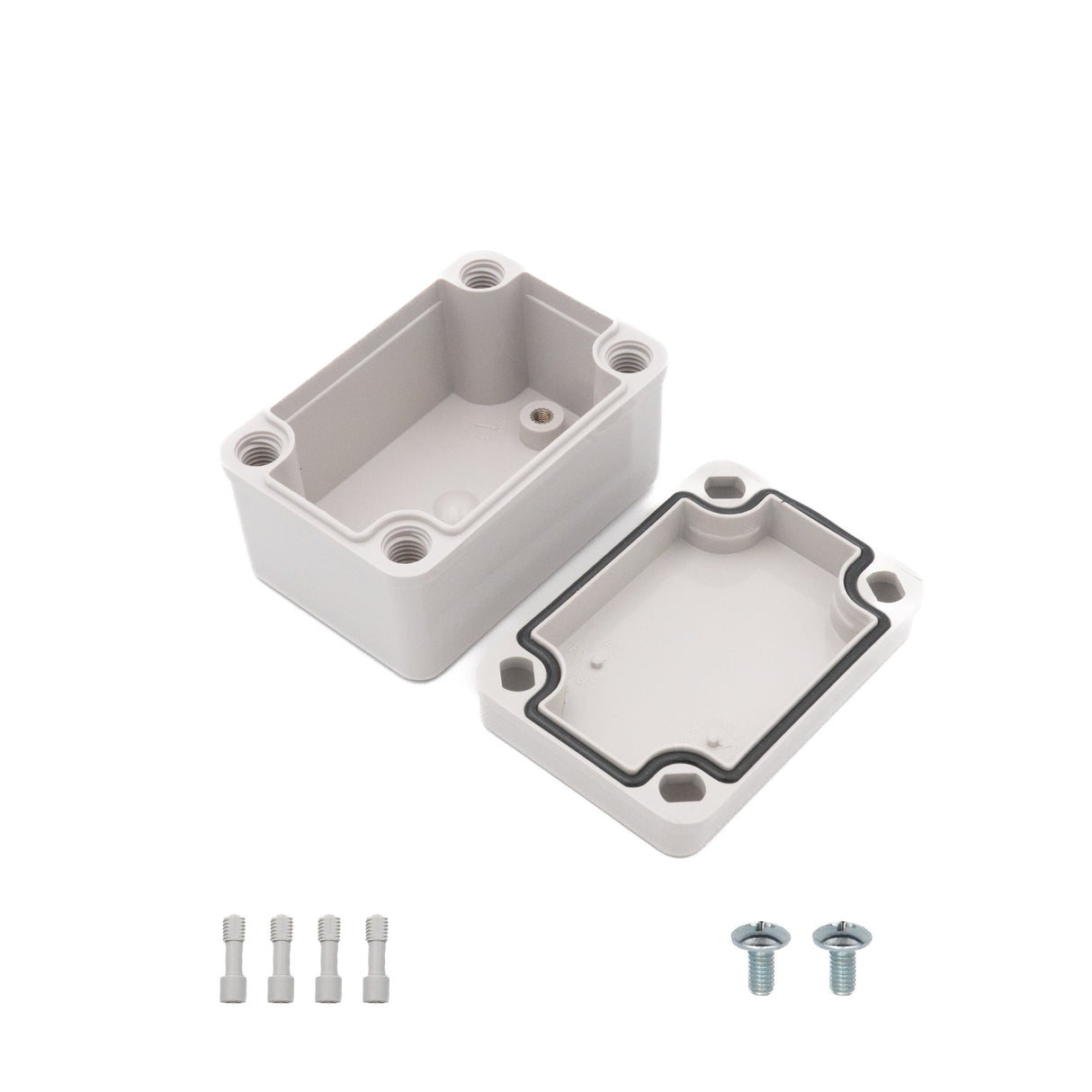

- Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure
- Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
- Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance
- Cover Bolt Attachment Point – Screw thread was made in injection molding to ensure maximum strength
-
BrandBoxco
-
SeriesBoxco S Series
-
MaterialPC
-
Base ColorGrey
-
Cover ColorGrey
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~110°C
-
Warranty1 Year
-
Length2.56 in
-
Width3.74 in
-
Height2.17 in
-
Weight0.32 lb
::specification::
Frequently Asked Questions
What applications is the Boxco S-Series 65x95x55mm plastic enclosure suited for?
This model is suited for compact electronic control, monitoring, and instrumentation assemblies that need a sealed non-metallic housing. Its anti-static PC construction and internal equipment-mounting features make it a practical choice for protecting sensitive electronics in industrial or outdoor environments.
Is this enclosure suitable for outdoor or washdown environments?
Yes. This enclosure is rated IP67 for dust and water protection, and the PC material includes an ultraviolet stabilizer for outdoor use. The molded gasket is designed to support strong waterproof and dust-proof performance, and the IK08 impact rating adds protection against external impact.
What are the key specifications of this enclosure?
This Boxco S-Series enclosure measures 2.56 x 3.74 x 2.17 inches, or 65 x 95 x 55 mm, and weighs 0.146 kg. It uses polycarbonate construction with a grey cover, a screw-type closure, an IP67 ingress rating, an IK08 impact rating, and a stated operating range of -40 degrees C to 110 degrees C.
Can this enclosure support internal mounting hardware and components?
Yes. This model includes internal mounting plate attachment points with brass inserted injection molding so an internal mounting plate can be fixed securely. It also has pre-molded mounting screw nuts that can be used to secure DIN rail or other internal equipment.
Why choose this screw-type Boxco S-Series enclosure for demanding industrial use?
This model combines a compact footprint with several durability-focused details, including molded cover threads, an injected gasket, UV-stabilized PC, and anti-static material. For buyers comparing compact enclosures, those features help this unit stand out when sealed protection, impact resistance, and stable long-term outdoor appearance matter.
