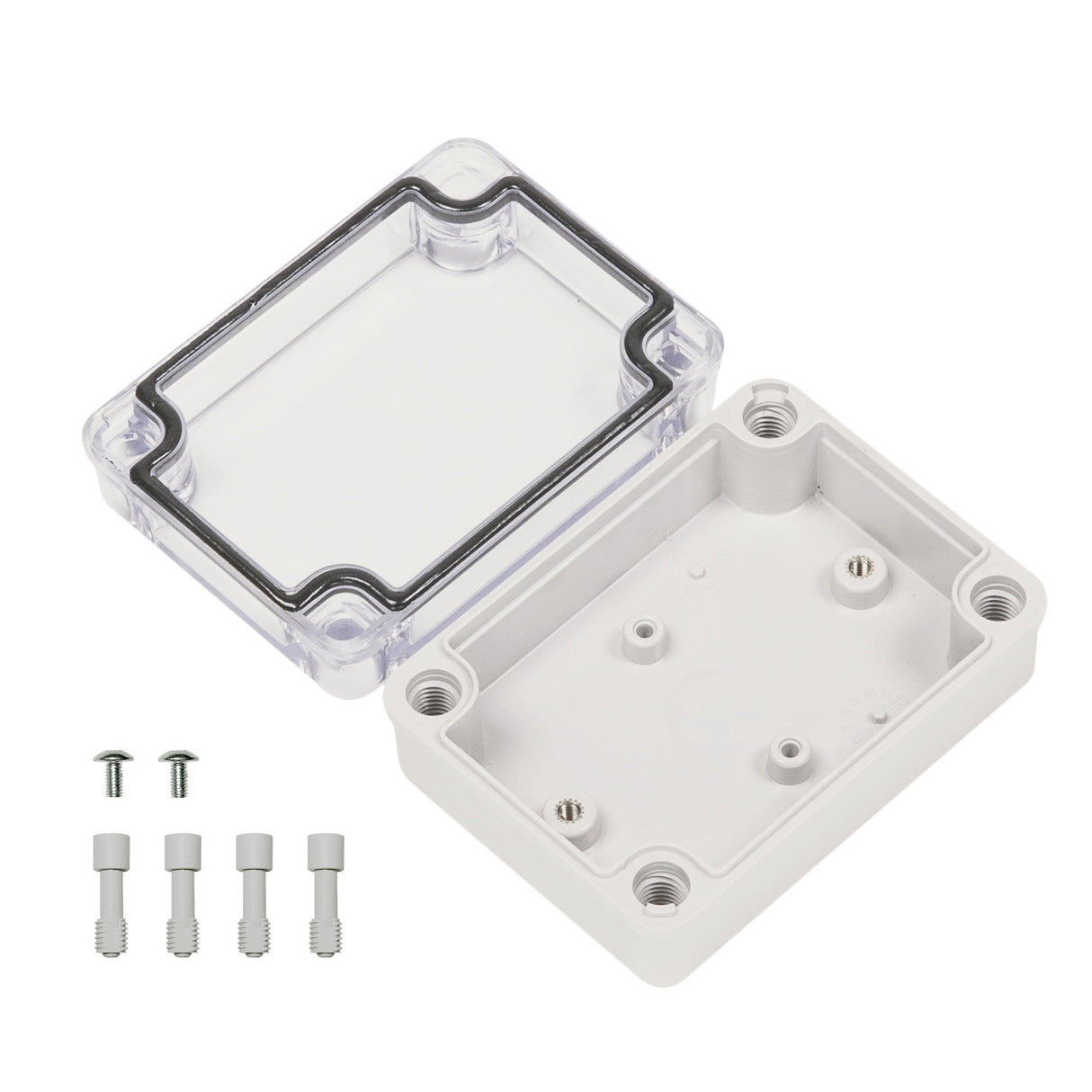

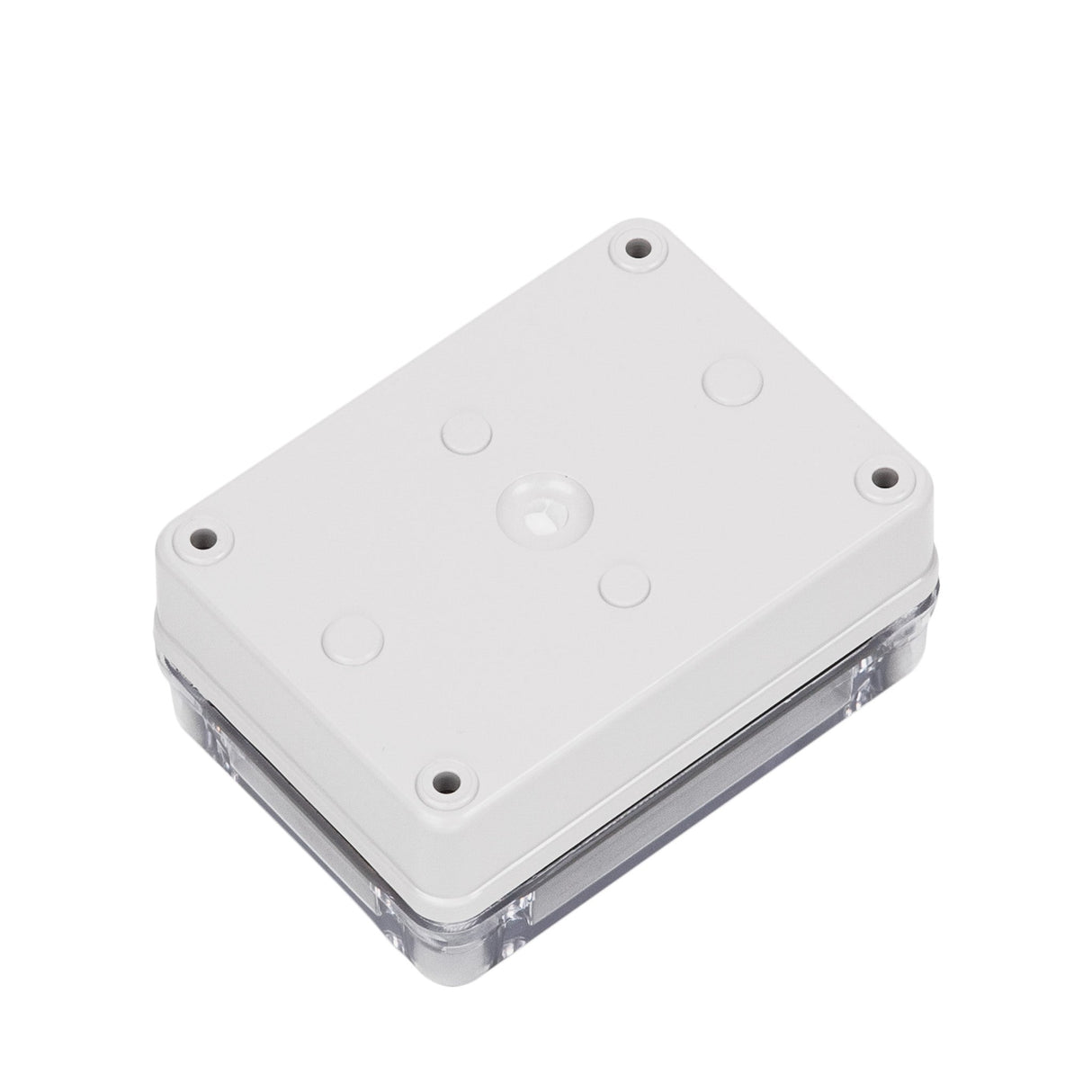

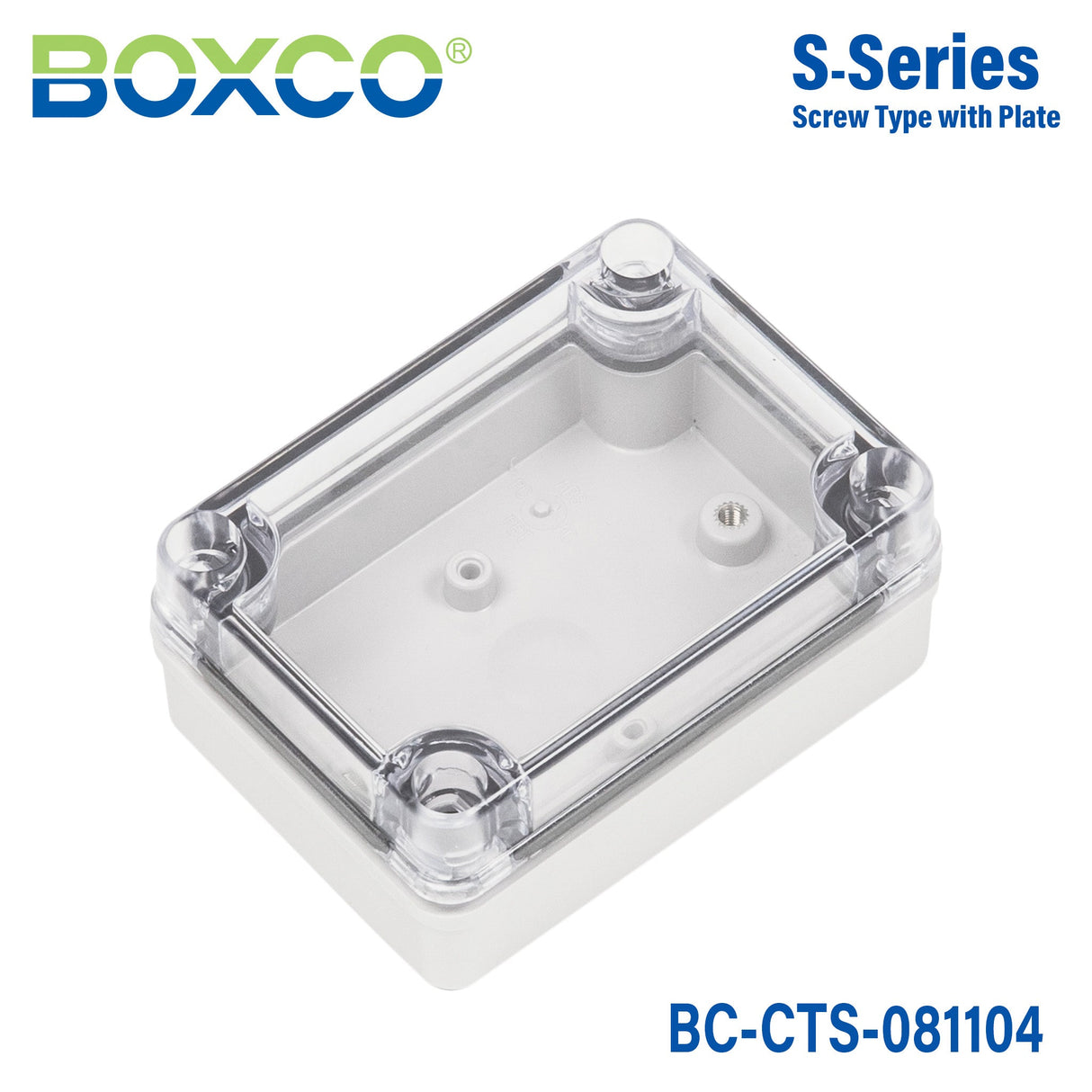

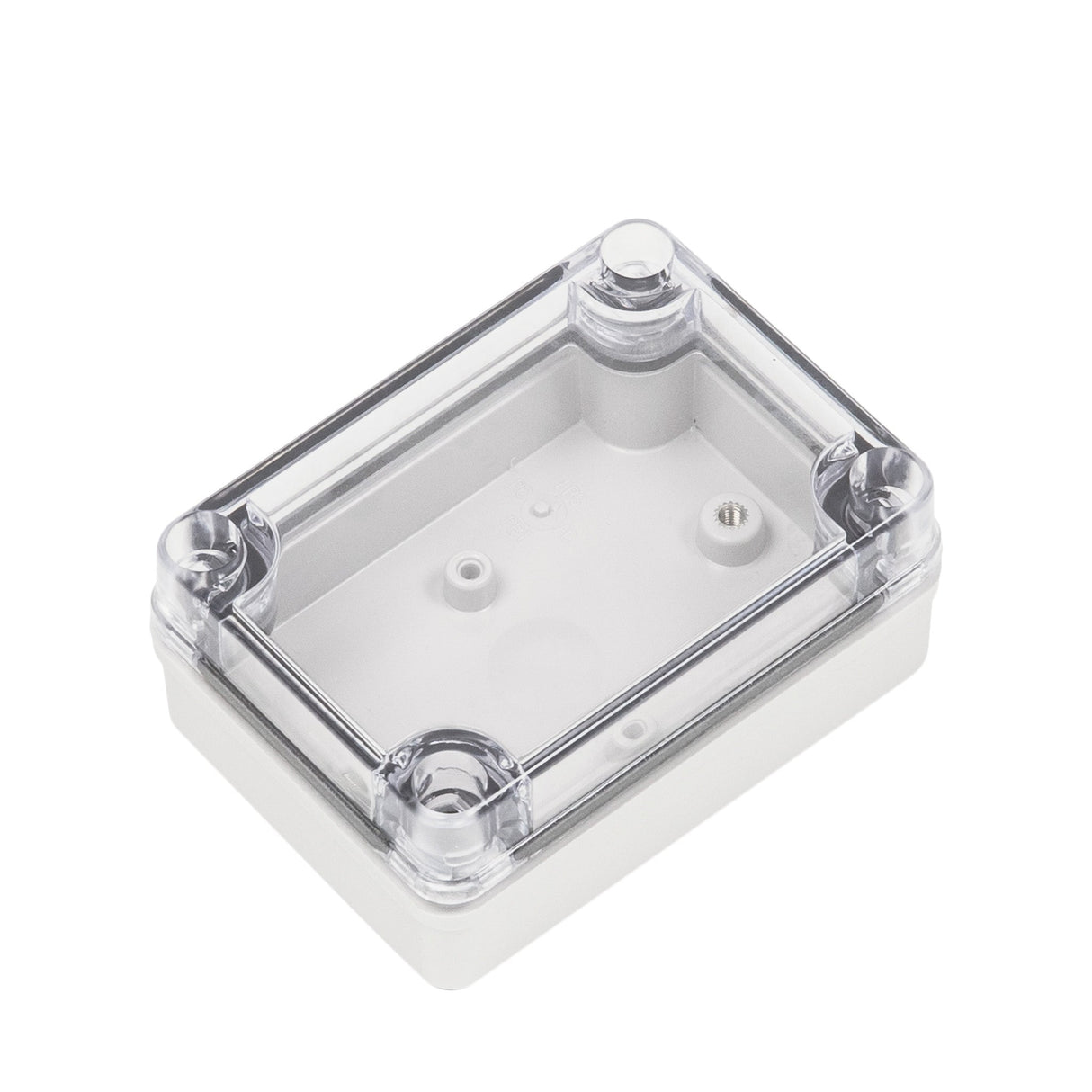

Boxco S-Series 3.15 x 4.33 x 1.77 Inches(80x110x45mm) Plastic Enclo...
For Boxco S-Series, Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features
- Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure
- Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
- Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance
- Cover Bolt Attachment Point – Screw thread was made in injection molding to ensure maximum strength
-
BrandBoxco
-
SeriesBoxco S Series
-
MaterialPC
-
Base ColorGrey
-
Cover ColorTransparent
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~110°C
-
Warranty1 Year
-
Length3.15 in
-
Width4.33 in
-
Height1.77 in
-
Weight0.37 lb
::specification::
Frequently Asked Questions
What applications is this Boxco S-Series enclosure suitable for?
This model is suited for protecting compact electronic components in industrial and outdoor environments where dust, water resistance, and impact protection matter. Its 80 x 110 x 45 mm size works well when you need a small plastic enclosure with a transparent cover for visual inspection.
Is this enclosure suitable for outdoor use?
Yes. The product description states that an ultraviolet stabilizer is added for outdoor usage, helping reduce visible color change over long-term exposure. Its IP67 rating also indicates strong protection against dust ingress and water exposure.
What level of protection does this enclosure provide?
This enclosure is rated IP67 and IK08. That means it is designed for strong dust and water resistance and also offers impact resistance for demanding operating environments.
What is the benefit of the transparent cover on this model?
The transparent cover allows contents or indicators inside the enclosure to be viewed without opening it. For applications that require quick visual checks, this can be more convenient than an opaque cover while keeping the same screw-type enclosure format.
What temperature range can this enclosure handle?
This model is specified for temperatures from -40°C to 110°C. That wide range makes it a practical choice for both cold and high-heat operating conditions within its rated limits.
Does this enclosure support internal accessories or mounting hardware?
Yes. The description notes internal mounting plate attachment points and pre-molded mounting screw nuts for securing compatible internal hardware such as DIN rail or other equipment. These built-in features help support heavier internal components more securely.
