Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

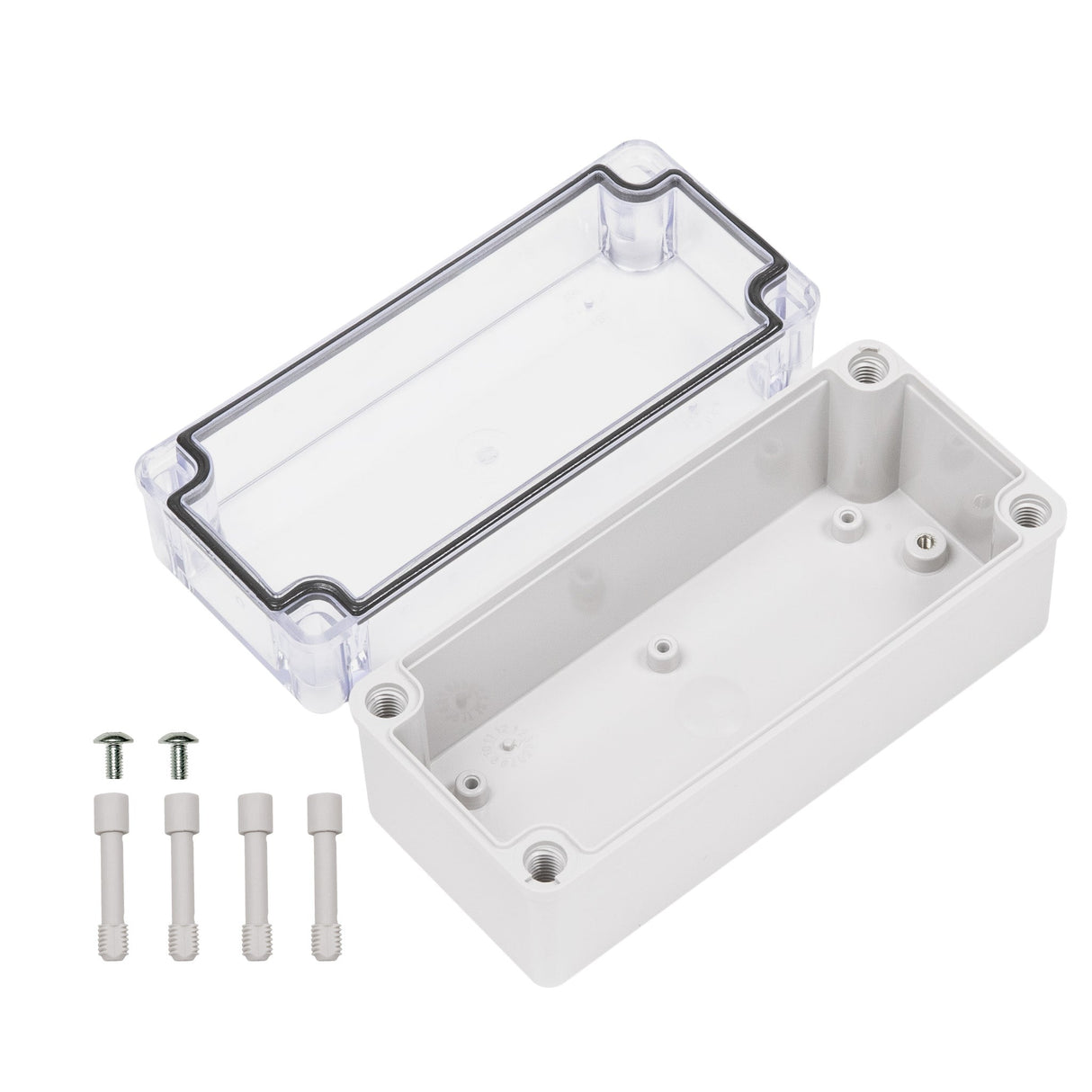

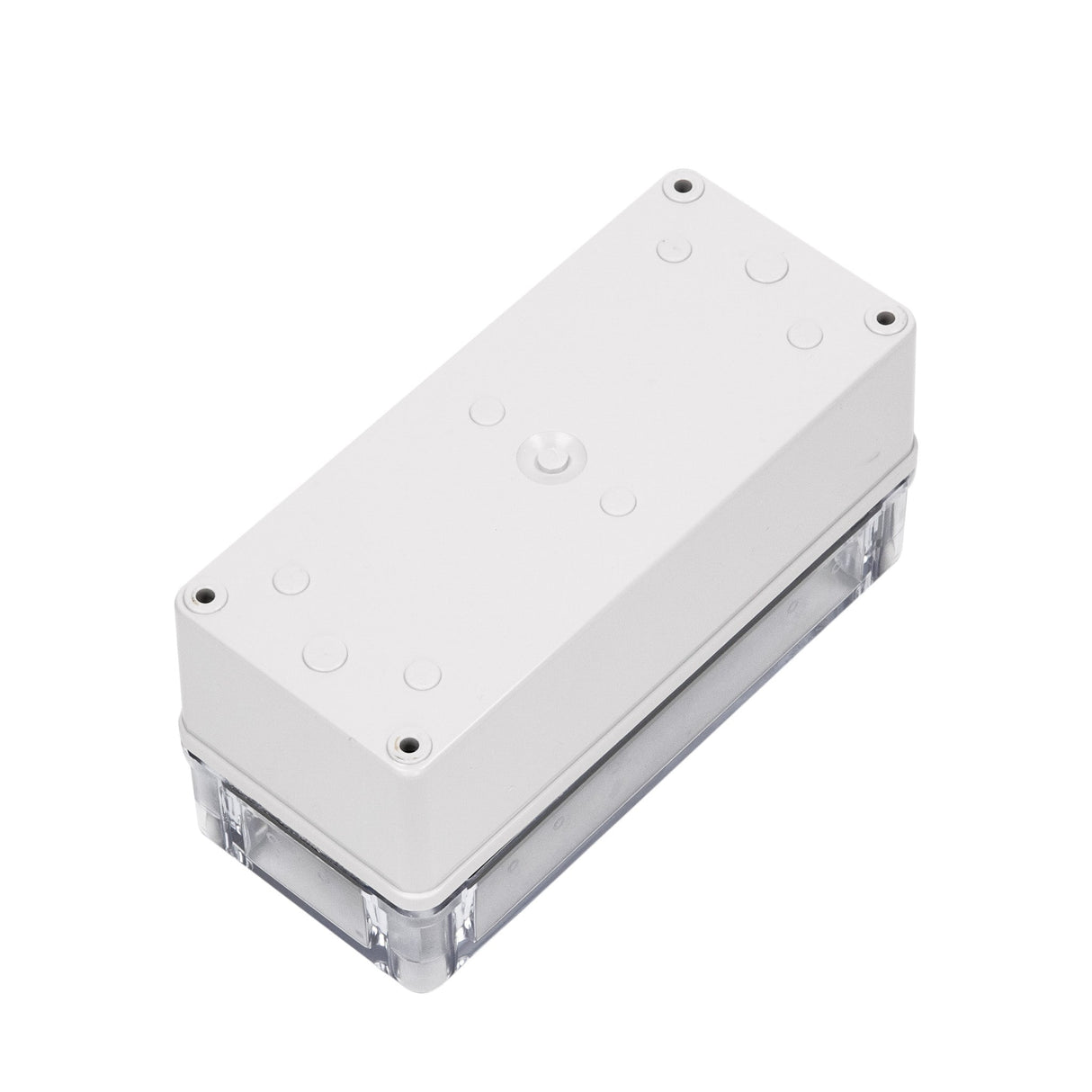

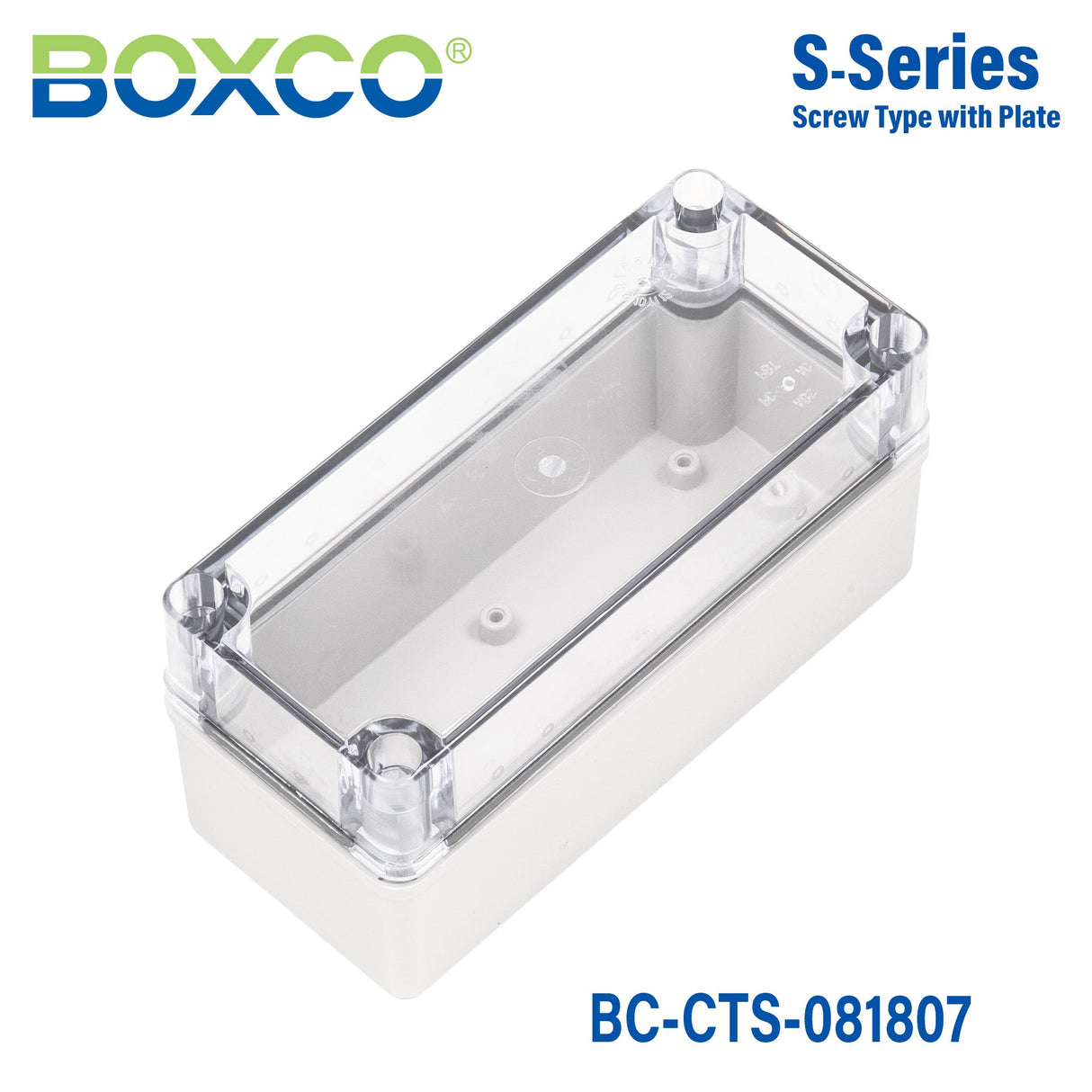

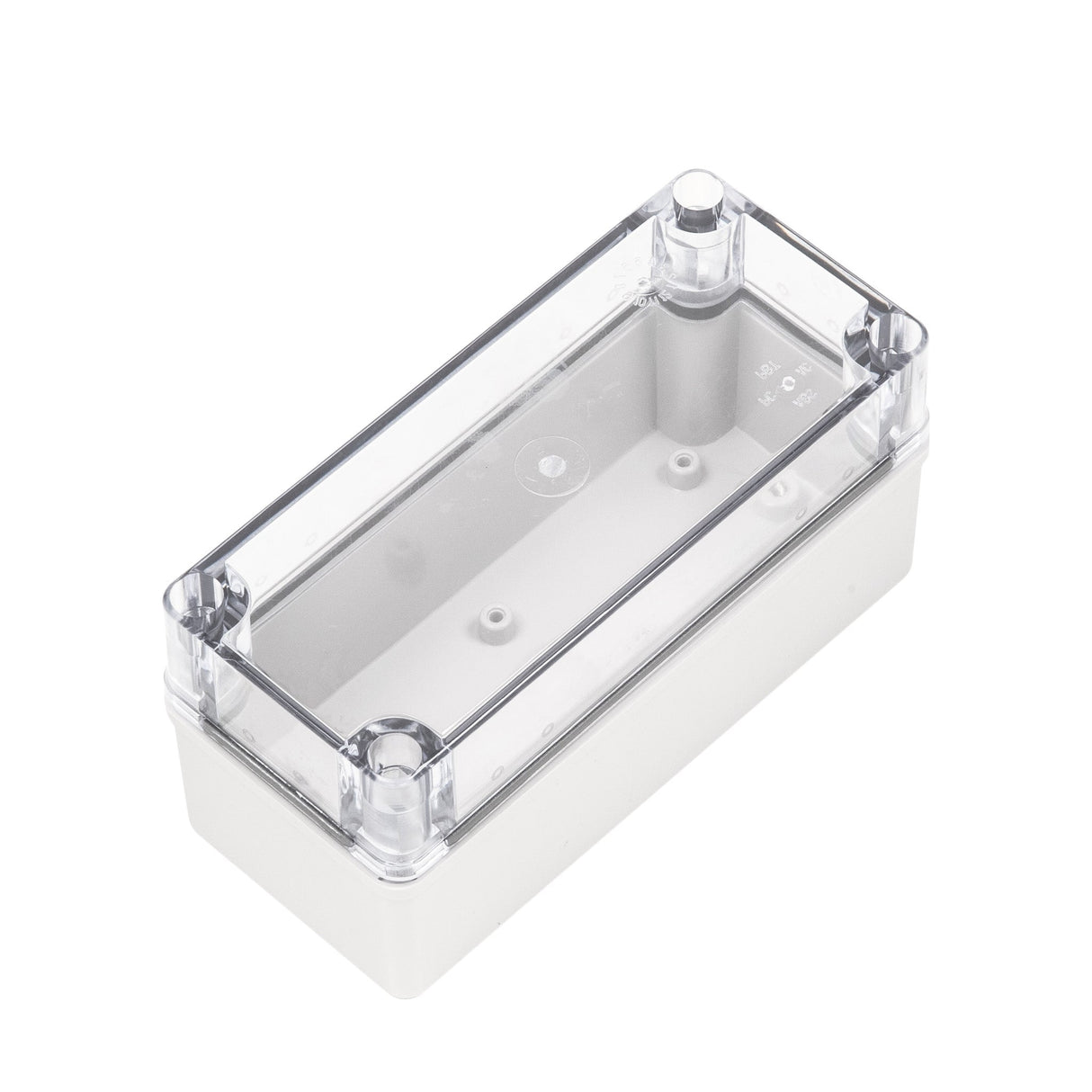

Boxco S-Series 3.15 x 7.09 x 2.76 Inches(80x180x70mm) Plastic Enclo...
For Boxco S-Series, Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features
- Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure
- Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
- Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance
- Cover Bolt Attachment Point – Screw thread was made in injection molding to ensure maximum strength
-
BrandBoxco
-
SeriesBoxco S Series
-
MaterialPC
-
Base ColorGrey
-
Cover ColorTransparent
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~110°C
-
Warranty1 Year
-
Length3.15 in
-
Width7.09 in
-
Height2.76 in
-
Weight0.99 lb
::specification::
Frequently Asked Questions
What are the main specifications of the Boxco S-Series BC-CTS-081807 enclosure?
This model measures 3.15 x 7.09 x 2.76 inches (80 x 180 x 70 mm) and is made from polycarbonate with a transparent screw-type cover. It is rated IP67 for dust and water protection and IK08 for impact resistance. The enclosure weight is 0.4500 kg, and the stated operating temperature range is -40 °C to 110 °C.
Is the BC-CTS-081807 suitable for outdoor environments?
Yes. The product description states that an ultraviolet stabilizer is added for outdoor usage, helping reduce color change over long periods of exposure. Its IP67 rating also supports use in demanding environments where dust and water resistance are important.
When is a transparent-cover enclosure like this a good choice?
A transparent cover is useful when components, indicators, or labels inside the enclosure need to remain visible without opening the box. For buyers comparing options, this can help with inspection and monitoring while keeping the enclosure closed. This model combines that visibility with a polycarbonate body and cover.
Can this enclosure be used for sensitive electronic equipment?
Yes. The description states that anti-static material is used to help protect sensitive electronic instruments from static electricity. That makes this model a practical choice for applications where electrostatic protection is a consideration along with enclosure durability.
What makes this enclosure suitable for industrial or heavy-duty use?
The enclosure is described as being made from high impact resistant material and carries an IK08 impact rating. It also includes brass inserted molding for securing an internal mounting plate and pre-molded screw nuts for fixing compatible internal hardware. These features support more demanding B2B enclosure applications.
What internal mounting features are included in the BC-CTS-081807?
According to the product description, this enclosure includes mounting plate attachment points and pre-molded mounting screw nuts. These features are intended to support internal mounting of equipment such as a mounting plate or DIN rail-compatible hardware. Buyers evaluating enclosure compatibility should confirm the fit of their specific internal components against the enclosure dimensions.
