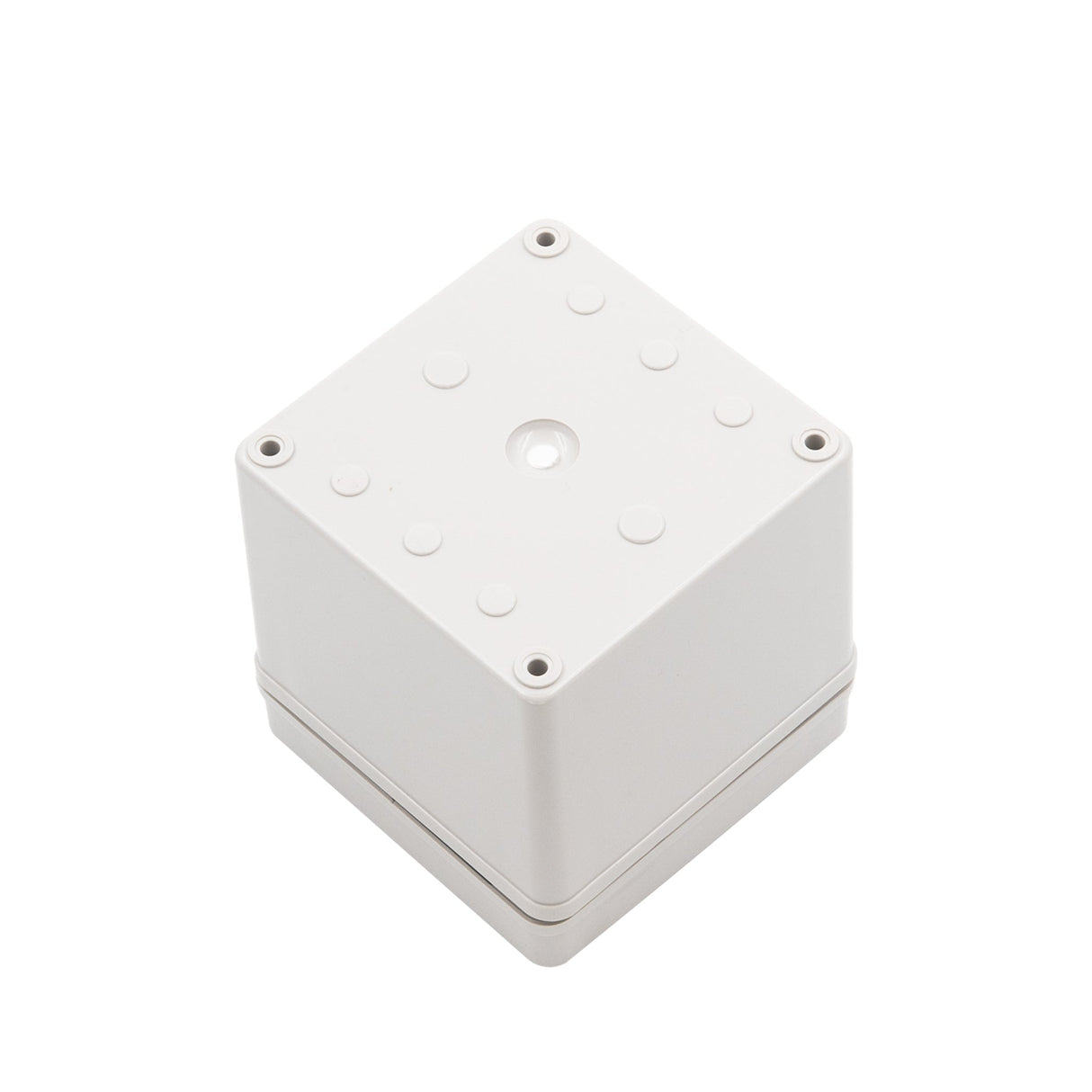

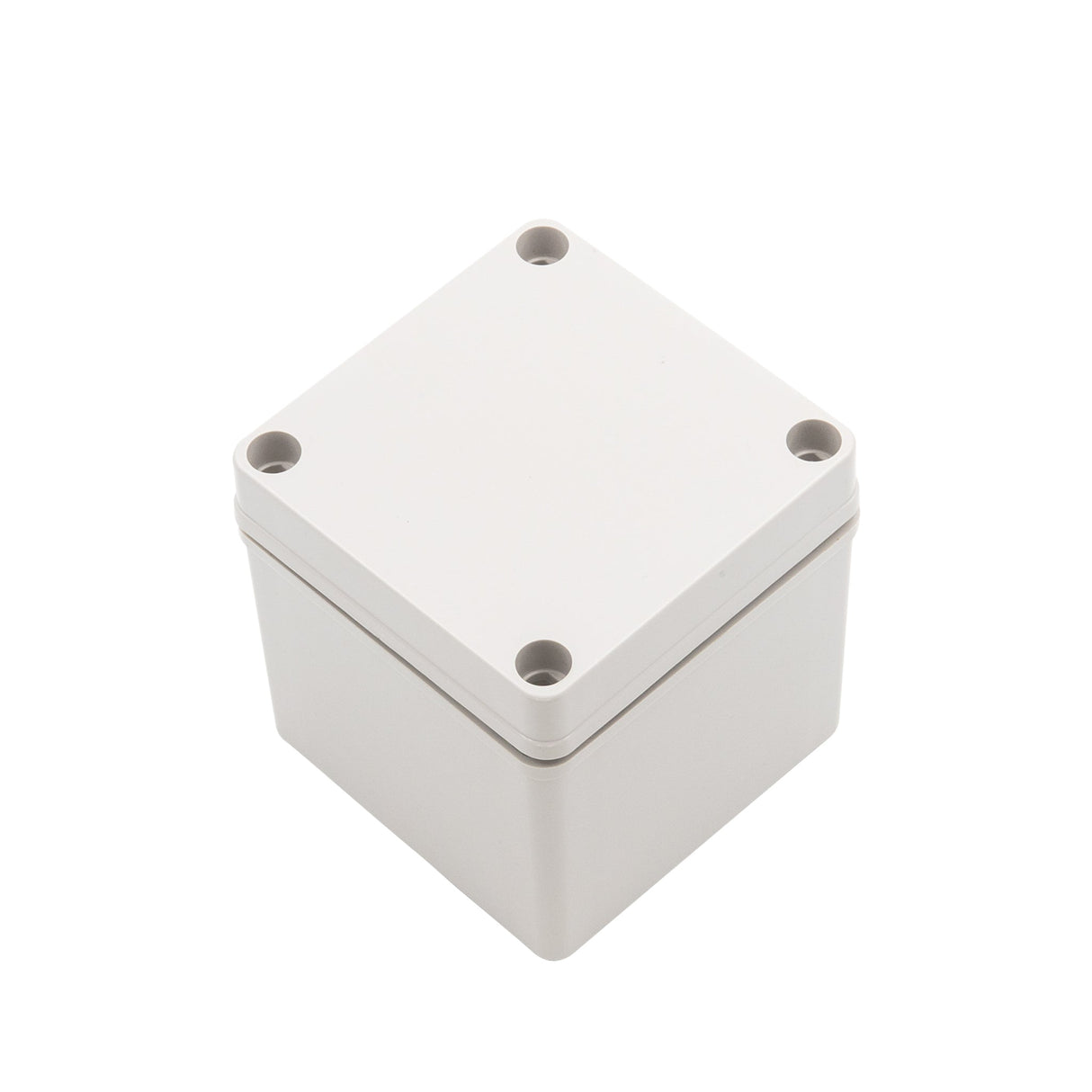

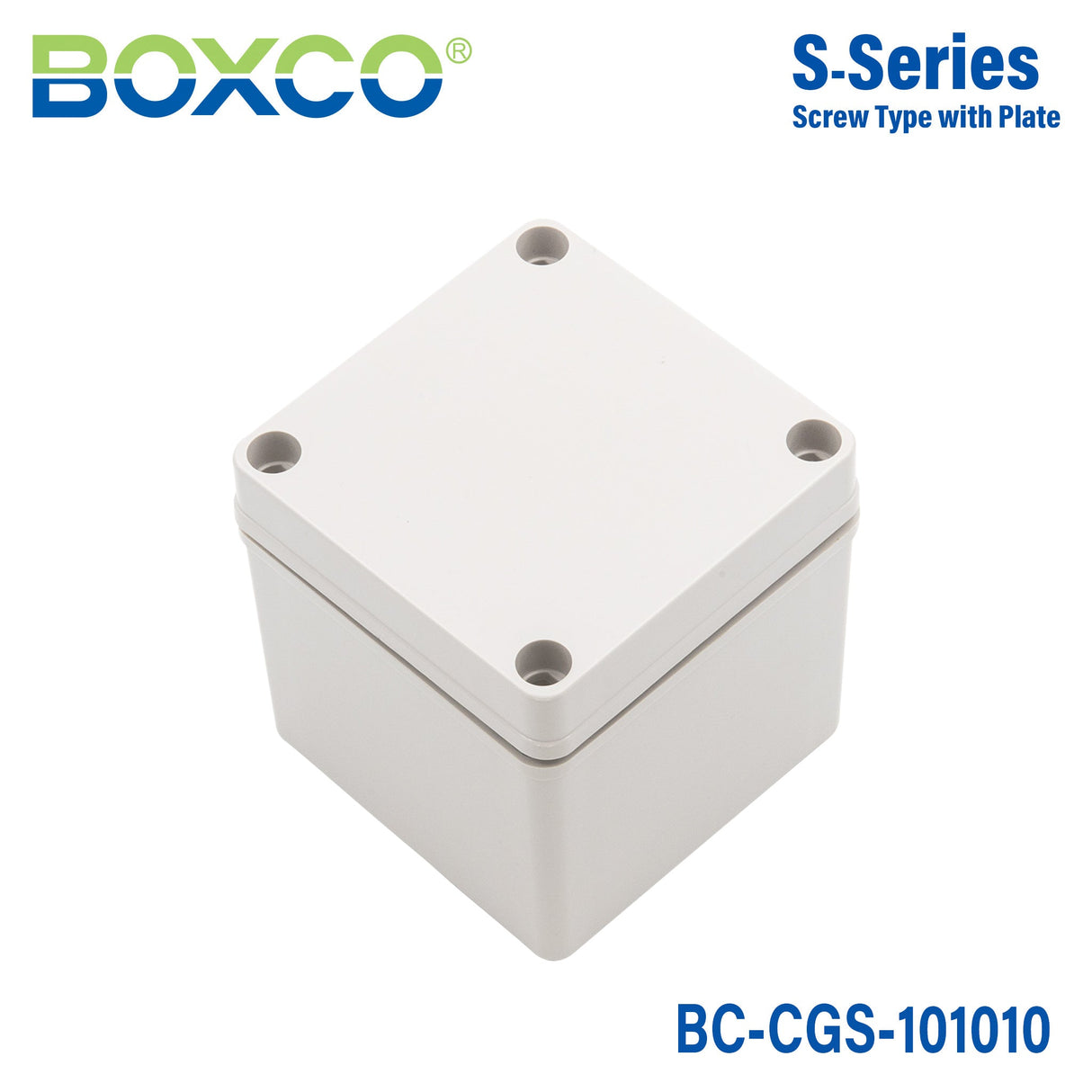

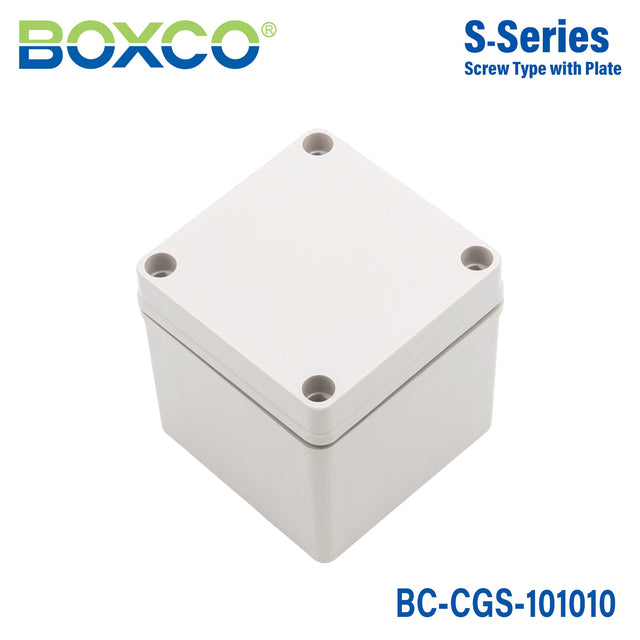

Boxco S-Series 3.94 x 3.94 x 3.94 Inches(100x100x100mm) Plastic Enc...
For Boxco S-Series, Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features

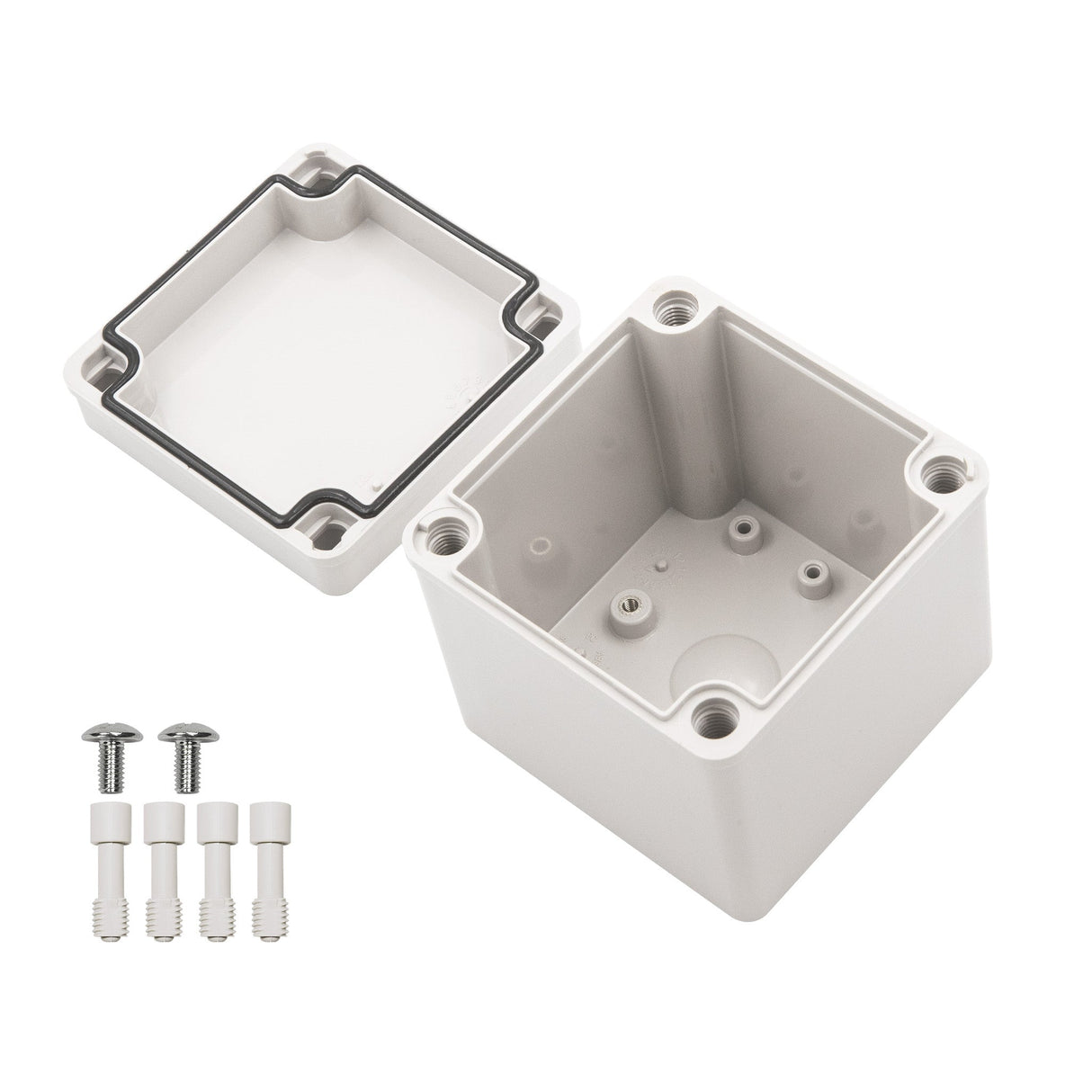

- Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure
- Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
- Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance
- Cover Bolt Attachment Point – Screw thread was made in injection molding to ensure maximum strength
-
BrandBoxco
-
SeriesBoxco S Series
-
MaterialPC
-
Base ColorGrey
-
Cover ColorGrey
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~110°C
-
Warranty1 Year
-
Length3.94 in
-
Width3.94 in
-
Height3.94 in
-
Weight0.68 lb
::specification::
Frequently Asked Questions
What applications is the Boxco S-Series 100x100x100mm plastic enclosure best suited for?
This enclosure is suited for protecting compact electrical or electronic components in industrial, commercial, and outdoor equipment housings. Its IP67 sealing, IK08 impact rating, and anti-static polycarbonate construction make it a practical choice where dust, water, and incidental impact resistance matter.
Is this enclosure suitable for outdoor use?
Yes. Boxco states that ultraviolet stabilizer is added to this S-Series enclosure to support outdoor usage and reduce visible color change over long periods. The IP67 rating also helps protect against dust ingress and temporary water exposure in demanding environments.
What are the key specifications of this enclosure?
This model measures 3.94 x 3.94 x 3.94 inches, or 100 x 100 x 100 mm, and weighs 0.3100 kg. It is a screw-type plastic enclosure made from polycarbonate (PC) with a grey cover, rated IP67 and IK08, with an operating temperature range of -40°C to 110°C.
How durable is this enclosure in industrial environments?
This model is made from high impact resistant polycarbonate and carries an IK08 impact rating, which supports use in tougher environments. Boxco also describes the material as resistant to breakage during hole and press processing, making it a durable option for demanding applications.
Does this enclosure support internal mounting accessories or equipment?
Yes. The enclosure includes internal mounting plate attachment points with brass inserted injection molding, designed to hold heavier internal equipment more securely. It also includes pre-molded mounting screw nuts that support adding DIN rail or similar internal hardware.
What makes this model different from a general-purpose plastic box?
Compared with a basic plastic enclosure, this model combines several protective features in one housing: IP67 sealing, IK08 impact resistance, UV-stabilized material for outdoor use, and anti-static protection for sensitive instruments. It also includes molded mounting provisions and a gasket designed for strong waterproof and dust-proof performance.
