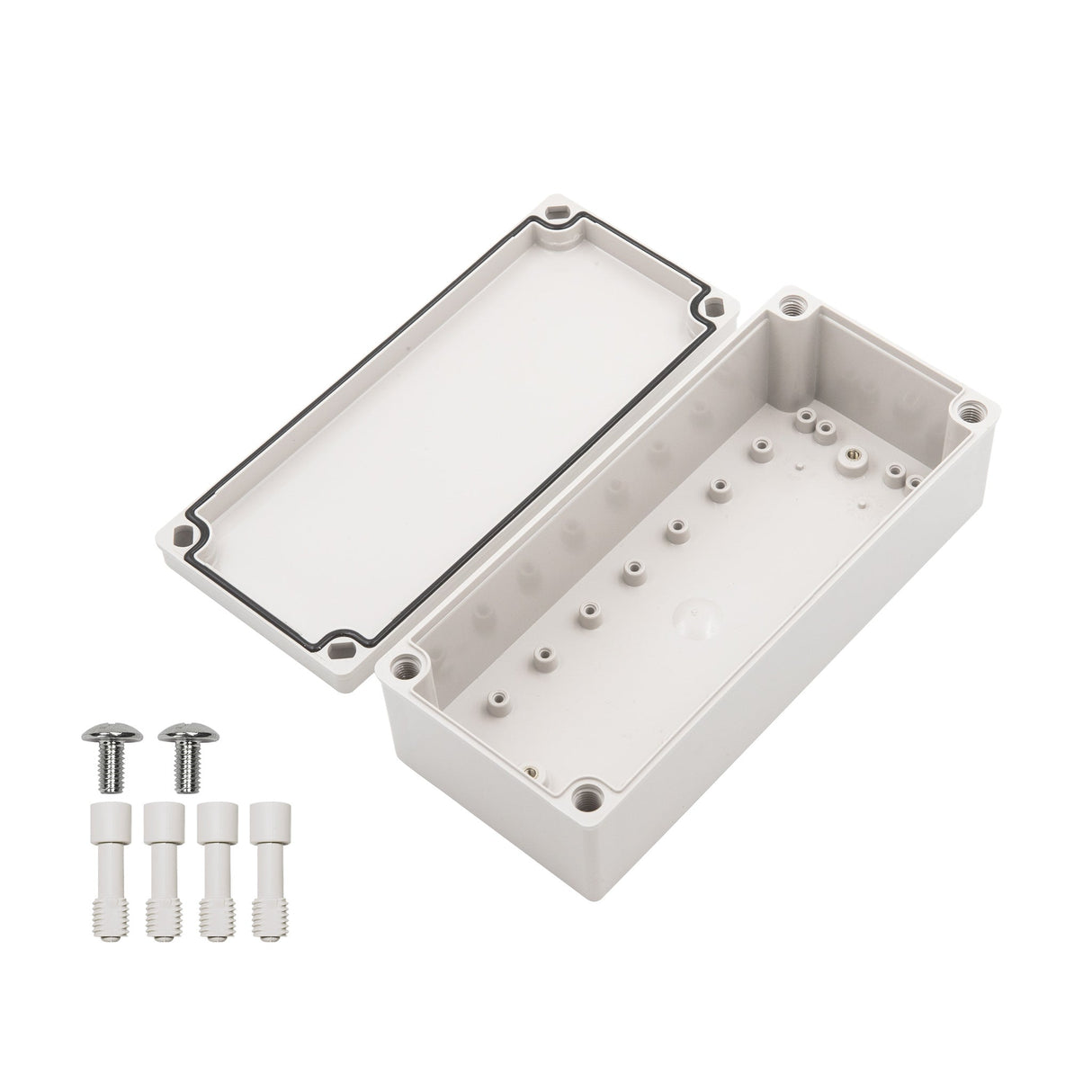

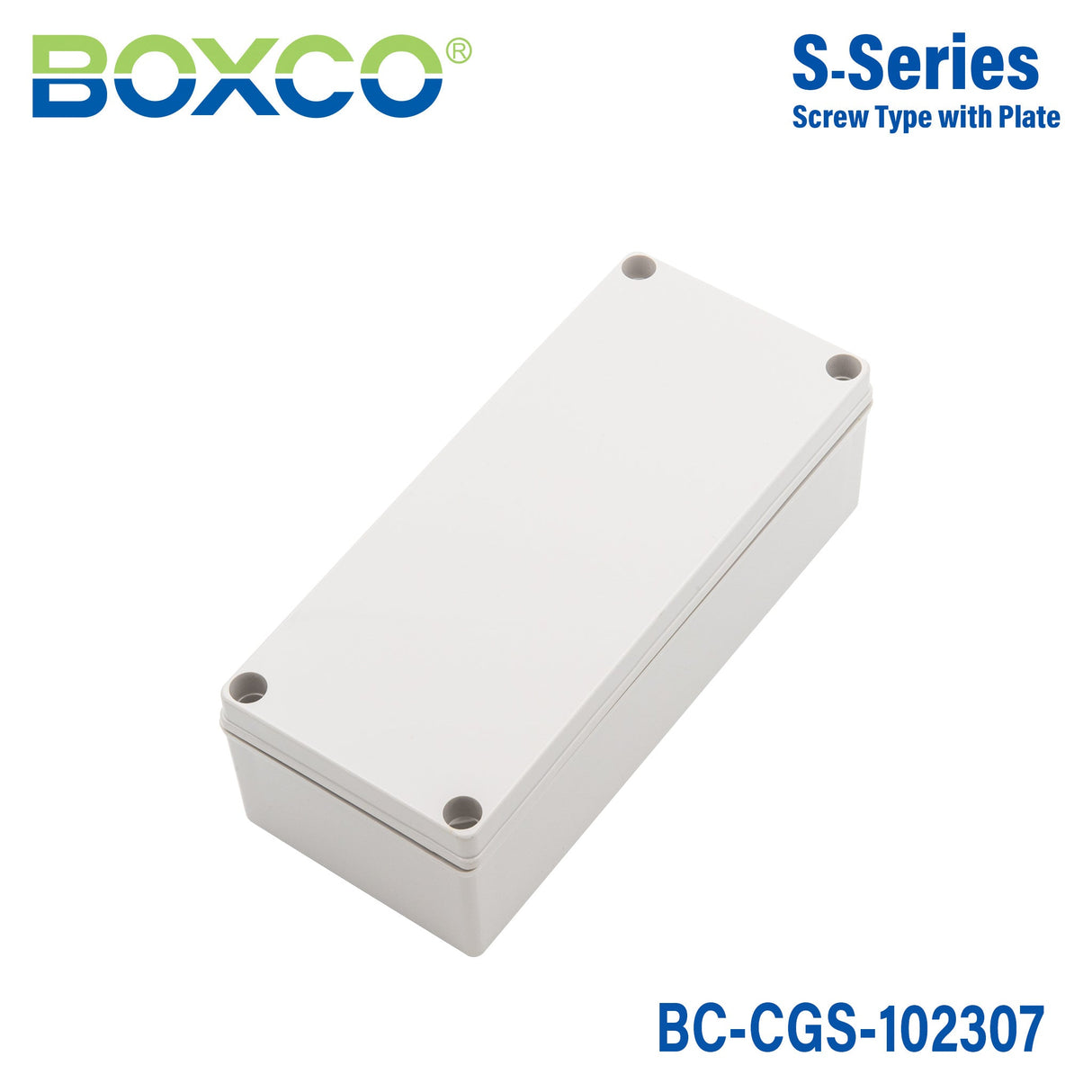

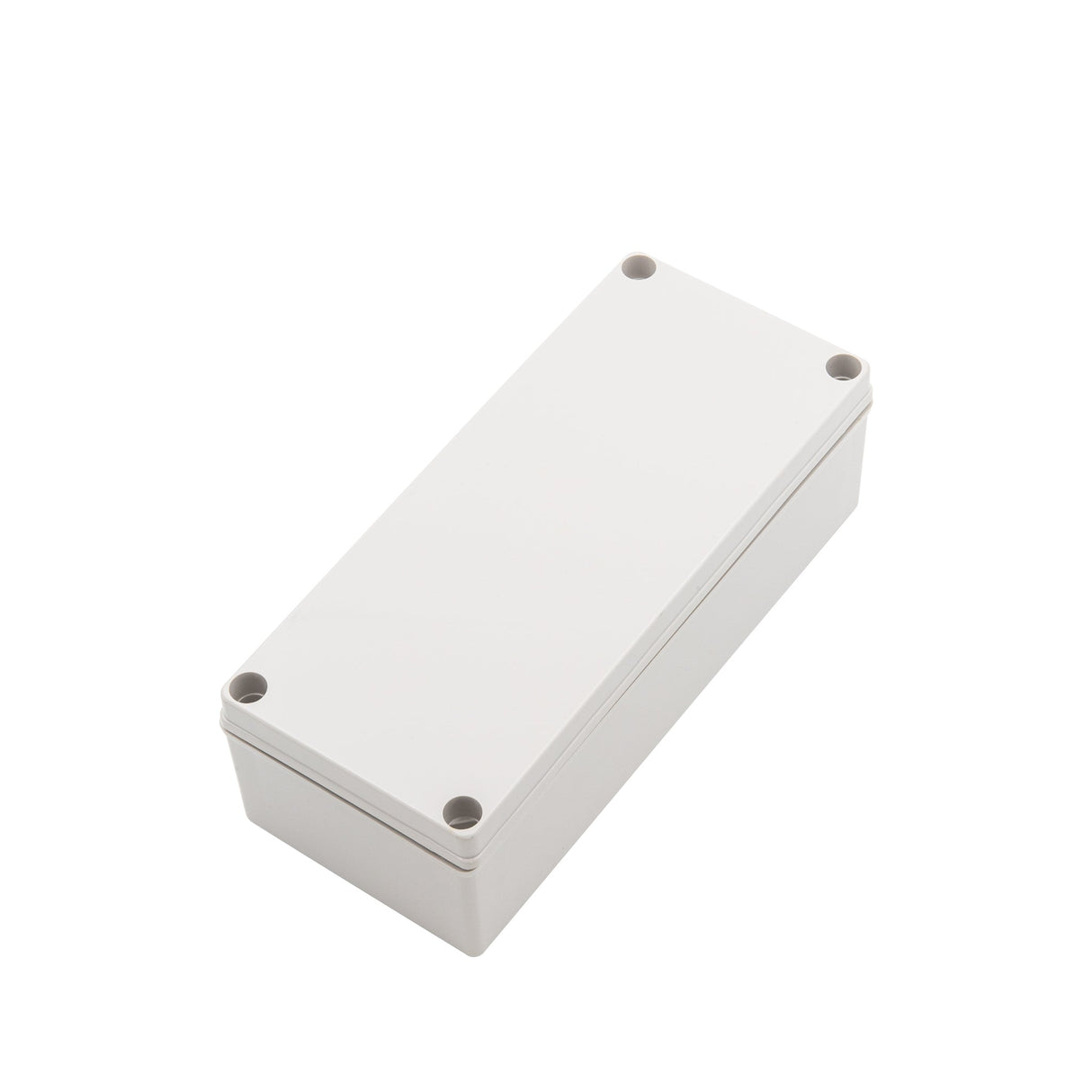

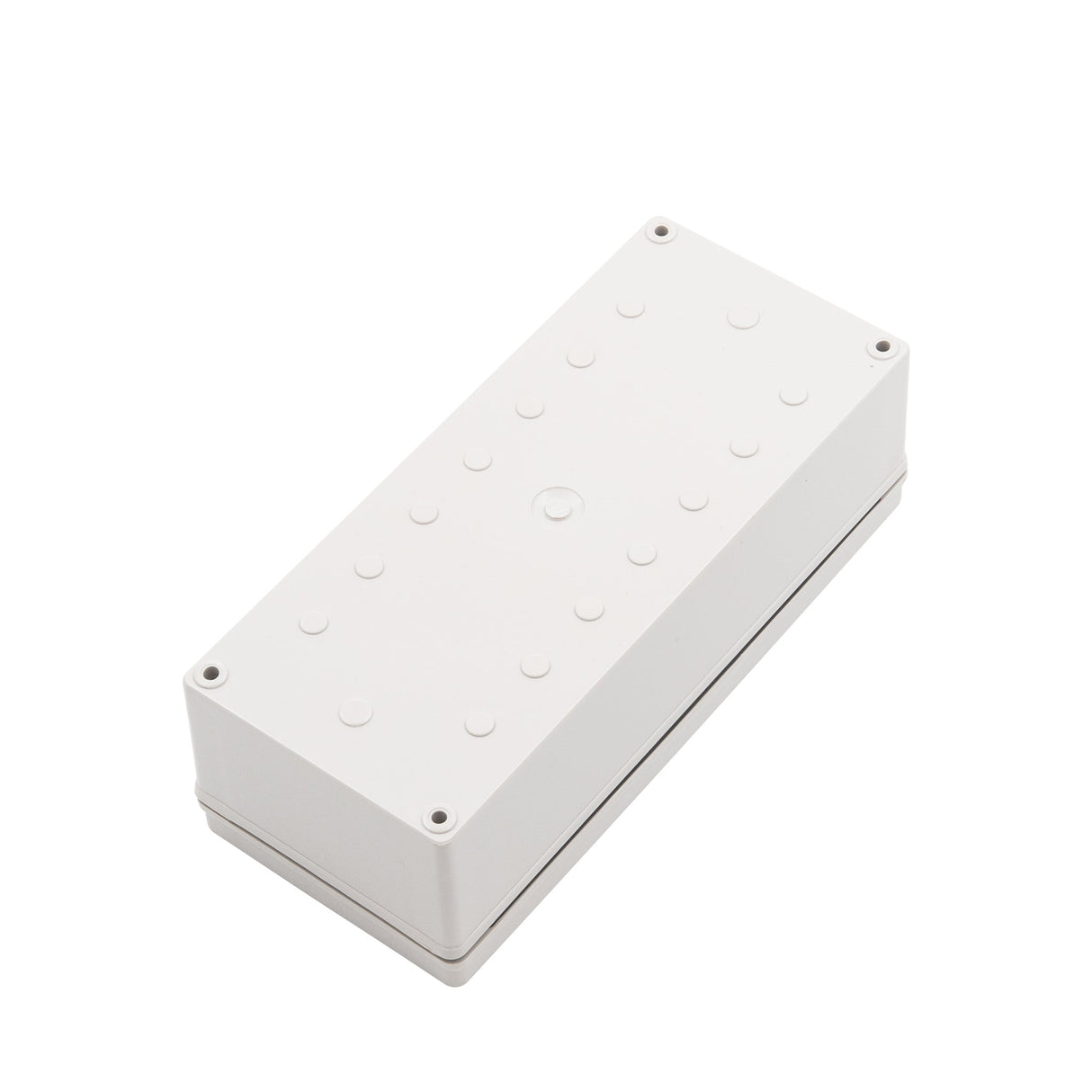

Boxco S-Series 3.94 x 9.06 x 2.76 Inches(100x230x70mm) Plastic Encl...
For Boxco S-Series, Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features
- Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure
- Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
- Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance
- Cover Bolt Attachment Point – Screw thread was made in injection molding to ensure maximum strength
-
BrandBoxco
-
SeriesBoxco S Series
-
MaterialPC
-
Base ColorGrey
-
Cover ColorGrey
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~110°C
-
Warranty1 Year
-
Length3.94 in
-
Width9.06 in
-
Height2.76 in
-
Weight0.99 lb
::specification::
Frequently Asked Questions
What are the main specifications of the Boxco S-Series BC-CGS-102307 enclosure?
This model is a plastic screw-type enclosure with external dimensions of 3.94 x 9.06 x 2.76 inches (100 x 230 x 70 mm). It has an IP67 rating for dust and water protection, an IK08 impact rating, and a grey polycarbonate cover. The listed product weight is 0.4500 kg.
Is this enclosure suitable for outdoor or harsh environments?
Yes, this Boxco S-Series enclosure is designed for demanding environments, including outdoor use. The description states that an ultraviolet stabilizer is added to help reduce long-term color change outdoors, and the gasket is designed for strong waterproof and dust-proof performance. Its IP67 and IK08 ratings also support use where moisture, dust, and impact resistance matter.
What temperature range can this enclosure handle?
The specified operating temperature range for this model is -40 °C to 110 °C. That makes it suitable for applications exposed to both very low and high ambient temperatures. Buyers should still confirm the full system's temperature limits, not just the enclosure rating.
What types of applications is this enclosure commonly used for?
This enclosure is intended for protecting sensitive electronic instruments and other enclosed components that benefit from a sealed, impact-resistant housing. Its anti-static material, waterproof design, and internal equipment mounting features make it relevant for industrial, control, and outdoor equipment protection. It is especially useful where a durable non-metallic enclosure is preferred.
Does this enclosure support mounting internal components?
Yes, the product description highlights several features meant to support internal equipment mounting. It includes internal mounting plate attachment points with brass inserted injection molding, and it also has pre-molded mounting screw nuts for securing items such as DIN rail or other equipment. These features help accommodate heavier internal assemblies more securely.
What distinguishes this Boxco S-Series enclosure from a basic plastic box?
This model offers more than a basic utility box by combining IP67 sealing, IK08 impact resistance, anti-static material, and UV-stabilized construction. The design also includes molded-in attachment points and screw-thread strength features intended for more demanding commercial and industrial use. That makes it a stronger choice when durability and environmental protection are more important than simple cover-and-container functionality.
