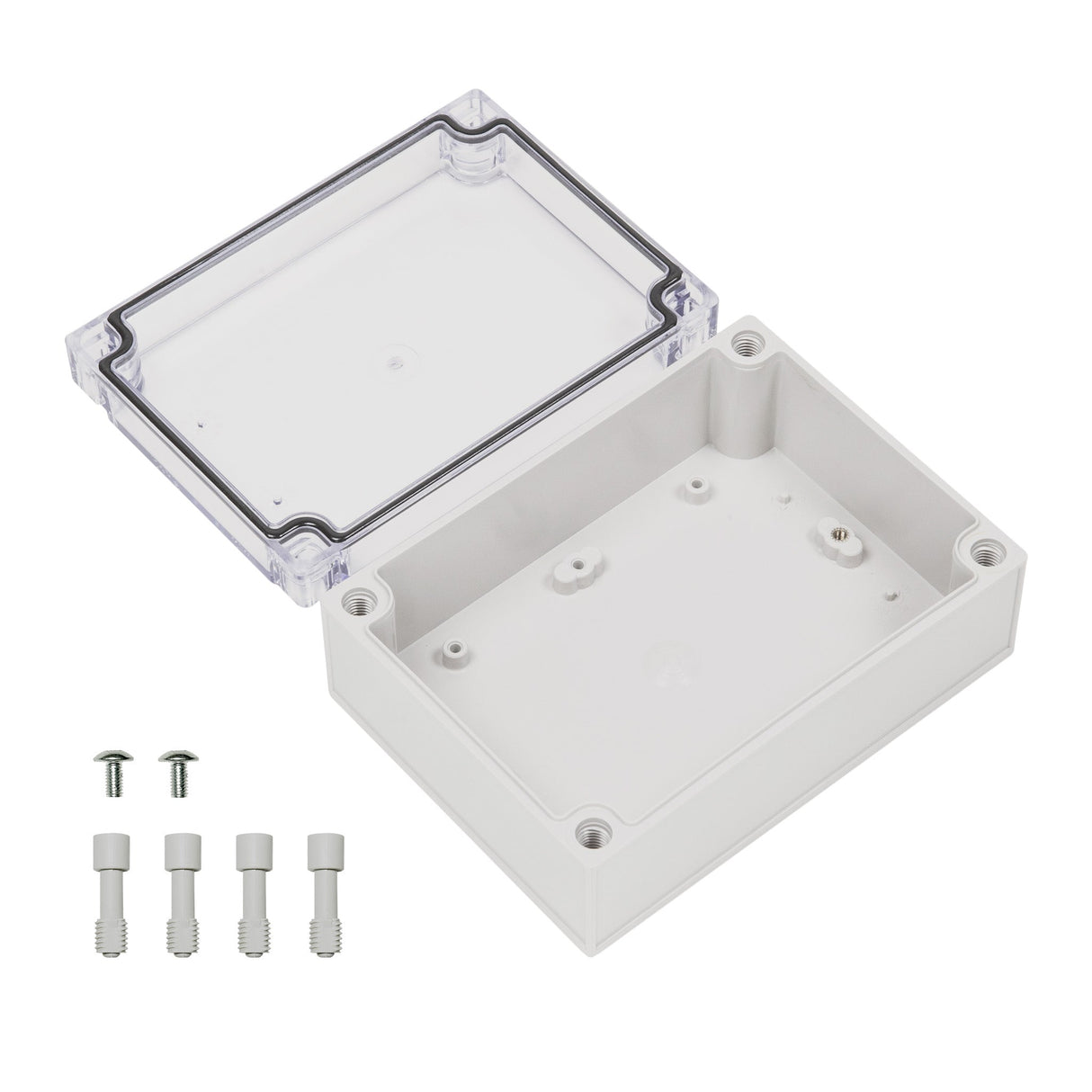

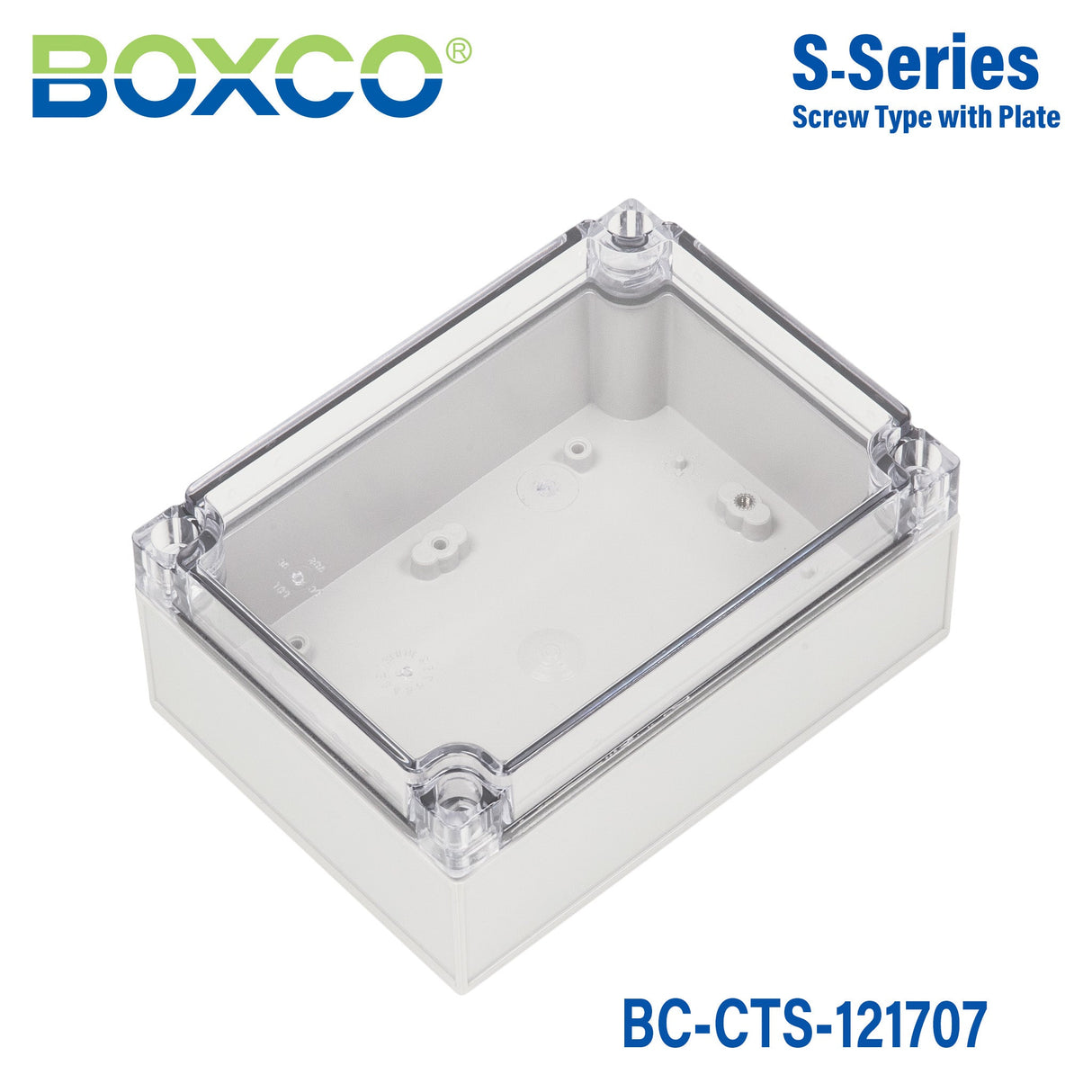

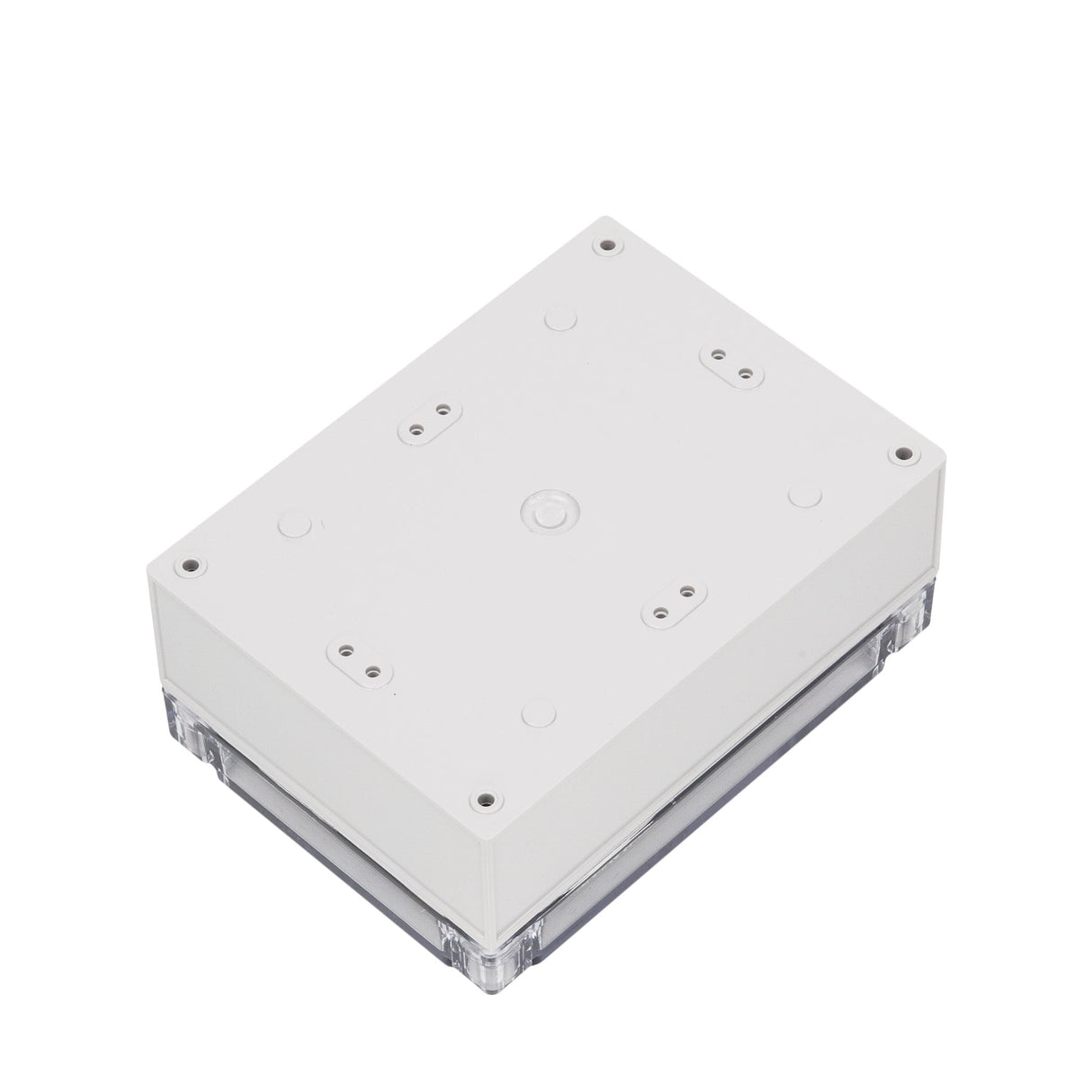

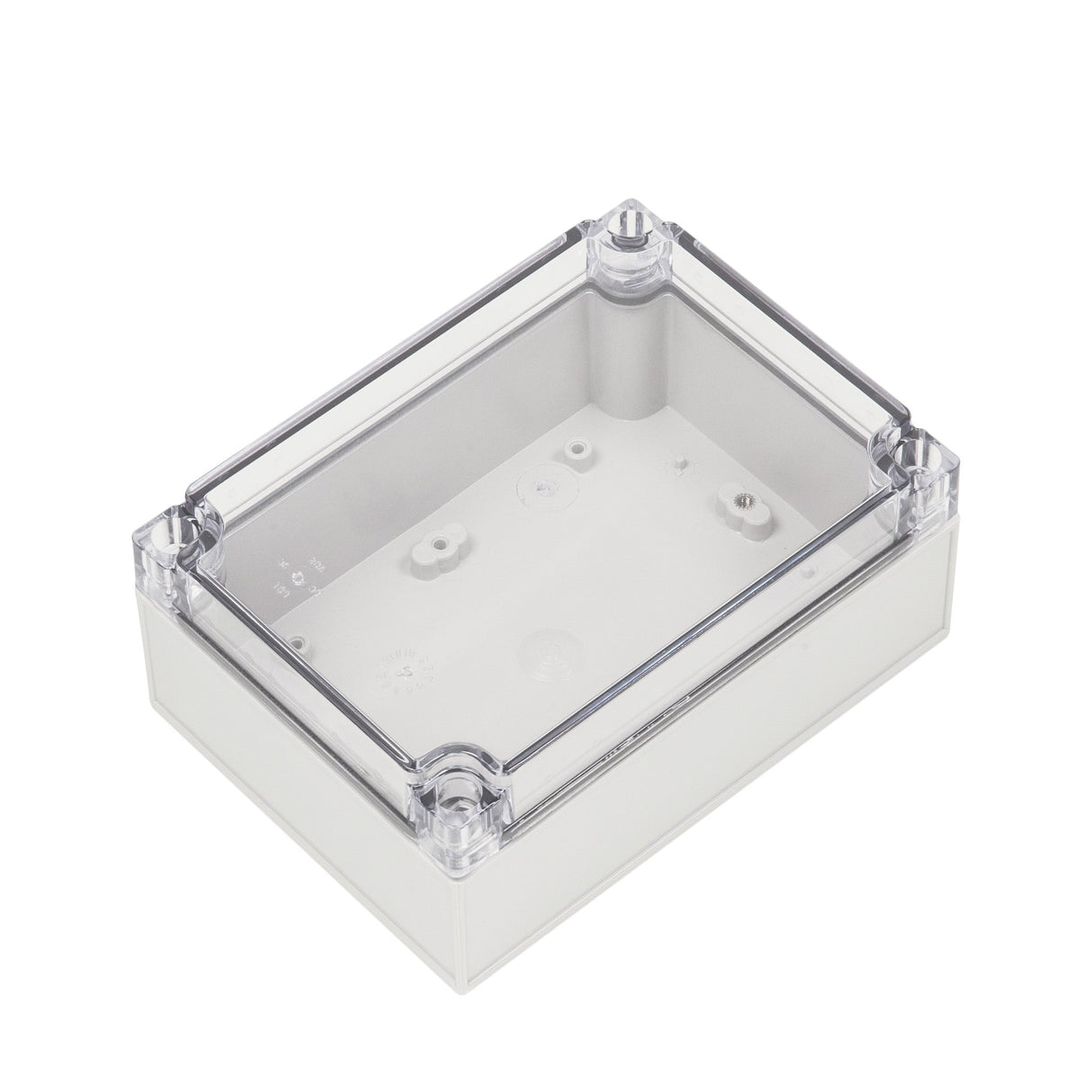

Boxco S-Series 4.92 x 6.89 x 2.95 Inches(125x175x75mm) Plastic Encl...
For Boxco S-Series, Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features
- Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure
- Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
- Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance
- Cover Bolt Attachment Point – Screw thread was made in injection molding to ensure maximum strength
-
BrandBoxco
-
SeriesBoxco S Series
-
MaterialPC
-
Base ColorGrey
-
Cover ColorTransparent
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~110°C
-
Warranty1 Year
-
Length4.92 in
-
Width6.89 in
-
Height2.95 in
-
Weight0.99 lb
::specification::
Frequently Asked Questions
What applications is the Boxco S-Series BC-CTS-121707 enclosure suited for?
This model is designed for protecting electronic components and instruments in industrial or commercial environments where dust, water, and impact resistance matter. Its transparent cover is useful when internal indicators or components need to remain visible without opening the enclosure.
Is this enclosure suitable for outdoor use?
Yes. Boxco states that this S-Series enclosure includes an ultraviolet stabilizer to help protect it in outdoor conditions and reduce noticeable color change over time. It also carries an IP67 rating for strong protection against dust and water ingress.
What are the key specifications of the BC-CTS-121707 enclosure?
This enclosure measures 4.92 x 6.89 x 2.95 inches (125 x 175 x 75 mm) and weighs 0.4500 kg. It is made from polycarbonate (PC), uses a transparent screw-type cover, and is rated IP67 and IK08.
How durable is this plastic enclosure?
This model is built from high impact resistant polycarbonate and carries an IK08 impact rating. Boxco also notes the material is designed to resist breakage during hole and press processing, making it a strong choice for demanding enclosure applications.
What temperature range can this enclosure handle?
The BC-CTS-121707 is specified for use from -40 °C to 110 °C. That wide operating range makes it suitable for environments with both low and high temperature exposure.
What internal mounting support does this enclosure provide?
This enclosure includes mounting plate attachment points with brass inserted injection molding for securing heavier internal equipment. It also has pre-molded mounting screw nuts that support fastening compatible internal hardware such as DIN rail accessories.
