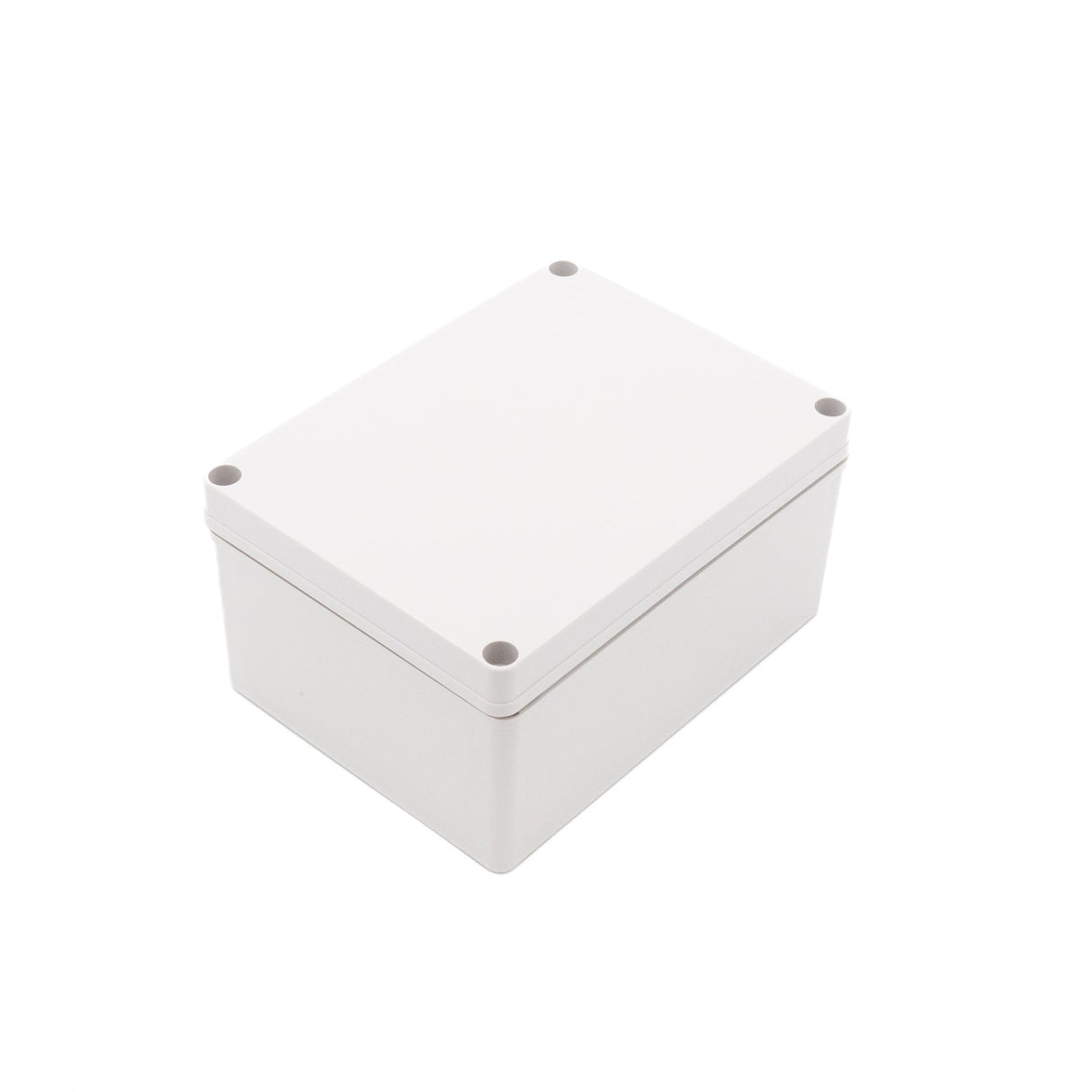

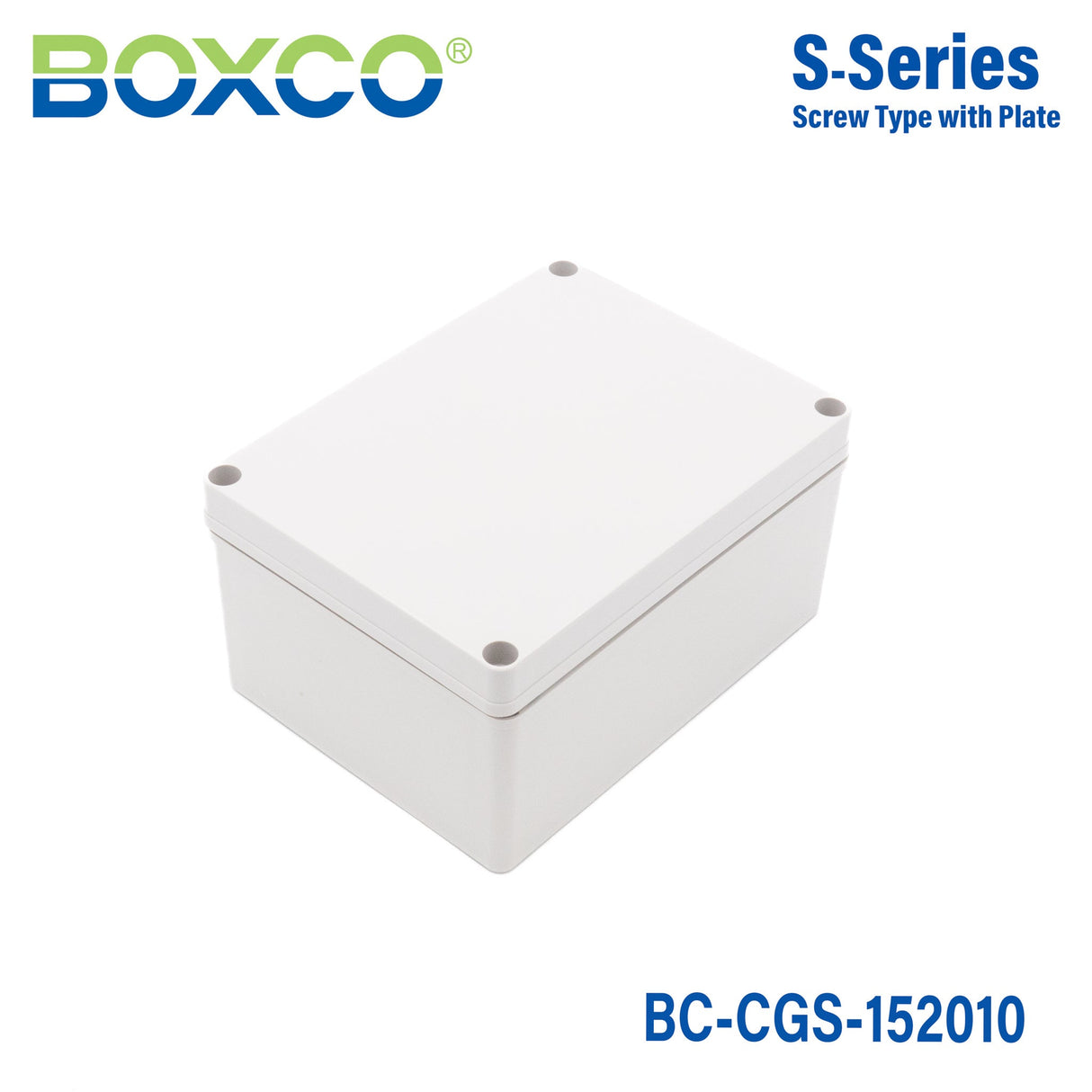

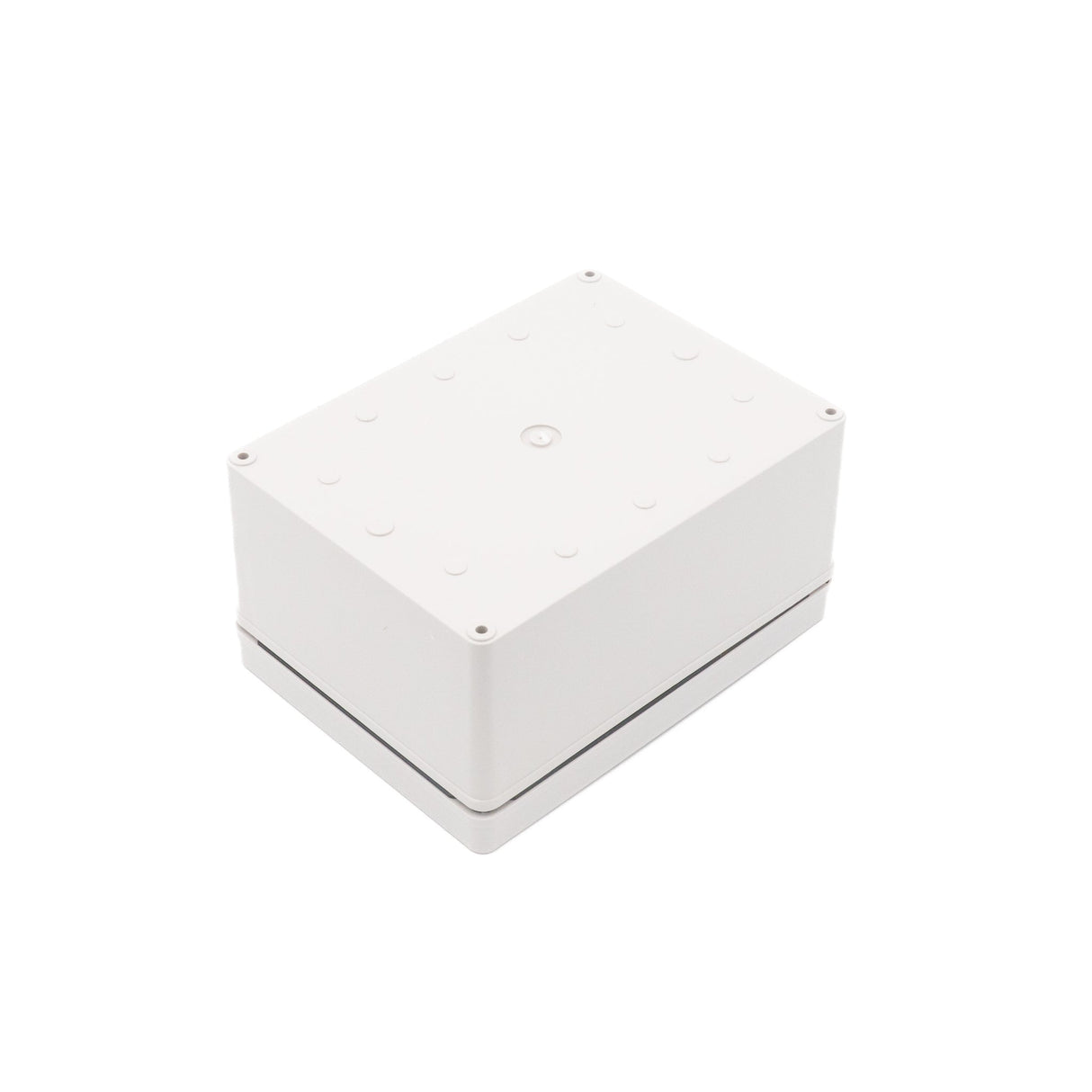

Boxco S-Series 5.91 x 7.87 x 3.94 Inches(150x200x100mm) Plastic Enc...
For Boxco S-Series, Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features
- Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure
- Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
- Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance
- Cover Bolt Attachment Point – Screw thread was made in injection molding to ensure maximum strength
-
BrandBoxco
-
SeriesBoxco S Series
-
MaterialPC
-
Base ColorGrey
-
Cover ColorGrey
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~110°C
-
Warranty1 Year
-
Length5.91 in
-
Width7.87 in
-
Height3.94 in
-
Weight1.22 lb
::specification::
Frequently Asked Questions
What applications is the Boxco S-Series BC-CGS-152010 enclosure suited for?
This enclosure is suited for protecting electronic components and control devices in industrial, commercial, and OEM applications where a sealed plastic housing is needed. Its IP67 rating, IK08 impact rating, and anti-static PC construction make it a practical choice for environments that demand dust resistance, water protection, and durable equipment housing.
Can this enclosure be used outdoors?
Yes. Boxco states that this S-Series model includes an ultraviolet stabilizer to support outdoor use and reduce visible color change over time. It is also designed for strong waterproof and dust-proof performance through its gasketed construction.
What are the key specifications of the BC-CGS-152010 enclosure?
This model measures 5.91 x 7.87 x 3.94 inches, which is 150 x 200 x 100 mm. It is a screw-type plastic enclosure with a grey cover, made from PC material, rated IP67 and IK08, with an operating temperature range of -40 degrees C to 110 degrees C.
How durable is this plastic enclosure compared with standard general-purpose boxes?
This model is built from high impact resistant PC material and carries an IK08 impact rating, which makes it more robust than basic non-rated plastic housings. Boxco also notes that the material is designed to resist breakage during hole and press processing, which supports demanding enclosure applications.
Is this enclosure a good choice for protecting sensitive electronic equipment?
Yes. Boxco specifies that anti-static material is used in this model to help protect sensitive electronic instruments from static electricity. That makes it a stronger fit for electronics protection than enclosures that do not mention anti-static properties.
What internal equipment support features does this enclosure include?

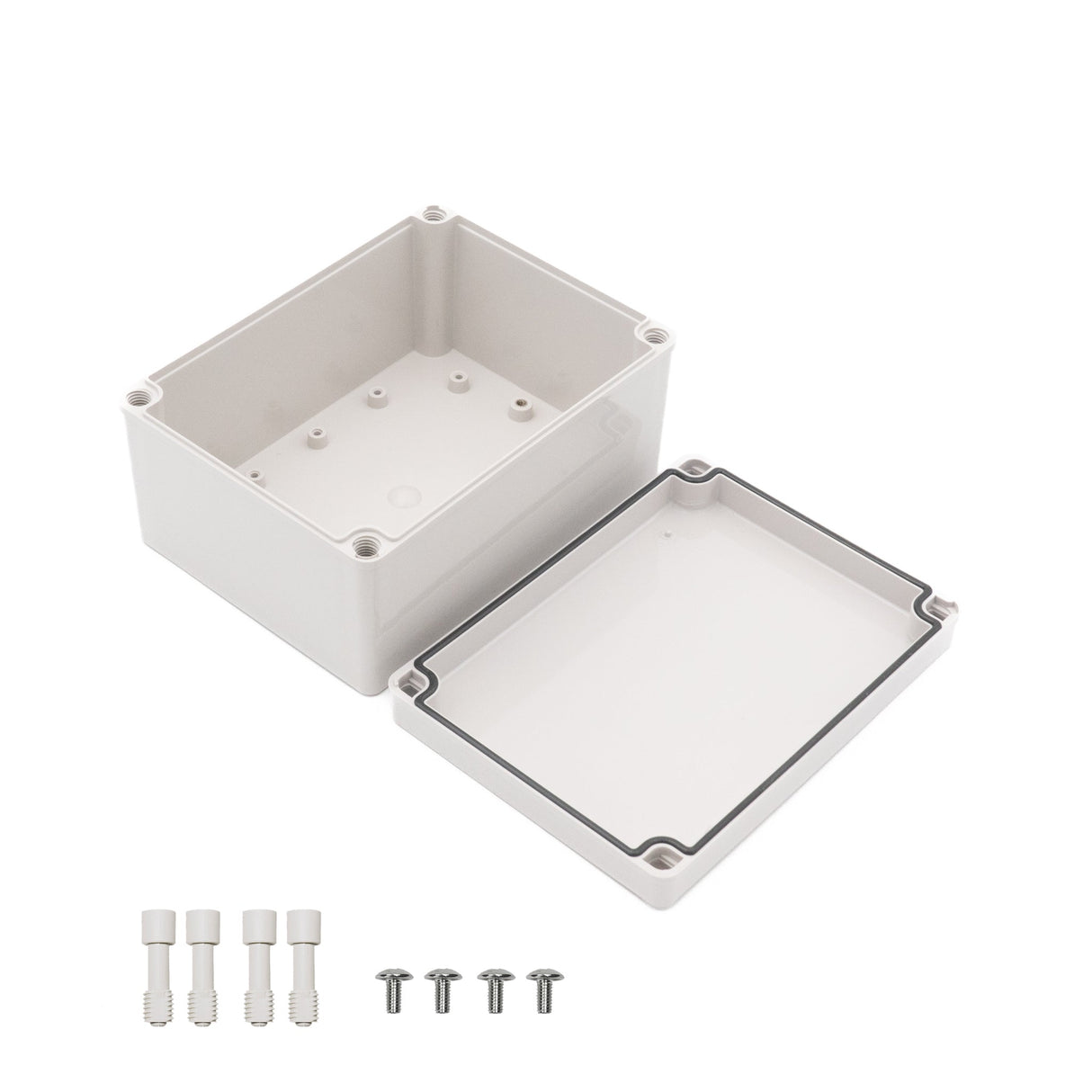

The enclosure includes mounting plate attachment points with brass inserted injection molding so an internal mounting plate can be fixed tightly for heavier equipment. It also has pre-molded mounting screw nuts that allow DIN rail or other equipment to be secured inside the enclosure.
