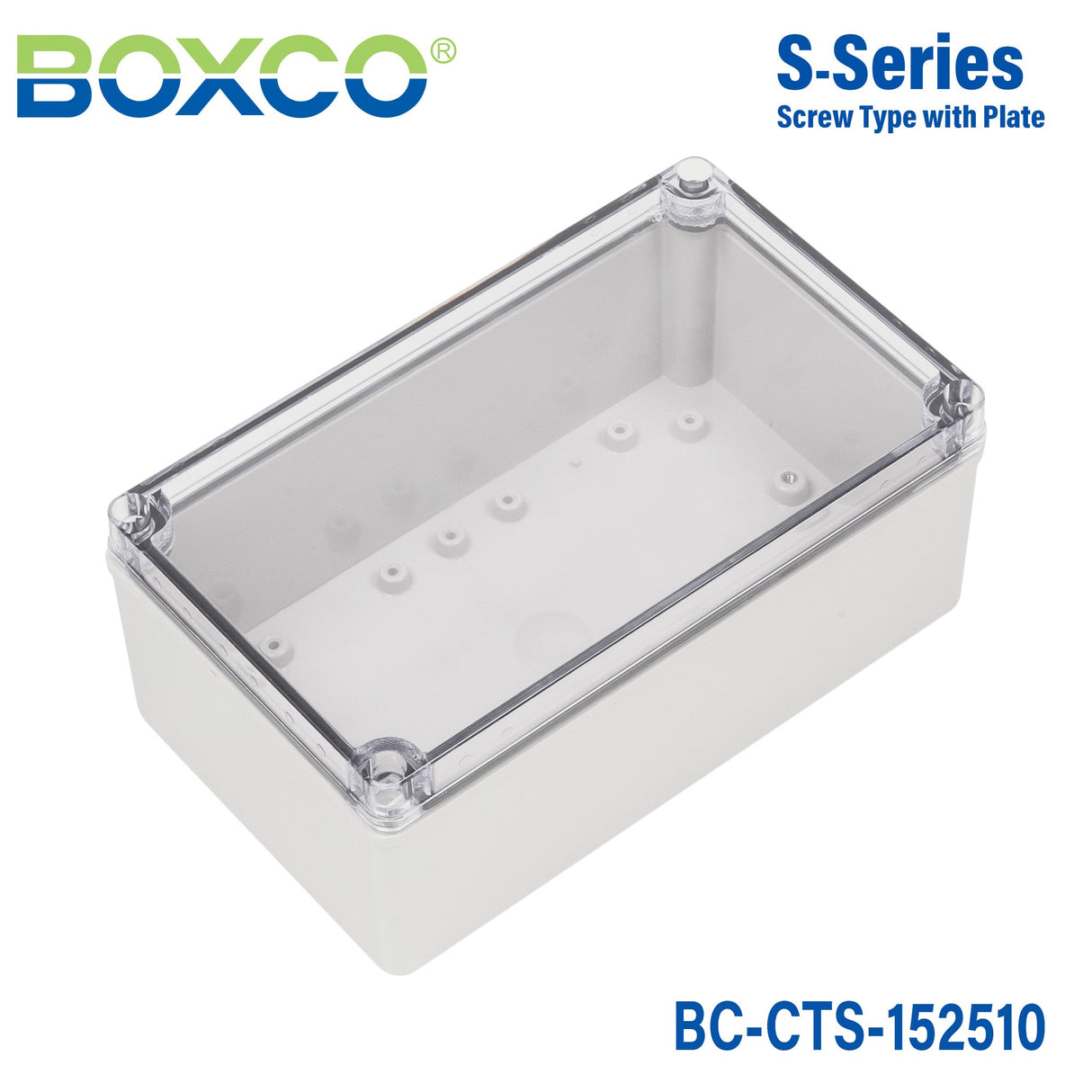

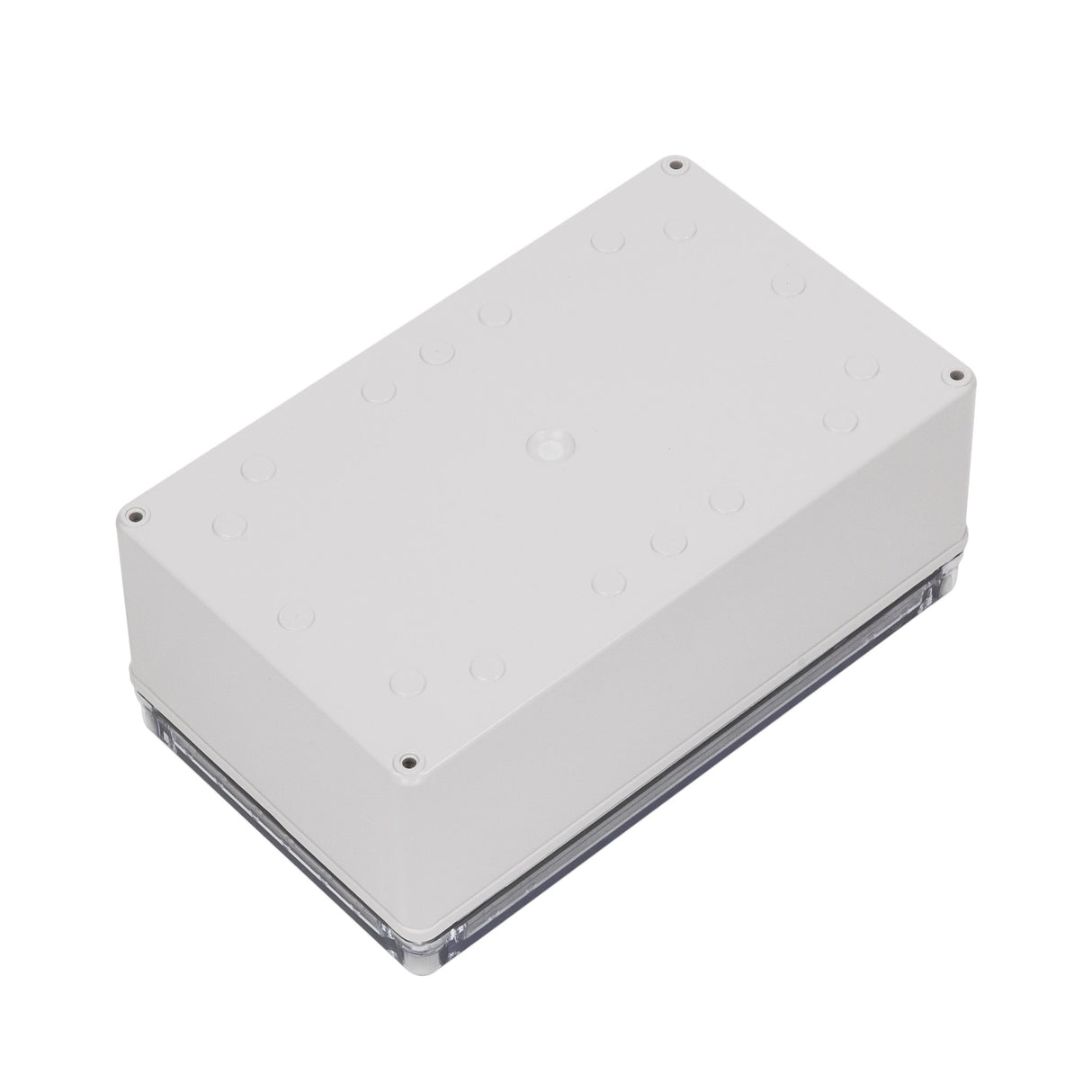

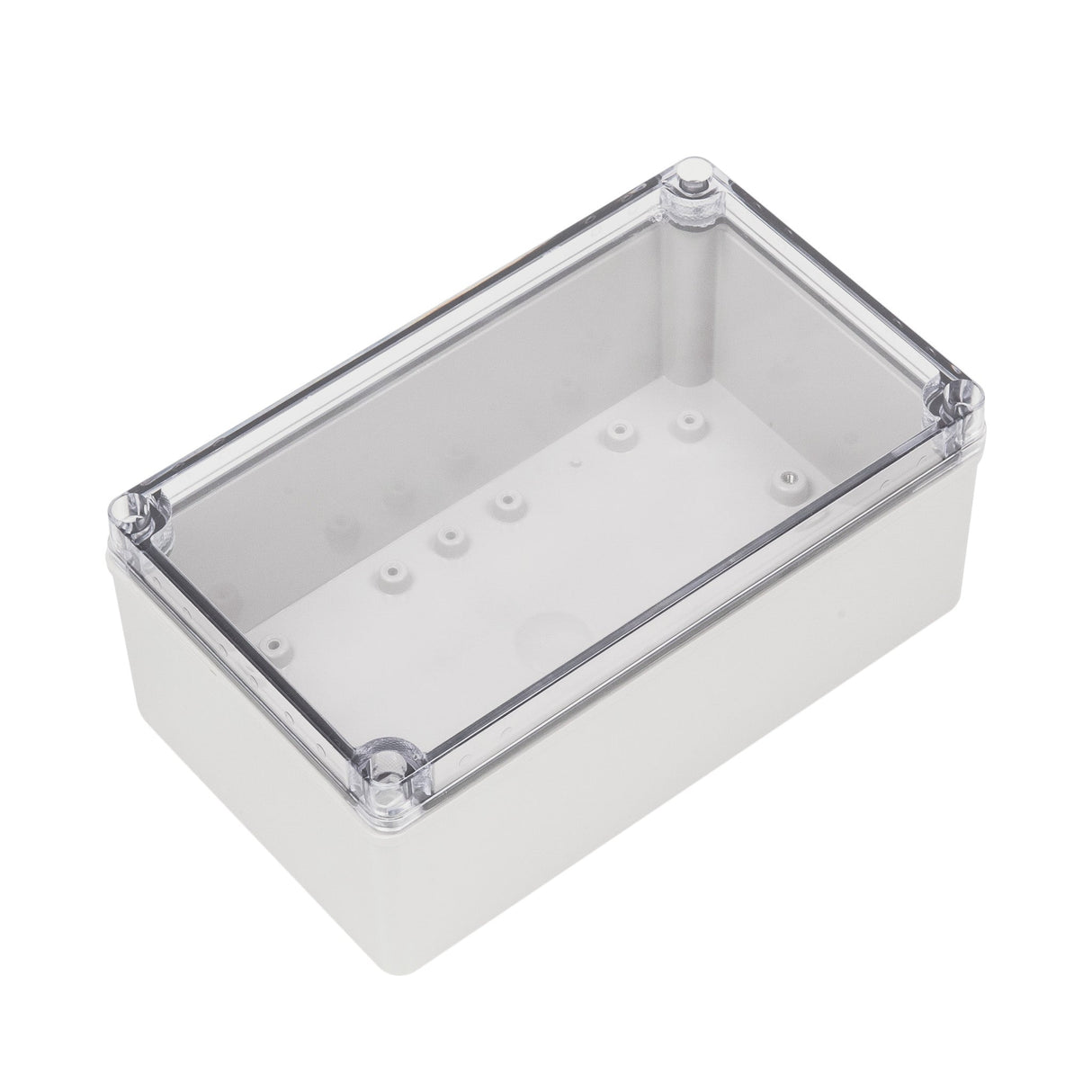

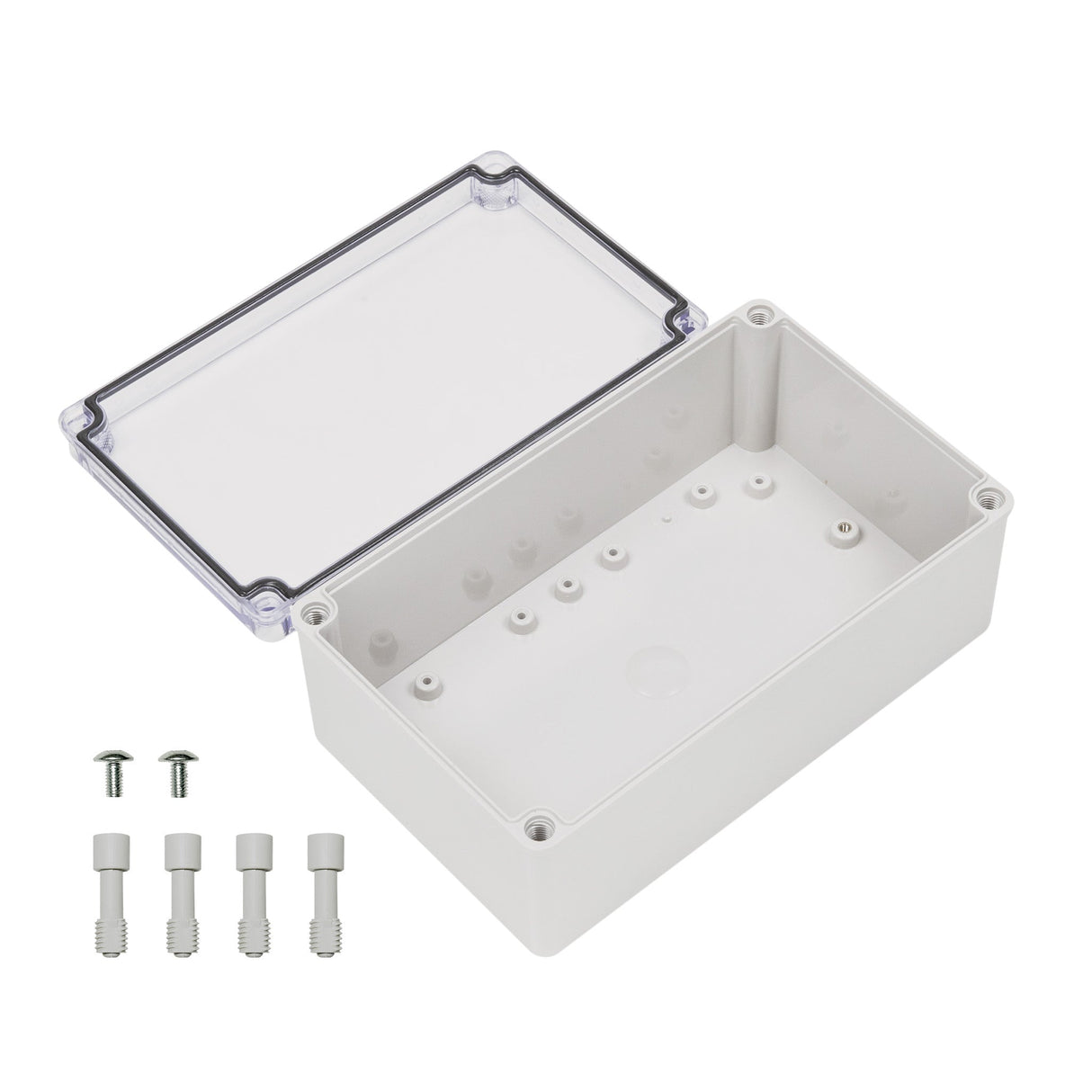

Boxco S-Series 5.91 x 9.84 x 3.94 Inches(150x250x100mm) Plastic Enc...
For Boxco S-Series, Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features
- Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure
- Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
- Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance
- Cover Bolt Attachment Point – Screw thread was made in injection molding to ensure maximum strength
-
BrandBoxco
-
SeriesBoxco S Series
-
MaterialPC
-
Base ColorGrey
-
Cover ColorTransparent
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~110°C
-
Warranty1 Year
-
Length5.91 in
-
Width9.84 in
-
Height3.94 in
-
Weight2.01 lb
::specification::
Frequently Asked Questions
What is this Boxco S-Series enclosure typically used for?
This model is suited to protecting electronic components and control assemblies that need a sealed plastic housing. Its transparent cover makes it useful when you need to inspect indicators or internal components without opening the enclosure.
Is this enclosure suitable for outdoor or washdown environments?
This enclosure is rated IP67, which indicates strong protection against dust ingress and temporary water exposure. The product description also states that UV stabilizer is added for outdoor usage, helping limit visible color change over time.
What are the key size and material specs for this model?
This Boxco S-Series enclosure measures 5.91 x 9.84 x 3.94 inches, which corresponds to 150 x 250 x 100 mm. It is made from polycarbonate and includes a transparent screw-type cover, with a listed weight of 0.91 kg.
How durable is this enclosure for industrial use?
This model carries an IK08 impact rating, and the description highlights high-impact-resistant material for protection against external impact. Boxco also notes that the enclosure is designed to resist breakage during hole and press processing.
What temperature range can this enclosure handle?
The specified operating temperature range is -40 degrees C to 110 degrees C. That makes it a practical option for both cold and high-heat environments where standard plastic housings may be too limited.
What built-in features make this enclosure easier to use with internal components?
This model includes mounting plate attachment points, pre-molded mounting screw nuts, and cover bolt attachment points formed during injection molding for added strength. It also uses a precision-injected gasket to support waterproof and dust-proof performance.
