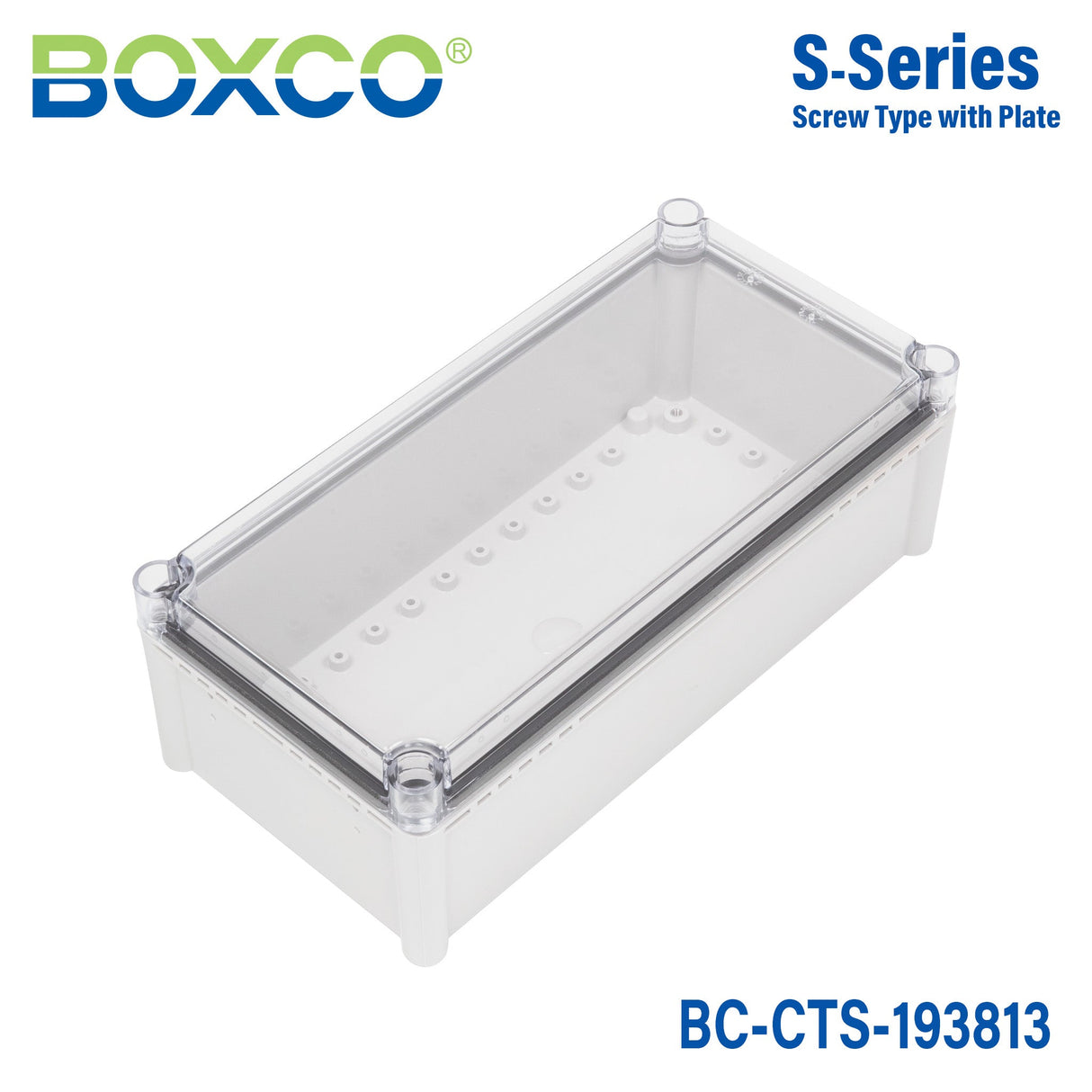

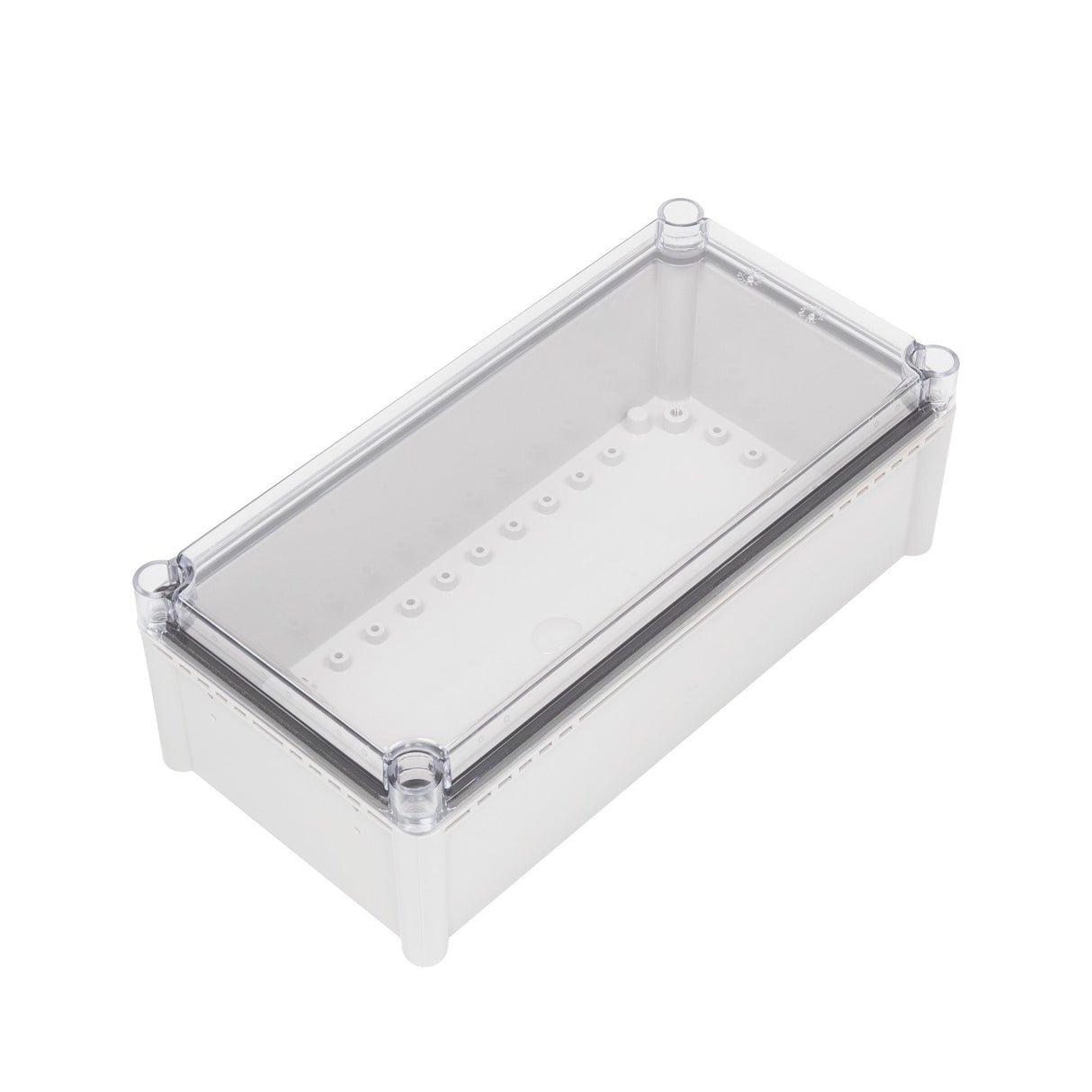

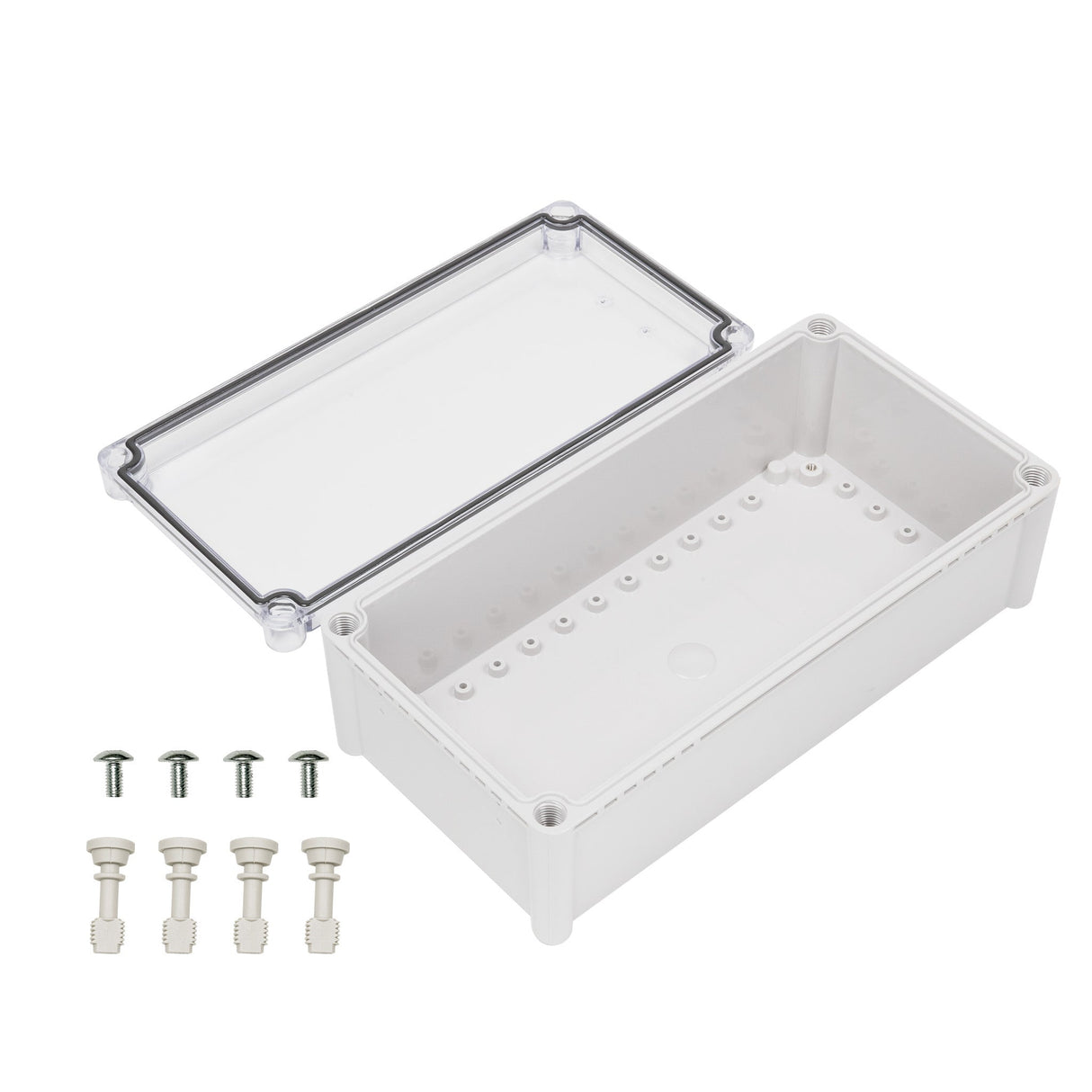

Boxco S-Series 7.48 x 14.96 x 5.12 Inches(190x380x130mm) Plastic En...
For Boxco S-Series, Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features
- Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure
- Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
- Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance
- Cover Bolt Attachment Point – Screw thread was made in injection molding to ensure maximum strength
-
BrandBoxco
-
SeriesBoxco S Series
-
MaterialPC
-
Base ColorGrey
-
Cover ColorTransparent
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~110°C
-
Warranty1 Year
-
Length7.48 in
-
Width14.96 in
-
Height5.12 in
-
Weight3.02 lb
::specification::
Frequently Asked Questions
Is this enclosure suitable for outdoor or washdown environments?
This Boxco S-Series enclosure is rated IP67, so it is built for strong protection against dust ingress and temporary water exposure. The product description also states that an ultraviolet stabilizer is added for outdoor usage, helping reduce visible color change over time. Its IK08 impact rating also supports use in environments where the enclosure may see mechanical contact.
What material is this model made from, and why does that matter?
This model uses polycarbonate (PC) with a transparent cover. The description highlights high impact resistance and anti-static material, which helps protect sensitive electronic instruments from static electricity. The transparent cover is useful when components or indicators inside the enclosure need to remain visible without opening it.
What size is this enclosure?
The listed size for this model is 7.48 x 14.96 x 5.12 inches, which corresponds to 190 x 380 x 130 mm. That larger rectangular format can suit control assemblies, instrumentation housings, or other equipment layouts that need more internal room than compact junction-style boxes. Buyers should confirm their component footprint against these enclosure dimensions before ordering.
What temperature range can this enclosure handle?
This enclosure is specified for use from -40 °C to 110 °C. That makes it suitable for demanding industrial and outdoor conditions where both low-temperature exposure and elevated internal heat may be concerns. The published range is specific to this model and should be checked against the temperature needs of the equipment being housed.
What kinds of equipment is this enclosure designed to support?
The description indicates this model is intended for protecting sensitive electronic instruments and other installed equipment that benefit from waterproof, dust-proof, anti-static, and impact-resistant housing. It includes internal mounting plate attachment points and pre-molded screw nuts for securing accessories such as a DIN rail or mounting plate. Those features make it a practical choice for industrial control, monitoring, or electronics protection applications where a sealed plastic enclosure is required.
Does this enclosure include features for mounting internal components securely?
Yes. The product description states that the internal mounting plate can be fixed tightly onto brass inserted injection molding to support heavier installed equipment. It also includes pre-molded mounting screw nuts, which can help accommodate DIN rail or similar internal hardware.
