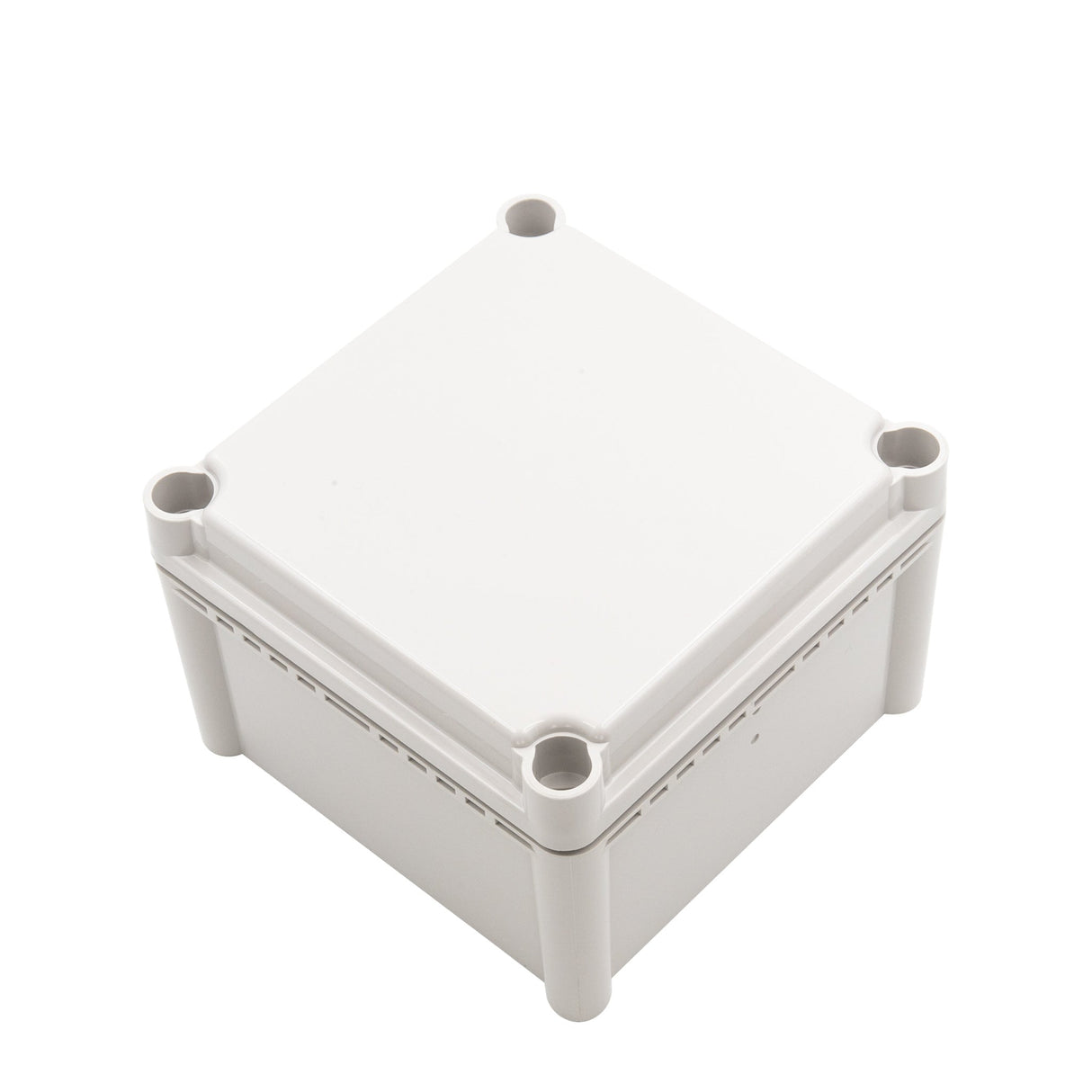

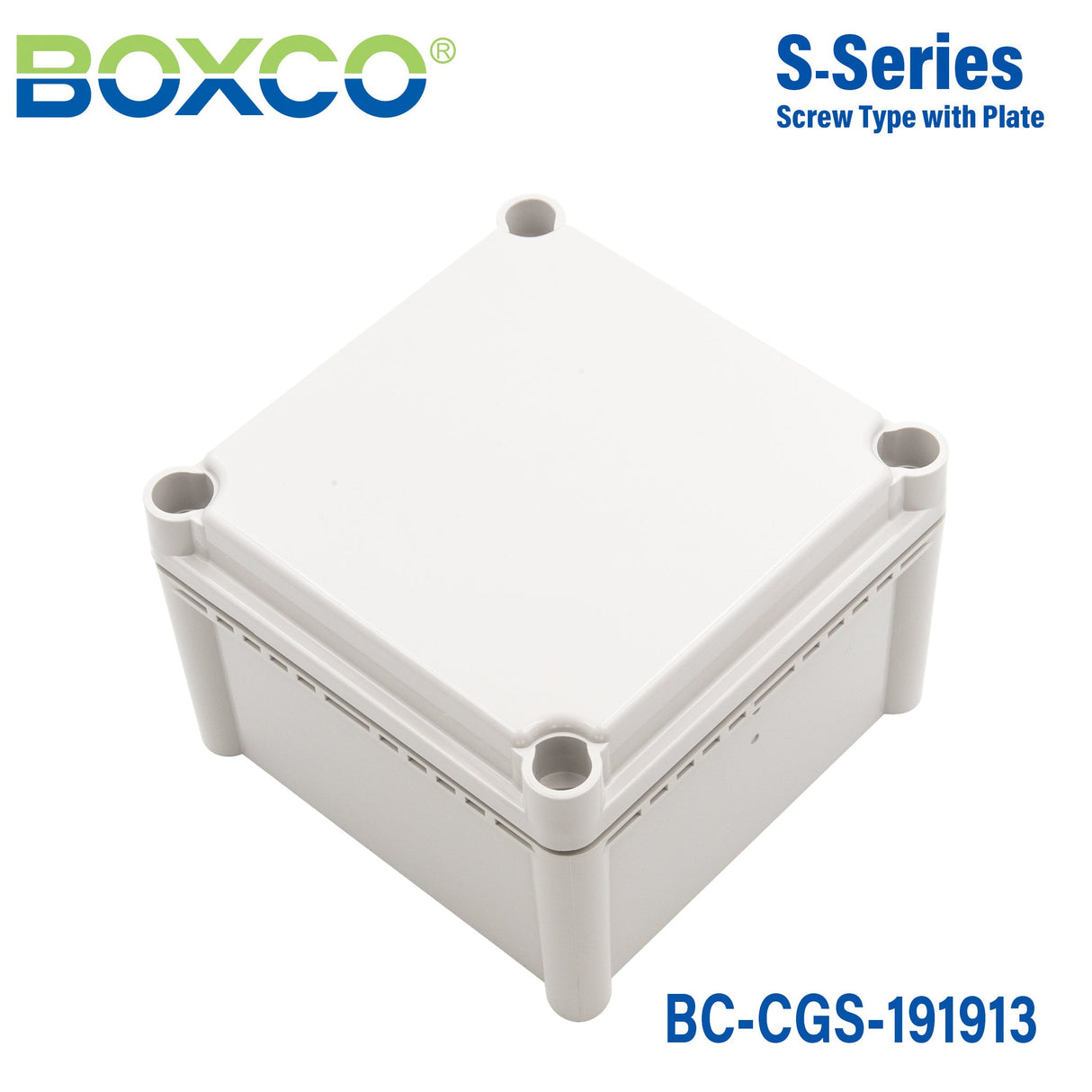

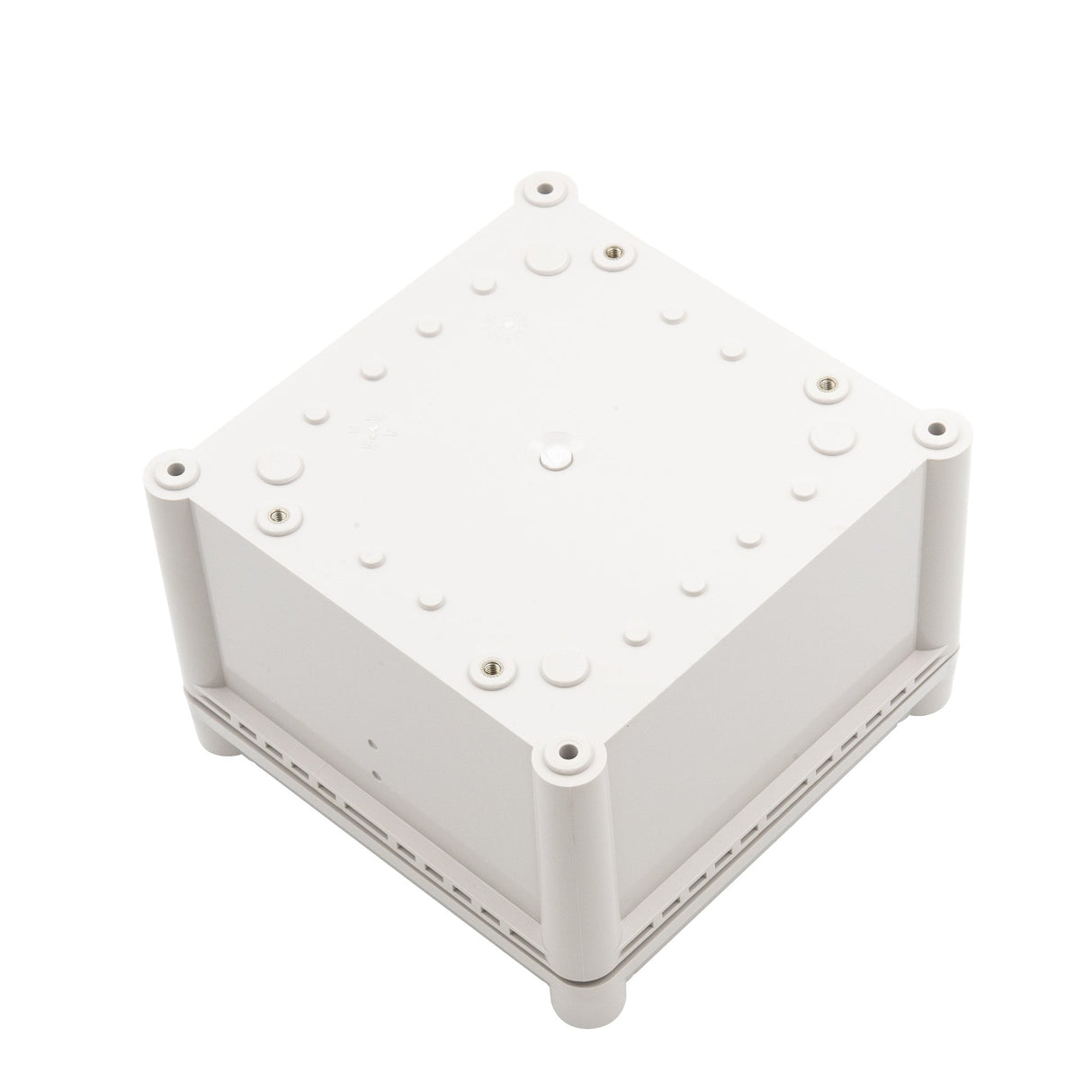

Boxco S-Series 7.48 x 7.48 x 5.12 Inches(190x190x130mm) Plastic Enc...
For Boxco S-Series, Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features

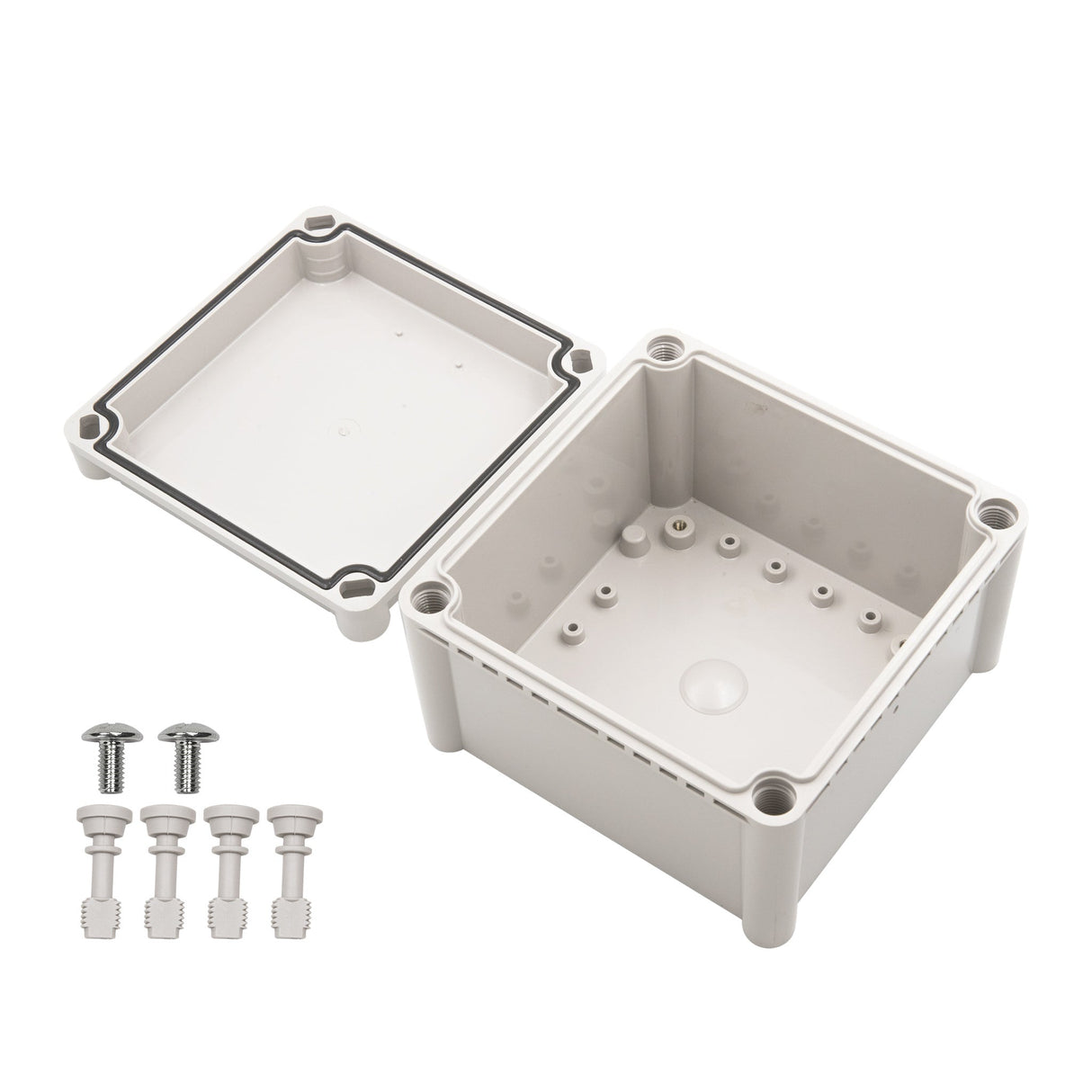

- Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure
- Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
- Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance
- Cover Bolt Attachment Point – Screw thread was made in injection molding to ensure maximum strength
-
BrandBoxco
-
SeriesBoxco S Series
-
MaterialPC
-
Base ColorGrey
-
Cover ColorGrey
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~110°C
-
Warranty1 Year
-
Length7.48 in
-
Width7.48 in
-
Height5.12 in
-
Weight1.87 lb
::specification::
Frequently Asked Questions
What applications is the Boxco S-Series BC-CGS-191913 enclosure commonly used for?
This enclosure is suited for protecting industrial and commercial electrical or electronic equipment that needs a sealed non-metallic housing. Its anti-static material and impact-resistant polycarbonate construction make it a practical choice for control, monitoring, and instrumentation applications where durability matters.
Is this enclosure suitable for outdoor or washdown environments?
Yes, this model is built for demanding environments with an IP67 rating for dust-tight protection and resistance to water ingress under defined conditions. The S-Series also includes an ultraviolet stabilizer to help limit visible color change over time in outdoor use.
What are the main material and construction features of this model?
The BC-CGS-191913 is made from polycarbonate and uses a grey screw-type cover. Boxco also specifies high impact resistance, anti-static material for sensitive electronic equipment, and molded attachment points for accessories and internal components.
What size is this plastic enclosure?
This model measures 7.48 x 7.48 x 5.12 inches, which corresponds to 190 x 190 x 130 mm. That size provides a compact square footprint with enough internal volume for many protected enclosure applications.
What temperature range can this enclosure handle?
The listed operating temperature range for this model is -40 degrees C to 110 degrees C. That range supports use in both low-temperature and elevated-temperature environments where standard indoor-only boxes may not be suitable.
How does this enclosure support internal equipment mounting?
Boxco specifies internal mounting plate attachment points with brass inserted injection molding to help secure heavier installed equipment. It also includes pre-molded mounting screw nuts that can support DIN rail or other internal hardware.
