Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

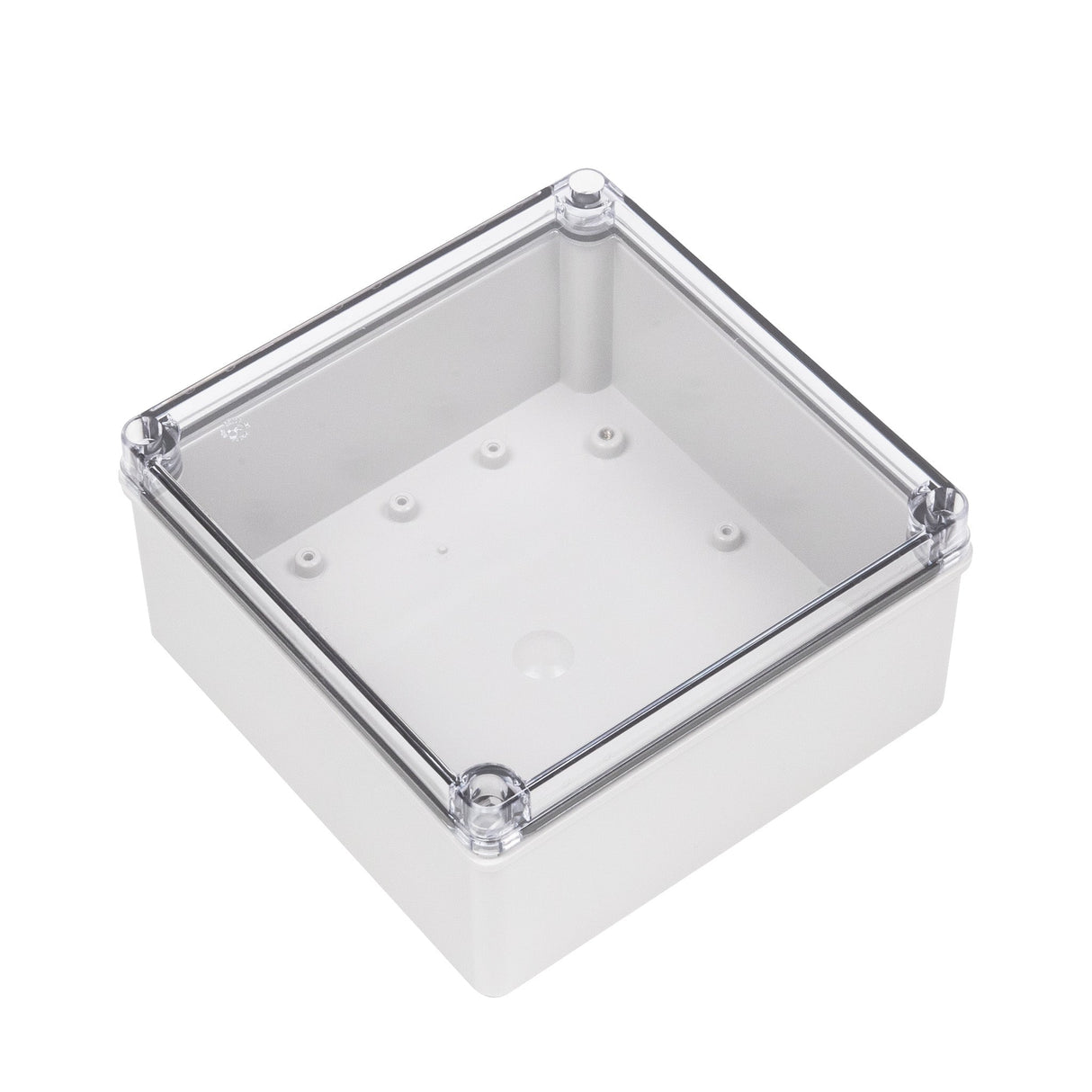

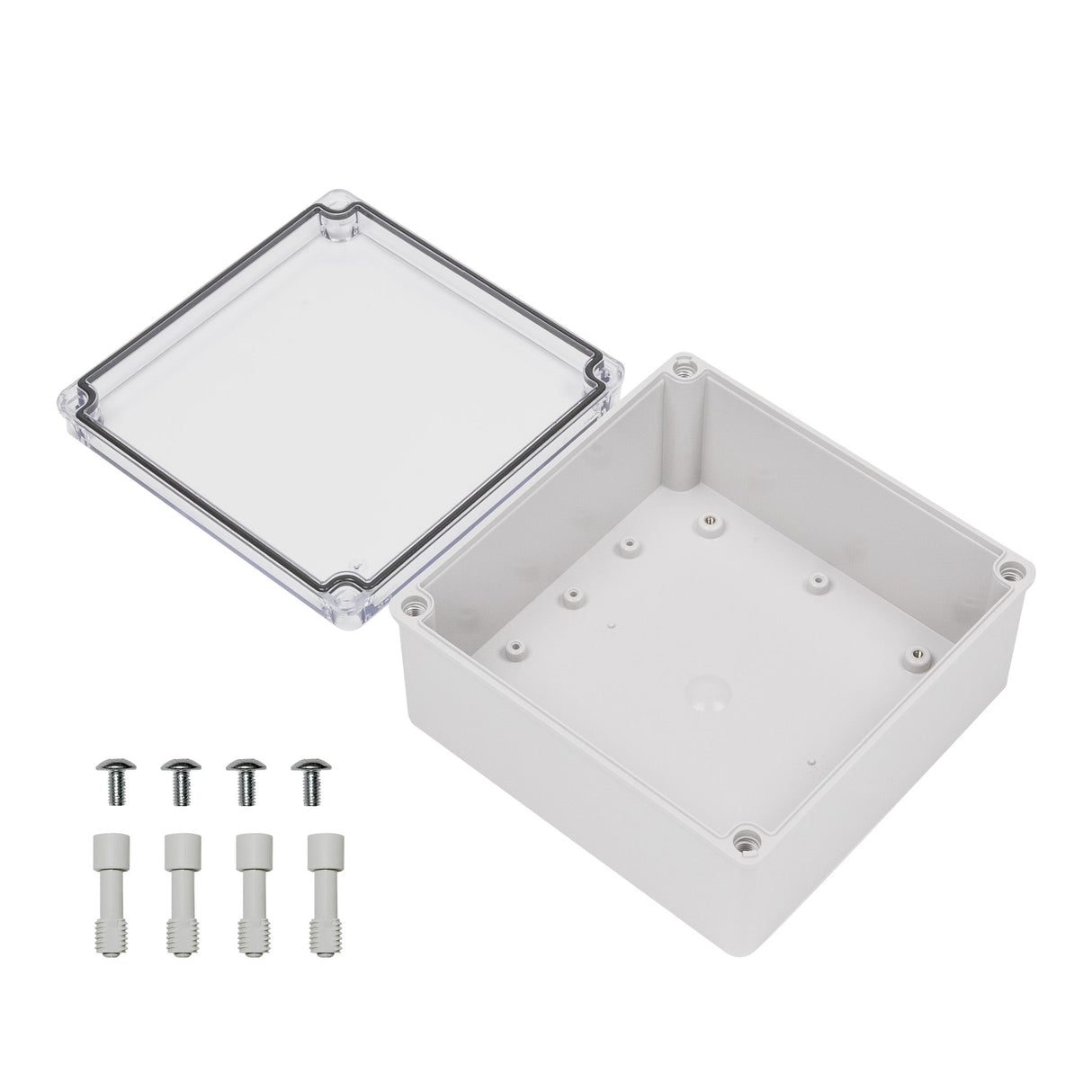

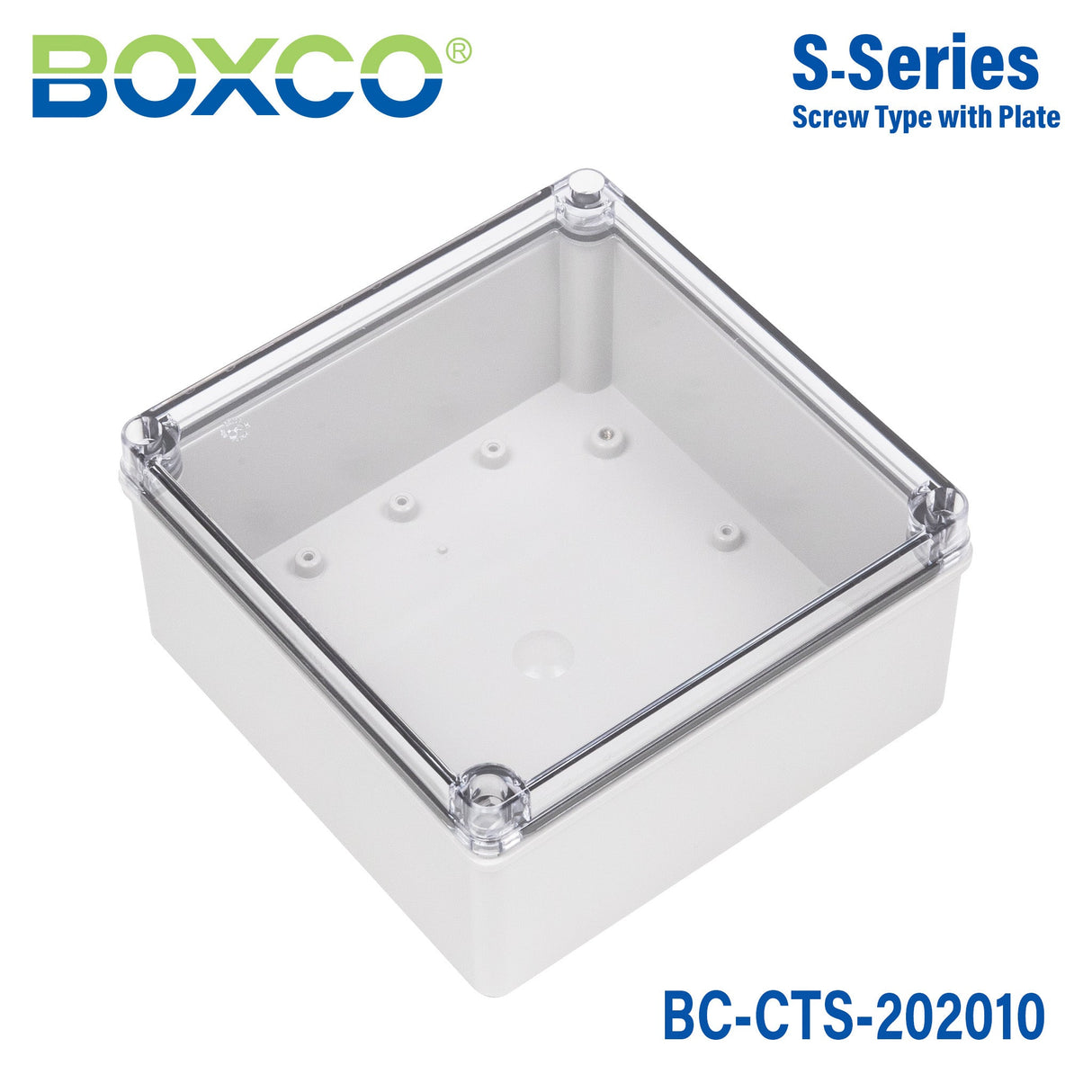

Boxco S-Series 7.87 x 7.87 x 3.94 Inches(200x200x100mm) Plastic Enc...
For Boxco S-Series, Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features
- Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure
- Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
- Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance
- Cover Bolt Attachment Point – Screw thread was made in injection molding to ensure maximum strength
-
BrandBoxco
-
SeriesBoxco S Series
-
MaterialPC
-
Base ColorGrey
-
Cover ColorTransparent
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~110°C
-
Warranty1 Year
-
Length7.87 in
-
Width7.87 in
-
Height3.94 in
-
Weight4.01 lb
::specification::
Frequently Asked Questions
What are the main specifications of the Boxco S-Series BC-CTS-202010 enclosure?
This model is a plastic enclosure with overall dimensions of 7.87 x 7.87 x 3.94 inches (200 x 200 x 100 mm). It has an IP67 rating, an IK08 impact rating, a polycarbonate body, a transparent cover, and a screw-type closure. The listed product weight is 1.82 kg.
Is this enclosure suitable for outdoor environments?
Yes. The product description states that ultraviolet stabilizer is added for outdoor usage, helping reduce visible color change over long periods. Its IP67 rating also supports protection against dust and water ingress in demanding environments.
What kind of protection does this enclosure provide for sensitive equipment?
This enclosure uses anti-static material to help protect sensitive electronic instruments from static electricity. It is also made from high impact resistant material and carries an IK08 impact rating for added physical durability.
Does this model support internal mounting hardware or accessory plates?
Yes. The enclosure includes internal mounting plate attachment points designed to secure a mounting plate onto brass inserted injection molding. It also includes pre-molded mounting screw nuts that can be used to secure DIN rail or other internal equipment.
What temperature range can the BC-CTS-202010 handle?
The specified operating temperature range is -40 degrees C to 110 degrees C. That range makes it suitable for applications exposed to both low and high ambient temperatures, provided the rest of the system is rated accordingly.
What distinguishes this enclosure from a basic plastic box?
This model combines several protective features in one enclosure, including IP67 sealing, IK08 impact resistance, UV stabilization, anti-static material, and a transparent polycarbonate cover. It is also designed with molded attachment points and screw nuts to better support internal components than a generic utility box.
What warranty period is listed for this enclosure?
The listed warranty period for this model is 1 year. That warranty applies specifically to the BC-CTS-202010 product entry provided.
