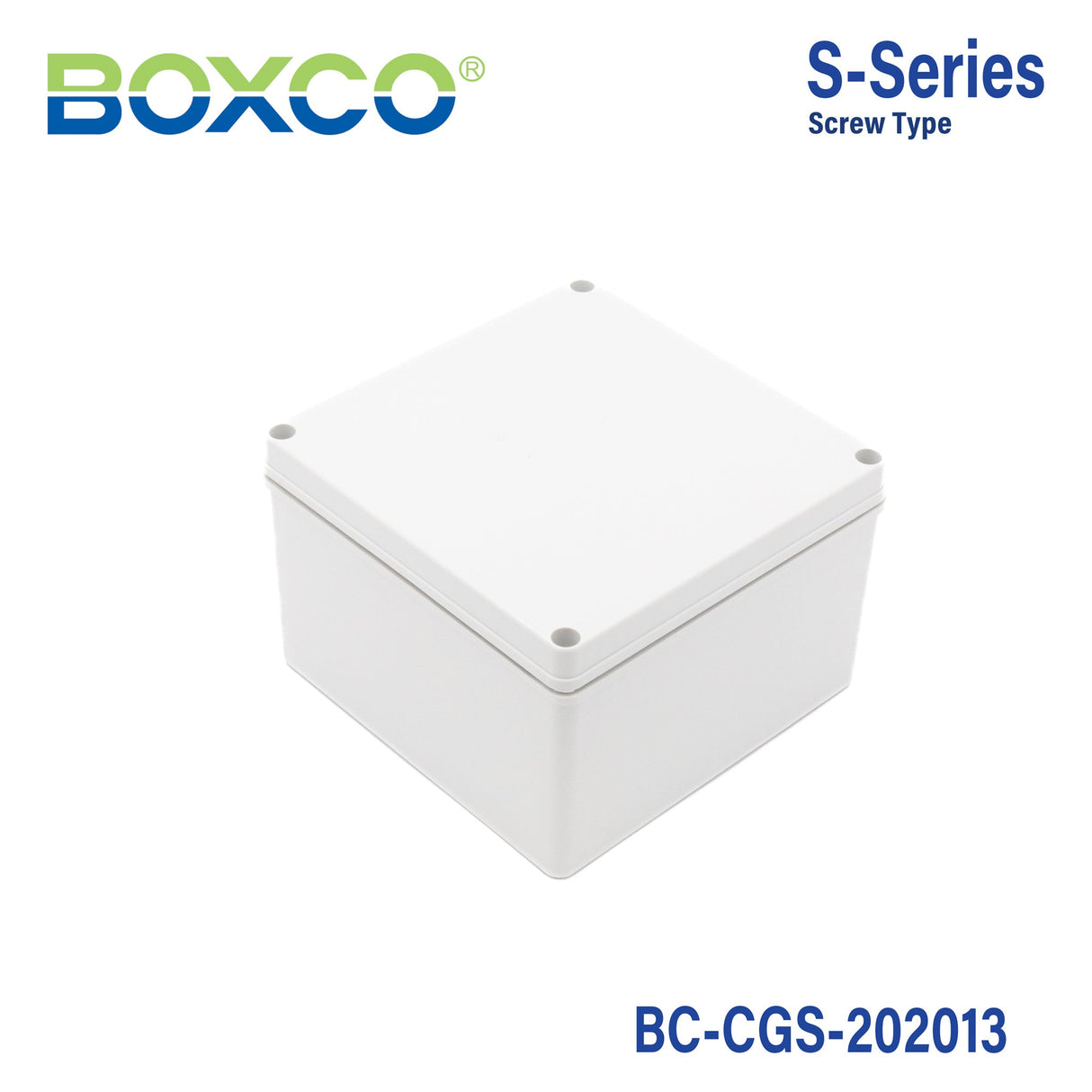

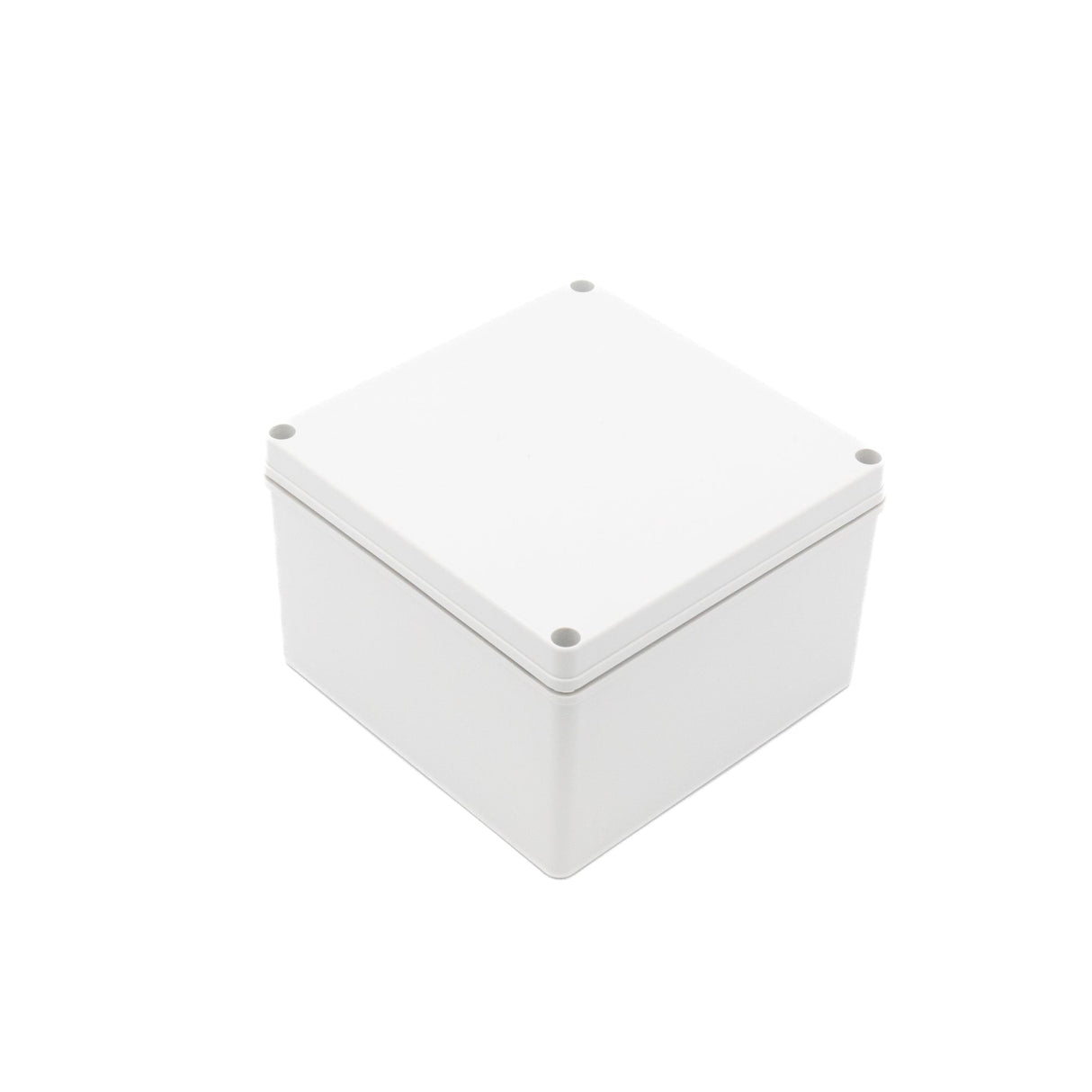

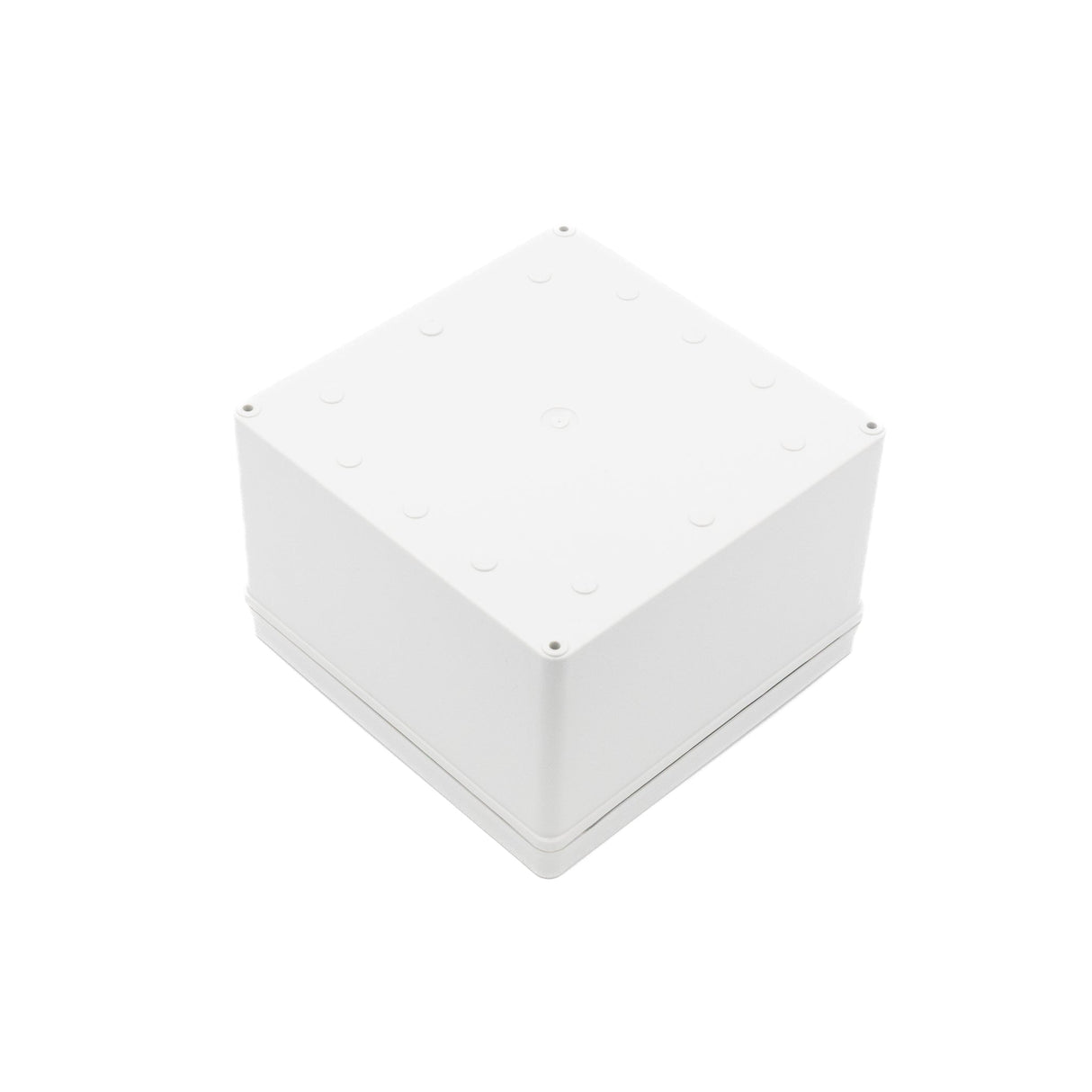

Boxco S-Series 7.87 x 7.87 x 5.12 Inches(200x200x130mm) Plastic Enc...
For Boxco S-Series, Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features
- Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure
- Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
- Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance
- Cover Bolt Attachment Point – Screw thread was made in injection molding to ensure maximum strength
-
BrandBoxco
-
SeriesBoxco S Series
-
MaterialPC
-
Base ColorGrey
-
Cover ColorGrey
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~110°C
-
Warranty1 Year
-
Length7.87 in
-
Width7.87 in
-
Height5.12 in
-
Weight1.83 lb
::specification::
Frequently Asked Questions
What applications is the Boxco S-Series 200x200x130mm plastic enclosure suited for?
This enclosure is suited for protecting industrial or commercial electronics that need a sealed non-metallic housing. Its 200 x 200 x 130 mm size provides room for heavier internal components, and the molded attachment points support secure mounting of internal hardware. The anti-static material also makes it a practical choice for protecting sensitive electronic instruments.
Is this enclosure suitable for outdoor or washdown environments?
Yes. This model is rated IP67 for dust-tight sealing and protection against temporary water exposure, and it includes ultraviolet stabilizer material for outdoor use. The gasket is precision-injected to support strong waterproof and dust-proof performance over time.
How durable is this enclosure against impact and mechanical stress?
This enclosure carries an IK08 impact rating and is made from high impact resistant polycarbonate material. Boxco also notes that the material helps resist breakage during hole and press processing. The screw-threaded cover attachment points are formed in the molding process to maximize strength.
What temperature range can this enclosure handle?
This model is specified for use from -40 degrees C to 110 degrees C. That wide operating range makes it suitable for demanding indoor and outdoor environments where temperatures may vary significantly. Buyers comparing enclosures for harsh conditions should verify that their application stays within this range.

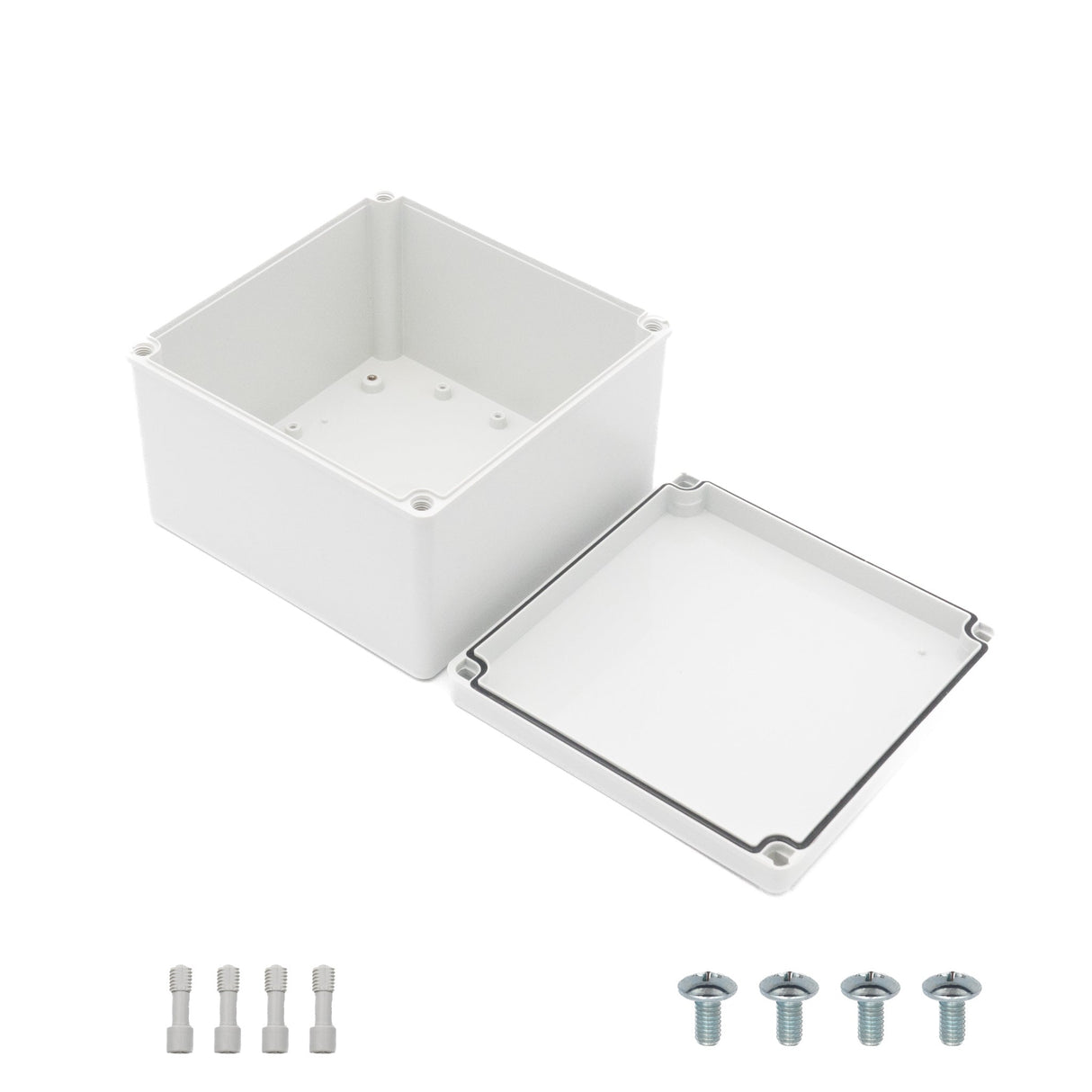

What internal mounting features does this Boxco S-Series enclosure include?
This model includes internal mounting plate attachment points with brass-inserted injection molding for securing a mounting plate tightly. It also has pre-molded mounting screw nuts that allow DIN rail or other equipment to be fixed inside the enclosure. These built-in features help support organized internal component mounting without relying only on the enclosure walls.
How does this screw-cover version compare to a basic plastic enclosure box?
This model stands out with an IP67 sealing rating, IK08 impact protection, polycarbonate construction, UV-stabilized material, and anti-static properties. It also includes molded internal attachment features and a grey screw-type cover for a secure closure. For buyers who need a durable outdoor-ready enclosure rather than a general-purpose box, those differences are significant.
