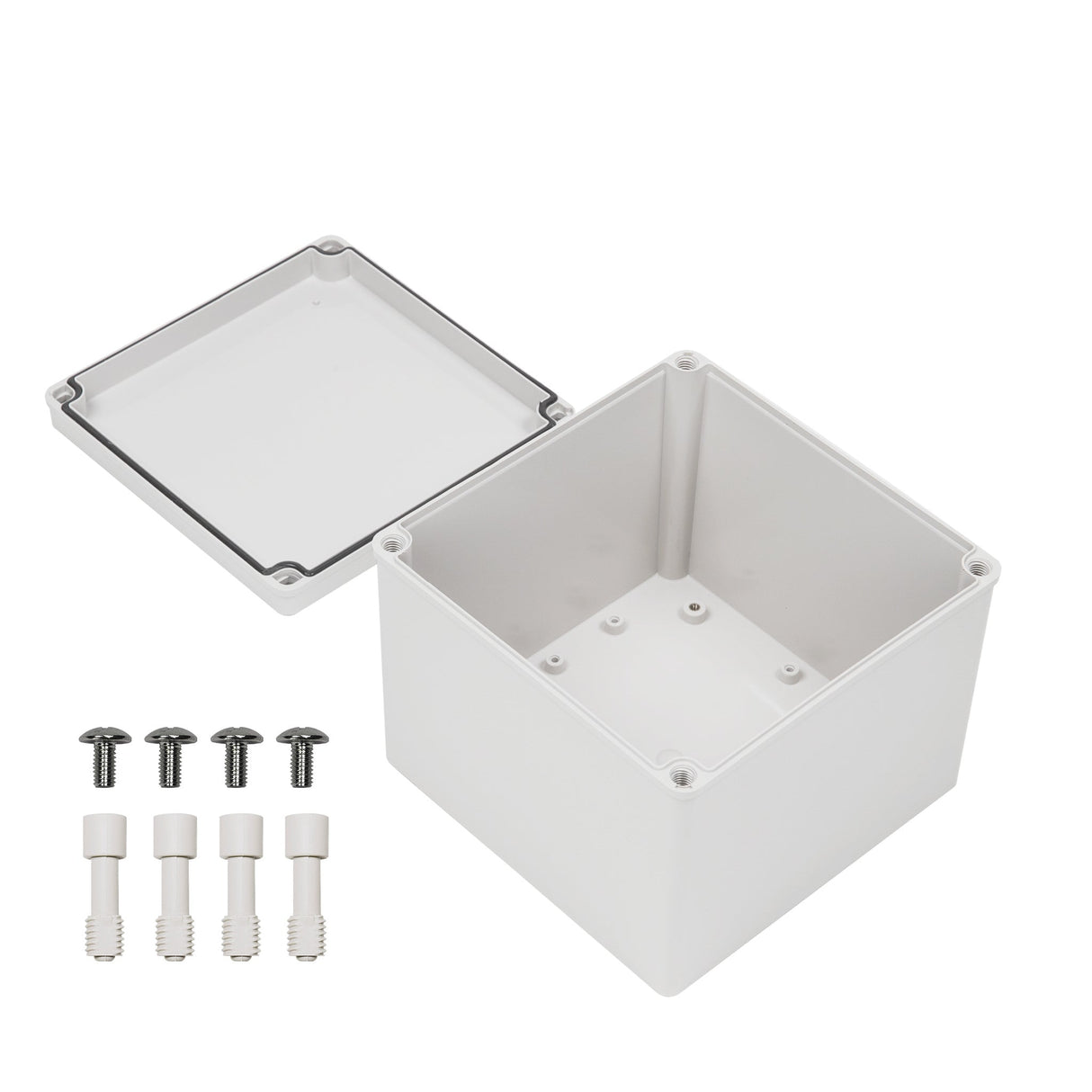

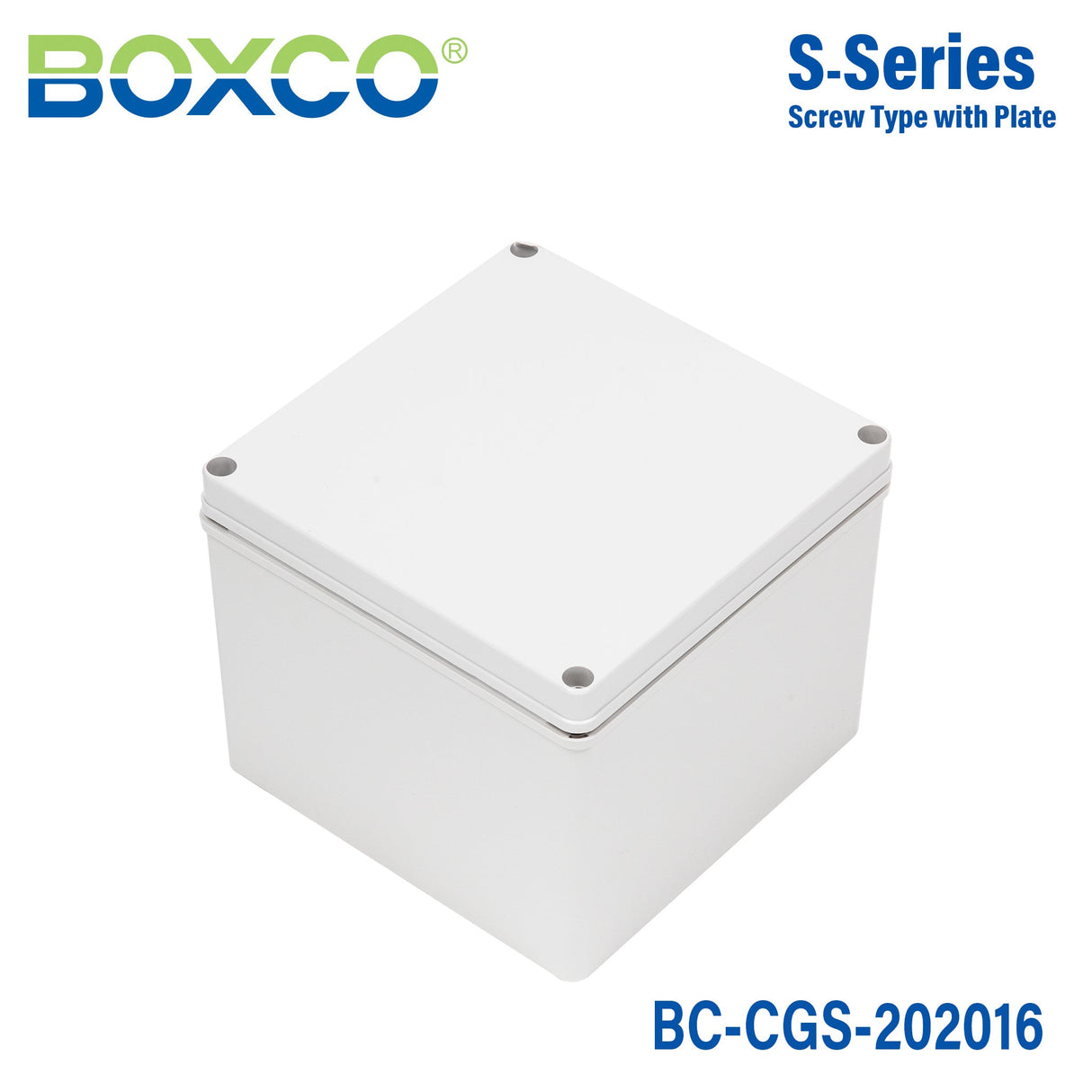

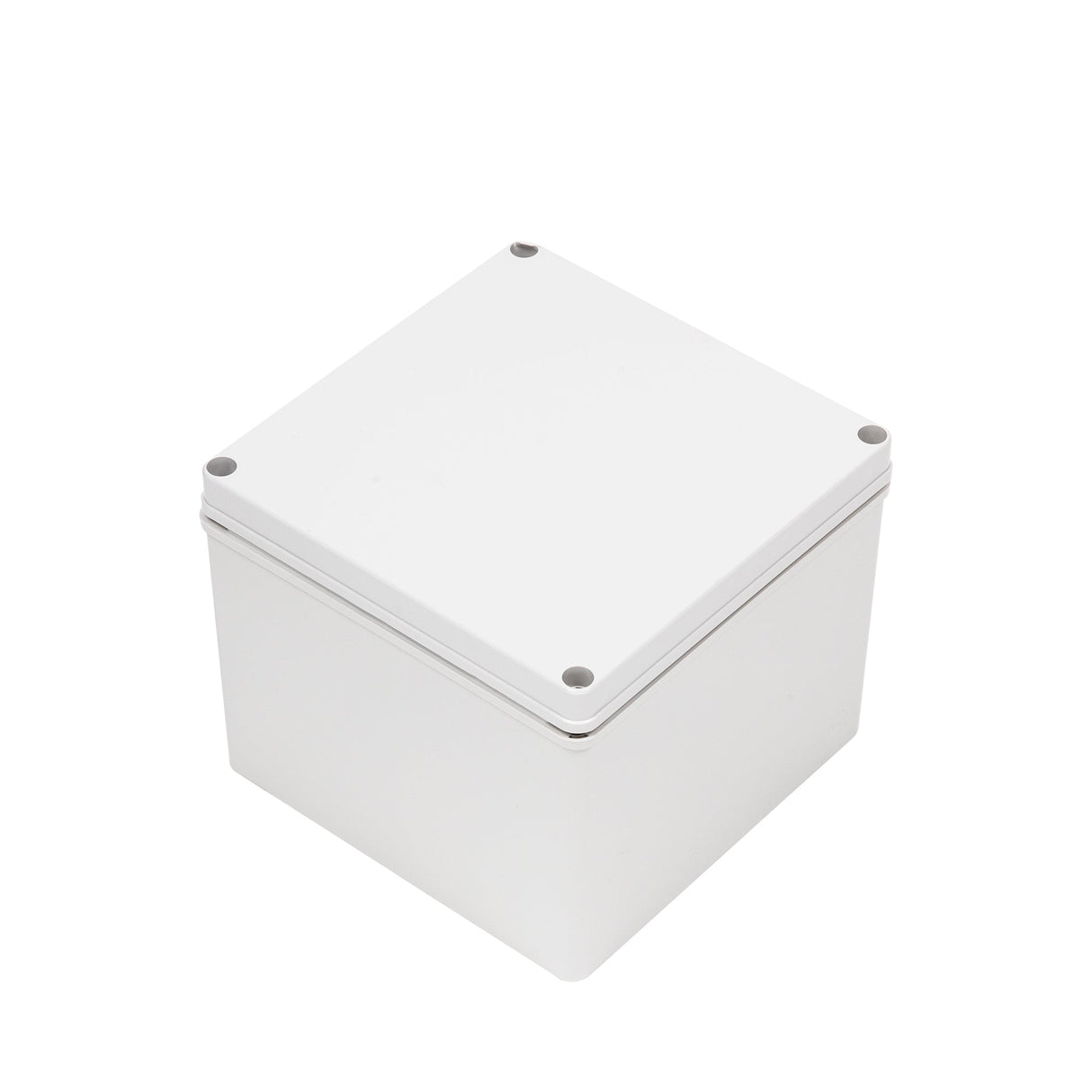

Boxco S-Series 7.87 x 7.87 x 6.3 Inches(200x200x160mm) Plastic Encl...
For Boxco S-Series, Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features
- Mounting Plate Attachment Point – Internal mounting plate can be fixed tightly onto the brass inserted injection molding to handle heavy equipment installed inside the enclosure
- Pre-molded Mounting Screw Nuts – You can easily fix DIN RAIL or other equipment on to the pre molded Screw nuts
- Gasket – The gasket in injected by super precise CNC robot machine to product excellent waterproof and dust-proof performance
- Cover Bolt Attachment Point – Screw thread was made in injection molding to ensure maximum strength
-
BrandBoxco
-
SeriesBoxco S Series
-
MaterialPC
-
Base ColorGrey
-
Cover ColorGrey
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~110°C
-
Warranty1 Year
-
Length7.87 in
-
Width7.87 in
-
Height6.3 in
-
Weight4.01 lb
::specification::
Frequently Asked Questions
What applications is the Boxco S-Series BC-CGS-202016 enclosure suited for?
This model is suited for protecting electronic controls, monitoring devices, and other components that need a sealed non-metallic enclosure. Its 200 x 200 x 160 mm size gives more internal room than shallow boxes, making it a practical choice for industrial, outdoor, and OEM equipment housings.
Is this enclosure suitable for outdoor or washdown environments?
Yes. The enclosure is rated IP67 for protection against dust ingress and temporary water exposure, and the S-Series description states that an ultraviolet stabilizer is added for outdoor use. The injected gasket is also designed to support waterproof and dust-proof performance over long service periods.
How durable is the BC-CGS-202016 against impact and harsh handling?
This model carries an IK08 impact rating and is made from high-impact-resistant polycarbonate. Boxco also notes that the material is designed to resist breakage during hole and press processing, which is useful for industrial enclosure preparation.
What are the main material and construction features of this enclosure?
The BC-CGS-202016 is a polycarbonate screw-type enclosure with a grey cover. It includes brass-inserted mounting plate attachment points, pre-molded mounting screw nuts for internal equipment, an injected gasket, and molded cover bolt threads for added strength.
What temperature range can this enclosure handle?
The specified operating range for this model is -40 C to 110 C. That makes it suitable for both low-temperature and high-temperature environments where standard light-duty plastic boxes may be more limited.
How does this model compare with smaller plastic enclosures in the same category?
This version is a larger-format enclosure at 7.87 x 7.87 x 6.3 inches, so it is better suited when you need more internal volume or extra mounting depth. It keeps the same core advantages buyers look for in this series, including IP67 sealing, IK08 impact resistance, polycarbonate construction, and a screw-fixed cover.
Is the BC-CGS-202016 a good choice for sensitive electronic equipment?
Yes. The product description states that anti-static material is used to help protect sensitive electronic instruments from static electricity. Combined with its sealed polycarbonate body, that makes it a strong option for housing delicate control or monitoring hardware.
