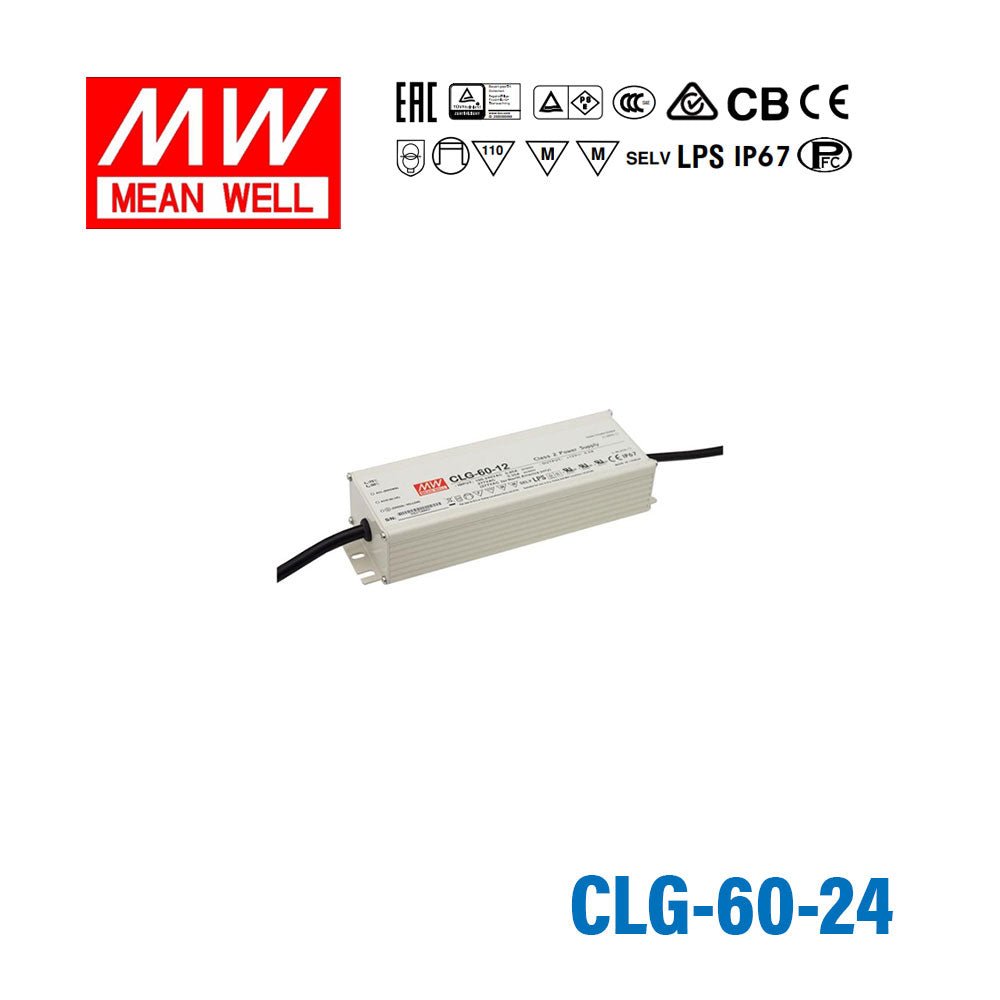

Mean Well CLG-60-24 LED Switching Power Supply
$25.91 USD
Unit price /
Unavailable
The CLG-60 is a 60W Mean Well. power converter. and an input range of 90~295VAC.
Key Features
- ✓ Input voltage range: 90~295VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3.75KVAC reinforced I/O isolation
- ✓ Wide operating temperature: -30~+70℃
- ✓ Protections: Short circuit / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: SAFETY & WITHSTAND VOLTAGE CSA C22.2 No. 250.0-08(except for 48V), CSA C22.2 No. 207-M89(except for 48V), EAC TP TC 004, IP67
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesCLG Series
-
Power Rating60 Watt
-
Output Voltage24 Volt
-
Rated Current2.5 Ampere
-
Input Voltage90V~295V
-
No of Output1
-
Dimming ControlNon Dimmable
-
Standards MetCB,CCC,UL
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length7.7 in
-
Width2.42 in
-
Height1.53 in
-
Weight1.9 lb
