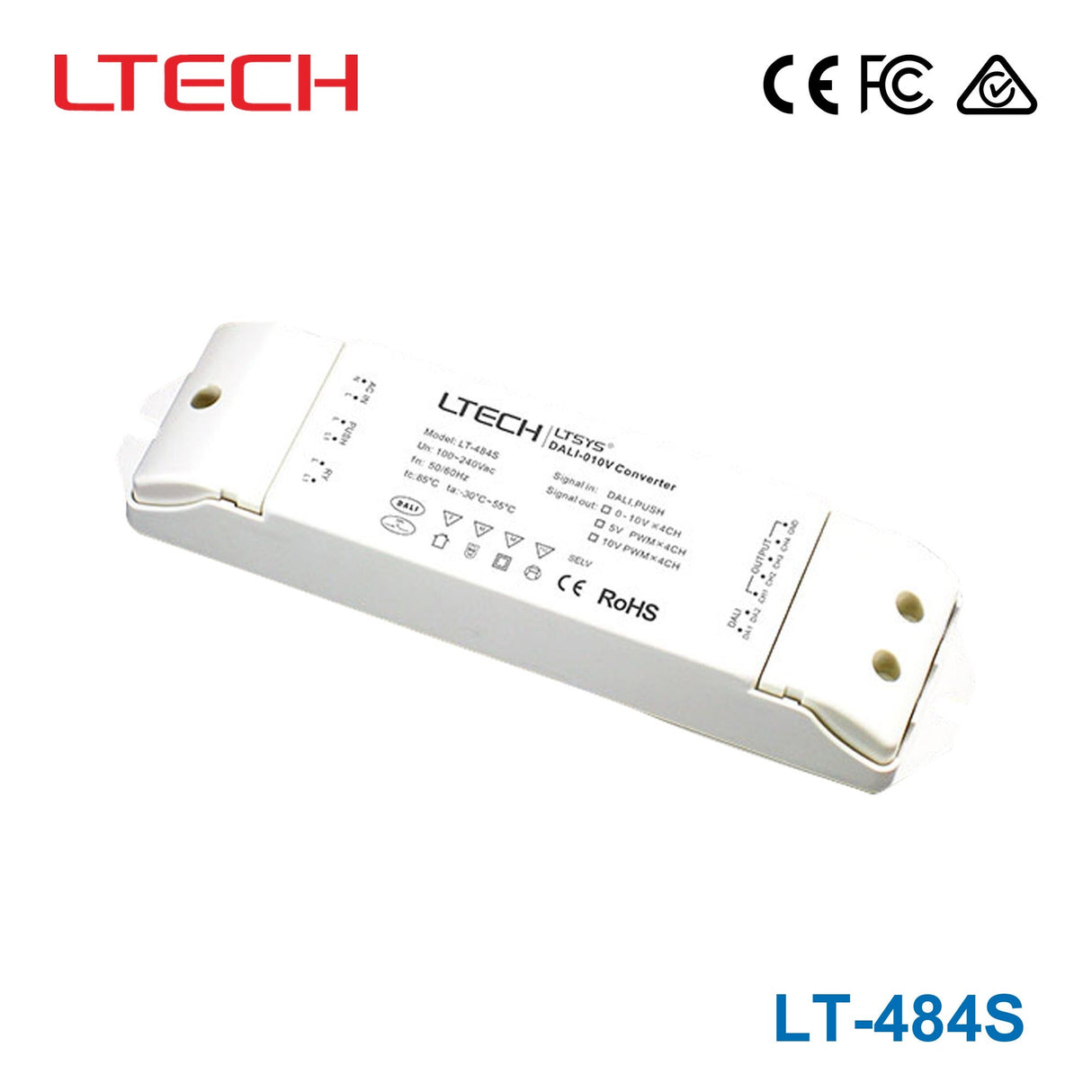

Ltech LT-484S Signal Converter - DALI/Push to PWM/0-10V
- Dimming interface: DALI
- Push Dim.
- Optional output: 0-10V
- 5V PWM
- 10V PWM.
- 4 DALI addressable output channels.
- Built-in relay for ON/OFF control of LED driver.
- Dimming range: 0-100%.
- Full protective plastic housing.
- DALI bus standard: IEC62386-101
- 102
- 207
- Compliant with Safety Extra Low Voltage standard.
- Suitable for indoor environments.
-
BrandLtech
-
SeriesDALI Signal Converter
-
Input Voltage100V~240V
-
No of Output4
-
Dimming ControlDALI,Push Dimming
-
Standards MetCE,FCC,RCM
-
Operating Temperature-30°C~55°C
-
Warranty5 Year
-
Length6.89 in
-
Width1.73 in
-
Height1.18 in
-
Weight0.26 lb
::specification::
Frequently Asked Questions
What does the Ltech LT-484S do?
The LT-484S is a signal converter that takes DALI or Push Dim control input and provides output options including PWM and 0-10V. It is designed for LED control applications where signal conversion is needed between these dimming methods.
What control inputs are supported by the LT-484S?
This model supports DALI and Push Dim as its dimming interfaces. That makes it suitable for projects that use either standard DALI control or push-dimming control methods.
What output types are available on the Ltech LT-484S?
The LT-484S supports optional 0-10V output as well as 5V PWM and 10V PWM output. This gives buyers flexibility when selecting a converter for compatible LED control systems.
How many channels does the LT-484S support?
The LT-484S provides 4 DALI addressable output channels. This is useful for applications that need multiple independently addressable channels from a single converter.
Does the LT-484S support on/off control in addition to dimming?
Yes, this model includes a built-in relay for ON/OFF control of the LED driver. In addition to switching, it also supports a 0-100% dimming range for compatible dimming applications.
Is the Ltech LT-484S suitable for indoor or outdoor use?
The LT-484S is suitable for indoor environments. It also uses a full protective plastic housing and is compliant with the Safety Extra Low Voltage standard.
What temperature range can the LT-484S operate in?
This model is rated for operation from -30°C to 55°C. That range supports use in a variety of indoor commercial and industrial environments within those limits.
What standard and warranty apply to the LT-484S?
The DALI bus standard listed for the LT-484S is IEC62386-101, 102, and 207. This model also includes a 5-year warranty.
