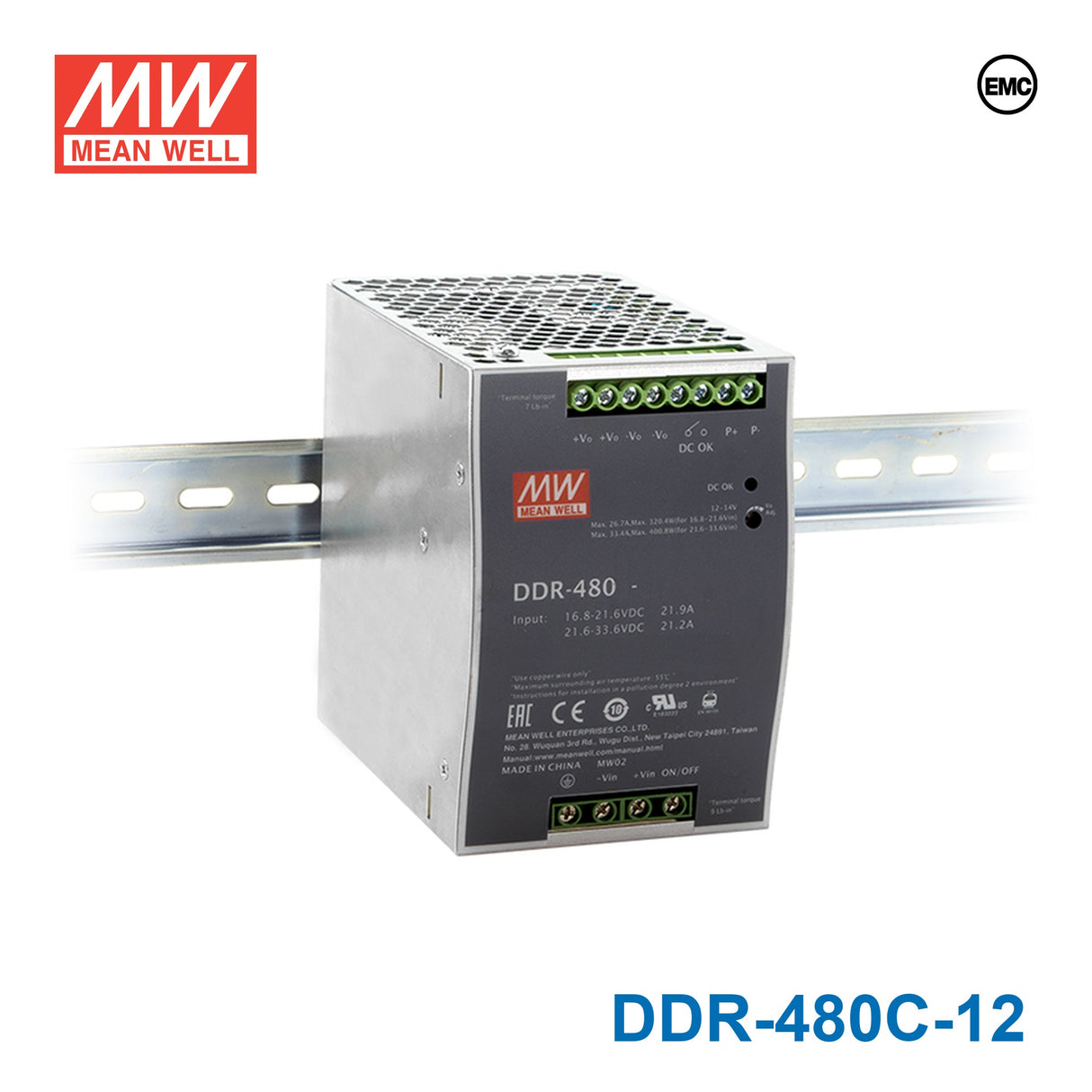

Mean Well DDR-480C-12 DC-DC Converter - 400.8W - 33.6~67.2V in 12V out 33.4A
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well DDR-480C-12 DC-DC Converter - 400.8W - 33.6~67.2V in 12V ...
The DDR-480C is a 400.8W Mean Well DC-DC converter (input: 33.6~67.2VDC, operating temperature: -40~+80°C).
Key Features
- ✓ Input voltage: 33.6~67.2VDC
- ✓ Output voltage (max): 12V
- ✓ Rated output current: 33.4A
- ✓ I/O isolation: 500V
- ✓ Operating temperature: -40~+80°C
- ✓ Safety certifications: EMC
- ✓ 3 year warranty
-
BrandMean Well
-
SeriesDDR Series
-
Power Rating400.8 Watt
-
Output Voltage12 Volt
-
Rated Current33.4 Ampere
-
Input Voltage33.6V~67.2V
-
No of Output1
-
Dimming ControlNone
-
Standards MetEMC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~80°C
-
Warranty3 Year
-
Length5.06 in
-
Width4.93 in
-
Height3.37 in
-
Weight3.03 lb
::specification::
Frequently Asked Questions
Can I use the DDR-480C-12 to step down a 48V data center bus to 12V for high-current server components?
Yes. The DDR-480C-12 accepts 33.6-67.2V DC input, perfectly matching a standard 48V data center bus (typical 42-58V). It delivers 12V at up to 33.4A (400.8W), providing enough current for storage arrays, fan trays, or other 12V rack subsystems that draw significant power.
Is the DDR-480C-12 suitable for converting a 48V telecom DC plant to 12V for legacy radio or modem equipment?
Yes. Telecom central offices and remote sites commonly distribute 48V DC. The DDR-480C-12 converts that to an isolated 12V rail at up to 33.4A, which can power legacy 12V radio transceivers, modems, or alarm panels. The 4KVdc I/O isolation protects sensitive equipment from the main plant bus.
Can the DDR-480C-12 supply 12V power for electric vehicle charging station control electronics from a 48V DC bus?
Yes. EV charging stations often have a 48V DC internal bus for power distribution. The DDR-480C-12 converts that to 12V at up to 33.4A for control boards, displays, communication modules, and contactors. Its DIN rail mount and -40°C to +80°C rating suit outdoor charging station enclosures.
Is the DDR-480C-12 safe for use in environments with wide daily temperature swings?
Yes. It is rated for -40°C to +80°C, covering desert daytime heat as well as sub-zero overnight temperatures. The fanless design eliminates concerns about condensation-related fan failure during rapid temperature transitions. Mount it inside a sealed enclosure to prevent direct moisture contact.
How does the DDR-480C-12 compare to the DDR-480B-12 and DDR-480D-12?
All three output 12V at 33.4A (400.8W) with the same physical dimensions and fanless design. They differ only in input voltage range: DDR-480B-12 accepts 16.8-33.6V (24V bus), DDR-480C-12 accepts 33.6-67.2V (48V bus), and DDR-480D-12 accepts 67.2-154V (high-voltage DC bus). Choose based on your source DC voltage.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other DDR-480C Models
2 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well DDR-480C-48 DC-DC Converter - 480W - 33.6~67.2V in 48V out 10A | 480W | 48V | 10A | Indoor | $184.66 | View |
| Mean Well DDR-480C-24 DC-DC Converter - 480W - 33.6~67.2V in 24V out 20A | 480W | 24V | 20A | Indoor | $184.66 | View |
