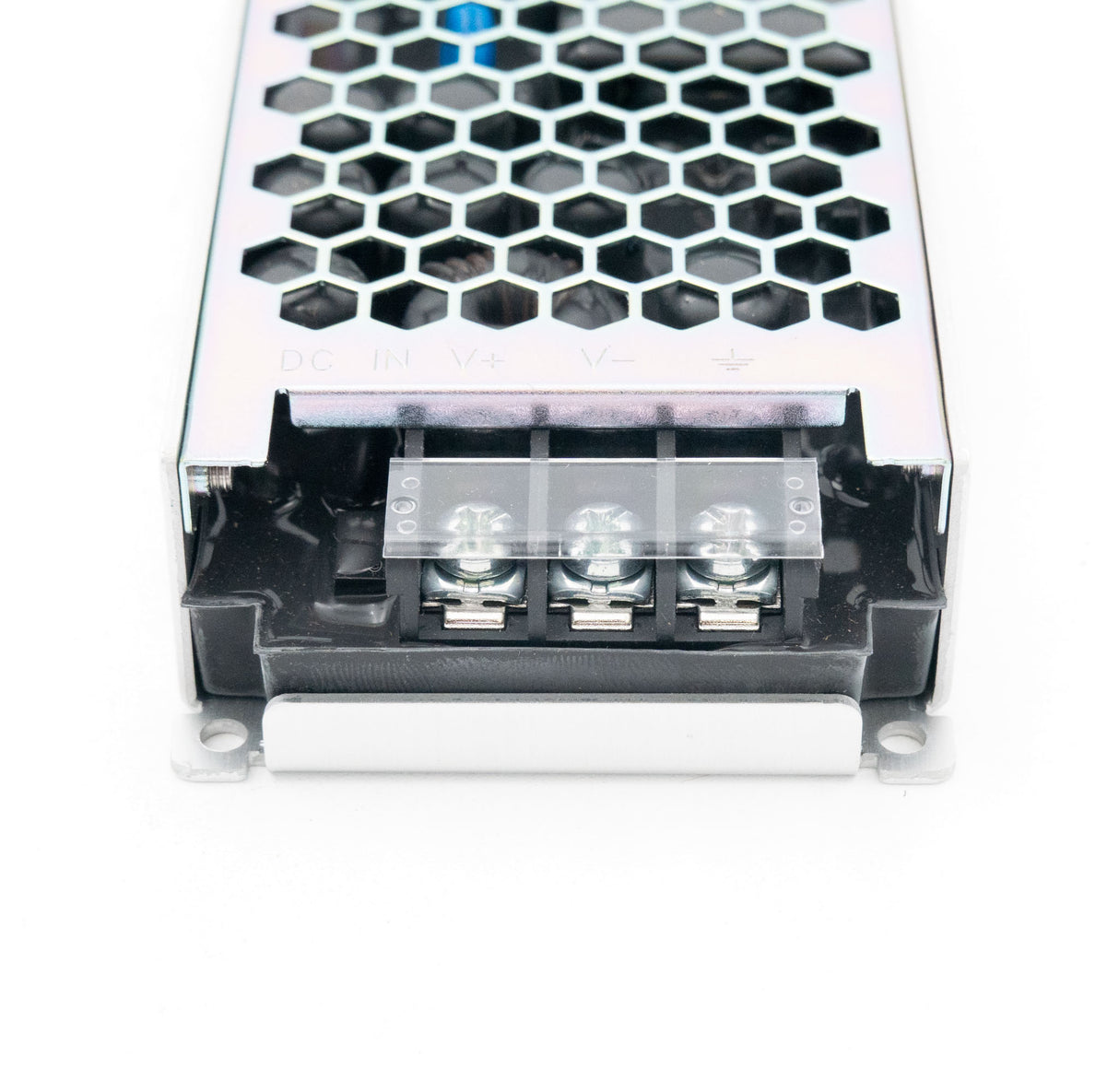

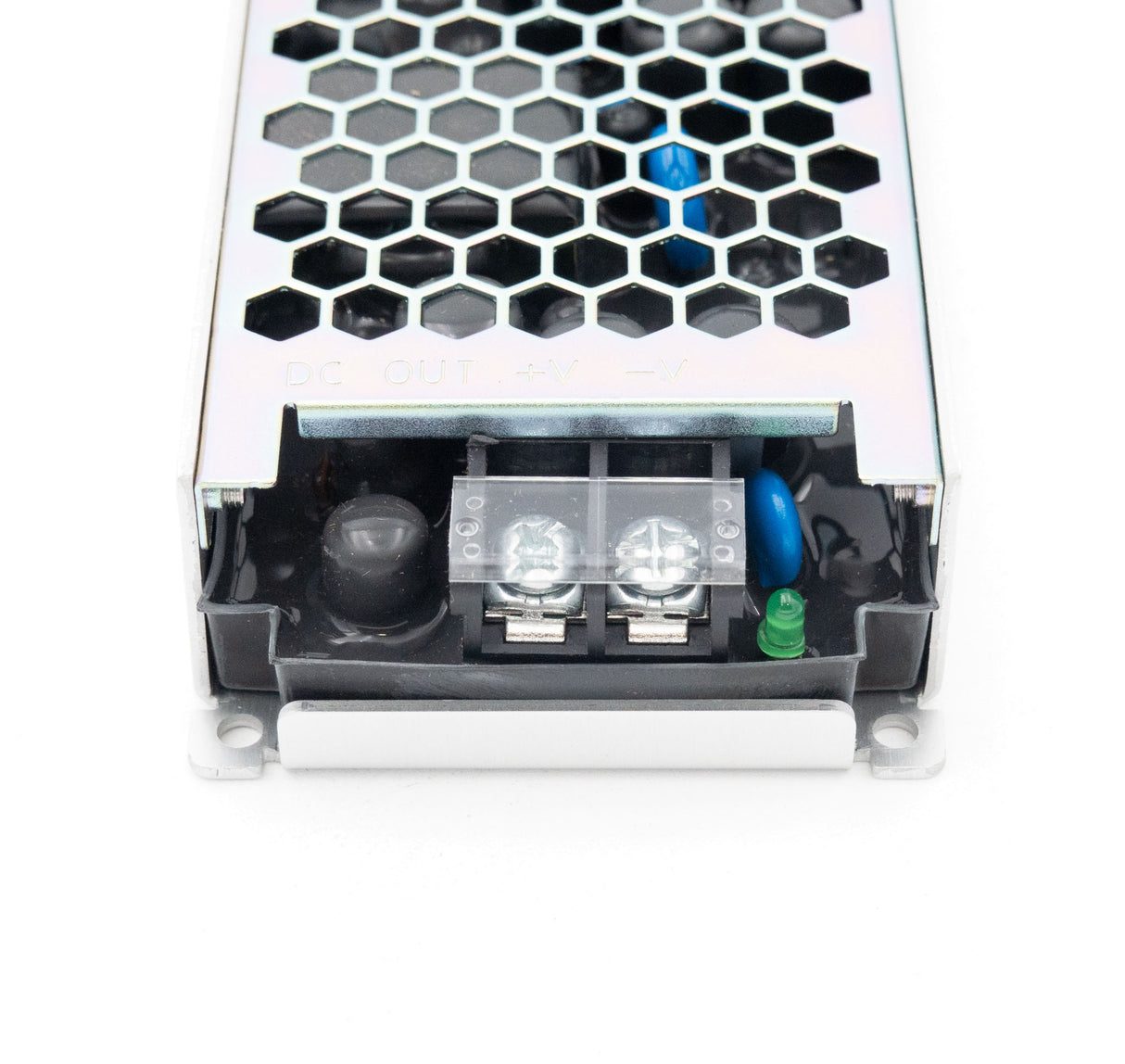

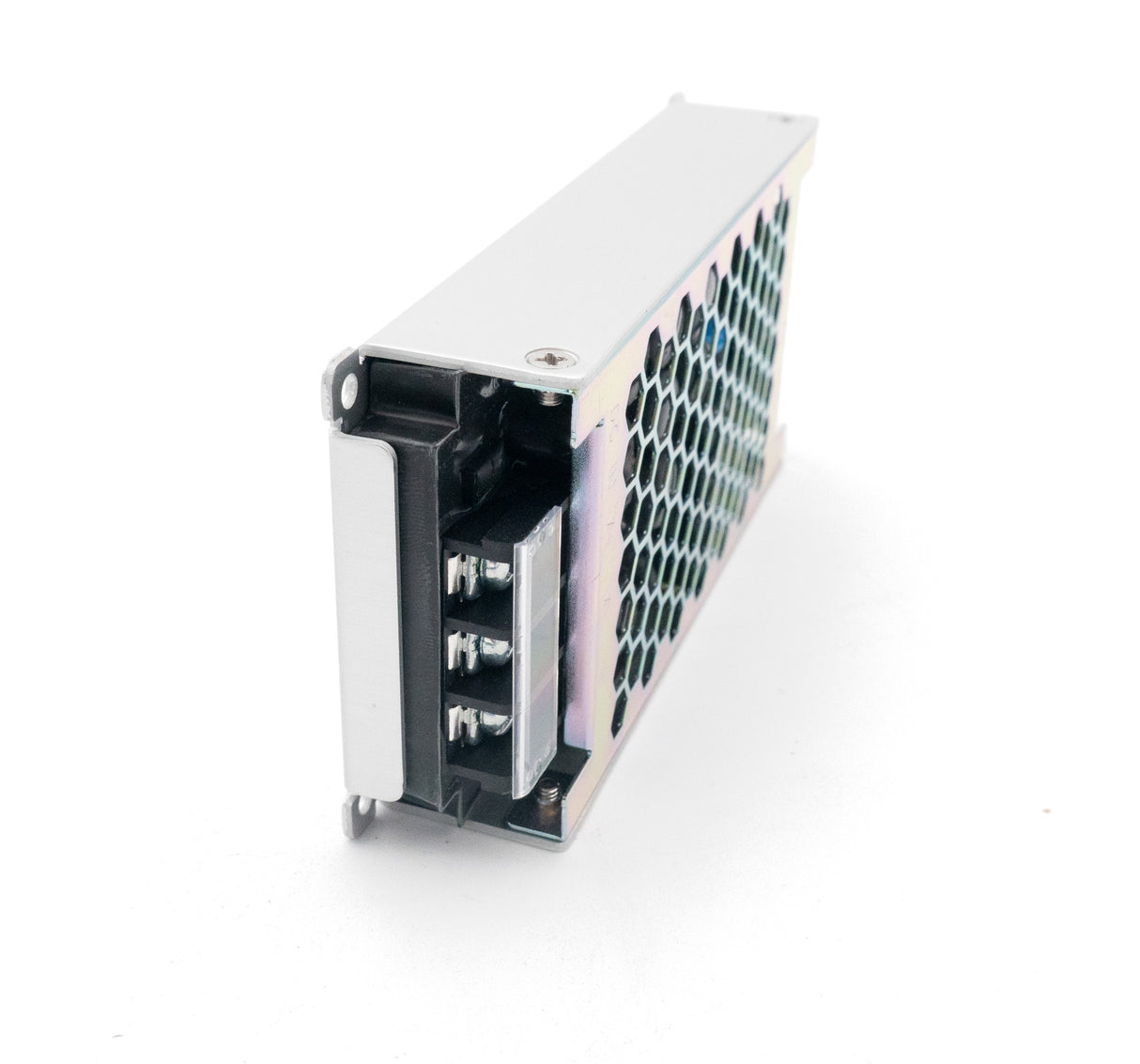

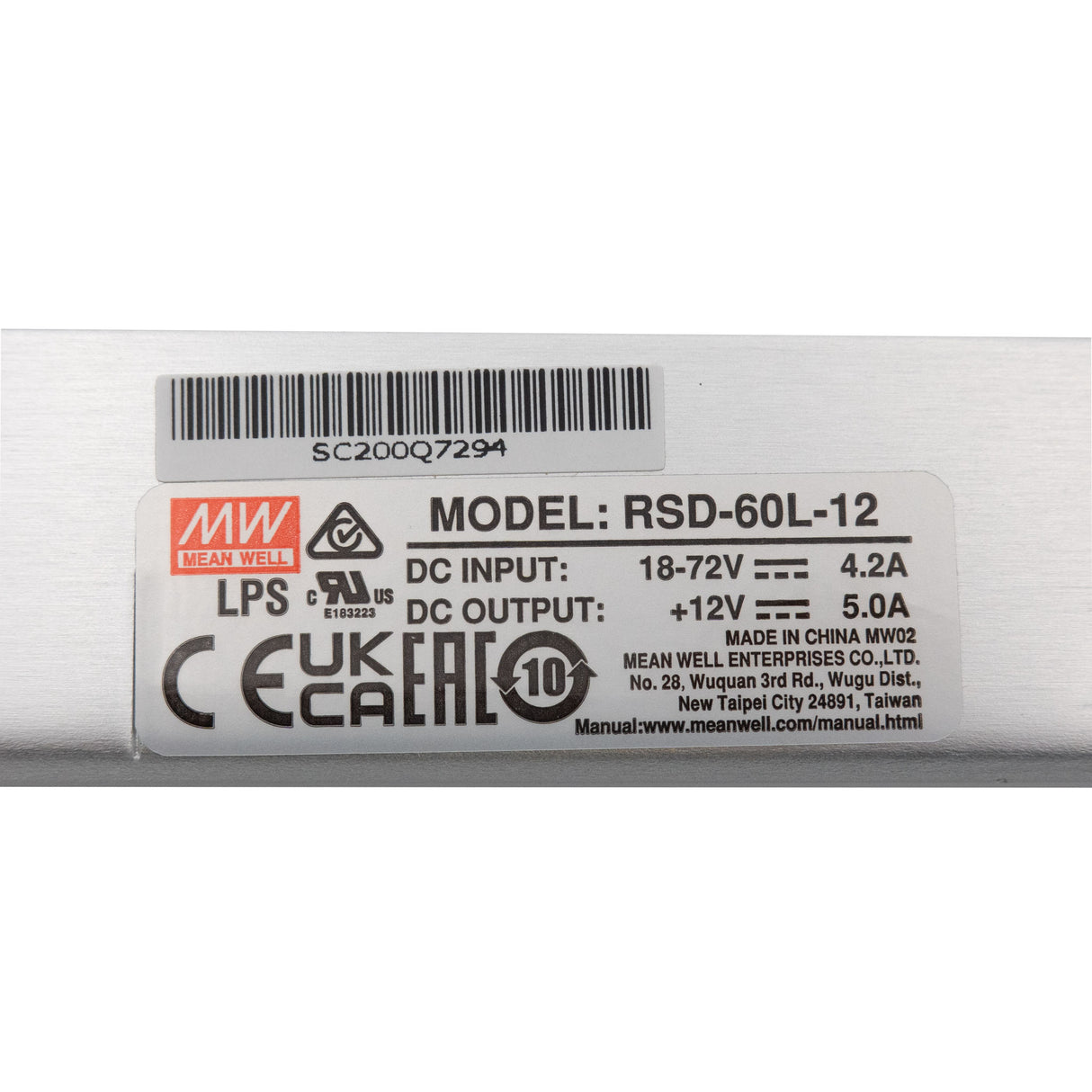

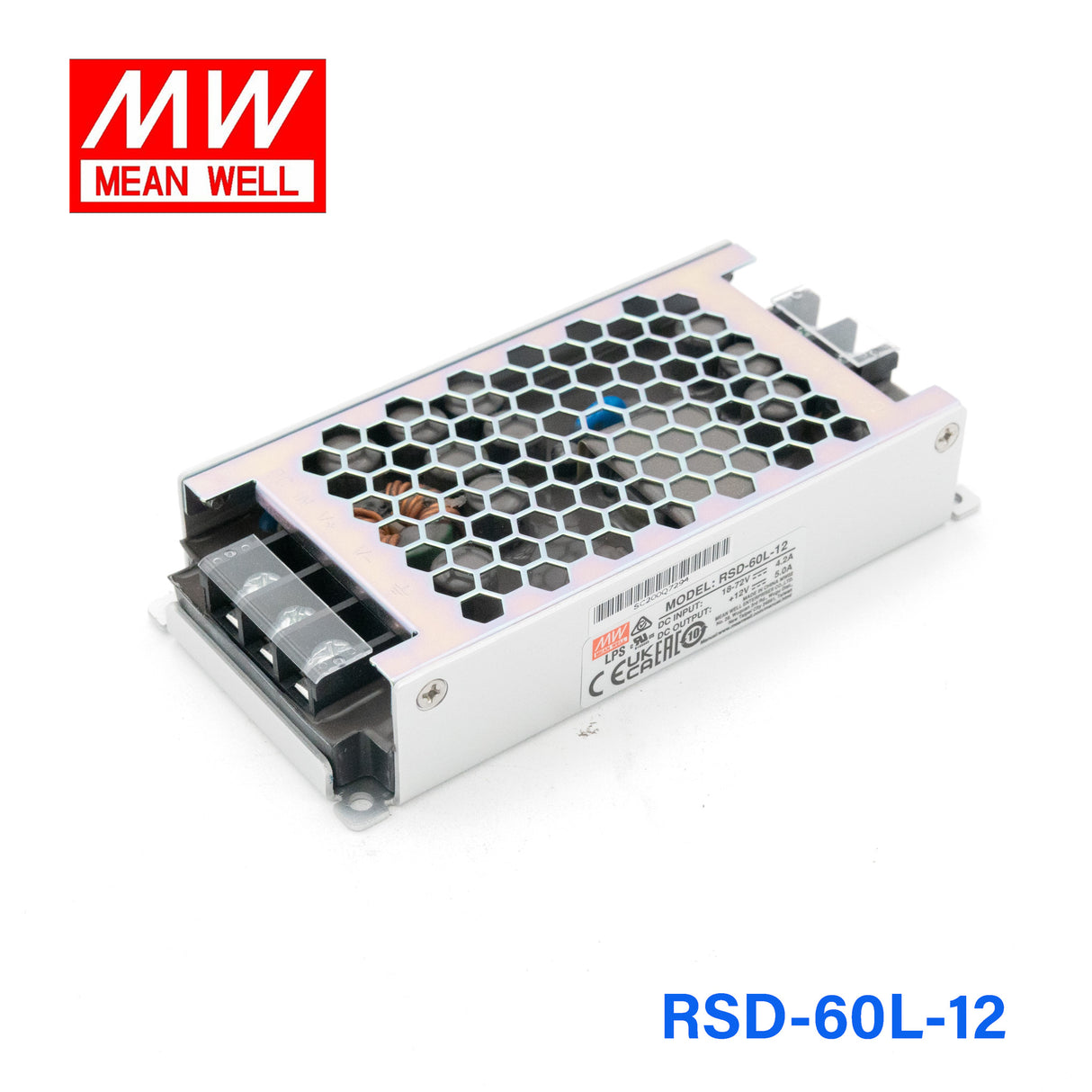

Mean Well RSD-60L-12 DC-DC Converter - 30W - 18~72V in 12V out 5A
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well RSD-60L-12 DC-DC Converter - 30W - 18~72V in 12V out 5A
The RSD-60L is a 30W Mean Well DC-DC converter (input: 18~72VDC, operating temperature: -40~+70°C).
Key Features
- ✓ Input voltage: 18~72VDC
- ✓ Output voltage (max): 12V
- ✓ Rated output current: 5A
- ✓ I/O isolation: 4000V
- ✓ Operating temperature: -40~+70°C
- ✓ Safety certifications: CB, CE, EAC, EMC, RCM
- ✓ 3 year warranty
-
BrandMean Well
-
SeriesRSD Series
-
Power Rating30 Watt
-
Output Voltage12 Volt
-
Rated Current5 Ampere
-
Input Voltage18V~72V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,EMC,RCM
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~70°C
-
Warranty3 Year
-
Length5.04 in
-
Width2.36 in
-
Height0.98 in
-
Weight0.64 lb
::specification::
Frequently Asked Questions
Can I use the RSD-60L-12 to run a 12V PLC, relay module, or control panel device from a higher-voltage DC bus?
This model provides a constant 12V output at up to 5A, with a 30W power rating. Its specified input range is 18-72VAC, so it fits applications where the source is within that range and the 12V load remains within 30W.
Is the RSD-60L-12 suitable for 12V industrial communication or monitoring equipment?
It can support 12V industrial electronics that need regulated constant-voltage output. The available output is 12V at up to 5A, so the connected equipment needs to stay within the 30W capacity.
Can this converter be used for embedded or vehicle-style 12V electronics in equipment exposed to vibration?
The feature list states that it withstands 5G vibration and supports operation from -40°C to +70°C. Those published limits make it relevant for embedded and industrial systems that need 12V output in mechanically demanding environments.
Will the RSD-60L-12 work in hot or cold enclosures, and is it rated for outdoor exposure?
The operating temperature range is -40°C to +70°C, so the published thermal spec covers both low and high ambient conditions within that window. No IP rating is listed in the provided data, so outdoor or weather-exposed use is not established by these specs alone.
How does the RSD-60L-12 compare with the other RSD-60L output versions?
The RSD-60L-12 is 30W with a 12V, 5A output. In the same RSD-60L group, the RSD-60L-3.3 is 19.8W at 3.3V and 12A, the RSD-60L-5 is 30W at 5V and 12A, and the RSD-60L-24 is 30W at 24V and 2.5A.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other RSD-60L Models
3 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well RSD-60L-24 DC-DC Converter - 30W - 18~72V in 24V out 2.5A | 30W | 24V | 2.5A | Indoor | $39.67 | View |
| Mean Well RSD-60L-5 DC-DC Converter - 30W - 18~72V in 5V out 12A | 30W | 5V | 12A | Indoor | $39.67 | View |
| Mean Well RSD-60L-3.3 DC-DC Converter - 19.8W - 18~72V in 3.3V out 12A | 19.8W | 3.3V | 12A | Indoor | $39.66 | View |
