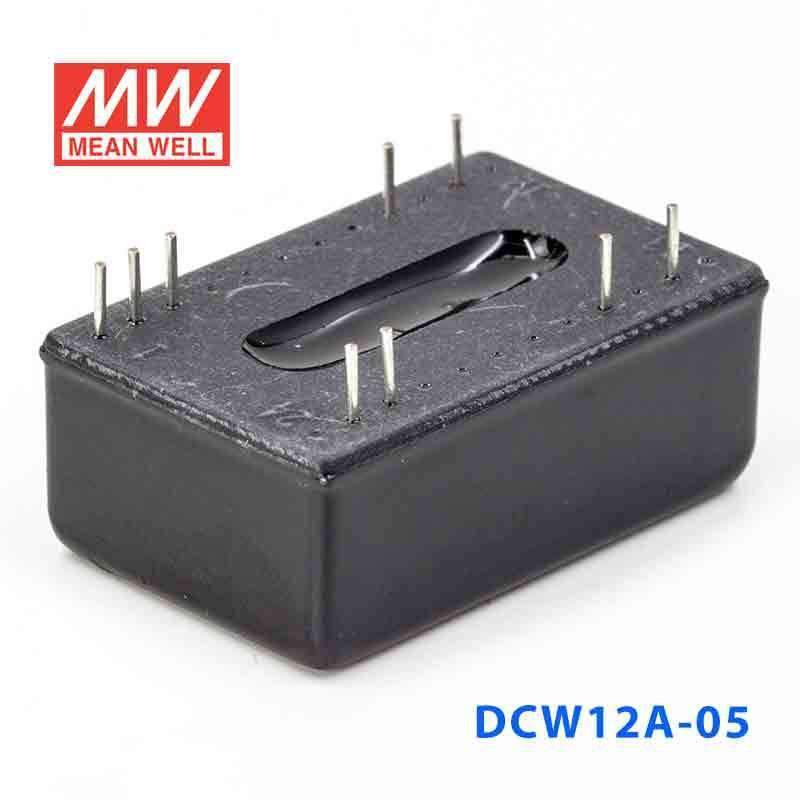

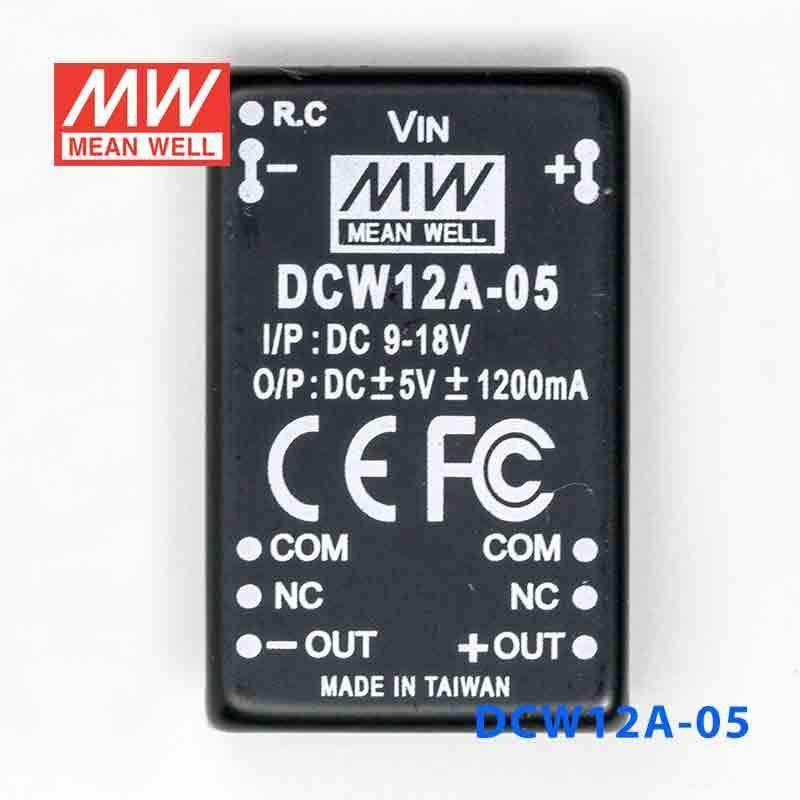

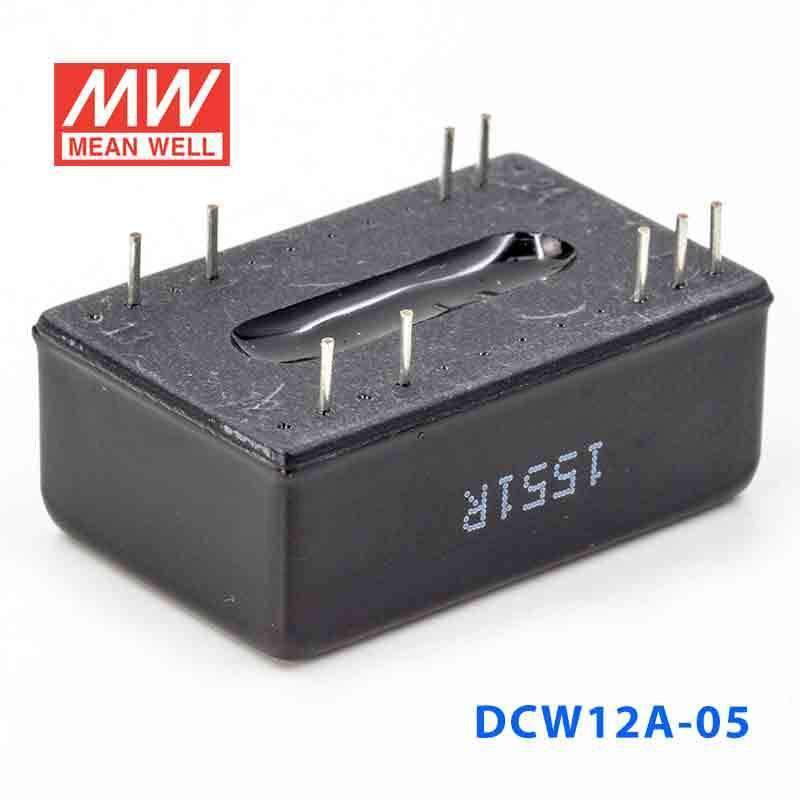

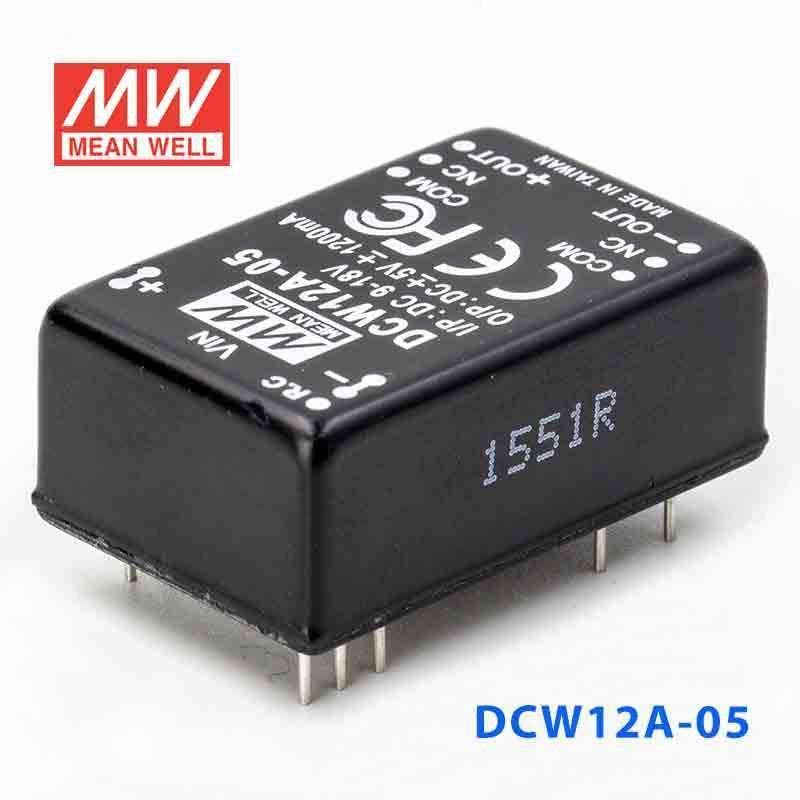

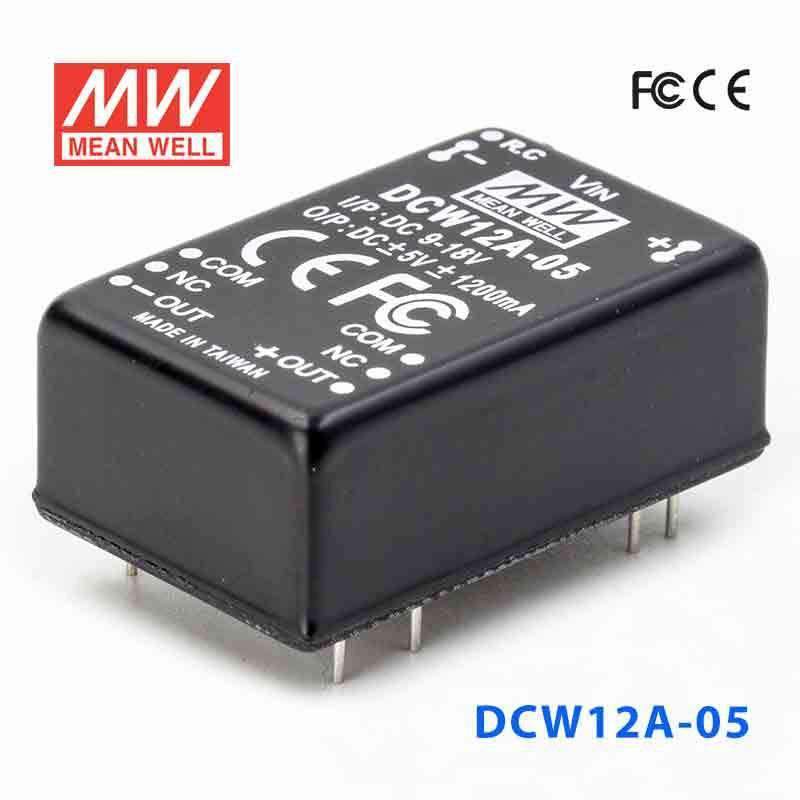

Mean Well DCW12A-05 DC-DC Converter - 12W - 9~18V in ±5V out
The DCW12A is a 12W Mean Well. power converter. operating from -40~+71℃.
Key Features
- ✓ 1.5KVDC reinforced I/O isolation
- ✓ Wide operating temperature: -40~+71℃
- ✓ Protections: Short circuit / Overload
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesDCW Series
-
Power Rating12 Watt
-
Output Voltage5 Volt
-
Rated Current1.2 Ampere
-
Input Voltage9V~18V
-
No of Output2
-
Dimming ControlNone
-
Standards MetCE,EMC,FCC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~71°C
-
Warranty2 Year
-
Length1.25 in
-
Width0.8 in
-
Height0.48 in
-
Weight0.04 lb
::specification::
Frequently Asked Questions
What type of output does the Mean Well DCW12A-05 provide?
The DCW12A-05 is a 12W DC-DC converter with a dual output of ±5V. It is designed for applications that need both positive and negative 5V rails from a 9 to 18V DC input range.
What input voltage range does the DCW12A-05 support?
This model accepts 9 to 18V DC input, which is a 2:1 wide input range. That makes it suitable for systems where the input source can vary within that window but a regulated ±5V output is still required.
Is the DCW12A-05 a good fit for space-constrained equipment?
Yes. The converter has a compact metal case measuring 31.8 x 20.3 x 12.2 mm, which helps when board space is limited. Its five-sided shield metal case also supports use in compact industrial or embedded designs where durability matters.
What protection features are included in the DCW12A-05?
The DCW12A-05 includes short circuit and overload protection. Its overload protection is rated at 110% to 180% with auto-recovery, and short circuit protection uses hiccup mode that recovers automatically after the fault is removed.
Can the DCW12A-05 be used in demanding temperature conditions?
This model is rated for operation from -40°C to +71°C when used within its derating limits. It is also specified for storage from -40°C to +105°C, which makes it suitable for harsh equipment environments.
Does the DCW12A-05 provide isolation between input and output?
Yes. The converter provides 1500VDC input-to-output isolation, with isolation resistance specified at 100M Ohms under the stated test conditions. This is useful in applications where electrical isolation is required between the source side and the load side.
