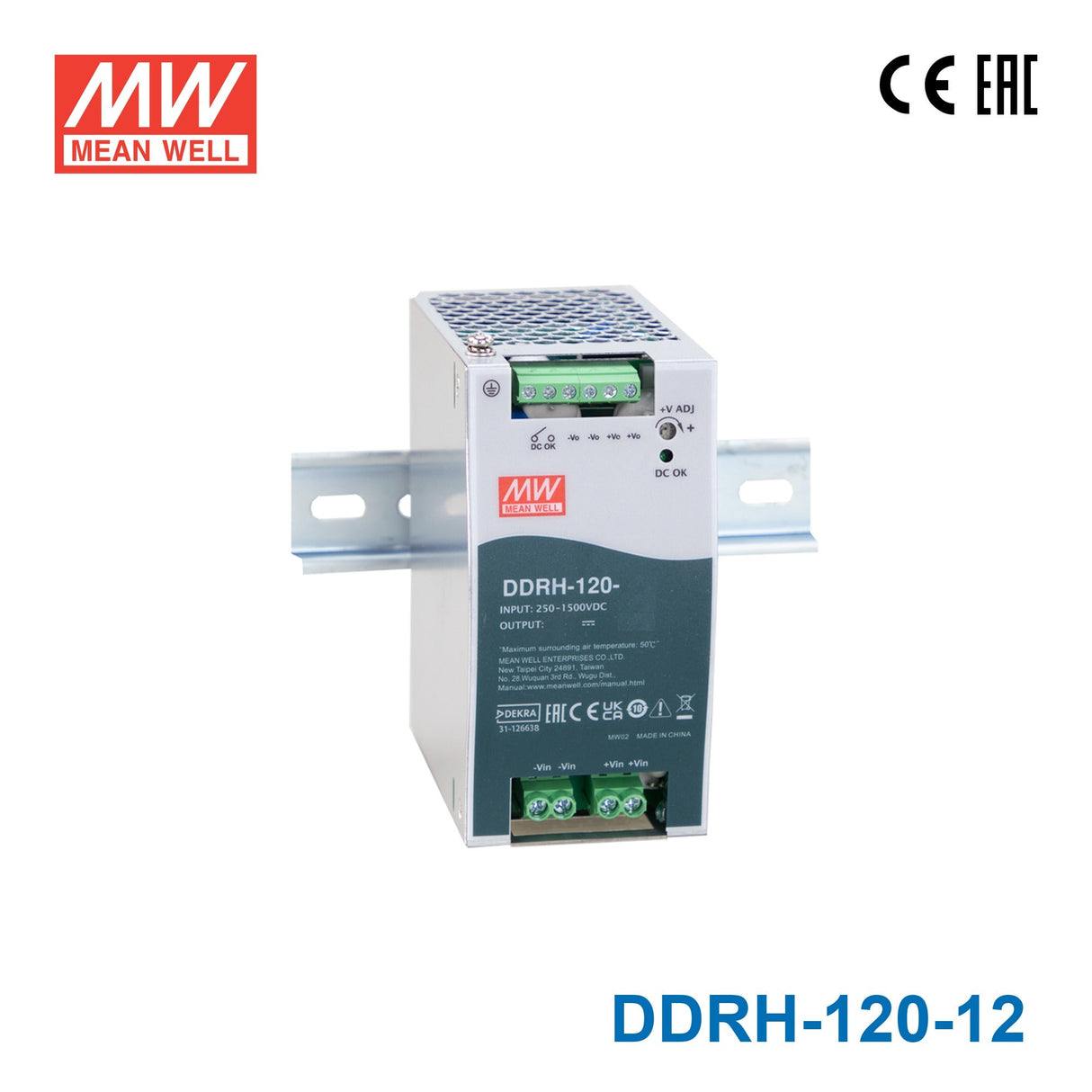

Mean Well DDRH-120-12 Ultra Wide Input DC-DC Converter, 100.8W 12V

The DDRH-120 is a 120W high-reliability ultra-wide input DIN Rail DC-DC converter engineered for photovoltaic, renewable energy storage, and high-voltage industrial systems. Its 250~1500Vdc input range covers high-voltage DC bus and battery string sources, while 4KVac reinforced I/O isolation ensures clean, noise-free power conversion. Featuring fanless free air convection cooling and a DC OK relay output, the DDRH-120 reliably operates across a -40~+80℃ temperature range.

Key Features

• ✓ Ultra-wide 250~1500Vdc input range — high-voltage DC bus and battery string compatible
• ✓ DC output voltage adjustable ±10%
• ✓ 4KVac reinforced I/O isolation
• ✓ Cooling by free air convection — fanless design, no minimum load required
• ✓ Wide operating temperature: -40°C ~ +80°C
• ✓ DC OK relay contact output — signals supply status
• ✓ Protections: Short circuit / Overload / Over voltage / Reverse polarity / Under voltage lockout
• ✓ DIN rail TS-35 compatible
• ✓ Safety approvals: IEC62109-1, BS EN/EN62109-1, EAC TP TC 004
• ✓ 3 years warranty

• Brand
  Mean Well
• Series
  DDRH Series
• Power Rating
  100.8 Watt
• Output Voltage
  12 Volt
• Rated Current
  8.4 Ampere
• Input Voltage
  250V~1500V
• No of Output
  1
• Dimming Control
  None
• Standards Met
  CE,EAC
• Operation Mode
  Constant Voltage
• Operating Temperature
  -40°C~80°C
• Warranty
  3 Year
• Length
  2.48 in
• Width
  4.93 in
• Height
  4.53 in
• Weight
  1.86 lb
