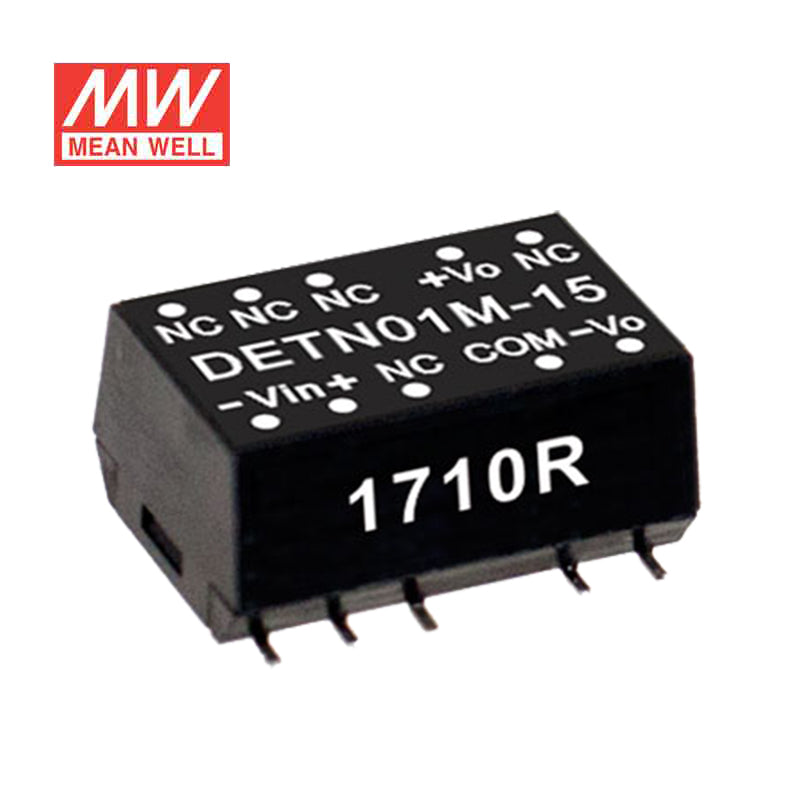

Mean Well DETN01M-15 DC-DC Converter - 1W - 10.8~13.2V in ±15V out
The DETN01M is a 1W Mean Well. power converter. and an input range of 4.5~5.5Vdc.
Key Features
- ✓ Input voltage range: 4.5~5.5Vdc
- ✓ 3KVDC reinforced I/O isolation
- ✓ Protections: Short circuit
- ✓ Safety approvals: UL62368-1, EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesDENT Series
-
Power Rating1 Watt
-
Output Voltage15 Volt
-
Rated Current0.03 Ampere
-
Input Voltage10.8V~13.2V
-
No of Output2
-
Dimming ControlNone
-
Standards MetCB,CE,EMC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~90°C
-
Warranty3 Year
-
Length0.6 in
-
Width0.43 in
-
Height0.28 in
-
Weight0 lb
::specification::
Frequently Asked Questions
Can I use the DETN01M-15 for 15V analog circuitry in industrial or test equipment?
Yes, it provides constant-voltage 15V output with a 1W rating. That makes it appropriate for low-power analog, measurement, or control sections that need a small 15V rail.
Is the DETN01M-15 suitable for embedded control boards that need a light 15V supply?
It is suitable for embedded support circuits that need 15V and stay within the 1W output limit. The rated output current is 0.03A, so it is intended for low-power electronics rather than larger 15V loads.
Can this converter support 15V signal-chain or instrumentation electronics?
It can support small 15V signal-chain, instrumentation, or interface sections when the power demand is within 1W. The constant-voltage 15V output is aligned with auxiliary analog rails, not higher-consumption devices.
Is the DETN01M-15 meant for outdoor applications or exposed environments?
The operating temperature range of -40°C to +90°C supports use across a wide temperature span. However, no IP rating is specified, so it should be used in protected housings instead of direct outdoor exposure.
How does the DETN01M-15 differ from the 5V and 12V models in the same series?
All three DETN01M versions are rated at 1W, but they provide different outputs. The DETN01M-05 is 5V, the DETN01M-12 is 12V at 0.04A, and the DETN01M-15 is 15V at 0.03A.
