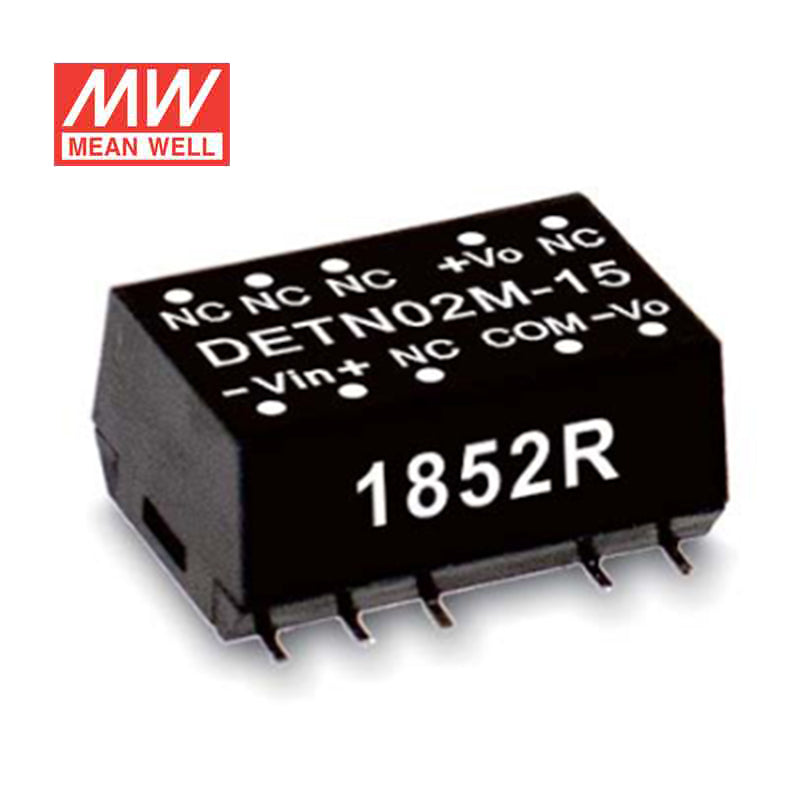

Mean Well DETN02M-15 DC-DC Converter - 2W - 10.8~13.2V in ±15V out
The DETN02M is a 2W Mean Well. power converter. and an input range of 4.5~5.5Vdc.
Key Features
- ✓ Input voltage range: 4.5~5.5Vdc
- ✓ 3KVDC reinforced I/O isolation
- ✓ Protections: Short circuit
- ✓ Safety approvals: EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesDENT Series
-
Power Rating2 Watt
-
Output Voltage15 Volt
-
Rated Current0.06 Ampere
-
Input Voltage10.8V~13.2V
-
No of Output2
-
Dimming ControlNone
-
Standards MetCE,EMC
-
Operation ModeConstant Voltage
-
Operating Temperature-40°C~100°C
-
Warranty3 Year
-
Length0.6 in
-
Width0.43 in
-
Height0.28 in
-
Weight0 lb
::specification::
Frequently Asked Questions
Can I use the DETN02M-15 for low-power 15V analog circuitry in industrial or test equipment?
Yes, this model is suited to low-power internal circuits that require a constant 15V output from a 10.8~13.2V input range. Its 2W rating makes it appropriate for small analog, measurement, or interface sections rather than heavier loads.
Is the DETN02M-15 a good fit for embedded control boards that need a small 15V rail?
It can be a good fit where a compact embedded design needs a regulated 15V rail at modest output. The listed 0.07A output current and 2W power level align with lightweight electronic functions instead of higher-current devices.
Can this converter be used in automation electronics with limited PCB space?
Yes, the 15.24 × 10.9 × 7.1 mm package is very compact for board-level use. That footprint, along with the 0.0012 kg weight, supports integration into small control, sensing, or signal-processing assemblies.
Is the DETN02M-15 suitable for outdoor equipment cabinets or exposed installations?
Its operating temperature range of -40°C to +100°C supports demanding thermal conditions in equipment design. No IP rating is listed, so it is better treated as a protected internal component for enclosed systems rather than an exposed outdoor part.
How does the DETN02M-15 compare with the DETN02M-05 and DETN02M-12?
The DETN02M-15 provides 15V at 0.07A with a 2W rating. In the same series, the DETN02M-05 is 2W with 5V output and the DETN02M-12 is 2W with 12V at 0.08A; all three use the same 15.24 × 10.9 × 7.1 mm dimensions, 0.0012 kg weight, and -40°C to +100°C temperature range.
