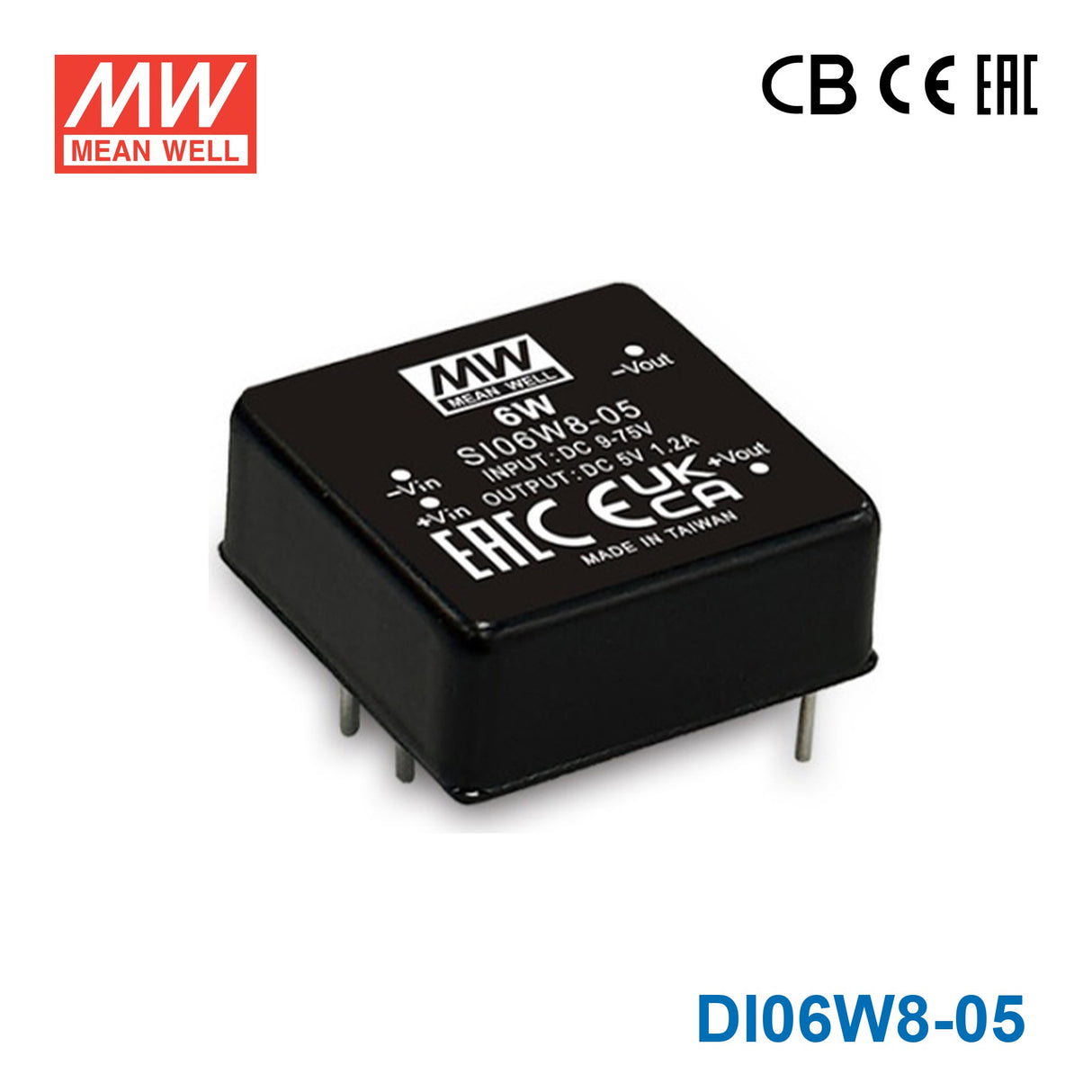

Mean Well SI06W8-03 8:1 Ultra-Wide Input DC-DC Regulated Converter,...
The DI06W8 is a 6W Mean Well. power converter. and an input range of 9~75Vdc.
Key Features
- ✓ Input voltage range: 9~75Vdc
- ✓ 3KVDC reinforced I/O isolation
- ✓ Wide operating temperature: -40~+90℃
- ✓ Protections: Short circuit / Overload / Over voltage / Under voltage
- ✓ Remote ON/OFF control
- ✓ Safety approvals: EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesDI06W8 Series
-
Power Rating6 Watt
-
Output Voltage3.3 Volt
-
Rated Current0.00 Ampere
-
Input Voltage9V~75V
-
No of Output1
-
Standards MetCB,CE,EAC
-
Operation ModeConstant Current
-
Operating Temperature-40°C~90°C
-
Warranty3 Year
-
Length1 in
-
Width1 in
-
Height0.4 in
-
Weight0.04 lb
::specification::
Frequently Asked Questions
What output does the Mean Well SI06W8-03 provide?
This model is a regulated DC-DC converter with a single 3.3V output and a 6W power rating. It is designed for applications that need a stable low-voltage DC output from a much wider DC input range.
What makes the SI06W8-03 different from a standard DC-DC converter?
The main differentiator is its 8:1 ultra-wide input range, which gives it more flexibility than converters built around narrower input windows. It also combines regulated output, up to 86% efficiency, and built-in protection features in a compact DIP 1 x 1 inch package.
Is the SI06W8-03 suitable for industrial or mobile equipment with varying DC input conditions?
Yes, this model is intended for applications where the available DC input can vary widely. Its 8:1 ultra-wide input range and regulated 3.3V output make it a practical choice for equipment that needs stable conversion under changing input conditions.
Can this converter be used in harsh temperature environments?
Yes, the SI06W8-03 is rated for operation from -40 to +90 degrees C. That makes it suitable for equipment exposed to cold starts, elevated cabinet temperatures, or demanding industrial environments within that specified range.
Does the SI06W8-03 require a minimum load to regulate properly?
No, Mean Well specifies that this converter does not require a minimum load. That is useful in systems where the load may be light, intermittent, or variable during normal operation.
What protection and isolation features are included in this model?
The SI06W8-03 includes protection for short circuit, overload, over temperature, over voltage, and input under voltage conditions. It also provides 3KVDC input-to-output isolation, which adds electrical separation for applications that require isolated DC conversion.
