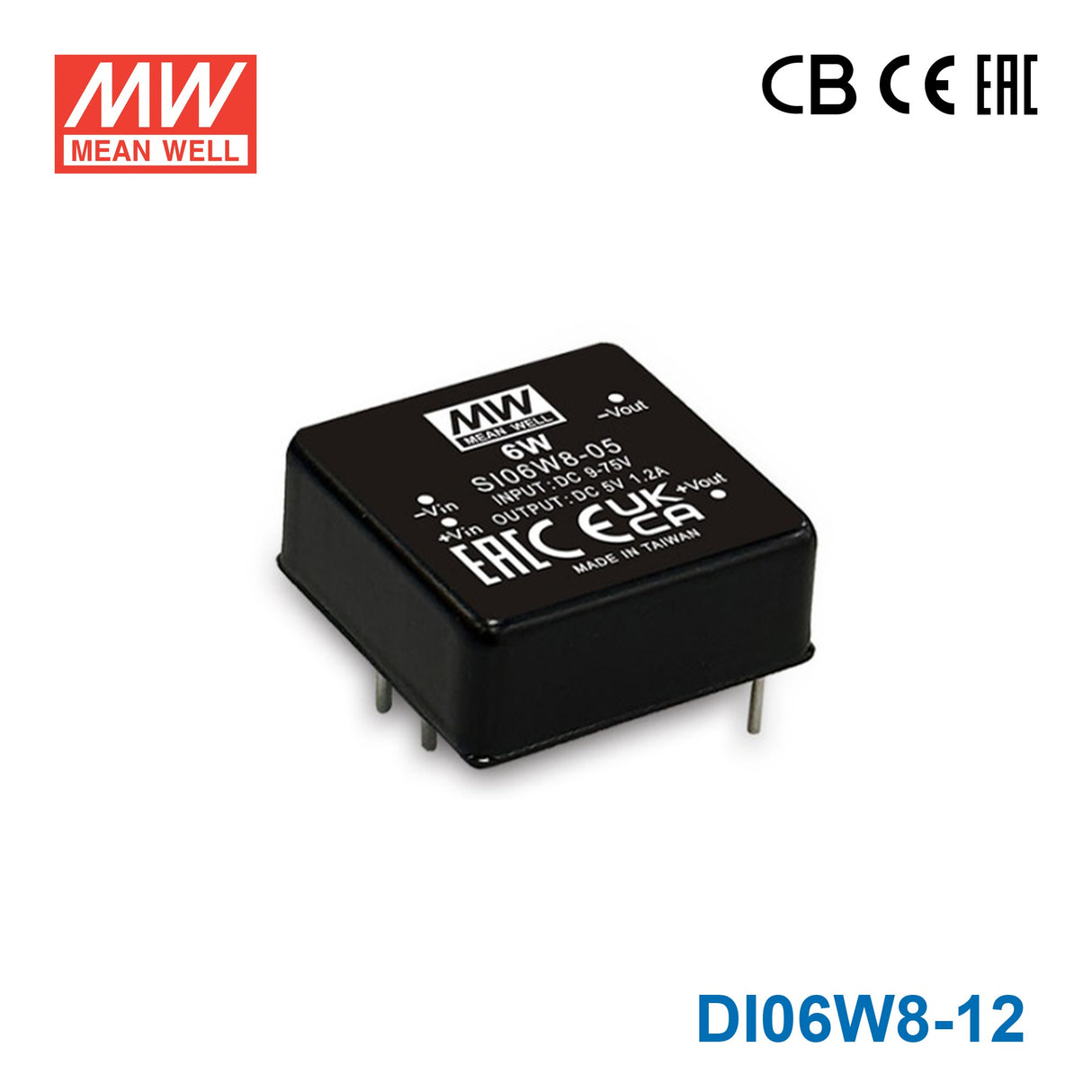

Mean Well SI06W8-03 8:1 Ultra-Wide Input DC-DC Regulated Converter,...
The DI06W8 is a 6W Mean Well. power converter. and an input range of 9~75Vdc.
Key Features
- ✓ Input voltage range: 9~75Vdc
- ✓ 3KVDC reinforced I/O isolation
- ✓ Wide operating temperature: -40~+90℃
- ✓ Protections: Short circuit / Overload / Over voltage / Under voltage
- ✓ Remote ON/OFF control
- ✓ Safety approvals: EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesDI06W8 Series
-
Power Rating6 Watt
-
Output Voltage3.3 Volt
-
Rated Current0.00 Ampere
-
Input Voltage9V~75V
-
No of Output1
-
Standards MetCB,CE,EAC
-
Operation ModeConstant Current
-
Operating Temperature-40°C~90°C
-
Warranty3 Year
-
Length1 in
-
Width1 in
-
Height0.4 in
-
Weight0.04 lb
::specification::
Frequently Asked Questions
What is the Mean Well SI06W8-03 designed for?
This model is a regulated DC-DC converter intended for applications that need a stable 3.3V single output from a very wide DC input range. Its compact 6W design makes it suitable for space-conscious industrial and embedded power applications where input voltage variation is a concern.
What makes this converter different from standard DC-DC converters?
A key differentiator of this model is its 8:1 ultra-wide input range, which gives it more flexibility than converters designed for narrower input windows. It also combines that range with 3KVDC input-to-output isolation, no minimum load requirement, and a compact DIP 1 x 1 inch package.
What are the main electrical specifications of this model?
This converter provides a single regulated 3.3V output with a 6W power rating. It is built as an isolated DC-DC converter with 3KVDC input-to-output isolation and offers efficiency up to 86% according to the provided product data.
Can this converter operate in harsh temperature conditions?
Yes. The specified operating temperature range is -40°C to +90°C, which supports use in demanding industrial environments. That wide temperature range makes it better suited to harsh conditions than models limited to standard indoor ambient ranges.
Does this model require a minimum load to regulate properly?
No. This model is specified as requiring no minimum load, which can simplify product selection for systems with light or varying load conditions. That can be useful in applications where the output demand is intermittent or not constant.
What protection features are included in this DC-DC converter?
The listed protections include continuous short circuit protection, overload protection, over temperature protection, over voltage protection, and input under voltage protection. These built-in safeguards help support reliability in industrial and OEM applications.
Is this model suitable for EMI-sensitive equipment?
This model is specified to comply with BS EN/EN55032 radiated Class A without additional components. That makes it a relevant option for equipment where meeting stated EMC performance is part of the selection criteria.
Does the Mean Well SI06W8-03 include remote control capability or warranty coverage?
Yes. The product data lists optional remote ON/OFF control and a 3-year warranty period. Those features can be useful for designs that need remote power management and predictable long-term support coverage.
