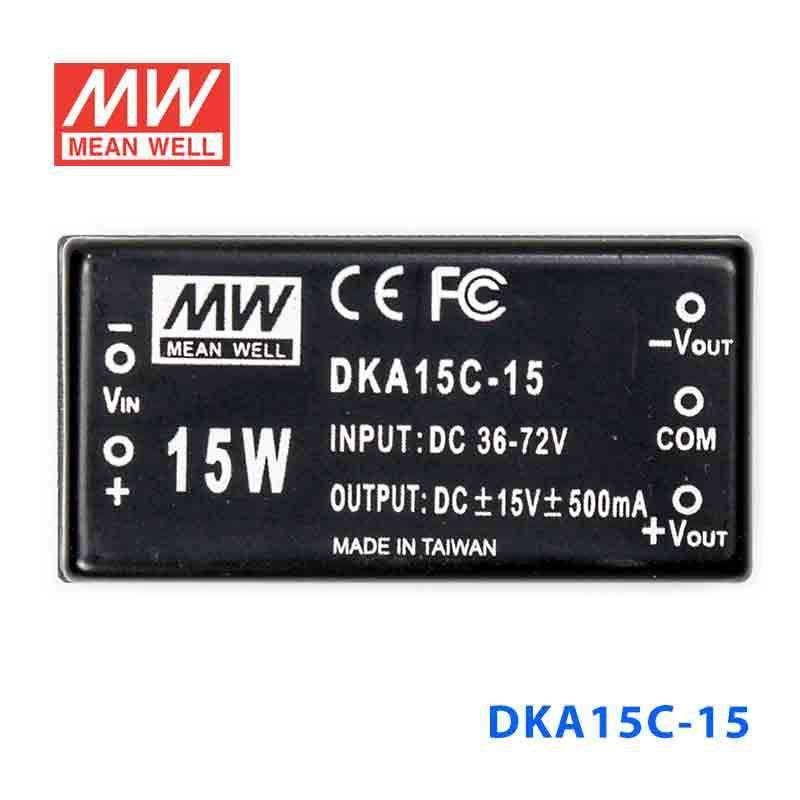

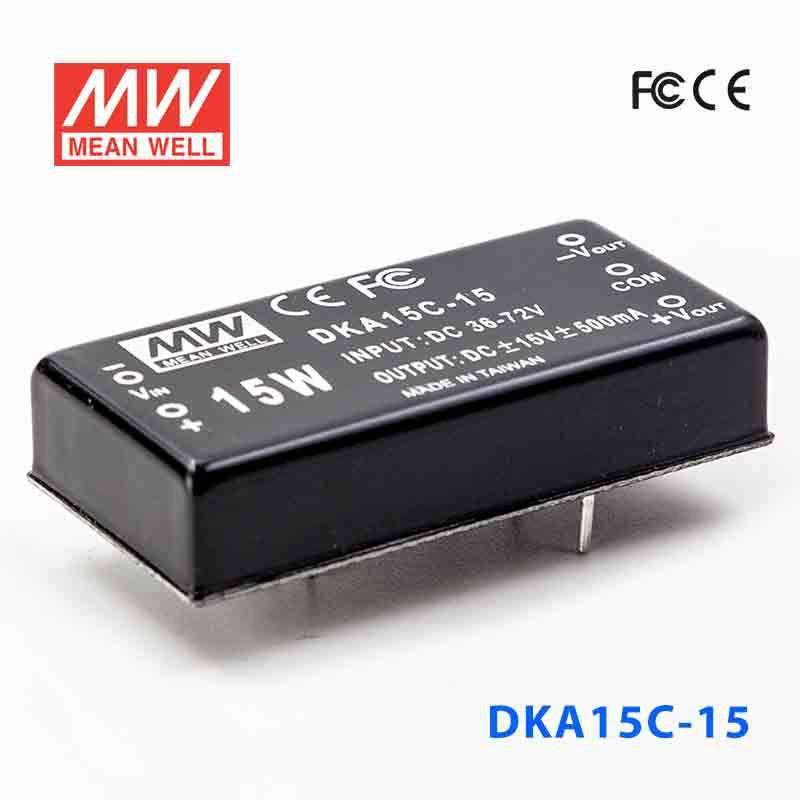

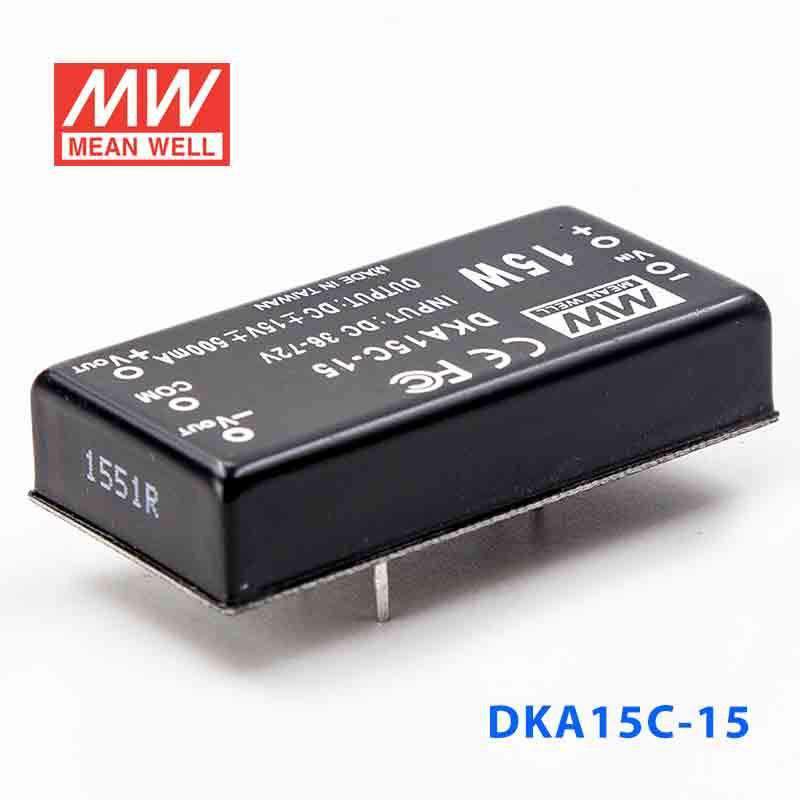

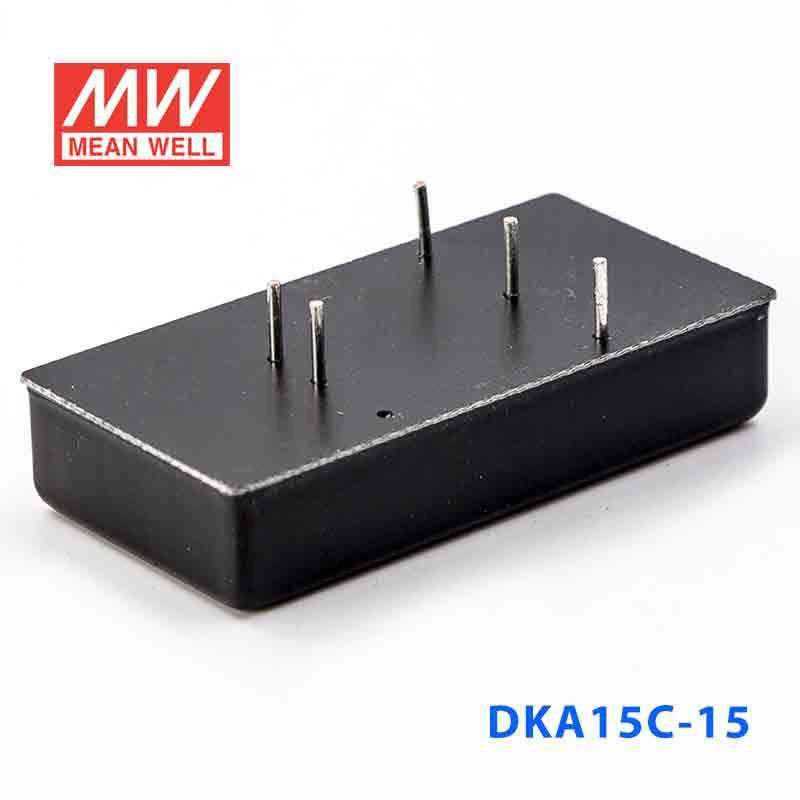

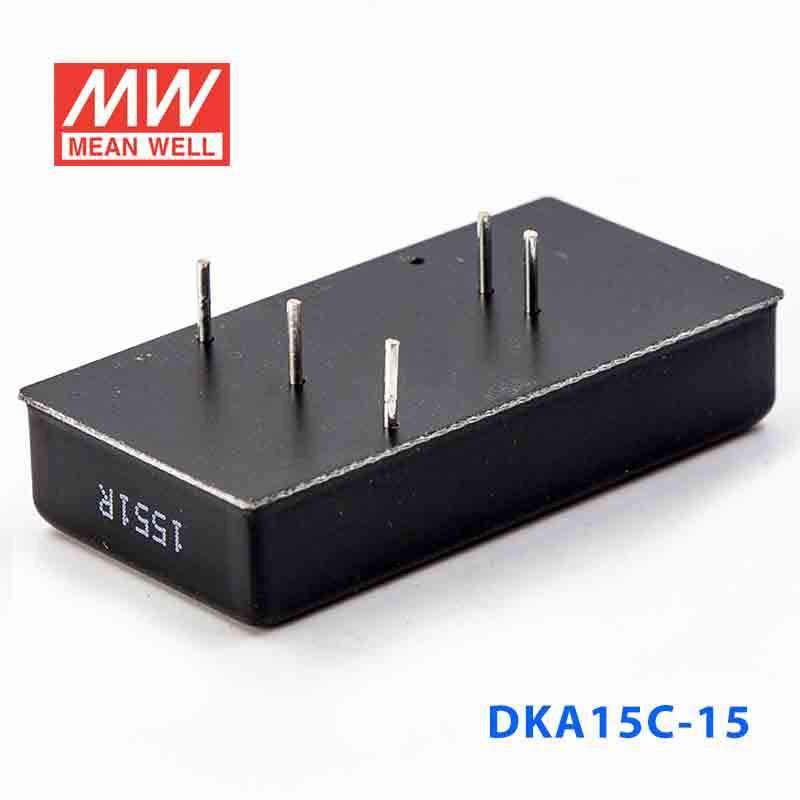

Mean Well DKA15C-15 DC-DC Converter - 15W - 36~72V in ±15V out 500mA
Overview
DKA15C-15 is the ±15V output model of this series: rated power 15W, typical efficiency 82%.
Features
- 2:1 wide input range
- 4:1 wide input range(option)
- 1000VDC I/O isolation
- 3000VDC I/O isolation(option)
- Built-in EMI filter
- Protections: Short circuit / Overload
- Cooling by free air convection
- Six-sided shield metal case
- 100% burn-in test
- Low cost / High reliability
- Approvals: FCC / CE
- 2 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- ±15V
- CURRENT RANGE
- ±50 ~ ±500mA
- RATED POWER
- 15W
- RIPPLE & NOISE (max.)Note.2
- 60mVp-p
- LINE REGULATIONNote.3
- ±0.2%
- LOAD REGULATIONNote.4
- ±0.5%
- VOLTAGE ACCURACY
- ±2.0%
- SWITCHING FREQUENCY
- 150KHz min.
- EXTERNAL CAPACITANCE LOAD (max.)
- 100uF
INPUT
- VOLTAGE RANGE
- 36 ~ 72VDC
- EFFICIENCY (Typ.)
- 82%
- DC CURRENT Full load
- 400mA
- DC CURRENT No load
- 15mA
- FILTER
- Pi network
- PROTECTION
- Fuse recommended
PROTECTION (Note. 5)
- OVER CURRENT
- 110% ~ 250% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
- SHORT CIRCUIT
- All output equipped with short circuit Protection type : Hiccup mode, recovers automatically after fault condition is removed
ENVIRONMENT
- WORKING TEMP.
- -40 ~ +71℃ (Refer to "Derating Curve")
- WORKING HUMIDITY
- 20% ~ 90% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +105℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03% / ℃ ( 0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- EAC TP TC 004 approved
- WITHSTAND VOLTAGE
- I/P-O/P:1KVDC
- ISOLATION RESISTANCE
- I/P-O/P: 100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to EN55032 Class A, FCC part 15 Class A , EAC TP TC 020
- EMC IMMUNITY
- Compliance to EN61000-4-2,3,4,5,6,8, light industry level, criteria A , EAC TP TC 020
OTHERS
- MTBF
- 300Khrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- 50.8*25.4*11.27mm or 2"*1"*0.44" inch (L*W*H)
- WEIGHT
- 32g
Test conditions and notes5
- 1.All parameters are specified at normal input, rated load, 25℃ 70% RH ambient.
- 2.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1uf & 47uf capacitor.
- 3.Line regulation is measured from low line to high line at rated load.
- 4.Load regulation is measured from 10% to 100% rated load.
- 5.Please prevent the converter from operating in overload or short circuit condition for more than 30 seconds.
Technical drawings
Downloads
FAQ
Can I use the DKA15C-15 for 15V analog or control sections in industrial systems?
Yes. This converter provides constant-voltage 15V output from a 36-72VAC input and is rated at 15W. It is suited to lower-power 15V sections that need a regulated output within that input range.
Is the DKA15C-15 suitable for embedded 15V electronics where board space is limited?
It is compact at 50.8 × 25.4 × 11.27 mm, which helps in dense embedded layouts. With constant 15V output and a 15W rating, it is intended for smaller 15V electronics rather than higher-power loads.
Can this converter serve as a 15V auxiliary rail in automation equipment?
Yes, when the source is within 36-72VAC and the auxiliary rail needs constant 15V output. The 15W power rating sets the load size it is designed to support.
What are the differences between DKA15C-15 and the 5V or 12V versions?
All 3 DKA15C models share 15W power, 36-72VAC input, 50.8 × 25.4 × 11.27 mm dimensions, -40°C to +71°C operating range, and a 2-year warranty. The outputs are different: DKA15C-05 is 5V at 1.5A, DKA15C-12 is 12V at 625A, and DKA15C-15 is 15V at 500A.
Is the DKA15C-15 appropriate for outdoor installations?
The listed operating temperature range is -40°C to +71°C, so the unit is specified for wide temperature conditions. However, no IP rating is given, so the product specs do not identify it as outdoor-rated.
