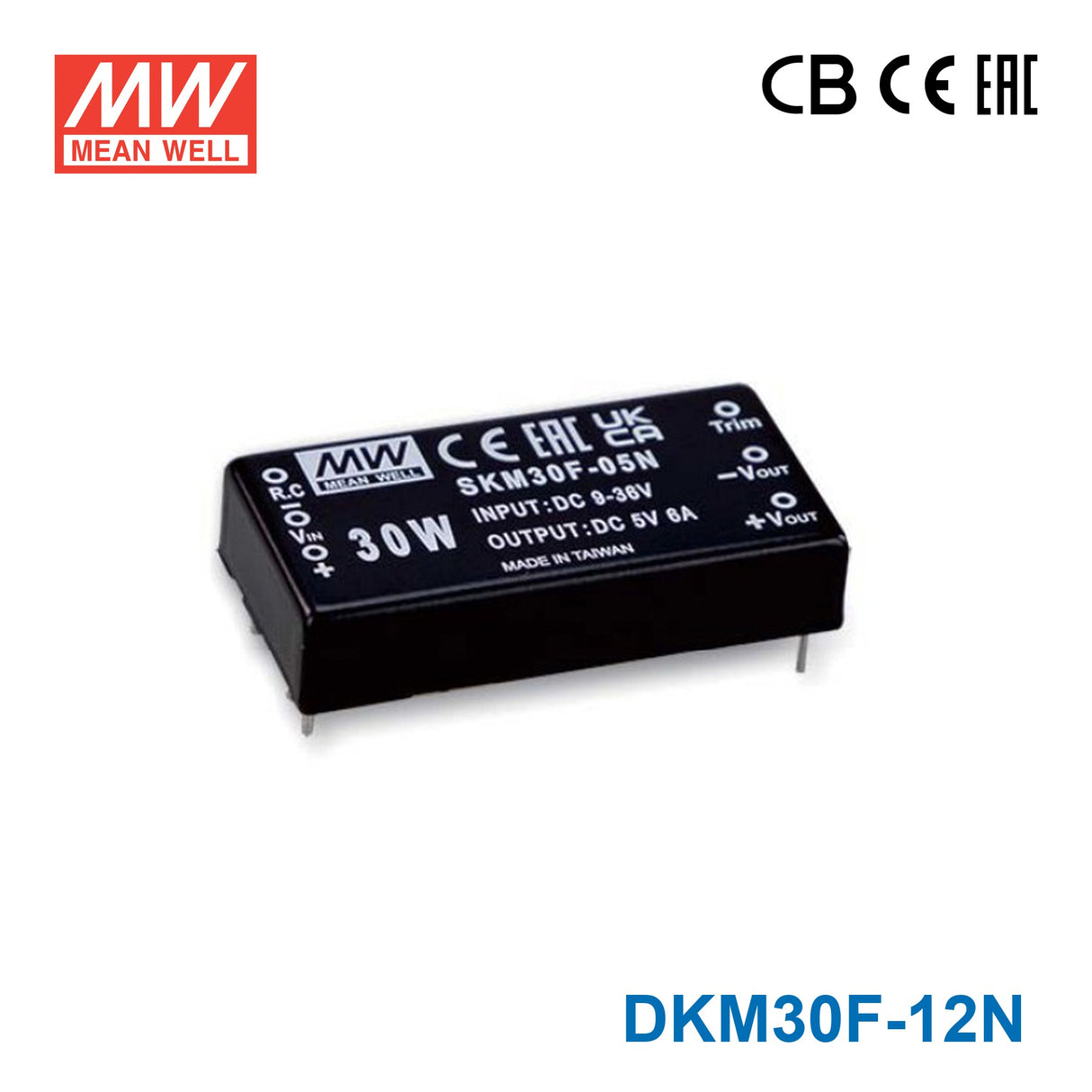

Mean Well DKM30F-12N 2"x1" Package DC-DC Converter 30W 12...
The DKM30F is a 30W Mean Well. power converter. and an input range of 9~36Vdc.
Key Features
- ✓ Input voltage range: 9~36Vdc
- ✓ 3KVDC reinforced I/O isolation
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Remote ON/OFF control
- ✓ Safety approvals: EAC TP TC 020/2011
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesDKM30-N Series
-
Power Rating30 Watt
-
Output Voltage12 Volt
-
Rated Current1.25 Ampere
-
No of Output1
-
Standards MetCB,CE,EAC
-
Operation ModeConstant Current
-
Warranty3 Year
-
Length2 in
-
Width1 in
-
Height0.44 in
-
Weight0.07 lb
::specification::
Frequently Asked Questions
What is the Mean Well DKM30F-12N designed for?
The DKM30F-12N is a 30W DC-DC converter for applications that need a regulated 12V single output in a compact 2"x1" package. It is suited to OEM and industrial equipment where space, isolation, and a wide input range matter.
What are the key output specifications of the DKM30F-12N?
This model provides a single 12V DC output with a rated current of 1.25A and a 30W power rating. It is intended for buyers who need a defined 12V output from a modular DC-DC converter in this power class.
How wide is the input range on the DKM30F-12N?
The DKM30F-12N features a 4:1 ultrawide input range, which helps it fit systems with broader DC input variation. That makes it more flexible than narrow-input converter designs when input conditions are less consistent.
Can the DKM30F-12N operate in harsh temperature conditions?
Yes. This model is rated for operation from -40°C to +90°C, with no derating required from -40°C to 60°C. That makes it a practical option for demanding industrial environments with low or elevated ambient temperatures.
What protection features are included in the DKM30F-12N?
The DKM30F-12N includes protection for short circuit, overload, over temperature, and over voltage. These built-in protections help support system reliability in applications where fault tolerance is important.
Does the DKM30F-12N support remote control or output adjustment?
Yes. This model supports remote ON/OFF control and output trimming of ±10%. Those features can be useful in equipment designs that need controlled power management or fine output adjustment within the converter's specified range.
What are the isolation, efficiency, and warranty details for the DKM30F-12N?
The DKM30F-12N provides 3KVDC input-to-output isolation and offers efficiency up to 89%. Mean Well also backs this model with a 3-year warranty, which is relevant for buyers comparing long-term value and reliability.
