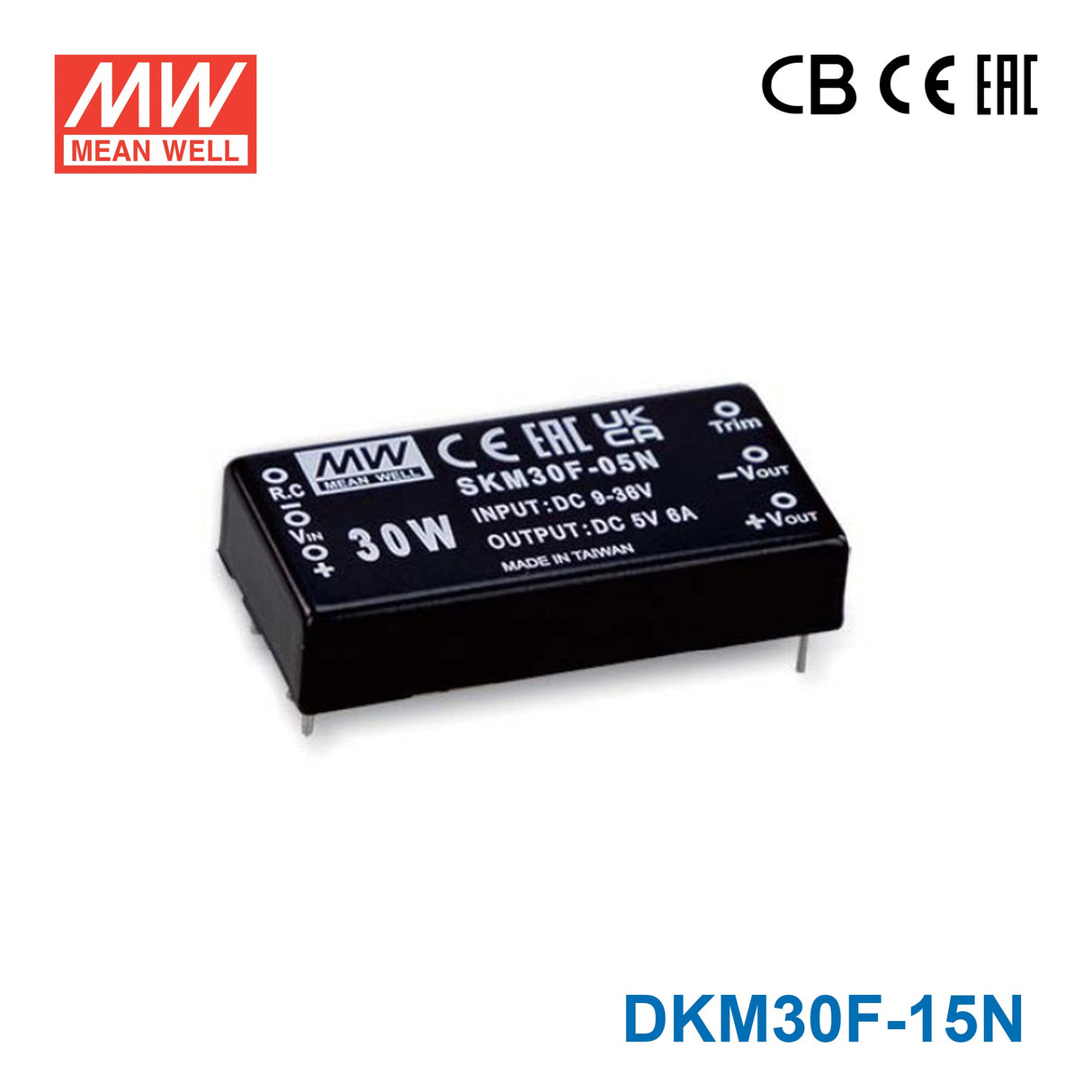

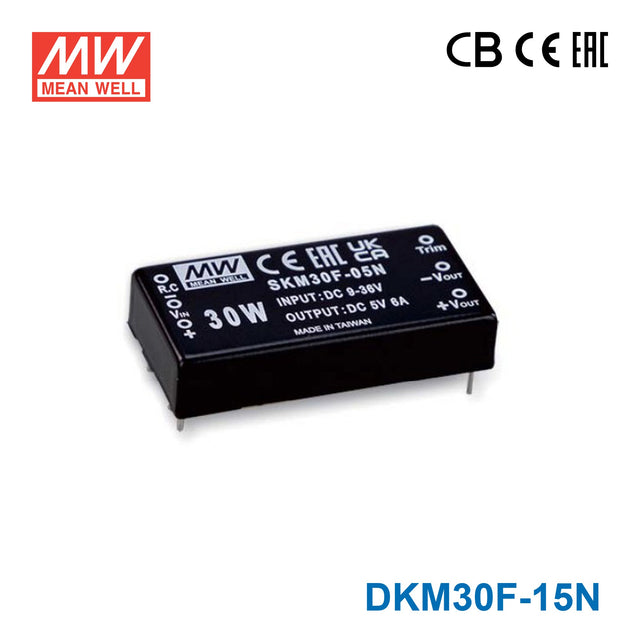

Mean Well DKM30F-15N 2"x1" Package DC-DC Converter 30W 15...
The DKM30F is a 30W Mean Well. power converter. and an input range of 9~36Vdc.
Key Features
- ✓ Input voltage range: 9~36Vdc
- ✓ 3KVDC reinforced I/O isolation
- ✓ Protections: Short circuit / Overload / Over voltage
- ✓ Remote ON/OFF control
- ✓ Safety approvals: EAC TP TC 020/2011
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesDKM30-N Series
-
Power Rating30 Watt
-
Output Voltage15 Volt
-
Rated Current1 Ampere
-
No of Output1
-
Standards MetCB,CE,EAC
-
Operation ModeConstant Current
-
Warranty3 Year
-
Length2 in
-
Width1 in
-
Height0.44 in
-
Weight0.07 lb
::specification::
Frequently Asked Questions
What are the key output specifications of the Mean Well DKM30F-15N?
The DKM30F-15N is a 30W DC-DC converter with a single 15V DC output and a rated current of 1A. It is designed in a compact 2x1 inch DIP package for applications that need a regulated 15V output in a board-mount form factor.
Is the DKM30F-15N suitable for equipment that sees wide input voltage variation?
Yes. This model has a 4:1 ultrawide input range, which makes it a practical choice for systems where the input supply can vary significantly within the converter's supported range. That flexibility is useful in industrial and embedded designs that need a stable 15V output from a less uniform DC source.
Can this DC-DC converter be used in harsh temperature environments?
The DKM30F-15N is rated for operation from -40°C to +90°C. Mean Well also specifies no derating from -40°C to +60°C, which helps for equipment expected to operate across a broad ambient temperature range.
What protection features are built into the DKM30F-15N?
This model includes protection for short circuit, overload, over temperature, and over voltage conditions. It also provides 3KVDC input-to-output isolation, which is an important specification for applications that require electrical separation between input and output sides.
What makes the DKM30F-15N a good fit for compact industrial or embedded designs?
Its 2x1 inch DIP package, 30W power rating, and 15V single output make it suited to compact equipment where board space is limited. Additional features such as high efficiency up to 89%, no minimum load requirement, remote on/off control, and output trimming of plus or minus 10% add flexibility for OEM and B2B system designs.
Does the DKM30F-15N require a minimum load to regulate properly?
No. Mean Well specifies that this converter does not require a minimum load, which can simplify product selection for designs with light-load or variable-load operating conditions. That can be useful in systems where the 15V rail is not continuously heavily loaded.
