Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

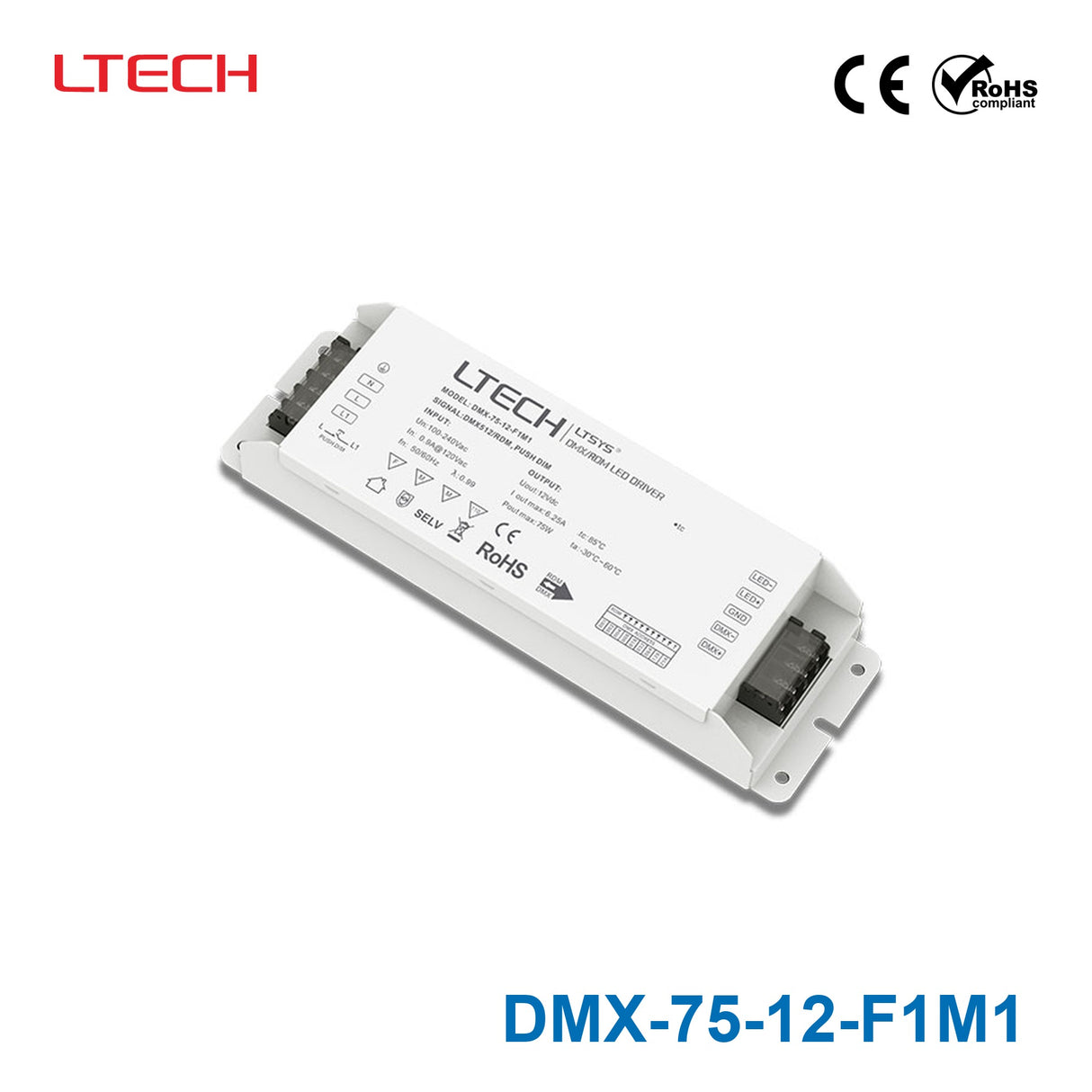

Ltech DMX-75-12-F1M1 75W 12VDC CV DMX LED Driver - DMX dimmable
- Dimming interface: DMX512/RDM
- Push DIM.
- With the RDM remote device management protocol.
- PWM digital dimming
- no alter LED colorrendering index.
- 0~100% flicker-free
- achieve the level of exemption assessment.
- Dimming range from 0-100%
- LED start at 0.1%possible.
- Short circuit / Over-heat / Over load protection
- short circuit protection
- recover automatically
- Compliant with Safety Extra Low Voltage standard.
- Suitable for indoor I/II/IIItype lamps application
-
BrandLtech
-
SeriesLtech DMX Series
-
Power Rating75 Watt
-
Output Voltage12 Volt
-
Rated Current6.25 Ampere
-
Input Voltage100V~240V
-
No of Output1
-
Dimming ControlDMX
-
Standards MetCE,ROHS
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~60°C
-
Warranty5 Year
-
Length8.03 in
-
Width2.44 in
-
Height1.34 in
-
Weight1.08 lb
::specification::
Frequently Asked Questions
What type of LED application is the Ltech DMX-75-12-F1M1 designed for?
The DMX-75-12-F1M1 is a constant-voltage 12VDC LED driver intended for LED lighting applications that use DMX dimming. Its 75W output makes it suitable for indoor lamp and lighting projects that need dimming control with a dedicated LED driver.
Is this LED driver compatible with DMX control systems?
Yes. This model supports DMX512 and RDM, so it is intended for systems that use DMX-based dimming and remote device management. It is specifically described as a DMX dimmable constant-voltage LED driver.
What are the main output specifications of the DMX-75-12-F1M1?
This model is rated for 75W output at 12VDC with a rated current of 6.25A. Those specifications make it a constant-voltage driver for 12V LED loads within its stated power and current limits.
How smooth is the dimming performance on this model?
The product uses PWM digital dimming with a stated dimming range of 0 to 100 percent. The description also states flicker-free dimming and notes that LED start is possible at 0.1 percent, which is useful for applications needing low-end dimming performance.
Can the Ltech DMX-75-12-F1M1 be used in demanding temperature conditions?
This driver is rated for an ambient operating temperature range from -30°C to 60°C. That gives it a wider working range than many indoor-only power products, while still being specified by the manufacturer for indoor lamp applications.
What protection features are included in this LED driver?
The DMX-75-12-F1M1 includes short circuit, over-heat, and over-load protection. The description also states that short circuit protection recovers automatically, which helps support reliability in normal product operation.
What warranty is offered for the DMX-75-12-F1M1?
This model carries a 5-year warranty period. That warranty term is a useful indicator for buyers comparing commercial-grade LED drivers for long-term projects.
