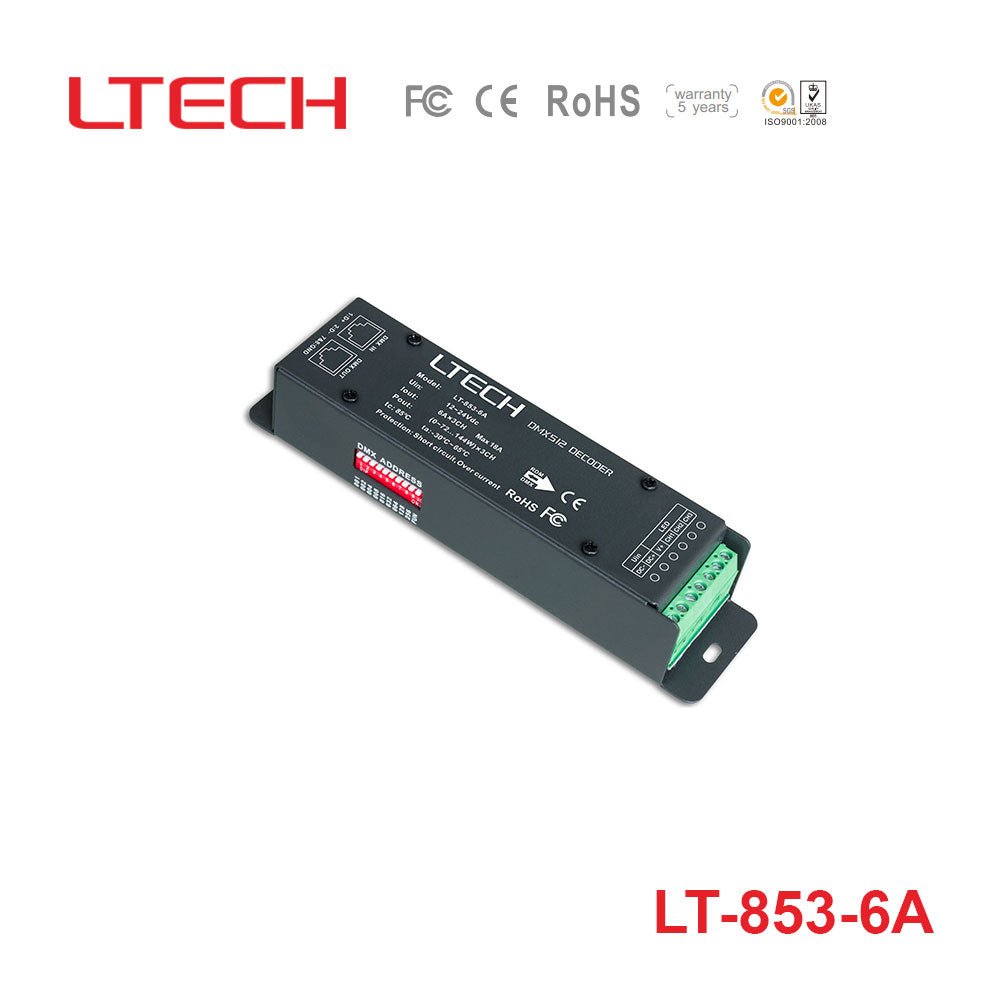

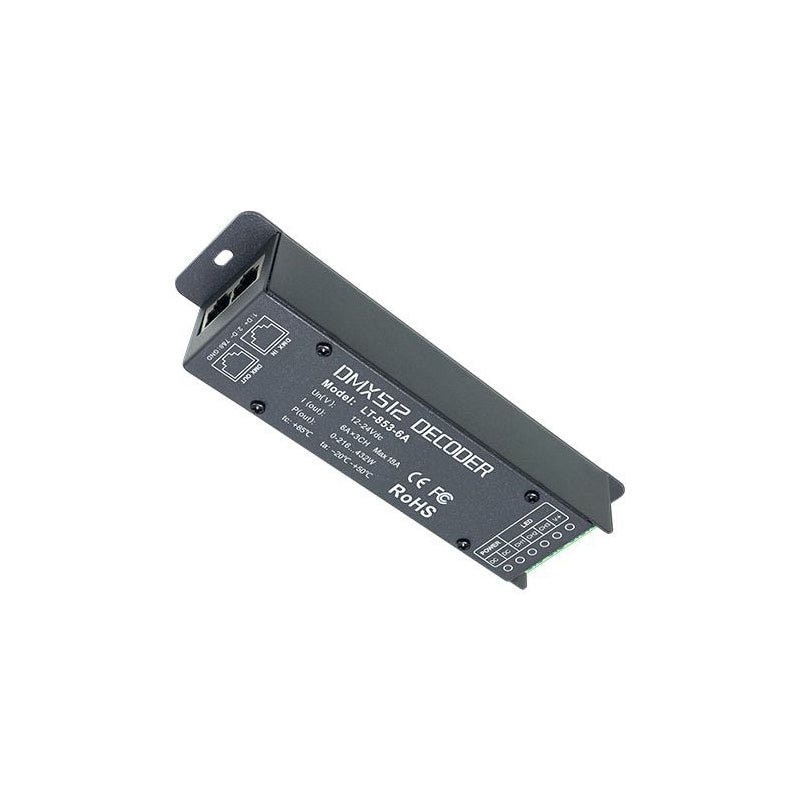

Ltech LT-853-6A Constant Voltage Decoder - DMX/RDM
DMX Decoder adopted the advanced micro-electronic control technology to convert universal DMX512/1990 digital signal to CC/CV PWM signal to drive LED, which controlled by DMX512 console, realize 0-100% brightness or various changing effect. And can control single color, dupi-color, RGB, RGBY, RGBW, RGBA LED lights.
Have excellent performance:
16-bit dimming curve.
Frame rate is as high as 850 frames per second.
Built-in protection circuit of resistance to lighting stroke and ESD static electricity.
-
BrandLtech
-
SeriesLtech DMX Series
-
Power Rating432 Watt
-
Output Voltage24 Volt
-
Rated Current18 Ampere
-
Input Voltage12V~24V
-
No of Output3
-
Dimming ControlDMX,RDM Signal
-
Standards MetCE,FCC,ROHS
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~65°C
-
Warranty5 Year
-
Length6.89 in
-
Width1.65 in
-
Height1.3 in
-
Weight0.68 lb
