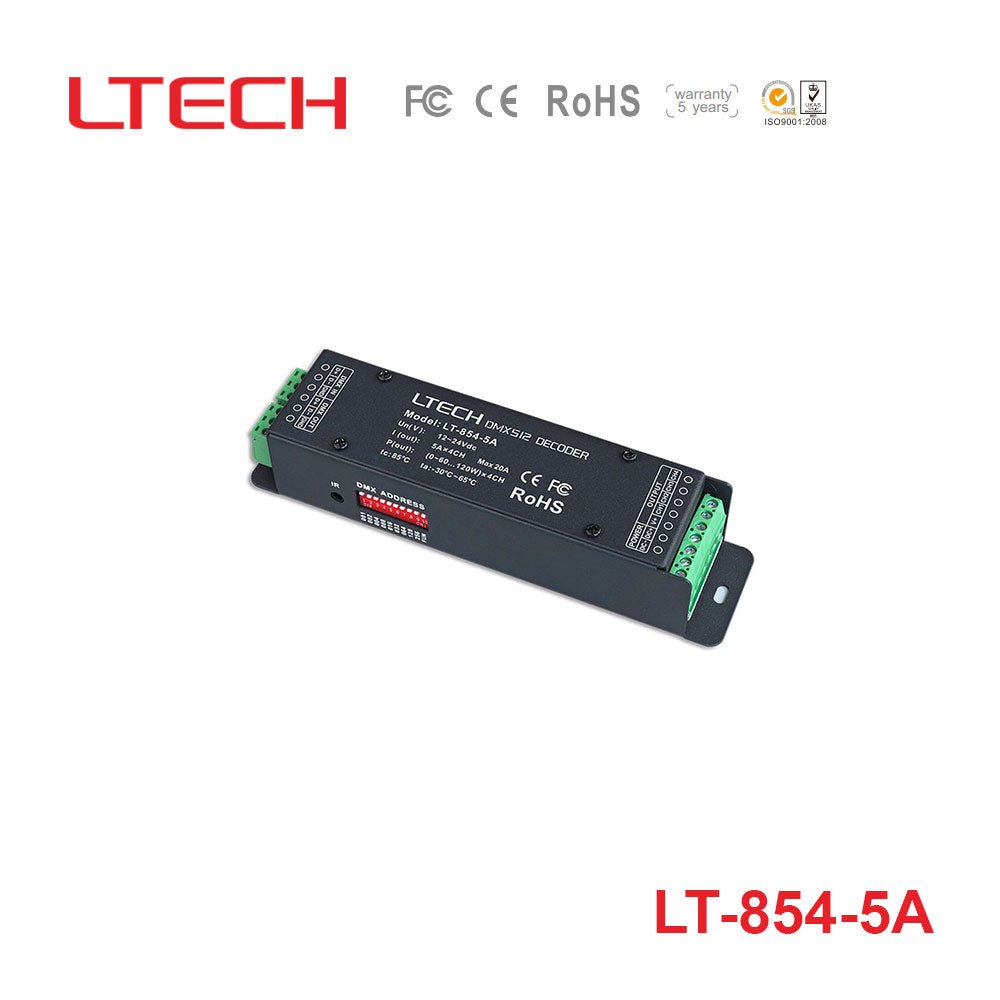

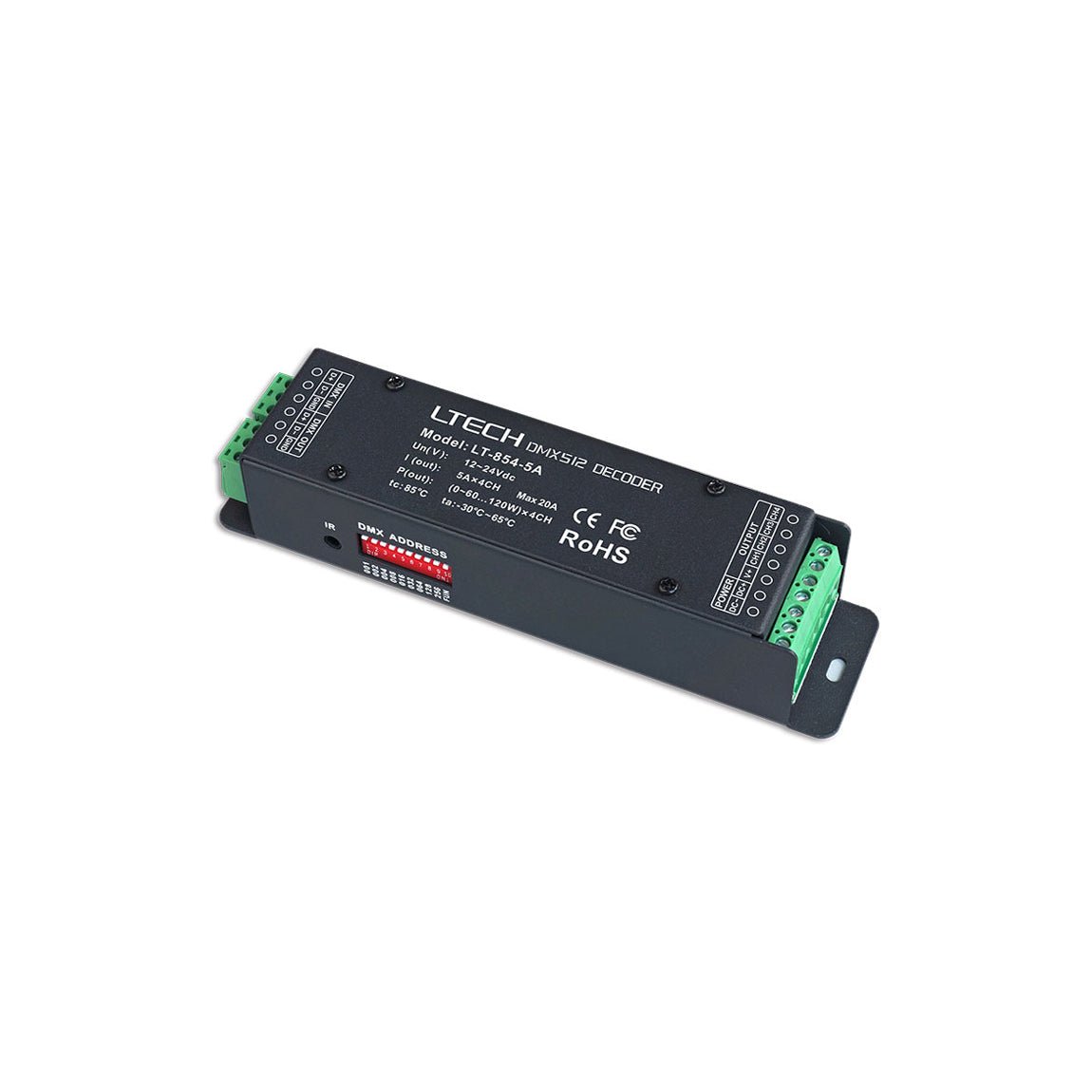

Ltech LT-854-5A Constant Voltage Decoder - DMX/RDM
DMX decoder for low voltage circuits. With 4 output channels, this unit is ideal for controlling RGBW, RGB or single colour LED Strip.
The decoder requires a low voltage input. It receives a DMX control signal from a suitable controller in order to supply the correct dimming output across 4 channels. DMX connects via screw terminals, the driver and lights connect via screw terminals on the other side of the unit.
The decoder operates on a low voltage 12~24V DC circuit, providing a PWM output, ideal for dimming LEDs.
-
BrandLtech
-
SeriesLtech DMX Series
-
Power Rating480 Watt
-
Output Voltage24 Volt
-
Rated Current20 Ampere
-
Input Voltage12V~24V
-
No of Output4
-
Dimming ControlDMX,RDM Signal
-
Standards MetCE,FCC,ROHS
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~65°C
-
Warranty5 Year
-
Length6.89 in
-
Width1.65 in
-
Height1.3 in
-
Weight0.68 lb
