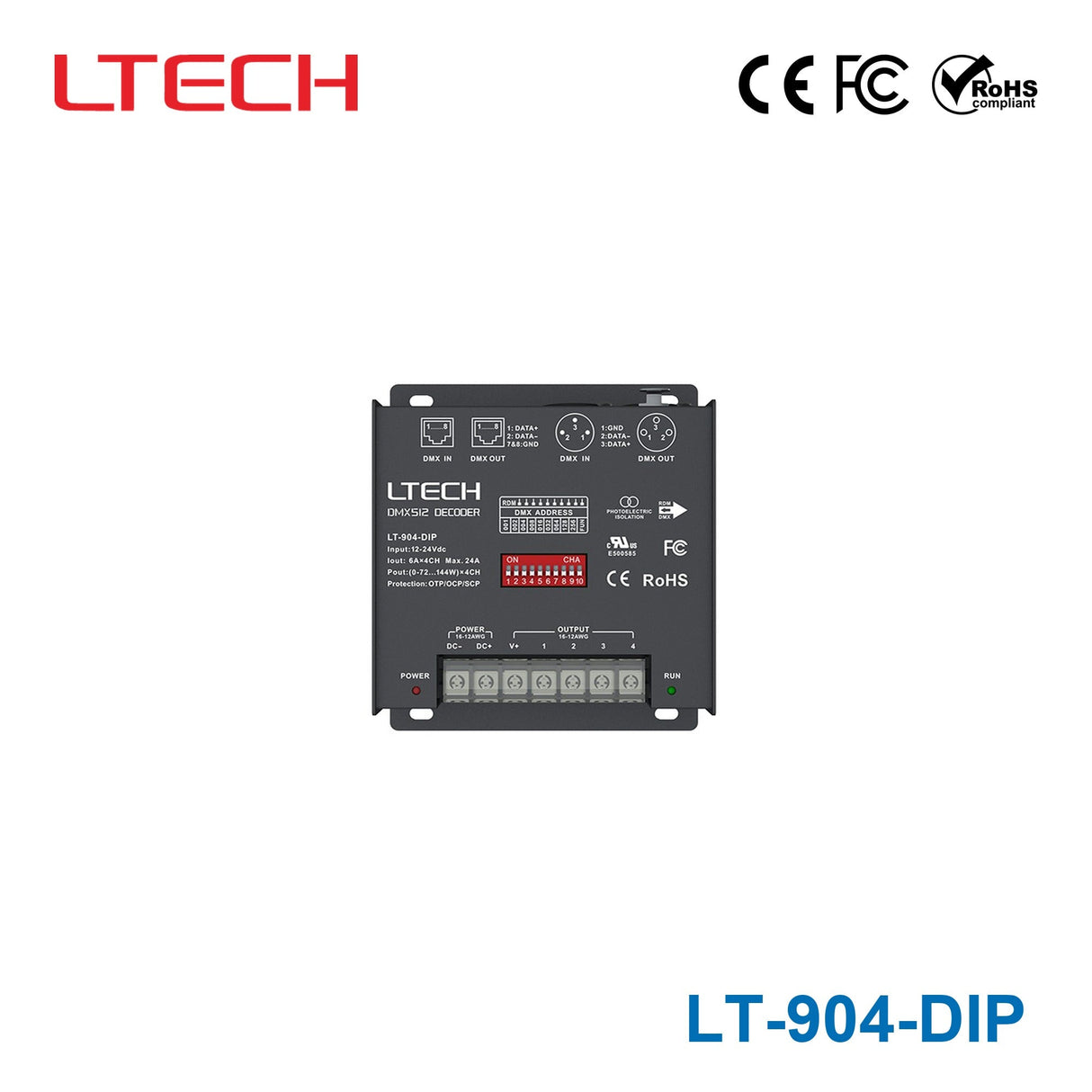

Ltech LT-904-DIP Constant Voltage Decoder - DMX/RDM
LTech LT-904-DIP Product Introduction
1. Designed with 4 channels output, and Max. 6A current per channel, up to 576W output power.
2. Support 2 kinds of DMX ports: 3-pin XLR, RJ45.
3. With RDM remote management protocol, the operations can be completed via the RDM master console, such as parameters browsing & setting, DMX address setting, equipment recognition,etc.
4. With short circuit protection and over current protection, as well as warning function when fault.
-
BrandLtech
-
SeriesLtech DMX Series
-
Power Rating576 Watt
-
Output Voltage24 Volt
-
Rated Current24 Ampere
-
Input Voltage12V~24V
-
No of Output4
-
Dimming ControlDMX,RDM Signal
-
Standards MetCE,FCC,ROHS
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~65°C
-
Warranty5 Year
-
Length4.8 in
-
Width4.33 in
-
Height1.46 in
-
Weight1.21 lb
::specification::
Frequently Asked Questions
What is the LT-904-DIP used for?
The Ltech LT-904-DIP is a constant voltage DMX/RDM decoder for LED lighting control systems. It is designed for commercial and professional applications that need DMX-based control with four output channels and remote device management support.
What are the output capacity and channel limits of the LT-904-DIP?
This model provides 4 output channels with a maximum of 6A per channel. Its total rated current is 24A, and the maximum output power is 576W at 24V.
Does the LT-904-DIP support RDM as well as DMX?
Yes. The LT-904-DIP supports both DMX and RDM, which allows compatible RDM master consoles to browse and set parameters, set DMX addresses, and identify the device remotely.
What control interface options are available on the LT-904-DIP?
This decoder supports two DMX port formats: 3-pin XLR and RJ45. That gives buyers more flexibility when selecting a decoder for different professional lighting control environments.
Is the LT-904-DIP suitable for demanding operating environments?
It is rated for operation from -30°C to 65°C, which makes it suitable for a wide range of indoor and protected commercial environments. Buyers looking for a decoder for variable temperature conditions should find this range useful for many professional projects.
What protection features are included in the LT-904-DIP?
The LT-904-DIP includes short circuit protection, over-current protection, and a fault warning function. These features help protect the decoder and provide fault awareness in professional lighting systems.
What warranty is offered for the LT-904-DIP?
This model includes a 5-year warranty. That warranty period is a strong fit for B2B buyers who want longer-term support expectations for control system components.
