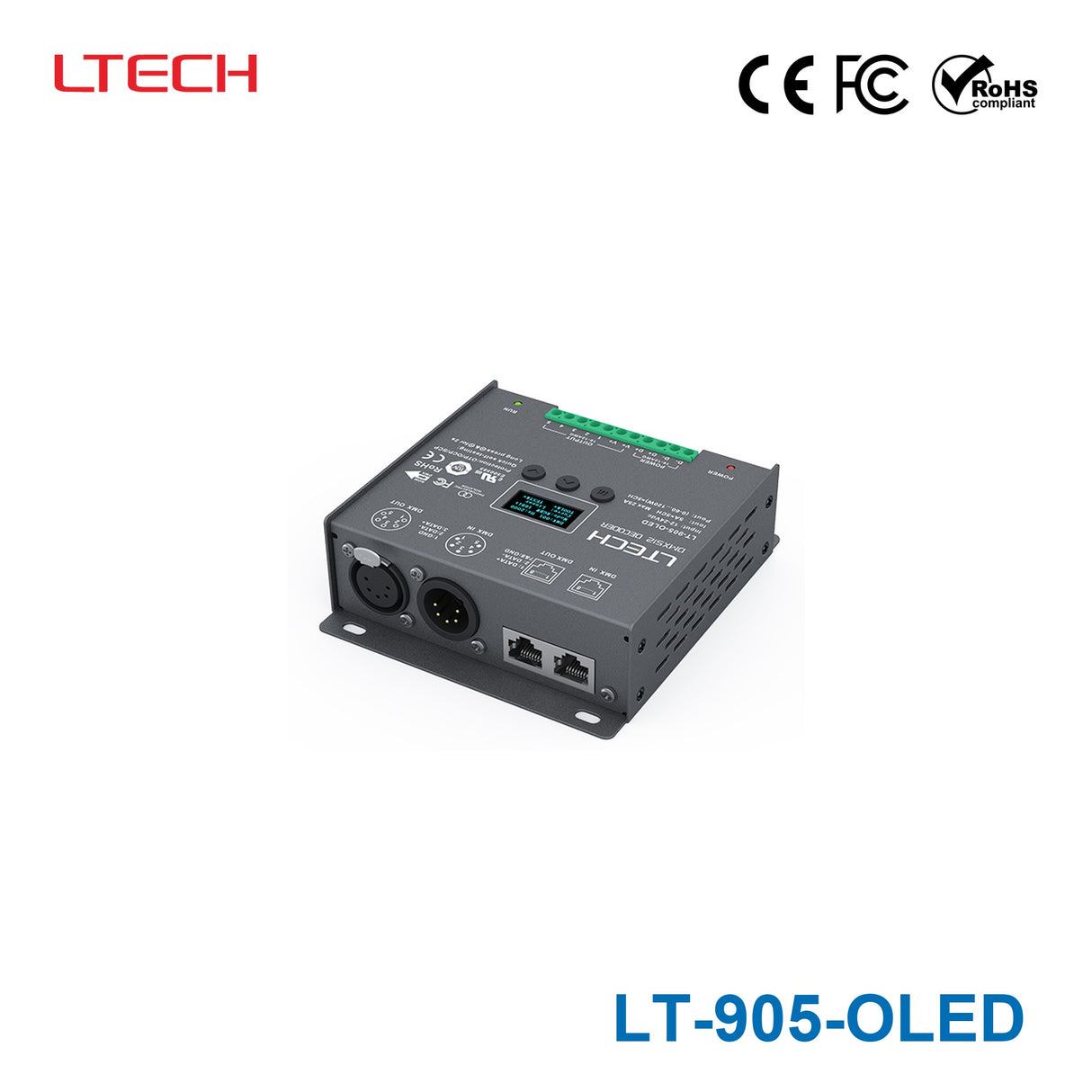

Ltech LT-905-OLED Constant Voltage Decoder - DMX/RDM
The 5-channel OLED DMX decoder is suitable for applications where DIM, CT, RGB, RGBW and RGBWY modules must be controlled with a DMX signal. In case you are using RGBW FlexStrip a maximum of 1 module can be connected. With the Dimming this will be 5 modules. It has 5 channels of 5A (25A max) and a maximum power of 600W. Works with 12 and 24 Volt DC LED modules. Has multiple DMX sockets to chose from: RJ45 and XLR-5. Also supports 8 & 16 bit functions and has 0.1 - 9,9 dimming curve.
-
BrandLtech
-
SeriesLtech DMX Series
-
Power Rating600 Watt
-
Output Voltage24 Volt
-
Rated Current25 Ampere
-
Input Voltage12V~24V
-
No of Output5
-
Dimming ControlDMX,RDM Signal
-
Standards MetCE,FCC,ROHS
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~65°C
-
Warranty5 Year
-
Length4.8 in
-
Width4.33 in
-
Height1.46 in
-
Weight1.21 lb
::specification::
Frequently Asked Questions
What is the Ltech LT-905-OLED used for?
The LT-905-OLED is a 5-channel constant voltage decoder designed for DMX/RDM lighting control applications. It is intended for dimming and control of DIM, CT, RGB, RGBW, and RGBWY LED modules in commercial and professional lighting systems.
What control protocols does the LT-905-OLED support?
This model supports both DMX and RDM control. It also supports 8-bit and 16-bit functions, which can be useful in projects that need either standard control resolution or finer dimming adjustment.
What are the electrical ratings of the LT-905-OLED?
The LT-905-OLED is rated for up to 600W maximum power and 25A maximum current across its 5 channels. Each channel is rated at 5A, making it suitable for constant voltage LED loads within those limits.
Is the LT-905-OLED compatible with 12V and 24V LED modules?
Yes, the product description states that the LT-905-OLED works with both 12V and 24V DC LED modules. That makes it a flexible option for buyers managing different constant voltage LED product types within one control ecosystem.
What makes the LT-905-OLED a good fit for multi-channel LED projects?
Its 5-channel design allows it to support multiple LED control types including DIM, CT, RGB, RGBW, and RGBWY. That gives specifiers and integrators more flexibility than single-purpose decoders when working across varied lighting applications.
Can the LT-905-OLED be used in demanding environmental conditions?
This decoder is rated for operation from -30°C to 65°C. That wide temperature range makes it suitable for projects where the control hardware may be exposed to colder or hotter operating environments than typical indoor-only equipment.
What kind of dimming performance does the LT-905-OLED offer?
The LT-905-OLED supports a dimming curve range of 0.1 to 9.9, as stated in the product description. Combined with 8-bit and 16-bit support, this helps it serve applications that require more refined dimming behavior.
