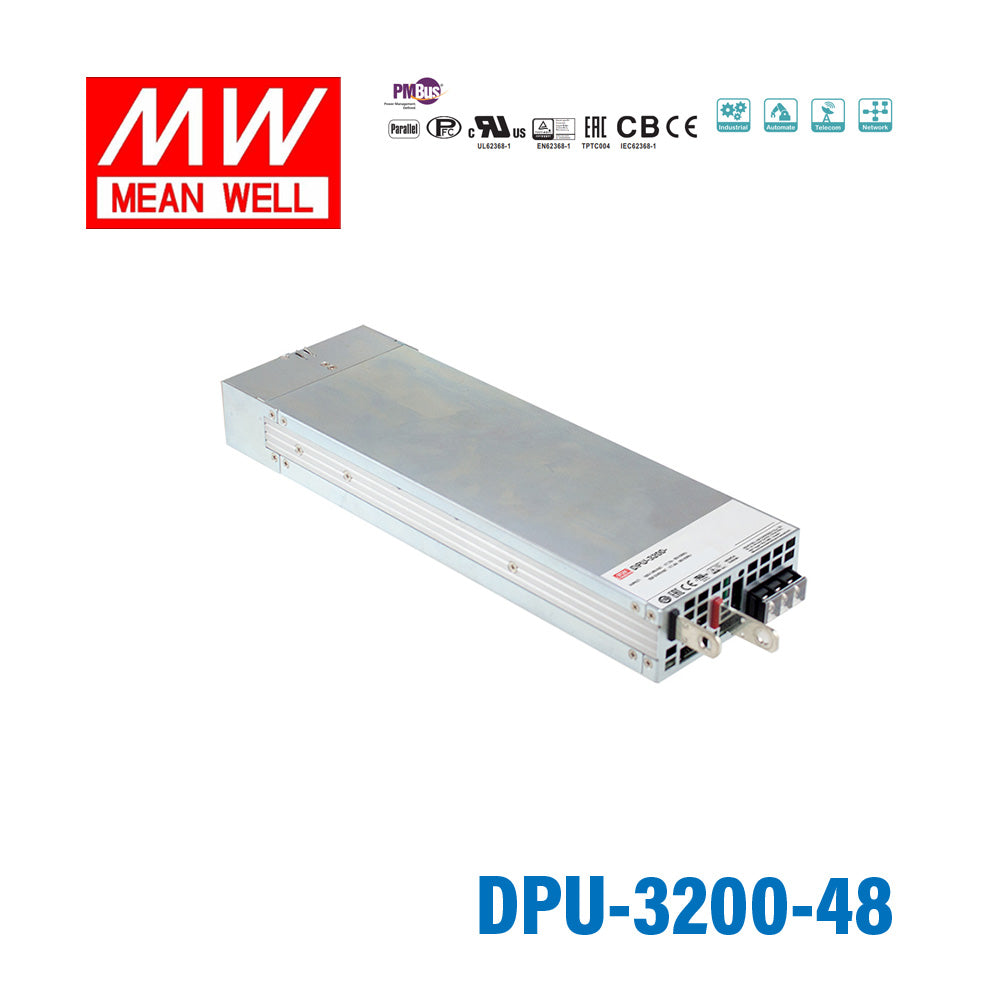

Mean Well DPU-3200-48 power supply 3200W 48V 67A
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well DPU-3200-48 power supply 3200W 48V 67A
The DPU-3200 is a 3200W Mean Well power converter (input range: 90~264VAC).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Remote ON/OFF control
- ✓ Safety approvals: UL62368-1, TUV EN62368-1, EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesDPU Series
-
Power Rating3216 Watt
-
Output Voltage48 Volt
-
Rated Current67 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty5 Year
-
Length12.83 in
-
Width4.21 in
-
Height1.61 in
-
Weight6.08 lb
::specification::
Frequently Asked Questions
Can I use the DPU-3200-48 for a 48V industrial automation power system?
Yes, this model provides constant-voltage 48V output with a 3216W power rating and 67A output current. That makes it appropriate for industrial or automation systems built around a 48V DC power architecture.
Is the DPU-3200-48 a fit for a 48V communications or networking power shelf?
It can be a fit for high-power 48V equipment because it delivers 48V constant-voltage output at up to 67A. Its 90-264VAC input range is also useful where incoming AC supply conditions vary.
Can this model support larger 48V systems that may need parallel power expansion?
Yes, the DPU-3200-48 supports active current sharing up to 16000W(4+1), which is relevant for larger systems that scale beyond a single supply. Each individual unit is rated for 3216W at 48V.
Would the DPU-3200-48 work for embedded or rack-based equipment that needs high power density?
It is suited to compact high-power applications because it delivers 3216W in a 325.8 × 107.0 × 41.0 mm package. Efficiency up to 94.5% also supports power-dense equipment where thermal performance is important.
What is the difference between the DPU-3200-48 and DPU-3200-24?
The DPU-3200-48 provides 3216W, 48V output, and 67A output current. The DPU-3200-24 provides 3192W, 24V output, and 133A output current.
Can the DPU-3200-48 be used in outdoor equipment or wide-temperature enclosures?
The specified operating temperature range is -30°C to +70°C, so it supports use in equipment exposed to substantial temperature variation within that range. No IP rating is provided, so the listed specs do not confirm protection for exposed outdoor conditions.
