Over 15 years experience of providing support of MEAN WELL Power Supplies
Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

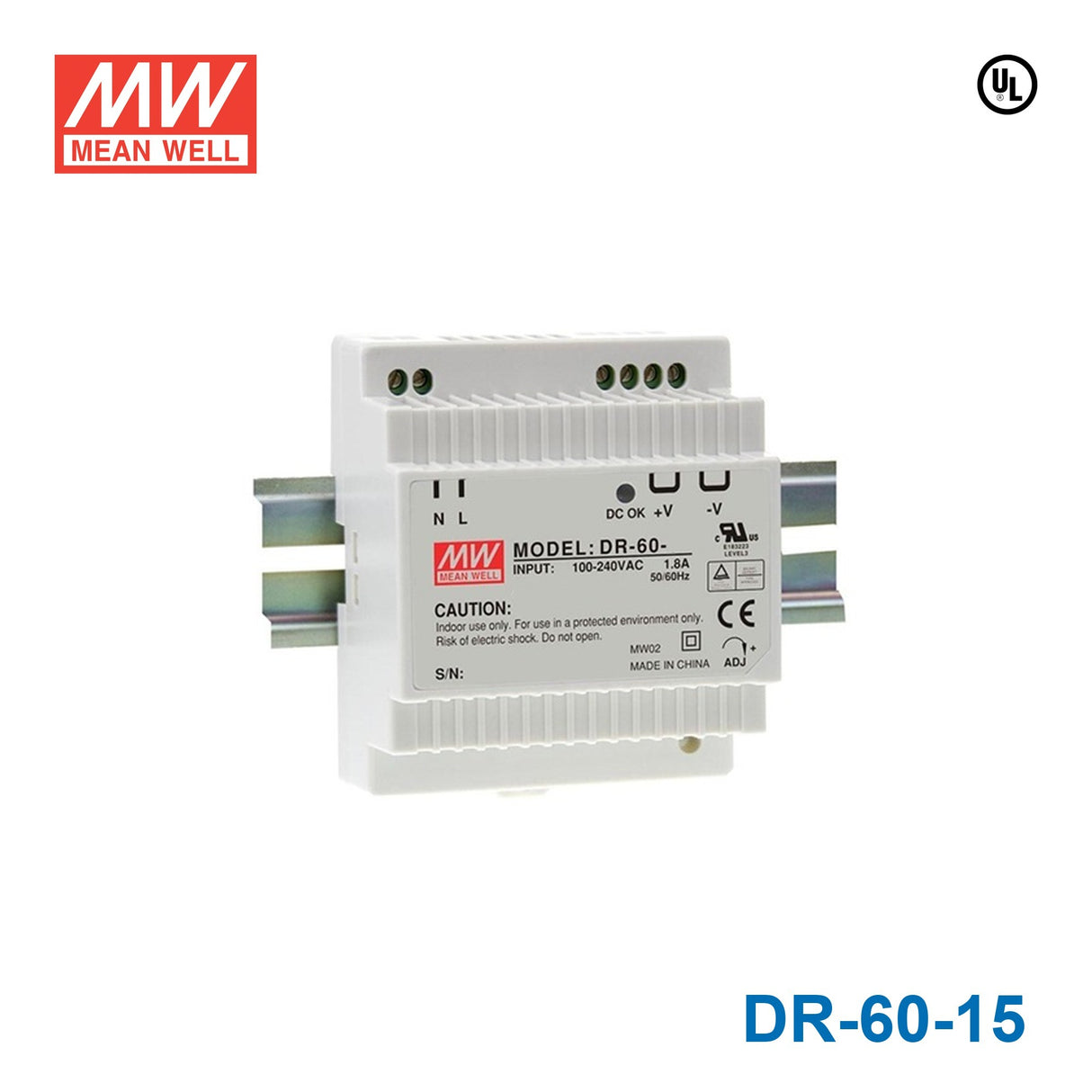

Mean Well DR-60-15 DIN Series Switching Power Supply
$15.29 USD
Unit price /
Unavailable
The DR-60 is a 60W Mean Well power converter (input range: 88~264VAC).
Key Features
- ✓ Input voltage range: 88~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage
- ✓ Safety approvals: IEC60068-2-6 UL60950-1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesDR Series
-
Power Rating60 Watt
-
Output Voltage15 Volt
-
Rated Current4 Ampere
-
Input Voltage88V~264V
-
No of Output1
-
Standards MetUL
-
Operating Temperature-20°C~60°C
-
Warranty3 Year
-
Length3.07 in
-
Width3.66 in
-
Height2.2 in
-
Weight0.66 lb
