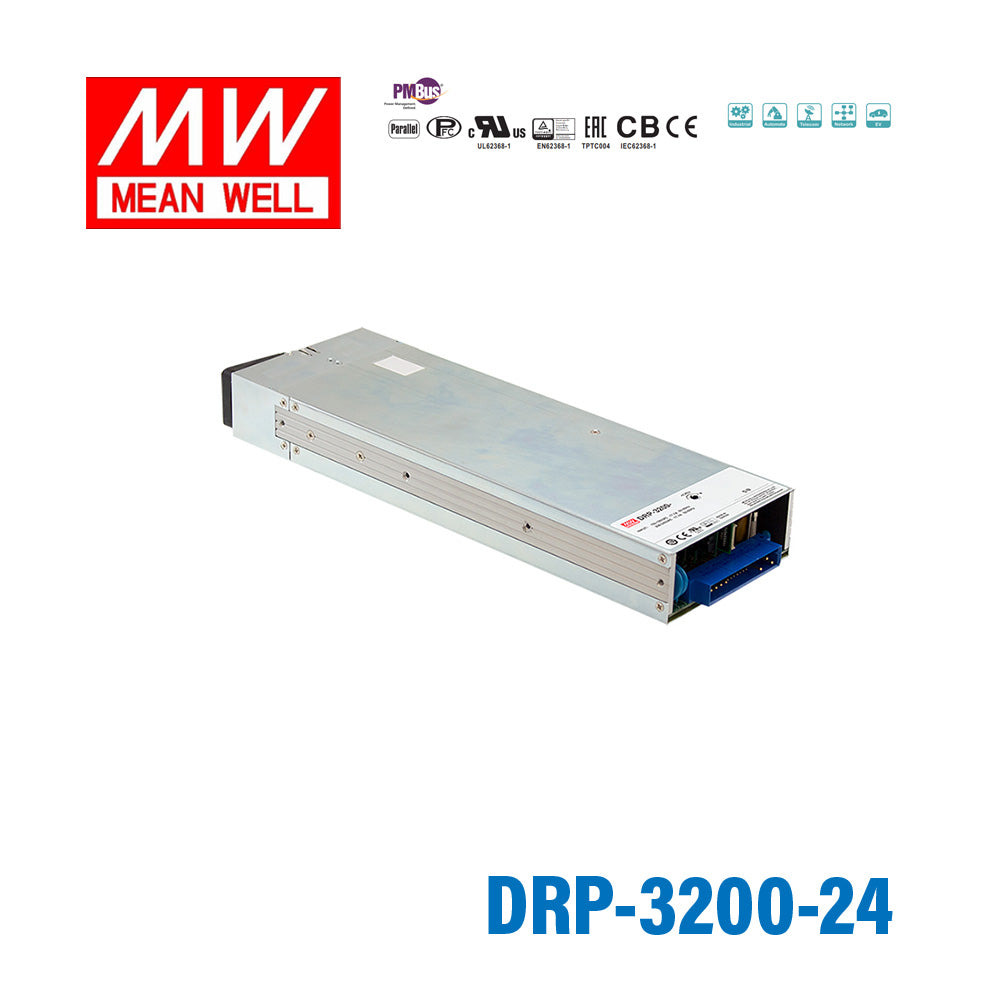

Mean Well DRP-3200-24 Power Supply 3200W 24V
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well DRP-3200-24 Power Supply 3200W 24V
The DRP-3200 is a 3200W Mean Well power converter (input range: 90~264VAC).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Remote ON/OFF control
- ✓ Safety approvals: EN62368-1, EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesDRP Series
-
Power Rating3192 Watt
-
Output Voltage24 Volt
-
Rated Current133 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetBSMI,CB,CE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty5 Year
-
Length12.8 in
-
Width4.21 in
-
Height1.61 in
-
Weight5.84 lb
::specification::
Frequently Asked Questions
Can I use the DRP-3200-24 for a high-current 24V industrial control cabinet?
Yes. It is a constant voltage 24V power supply rated for 3192W and 133A, which fits large 24V industrial control, automation, and DC distribution loads. The -30°C to +70°C operating temperature range also suits demanding indoor industrial environments.
Is the DRP-3200-24 suitable for 24V automation and PLC systems with heavy DC loads?
It can be a fit when the system requires a regulated 24V constant voltage source with very high available current. With 133A output current and 3192W total power, it is aimed at larger 24V automation loads rather than lighter-duty supplies.
Can this power supply support a rack-based 24V industrial or embedded platform?
Yes. The DRP-3200-24 supports hot swap, includes a built-in OR-ing FET, and supports active current sharing up to 12800W for one 19" rack shelf. Its 325.0 x 107.0 x 41.0 mm size and 2.65 kg weight also align with high-power rack deployments.
Is the DRP-3200-24 appropriate for indoor or outdoor use?
The published data includes an operating temperature range of -30°C to +70°C, which supports use in a wide range of ambient conditions. However, no IP rating is listed in the provided specs, so outdoor or washdown suitability is not confirmed from this data alone.
How does the DRP-3200-24 compare with other DRP series models?
Within the listed siblings, the DRP-3200-24 is 3192W at 24V and 133A, while the DRP-3200-48 is 3216W at 48V and 67A. Other specified power models are DRP-240-24 at 240W, 24V, 10A; DRP-240-48 at 240W, 48V, 5A; DRP-480-24 at 480W, 24V, 20A; DRP-480-48 at 480W, 48V, 10A; plus DRP-480S-24 at 480W and DRP-480S-48 at 480W. Additional listed siblings are DRP-01, DRP-01A, DRP-02, DRP-03, and DRP-04.
