Mean Well DRP-3200-48 Power Supply 3200W 48V
Notify me when it's back in stock
Your order will be processed within 24 hours

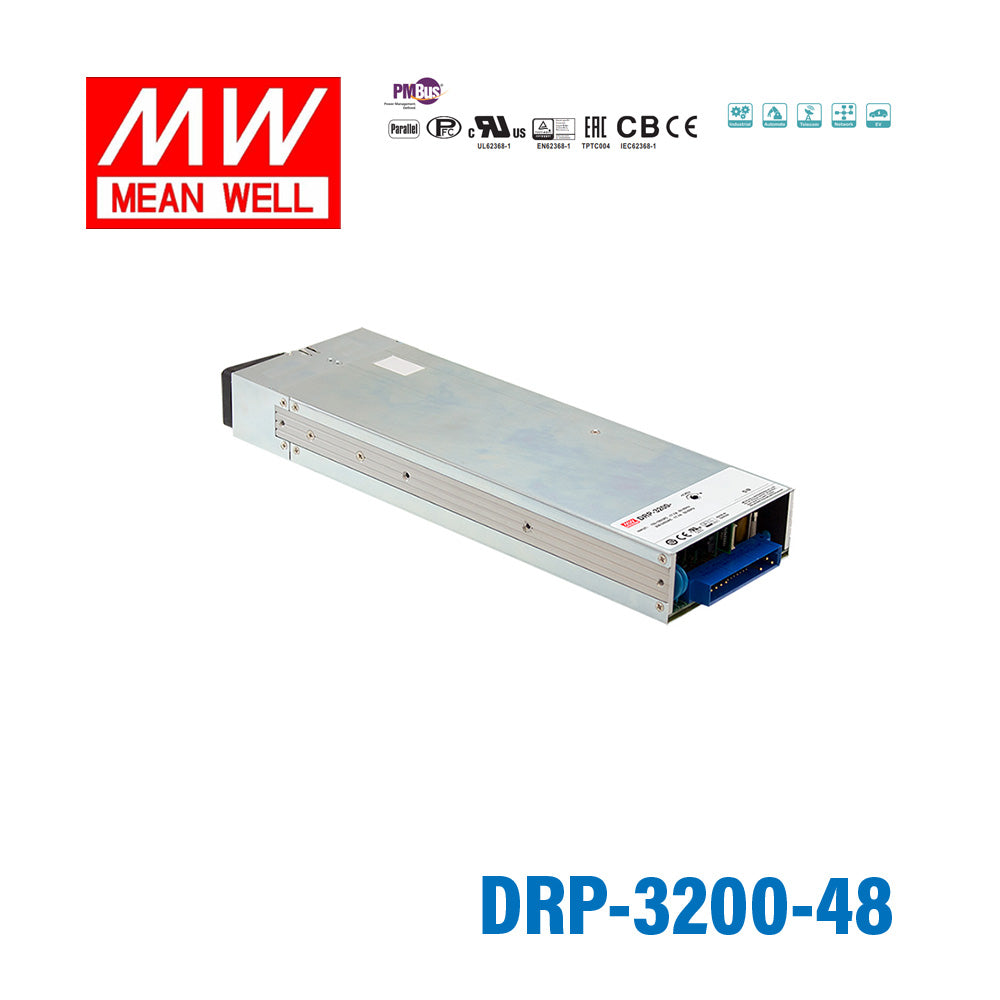

Mean Well DRP-3200-48 Power Supply 3200W 48V
The DRP-3200 is a 3200W Mean Well power converter (input range: 90~264VAC).
Key Features
- ✓ Input voltage range: 90~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Overload / Over voltage / Over temperature
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Remote ON/OFF control
- ✓ Safety approvals: EN62368-1, EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesDRP Series
-
Power Rating3216 Watt
-
Output Voltage48 Volt
-
Rated Current67 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetBSMI,CB,CE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty5 Year
-
Length12.8 in
-
Width4.21 in
-
Height1.61 in
-
Weight5.84 lb
::specification::
Frequently Asked Questions
Can I use the DRP-3200-48 for a 48V telecom or network power system?
Yes. It provides constant voltage 48V output at up to 3216W and 67A, which matches high-capacity 48V DC systems. Its hot swap support and built-in OR-ing FET are also relevant in rack-based redundant power environments.
Is the DRP-3200-48 a good fit for 48V industrial automation or embedded equipment?
It can be, if the equipment requires a regulated 48V constant voltage source. With 3216W total power and 67A output current, it is intended for larger 48V industrial, embedded, or control loads rather than low-power devices.
Can this model be used in a high-power 48V rack shelf with load sharing?
Yes. The DRP-3200-48 supports active current sharing up to 12800W for one 19" rack shelf, which is useful in higher-capacity 48V rack systems. The unit also supports hot swap and uses a built-in OR-ing FET for this kind of architecture.
Will the DRP-3200-48 handle wide-temperature indoor equipment rooms or factory spaces?
The specified operating temperature range is -30°C to +70°C, so it is designed for broad ambient conditions. The provided specs do not list an IP rating, so the data does not confirm outdoor exposure or wet-location use.
What are the key differences between the DRP-3200-48 and the other DRP family options listed here?
The DRP-3200-48 is rated at 3216W, 48V, and 67A, while the DRP-3200-24 is 3192W, 24V, and 133A. Other specified siblings are DRP-240-24 at 240W, 24V, 10A; DRP-240-48 at 240W, 48V, 5A; DRP-480-24 at 480W, 24V, 20A; DRP-480-48 at 480W, 48V, 10A; plus DRP-480S-24 at 480W and DRP-480S-48 at 480W. The list also includes DRP-01, DRP-01A, DRP-02, DRP-03, and DRP-04.
