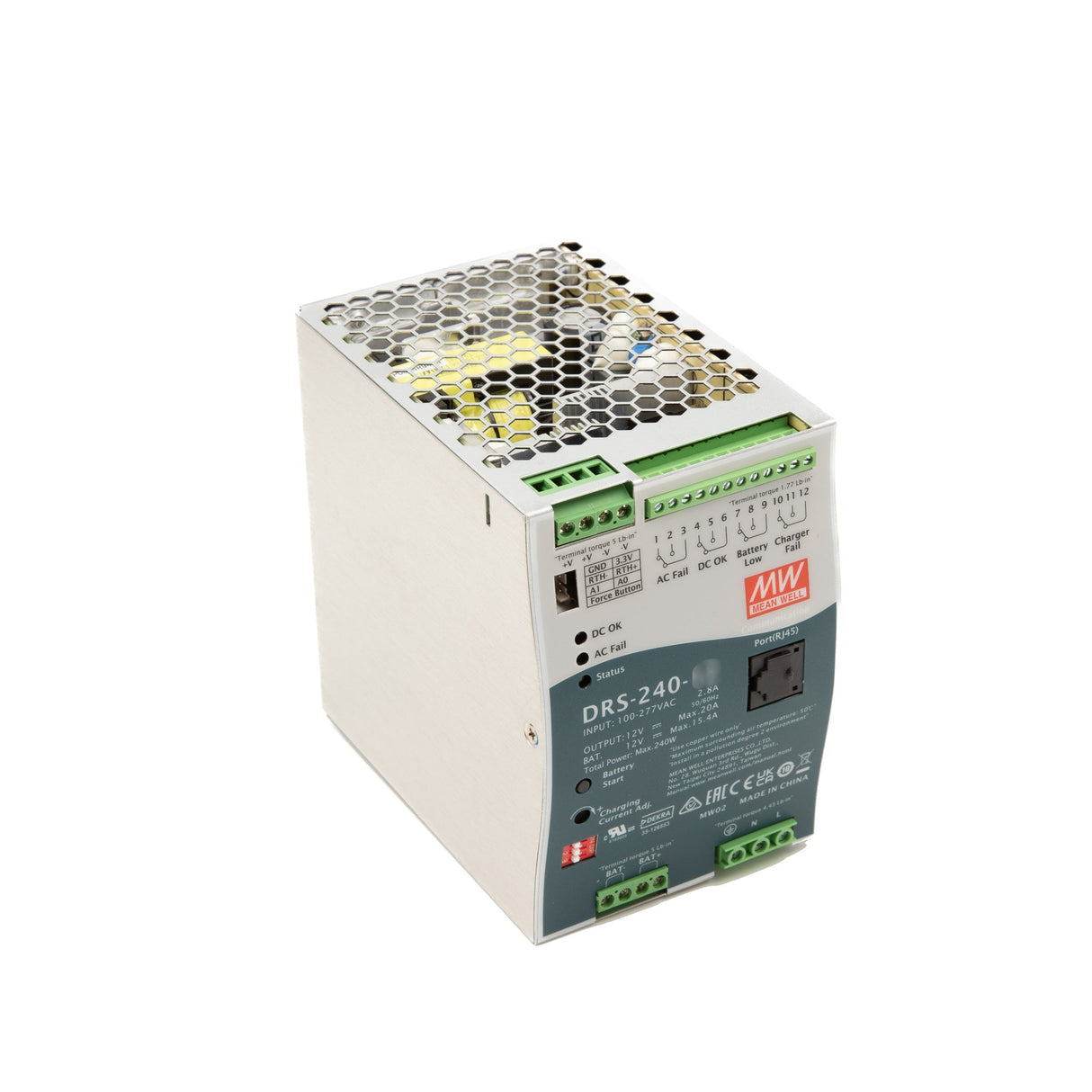

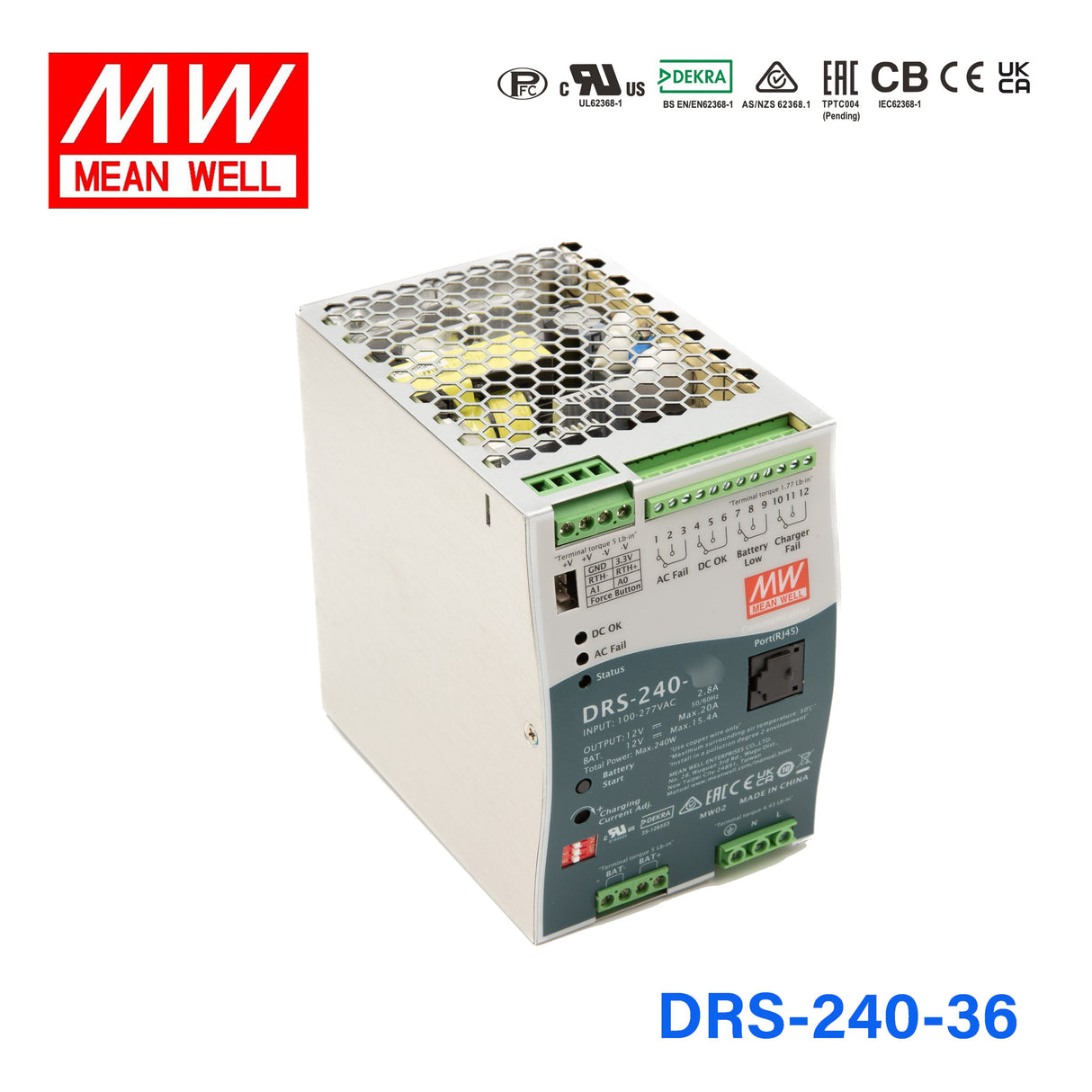

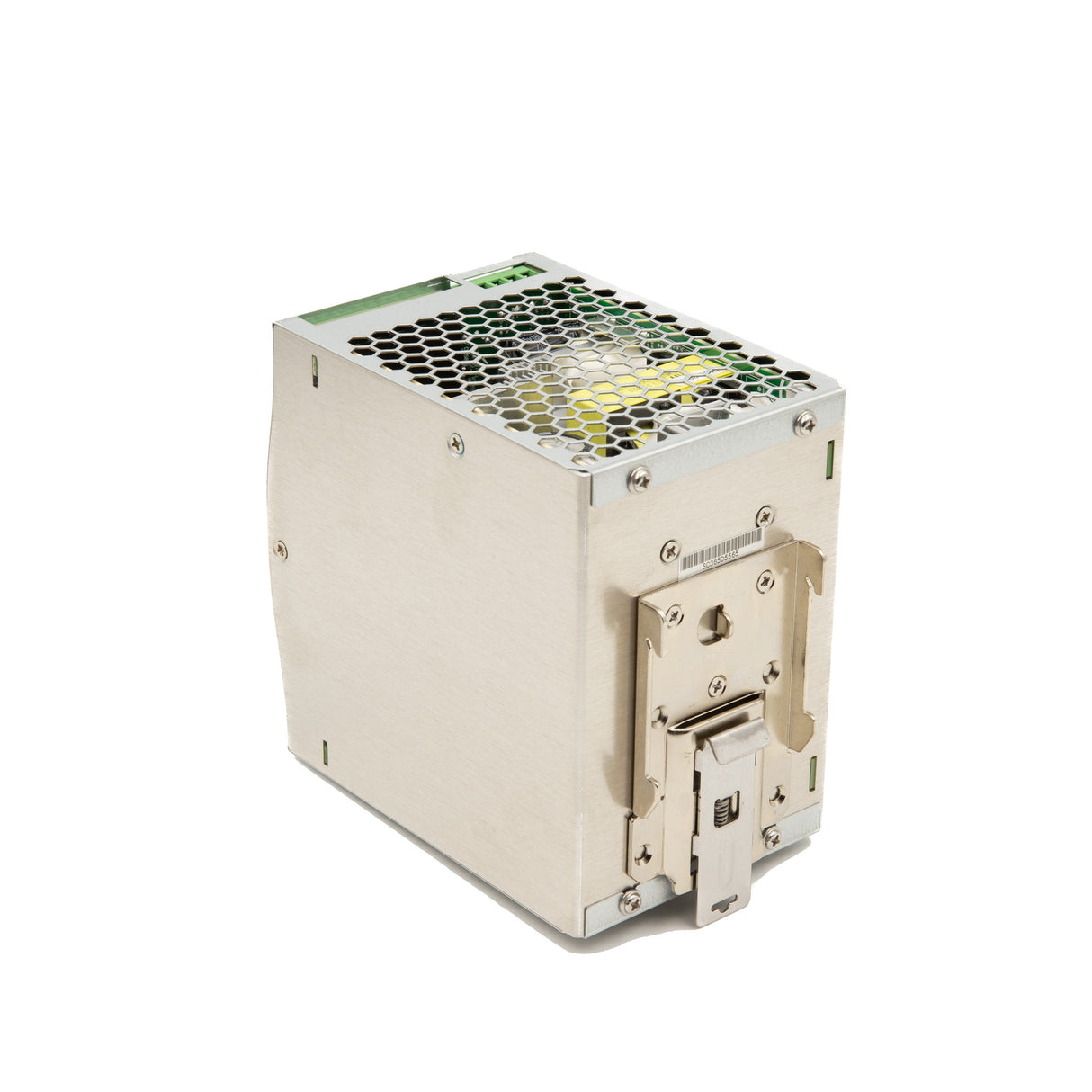

Mean Well DRS-240-36 All-In-One Intelligent Security Power 240W
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well DRS-240-36 All-In-One Intelligent Security Power 240W
The DRS-240 is a 240W Mean Well power converter (input range: 127~431VDC).
Key Features
- ✓ Input voltage range: 127~431VDC
- ✓ 4KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature / Reverse polarity
- ✓ Active PFC — meets international energy efficiency regulations
- ✓ Safety approvals: UL62368-1, Dekra BS EN/EN62368-1, RCM AS/NZS 62368.1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesDRS Series
-
Power Rating240 Watt
-
Output Voltage36 Volt
-
Rated Current5.1 Ampere
-
Input Voltage90V~305V
-
No of Output1
-
Standards MetBSMI,CB,CCC,CE,EAC,RCM,TUV,UL
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length3.37 in
-
Width4.93 in
-
Height5.09 in
-
Weight2.62 lb
::specification::
Frequently Asked Questions
What is the Mean Well DRS-240-36 designed for?
The DRS-240-36 is an all-in-one intelligent security power unit designed for systems that need a 36V DC supply with backup power support. It combines a power supply, DC-UPS, battery charger, and status monitoring in one compact DIN rail form factor.
What are the main electrical ratings of the DRS-240-36?
This model is rated for 240W output at 36V DC with a rated current of 5.1A. It accepts a wide input range of 90 to 305VAC or 127 to 431VDC, which helps it suit a broad range of industrial and security power environments.
How is the DRS-240-36 different from a standard DIN rail power supply?
Unlike a standard DIN rail power supply that only provides DC output, the DRS-240-36 also integrates DC-UPS capability, battery charging, and status monitoring. It is intended for applications where backup power continuity and fault status visibility matter, especially in security-related systems.
What battery types does the DRS-240-36 support?
The DRS-240-36 is suitable for both lead acid and lithium-ion batteries. It also offers selectable 2-stage or 3-stage charging, and its charging current is adjustable from 20% to 100% by VR.
Is the DRS-240-36 suitable for demanding environmental conditions?
Yes, this model is specified for operation from -30°C to +70°C. It uses free air convection cooling and includes over-temperature protection with auto derating, which supports use in tougher industrial environments.
What monitoring and alarm features are included in the DRS-240-36?
The unit includes Form C relay contacts and LED indicators for AC Fail, Battery Low, Charger Fail, and DC-OK status. It also has built-in MODBus protocol support, with CANBus available as an option, for broader system monitoring integration.
What protection features does the DRS-240-36 include?
The DRS-240-36 includes protection for short circuit, overload, over voltage, over temperature with auto derating, battery reverse polarity, and battery cut off. These built-in protections help support reliability in critical power applications.
What standards and approvals does the DRS-240-36 meet?
This model is approved to UL62368-1 and RCM AS/NZS 62368.1 safety standards. Its signal and alarm design is stated to meet UL2524, NFPA 1221, BS EN/EN54-4, and GB17945 requirements, and it also lists EMC compliance including EN55032 Class B.
