Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

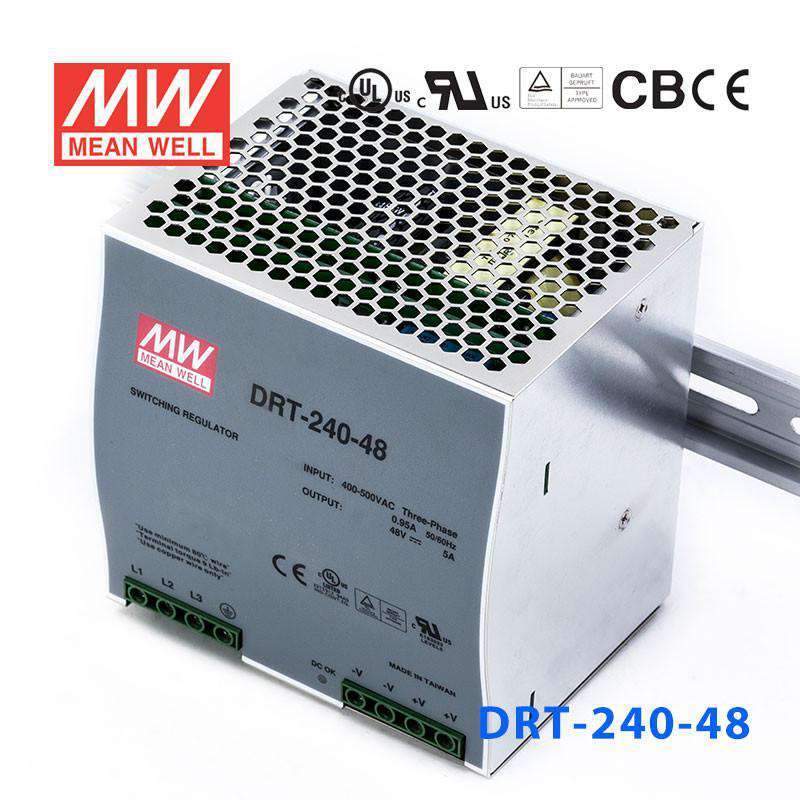

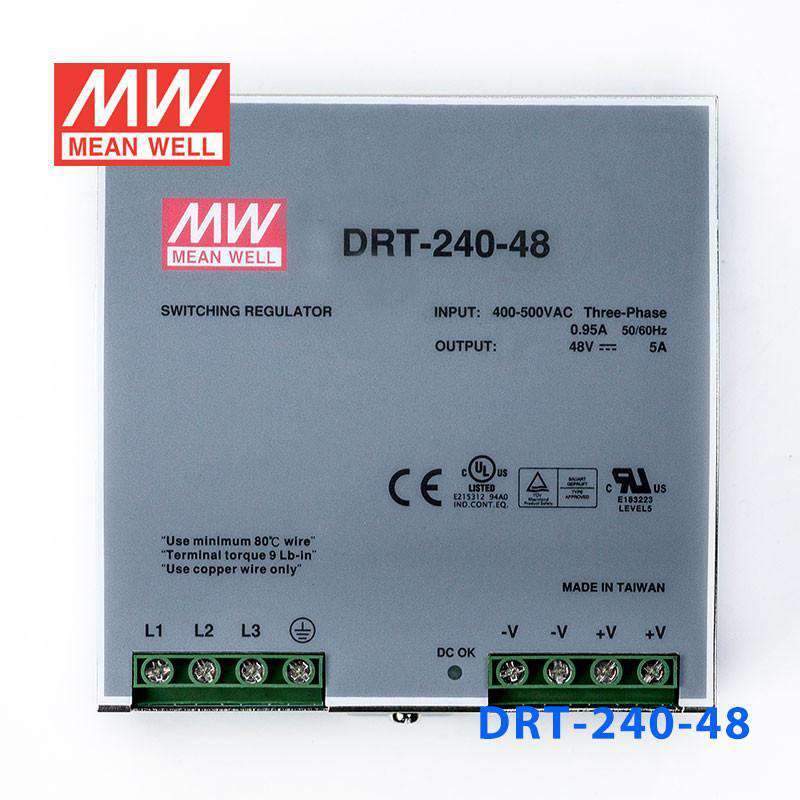

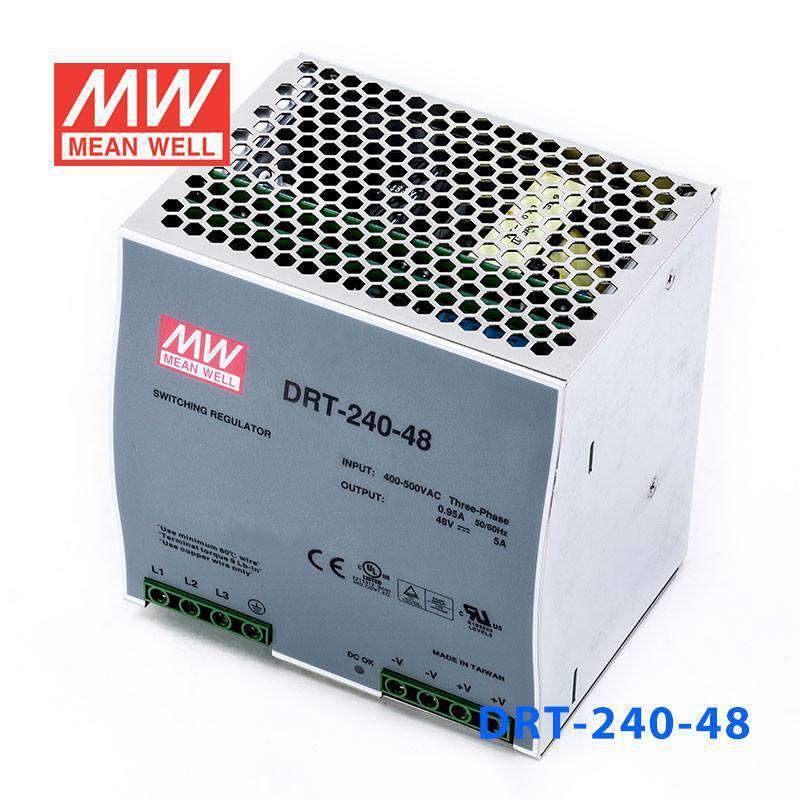

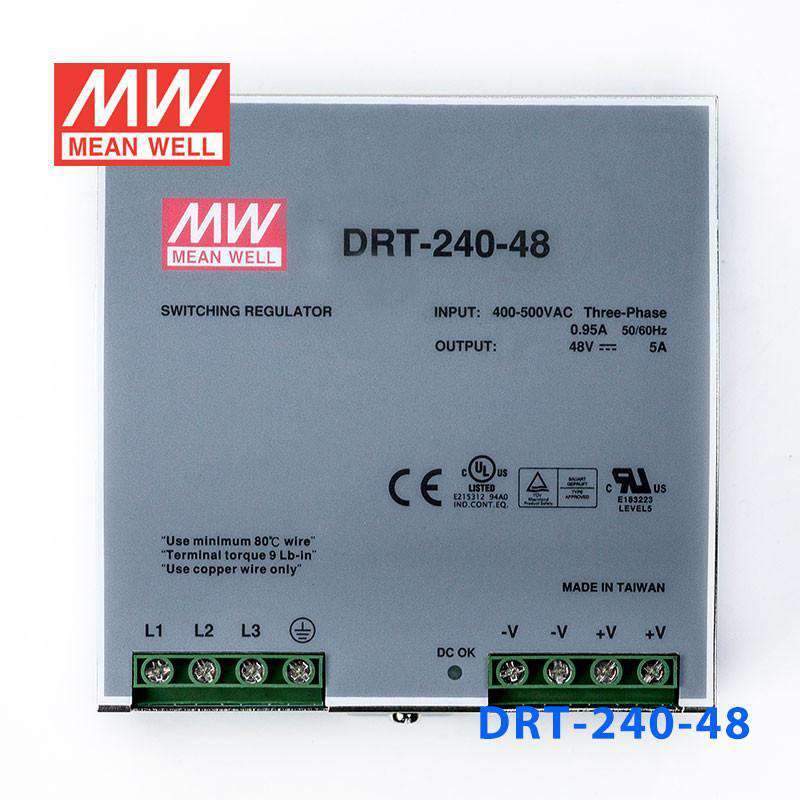

Mean Well DRT-240-48 Three Phase Industrial DIN RAIL Power Supply 240W
$56.71 USD
Unit price /
Unavailable
MEAN WELL DRT-240 series DIN Rail Power Supply are 240W Single output Industrial DIN Rail Power Supply with high efficiency, long life, and high reliability.
Key Features
- ✓✓Three-Phase AC 340 ~ 550V wide range input
- ✓✓High efficiency 89% and low dissipation
- ✓✓Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓✓Cooling by free air convection
- ✓✓Built-in constant current limiting circuit

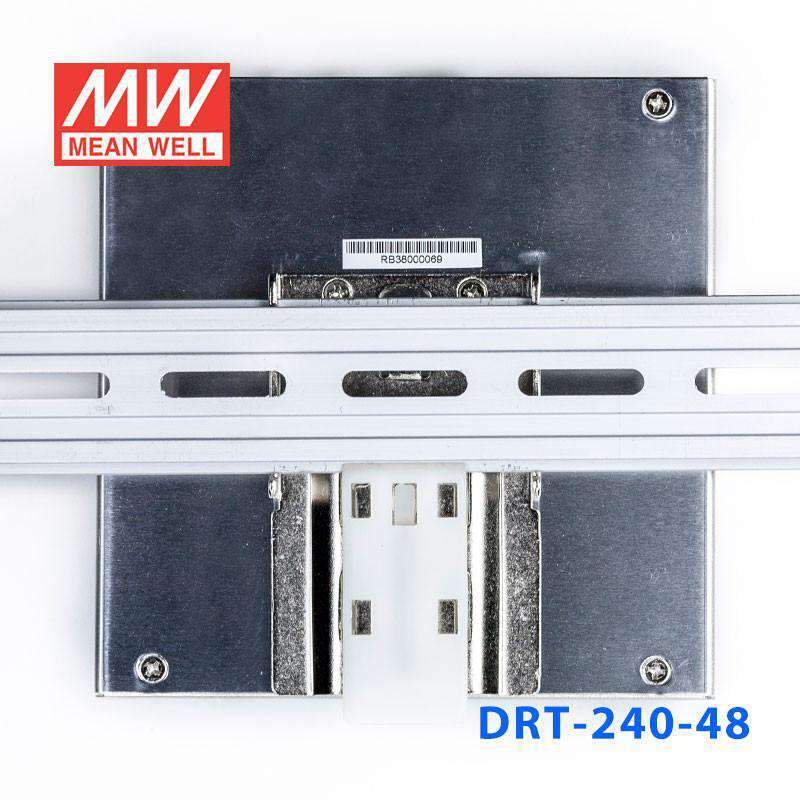

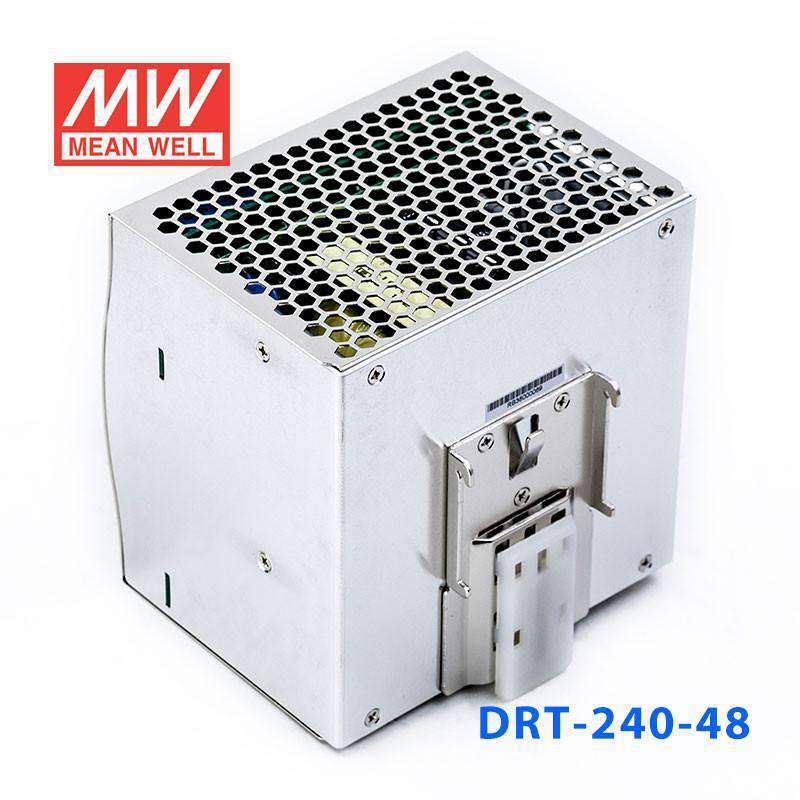

- ✓✓Can be installed on DIN rail TS-35/7.5 or 15
- ✓✓UL 508(industrial control equipment)approved
- ✓✓EN61000-6-2(EN50082-2) industrial immunity level
- ✓✓100% full load burn-in test
- ✓✓Fixed switching frequency at 70KHz
- ✓✓3 years warranty
-
BrandMean Well
-
SeriesDRT Series
-
Power Rating240 Watt
-
Output Voltage48 Volt
-
Rated Current5 Ampere
-
Input Voltage340V~550V
-
No of Output1
-
Standards MetCB,CE,cUL,EAC,TUV,UL
-
Operating Temperature-20°C~70°C
-
Warranty3 Year
-
Length4.94 in
-
Width4.93 in
-
Height3.94 in
-
Weight2.87 lb
::specification::
