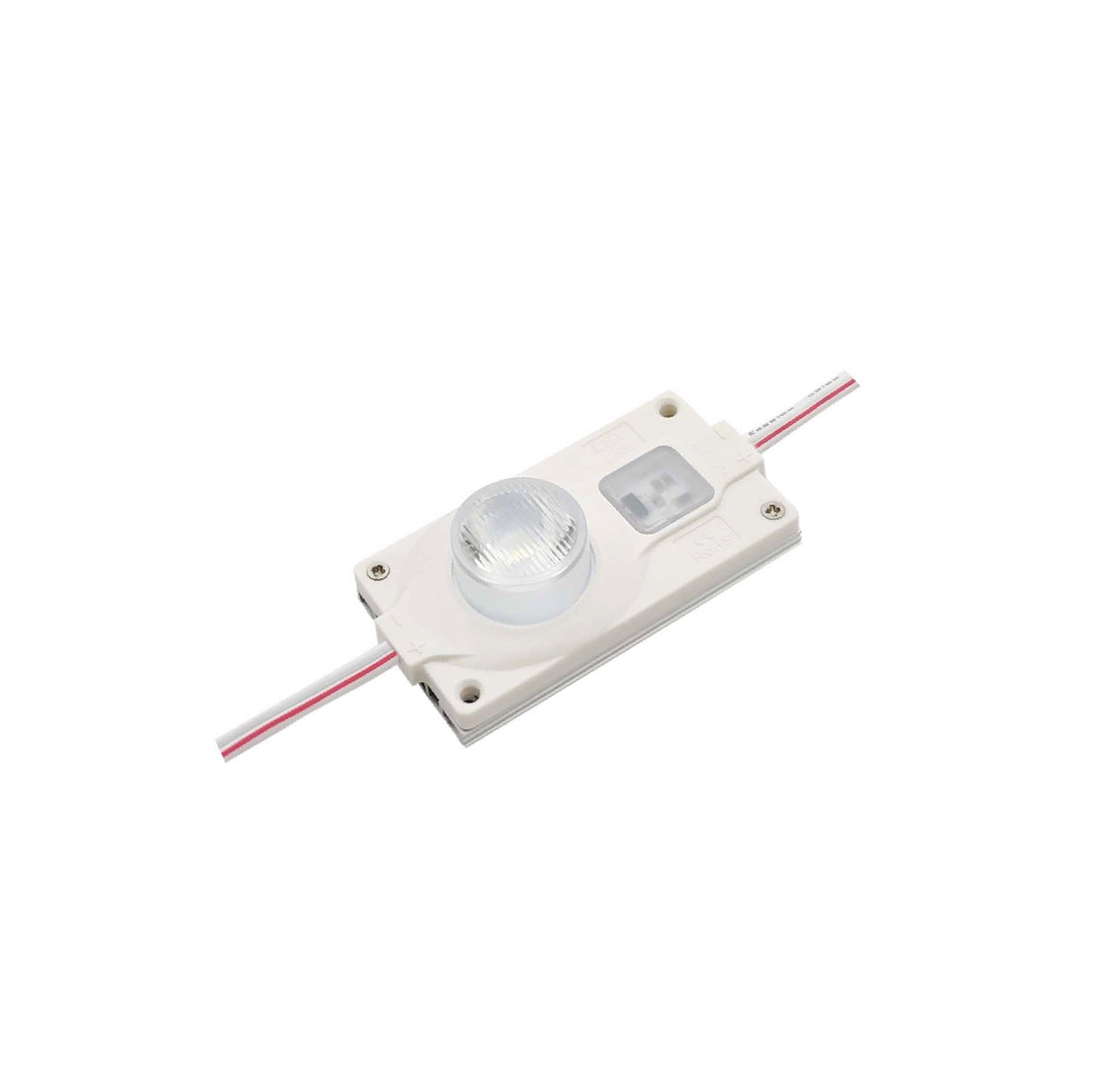

ENVO EdgeBlade LED Module Sidelit - Single LED
Exceptional Materials: 99.99% pure gold thread paired with a pure copper bracket coated in silver for optimal performance and durability.
Uncompromising Quality: 100% testing during production ensures reliability and precision in every product.
Illuminate with Precision and Versatility
The EdgeBlade LED Modules by ENVO are specifically engineered to provide optimal lighting solutions for double-sided light boxes, enhancing visibility and appeal in bustling environments like airports, metros, banks, buildings, and shopping malls. Designed with cutting-edge technology and superior performance, these modules ensure your displays are vivid and captivating.
Key Features:
- High Output 3535 LED Technology: Power your signage with high-performance 3535 LEDs, delivering robust and efficient illumination to make your displays stand out.
- Constant Current Design: Enjoy consistent lighting with a constant current system, ensuring stable performance and longevity of the LEDs.(Constant Voltage Input)
- Elliptical 5x30° Optic Lens: The specialized elliptical lens provides targeted light distribution, maximizing coverage and enhancing the visual impact of your signage.
- Efficient String Configuration: Each string contains 20 modules, allowing for flexible and efficient installation tailored to your project requirements.
- Certified Quality and Safety: Backed by certifications from CE, RoHS, UL, TUV, BIS, CB, and LM-80, ensuring the highest standards of quality, safety, and environmental responsibility.
Application:
The EdgeBlade LED Modules are ideal for double-sided light boxes with depths of 10-15 cm, providing effective light coverage up to 2.5 meters. These modules are designed to deliver brilliant illumination in a variety of commercial and public settings.
Enhance your signage with the EdgeBlade LED Modules by ENVO—where innovation meets reliability to offer superior lighting solutions for your most demanding applications.
-
BrandEnvo
-
SeriesEdgeBlade
-
Power Rating3.5 Watt
-
Rated Current0.29 Ampere
-
Dimming ControlDimmable
-
Operating Temperature-25°C~60°C
-
Warranty5 Year
-
Length2.6 in
-
Width1.3 in
-
Height0.71 in
-
Weight0.11 lb
::specification::
Frequently Asked Questions
What is the ENVO EdgeBlade LED Module Sidelit - Single LED designed for?
This module is designed for side-lit, double-sided light boxes in commercial and public environments. It is intended for applications such as airports, metros, banks, buildings, and shopping malls where bright, even signage illumination is needed.
What light box depth is this LED module suitable for?
The ENVO EdgeBlade LED Module Sidelit - Single LED is intended for double-sided light boxes with a depth of 10-15 cm. It is designed to provide effective light coverage across displays up to 2.5 meters.
What are the key performance specs of this LED module family?
Each module uses high-output 3535 LED technology and delivers 310 lumens while consuming 3.5W. The family has a 5x30 degree beam angle, CRI 70, a rated lifetime of 50,000 hours, and a 5-year warranty.
What variant options are available in this product family?
This parent product family is offered in three color temperatures: 3000K, 4000K, and 7000K. Across those variants, the published beam angle, brightness, power rating, CRI, dimming capability, lifetime, and warranty remain the same.
Is the ENVO EdgeBlade LED Module Sidelit - Single LED dimmable?
Yes, this product family is listed as dimmable. That makes it suitable for projects where adjustable light output is required, while maintaining the same core module specifications across the available color temperature options.
What certifications does this LED module family carry?
The product description states that this module family is backed by CE, RoHS, UL, TUV, BIS, CB, and LM-80 certifications. These certifications support its positioning for quality, safety, and environmental compliance in commercial signage applications.
