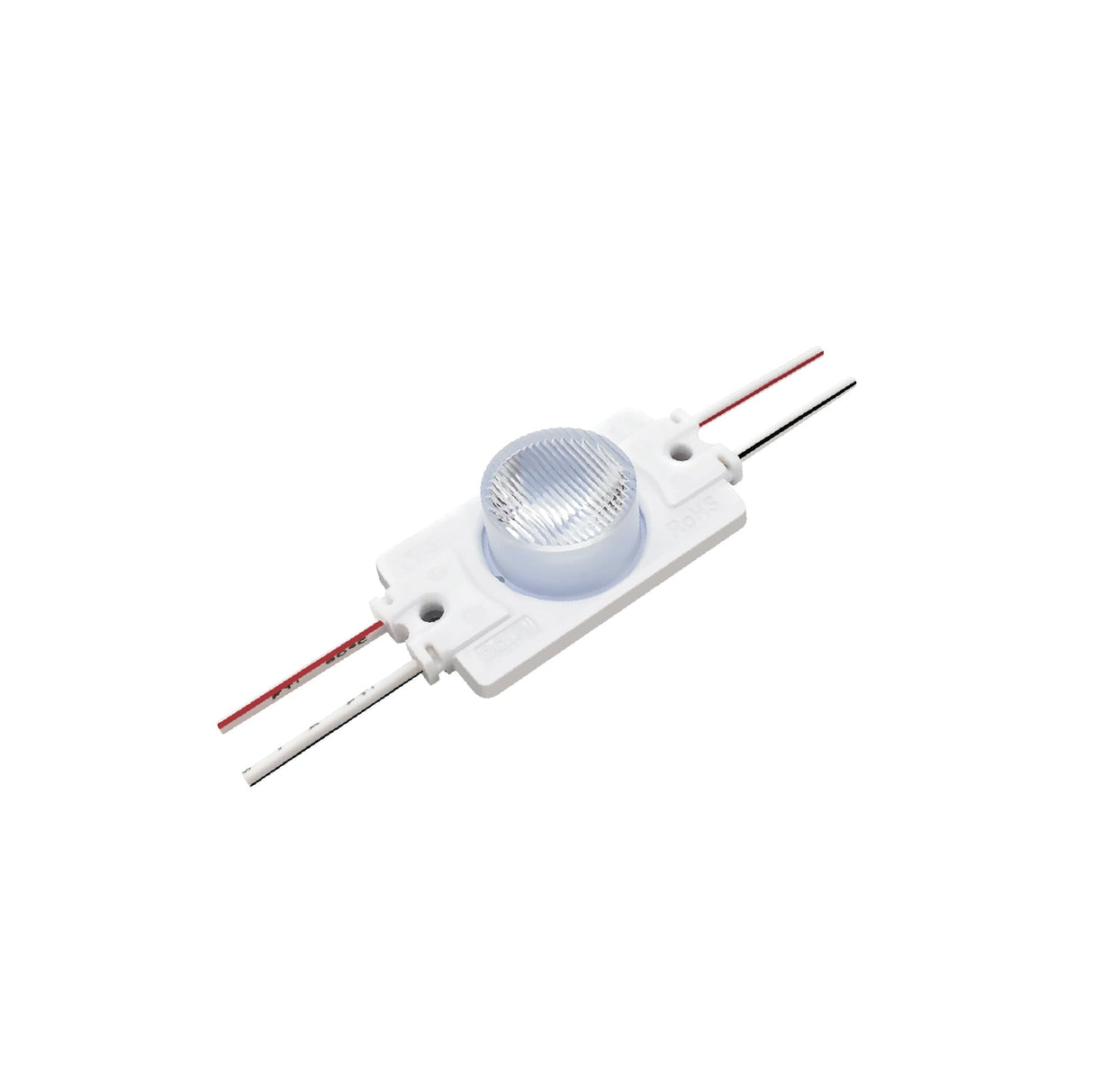

ENVO EdgeLume LED Module Sidelit - Single LED
Exceptional Materials: 99.99% pure gold thread paired with a pure copper bracket coated in silver for optimal performance and durability.
Uncompromising Quality: 100% testing during production ensures reliability and precision in every product.
Illuminate with Precision and Versatility
The EdgeLume LED Modules by ENVO are expertly crafted for double-sided light boxes, offering exceptional lighting solutions for environments such as airports, metros, banks, buildings, and shopping malls. These modules leverage advanced LED technology and precise optics to ensure your displays are both impactful and efficient.
Key Features:
- High Output 3030 LED Technology: Utilizing powerful 3030 LEDs, the EdgeLume modules deliver strong and efficient illumination, ensuring your signage captures attention.
- Constant Current System: Designed with a constant current system to provide stable and reliable lighting performance, enhancing both the longevity and dependability of the LEDs.(Constant Voltage Input)
- Elliptical 10x65° Optic Lens: Features a specialized elliptical lens that optimizes light distribution, providing precise coverage to maximize the visibility of your displays.
- Flexible String Configuration: Each string includes 20 modules, allowing for adaptable installation tailored to various project needs.
- Certified Quality and Safety: The EdgeLume LED Modules are CE, RoHS, UL, TUV, BIS, CB, and LM-80 certified, showcasing ENVO's commitment to high standards of quality, safety, and environmental responsibility.
Application:
Ideal for double-sided light boxes with depths of 8-20 cm, the EdgeLume LED Modules provide effective light coverage up to 1.5 meters, making them a perfect choice for various commercial and public settings.
Enhance your signage with the EdgeLume LED Modules by ENVO, where cutting-edge technology meets reliability to deliver superior lighting solutions tailored to your specific needs.
-
BrandEnvo
-
SeriesEdgeLume
-
Power Rating1.32 Watt
-
Rated Current0.11 Ampere
-
Dimming ControlDimmable
-
Operating Temperature-25°C~60°C
-
Warranty5 Year
-
Length1.69 in
-
Width0.91 in
-
Height0.46 in
-
Weight0.02 lb
::specification::
Frequently Asked Questions
What is the ENVO EdgeLume LED Module Sidelit - Single LED designed for?
This LED module is designed for double-sided light boxes and sidelit signage applications. It is suited to commercial and public environments such as airports, metros, banks, buildings, and shopping malls where even, high-impact illumination is needed.
What light box depth is this LED module suitable for?
The EdgeLume sidelit module is intended for double-sided light boxes with depths of 8-20 cm. According to the product description, it can provide effective light coverage up to 1.5 meters when used in the right application.
What are the key performance specifications of this LED module family?
Across the family, each module is rated at 1.32 W and produces 125 lumens. The modules use a 10x65° elliptical optic lens, have a CRI of 75, are dimmable, and are rated for 50,000 hours with a 5-year warranty.
What color temperature options are available in this parent product family?
This parent family includes three color temperature options: 3000K, 4000K, and 7000K. These correspond to warm white, neutral white, and cool white style output choices for different signage and display goals.
How do the variants differ from each other?
The main difference between the child variants is color temperature. Power rating, beam angle, CRI, brightness, dimming capability, rated life, and warranty are the same across the listed variants.
Is this LED module dimmable?
Yes, this product family is listed as dimmable. That makes it suitable for projects where light output needs to be adjusted for display effect or ambient conditions, subject to the overall system design.
What certifications does the ENVO EdgeLume LED Module have?
The product description states that these LED modules are CE, RoHS, UL, TUV, BIS, CB, and LM-80 certified. These certifications indicate compliance with recognized quality, safety, and environmental standards.
What materials and build quality details are highlighted for this product?
The description highlights 99.99% pure gold thread and a pure copper bracket coated in silver for performance and durability. It also states that each unit undergoes 100% testing during production to support reliability and consistency.
