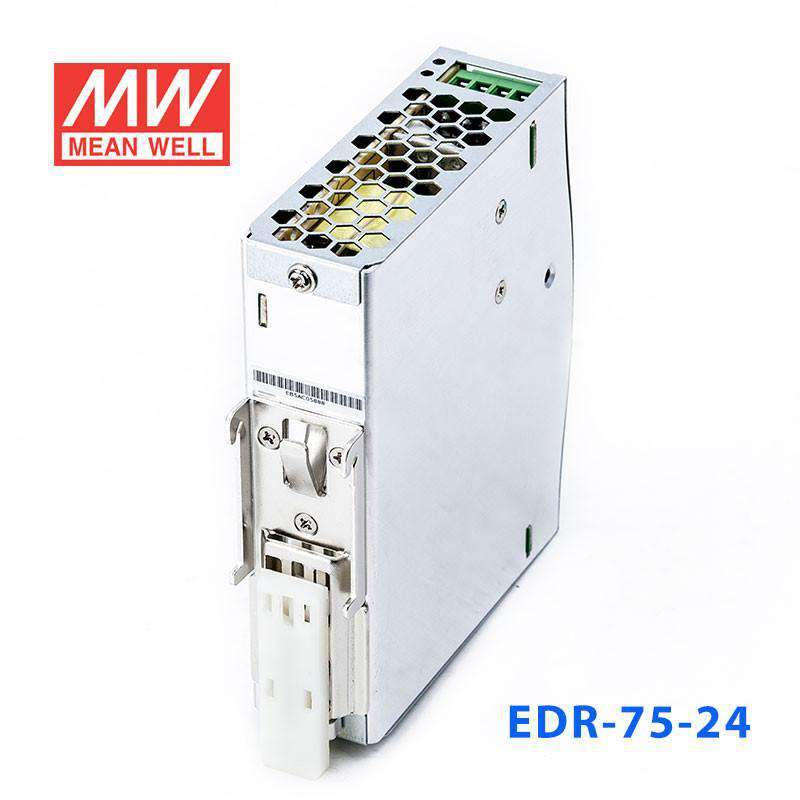

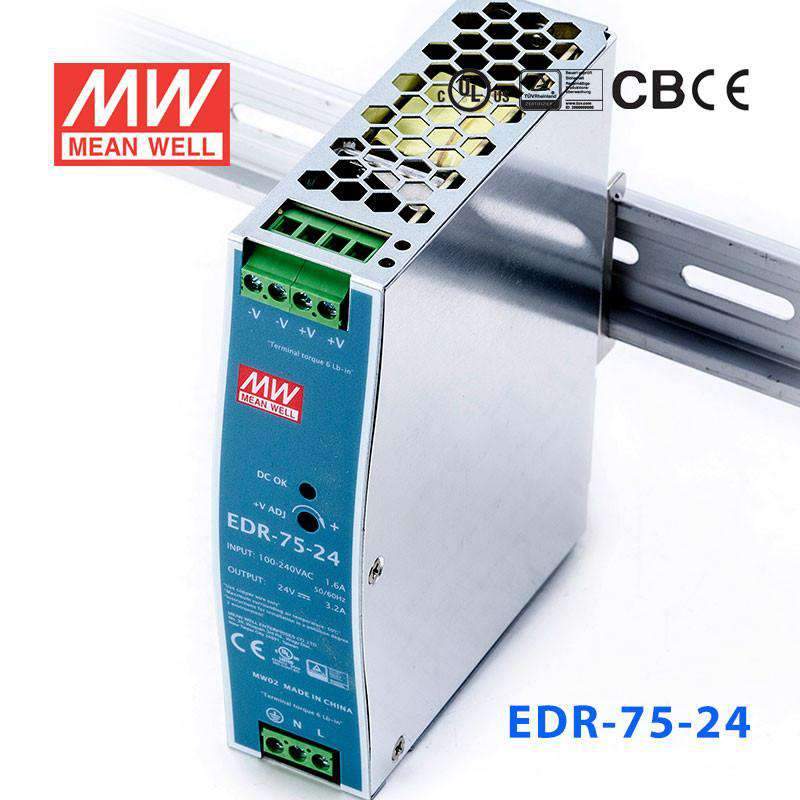

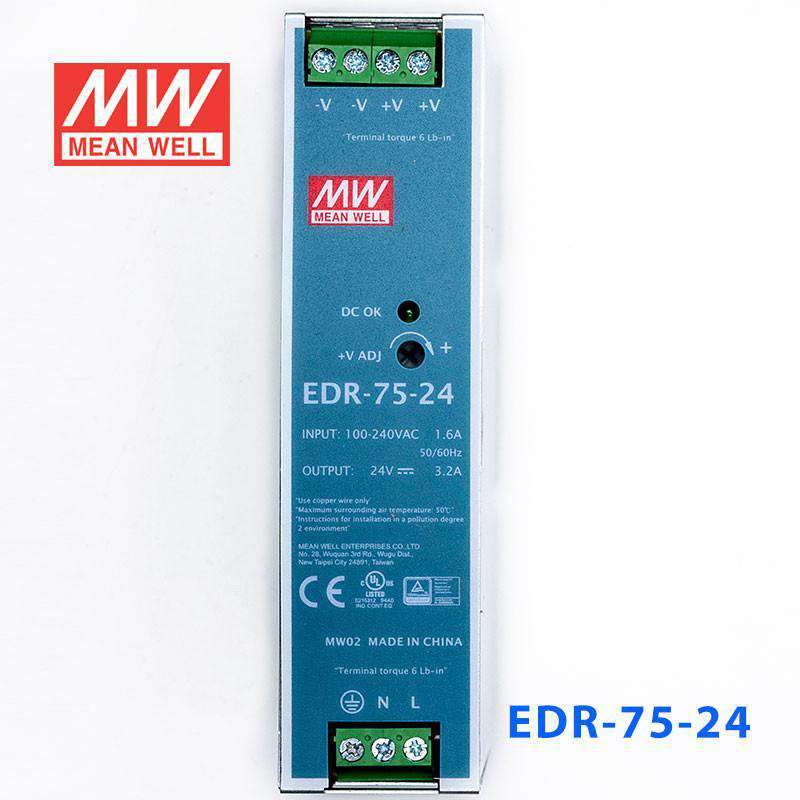

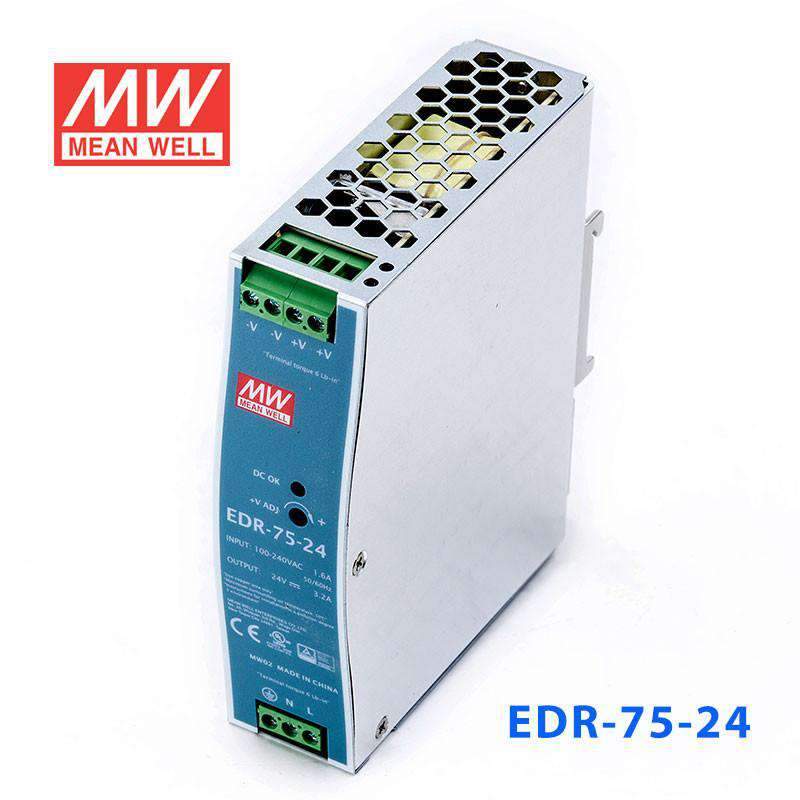

Mean Well EDR-75-24 Single Output Industrial Power Supply 75W 24V - DIN Rail
Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well EDR-75-24 Single Output Industrial Power Supply 75W 24V -...
The EDR-75 is a 75W Mean Well DIN rail power converter with a 32mm profile (input range: 90~264VAC, operating temperature: -20~+60℃).
Key Features

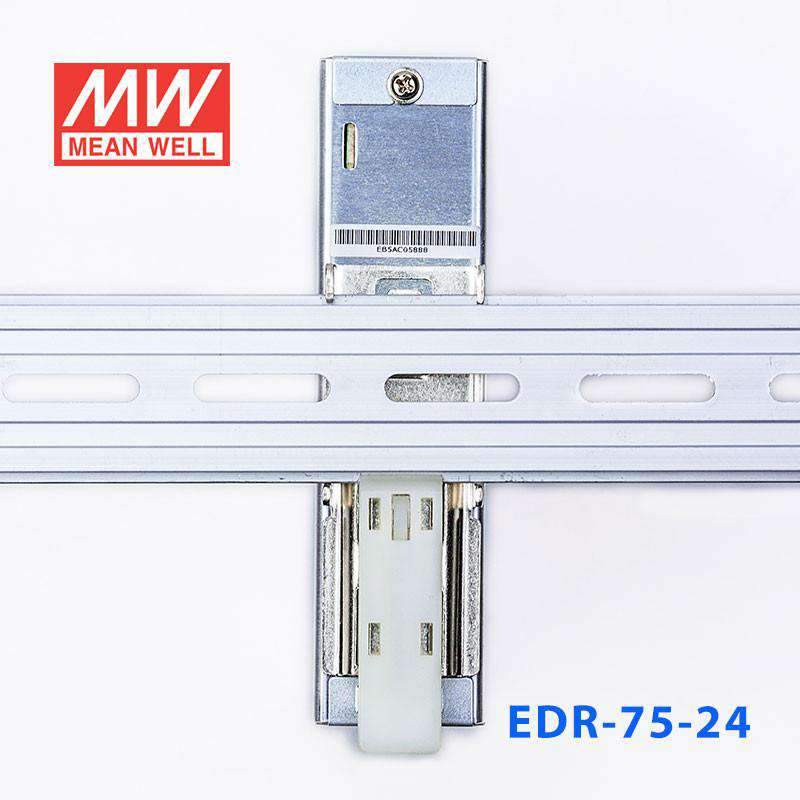

- ✓ 32mm width — DIN rail TS-35 compatible
- ✓ Input voltage range: 90~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Wide operating temperature: -20~+60℃
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Safety approvals: UL508, TUV EN60950-1
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesEDR Series
-
Power Rating76.8 Watt
-
Output Voltage24 Volt
-
Rated Current3.2 Ampere
-
Input Voltage90V~264V
-
No of Output1
-
Standards MetBSMI,CB,CE,cUL,EAC,RCM,TUV
-
Operating Temperature-20°C~60°C
-
Warranty2 Year
-
Length4.93 in
-
Width4.02 in
-
Height1.26 in
-
Weight1.12 lb
::specification::
Frequently Asked Questions
Can I use the EDR-75-24 for a 24V PLC cabinet or industrial control panel?
Yes, this model is designed for 24VDC output and provides up to 76.8W with 3.2A available current. Its DIN rail format and 32.0 mm slim width make it practical for control panels where rail space is limited.
Is the EDR-75-24 suitable for building management and automation panels that run on 24VDC?
It can be suitable for building management and automation panels that require 24VDC and stay within 76.8W and 3.2A. The unit accepts 90-264VAC input, which supports use across common AC supply ranges in panel-based systems.
Can this power supply be used in a narrow DIN rail enclosure for control equipment?
Yes, the 125.2 × 102.0 × 32.0 mm size and slim DIN rail profile are useful in narrower enclosures. It is a single-output 24V industrial power supply with a metal case, which suits organized panel layouts.
Is the EDR-75-24 appropriate for enclosed control cabinet environments?
Yes, it is built as a DIN rail industrial power supply with a metal case and an operating range of -20°C to +60°C, which supports cabinet use in controlled industrial environments. The provided specifications do not include an IP rating, so it is best assessed for protected enclosure use rather than exposed placement.
What are the main differences between the EDR-75-24 and related EDR models?
The EDR-75-24 is rated at 76.8W, 24V, and 3.2A. Listed siblings are EDR-75-12 at 75.6W, 12V, 6.3A; EDR-75-48 at 76.8W, 48V, 1.6A; EDR-120-12 at 120W, 12V, 10A; EDR-120-24 at 120W, 24V, 5A; EDR-120-48 at 120W, 48V, 2.5A; and EDR-150-24 at 156W, 24V, 6.5A.
