Mean Well SD-100A-24 DC-DC Converter - 100W - 9.5~18V in 24V out 4.2A
1.0 (1 review)Notify me when it's back in stock
Your order will be processed within 24 hours

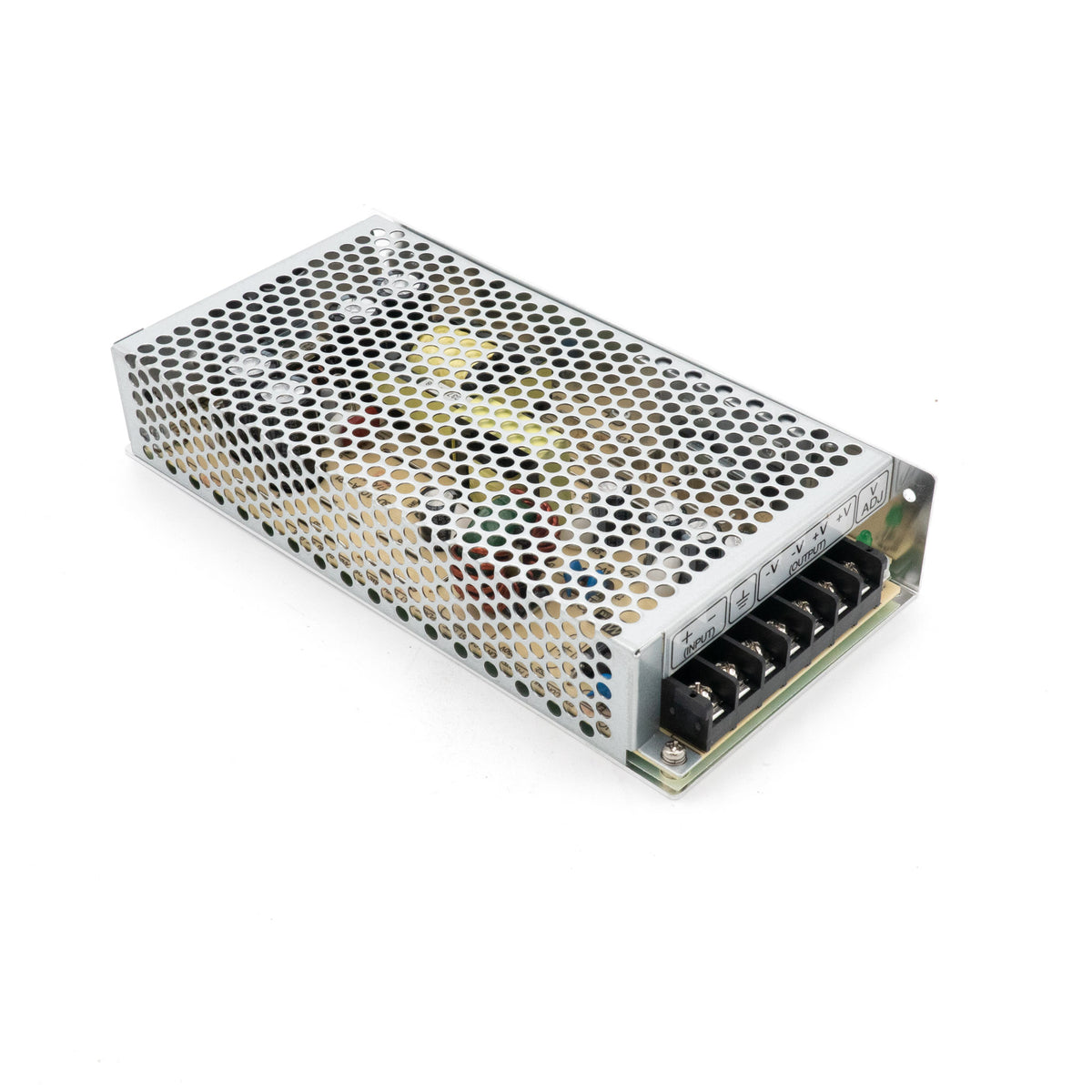

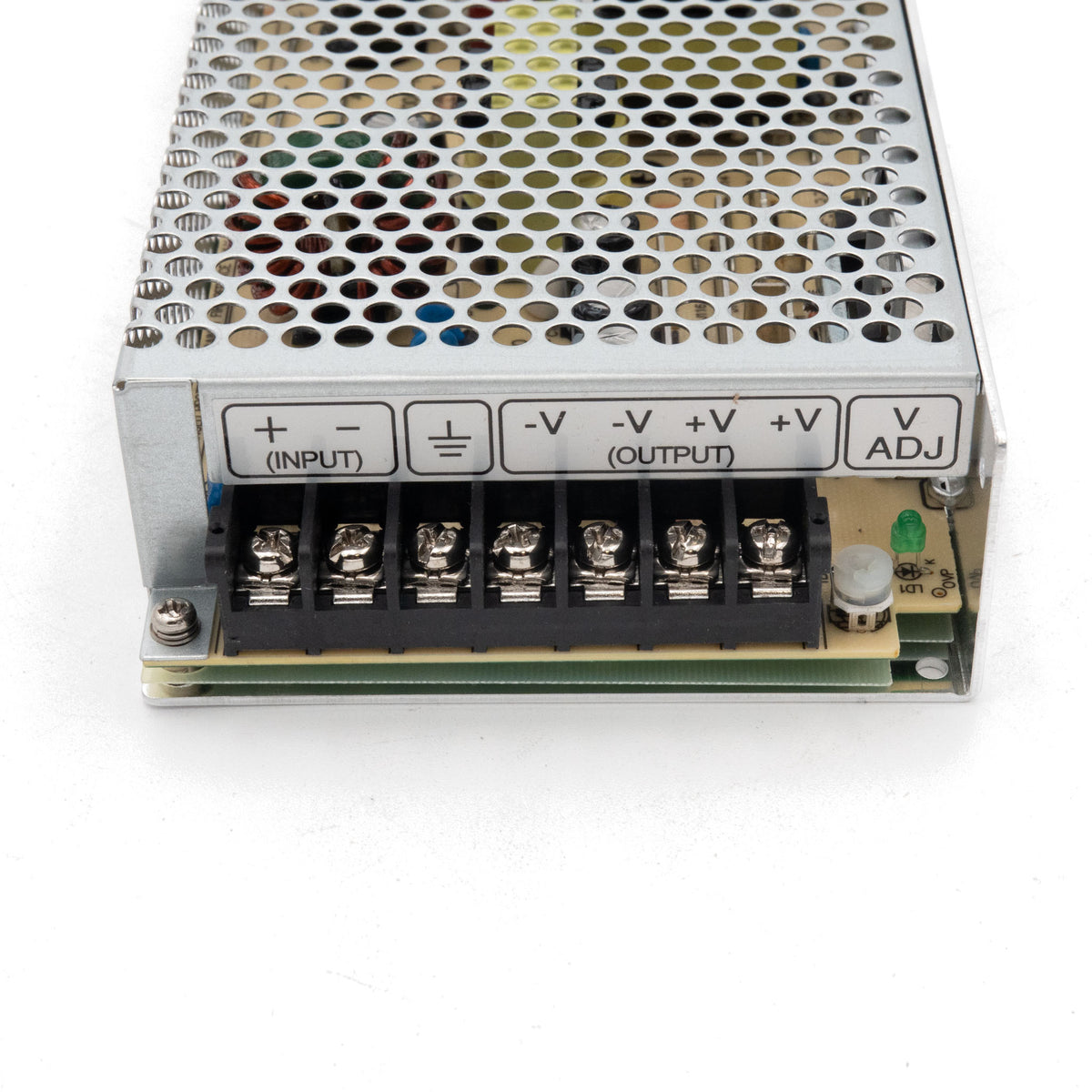

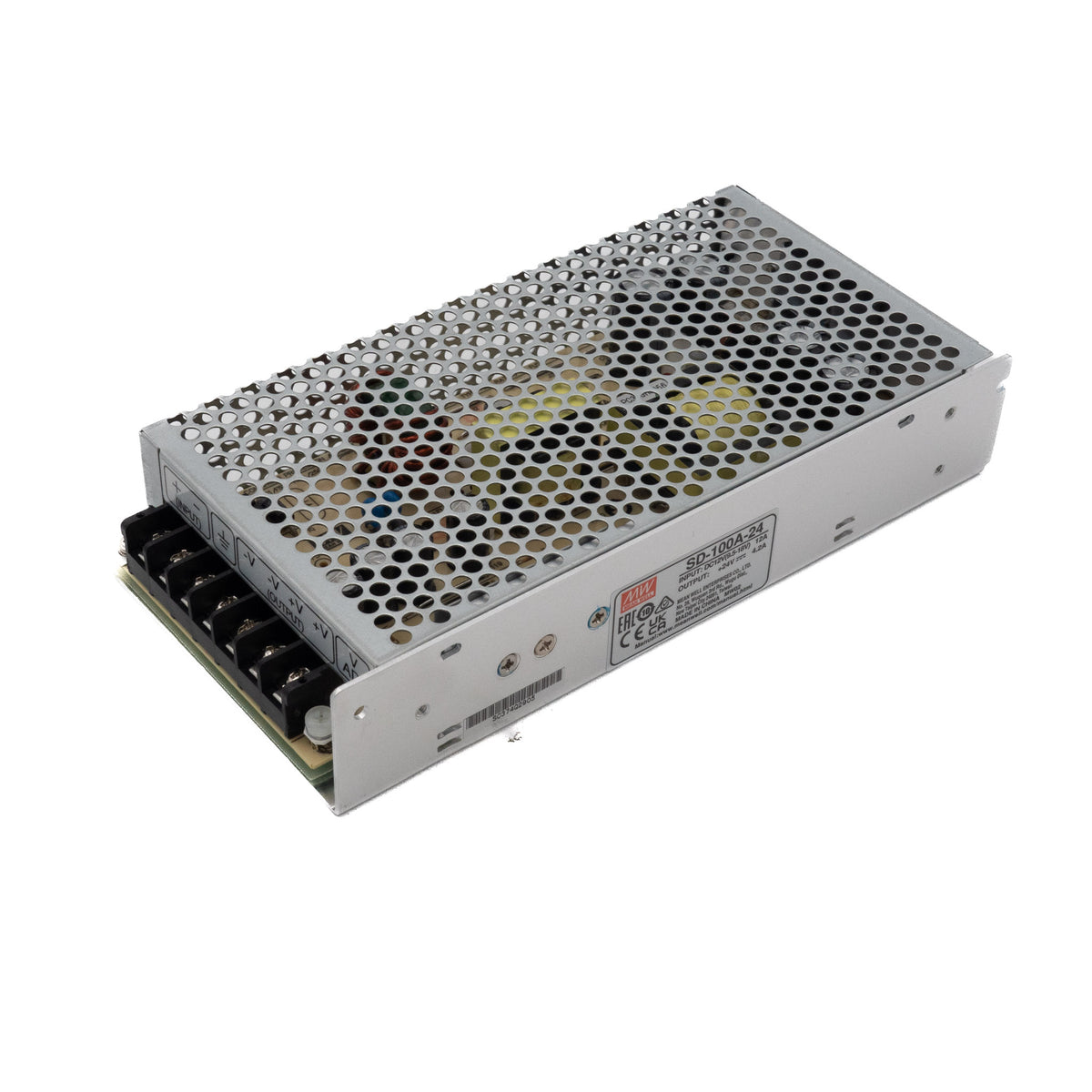

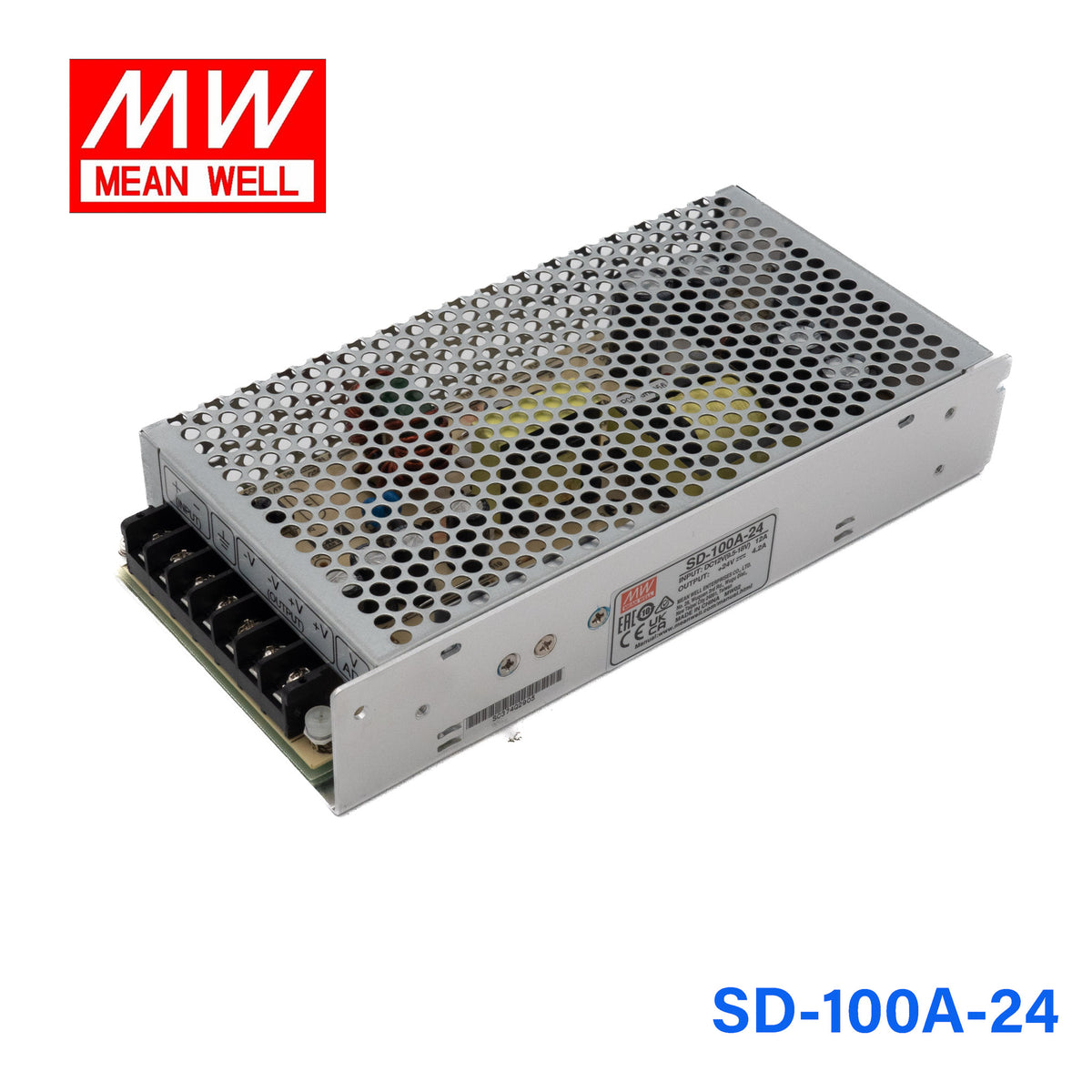

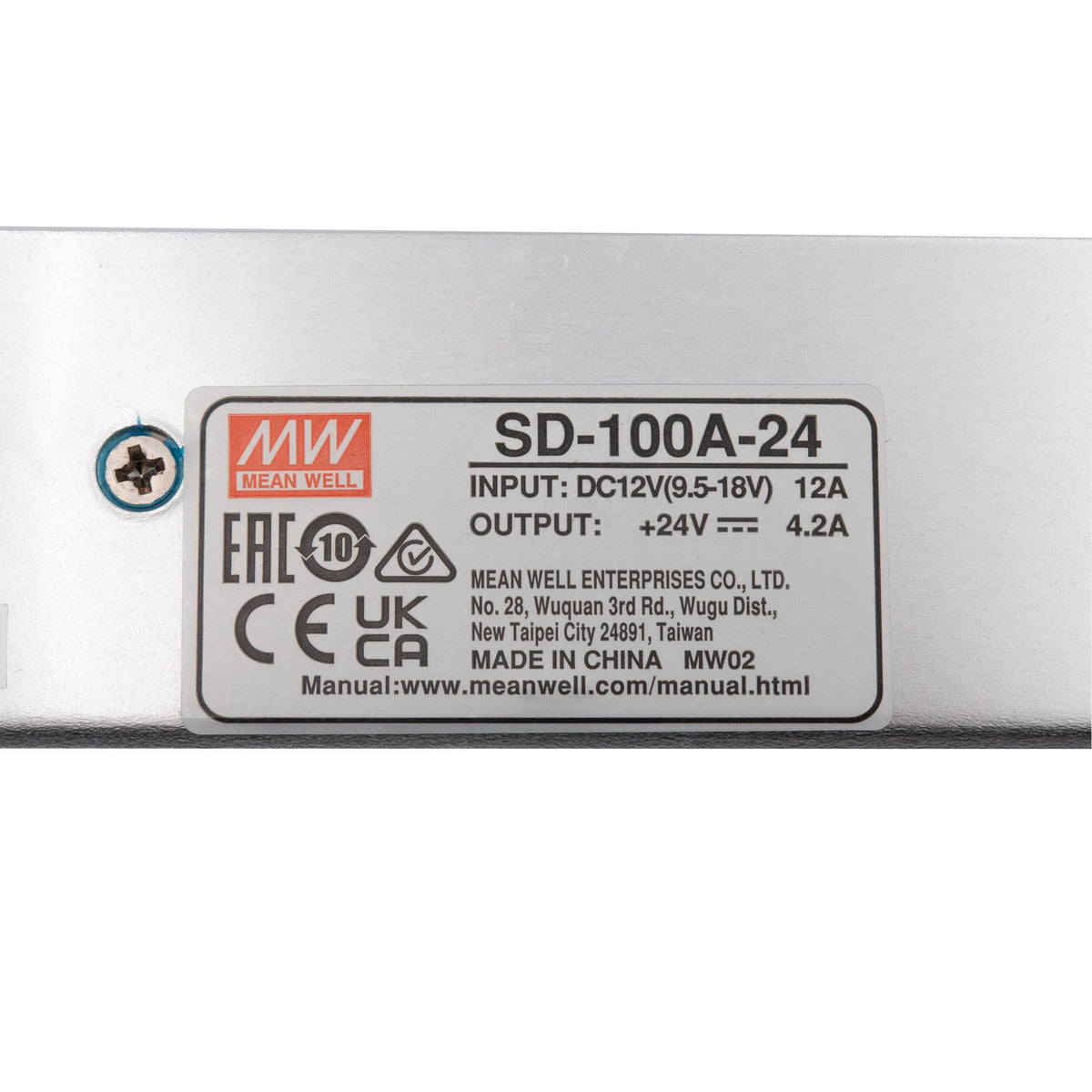

Mean Well SD-100A-24 DC-DC Converter - 100W - 9.5~18V in 24V out 4.2A
The SD-100A is a 100.8W Mean Well DC-DC converter (input: 9.5~18VDC, operating temperature: -15~+60°C).
Key Features
- ✓ Input voltage: 9.5~18VDC
- ✓ Output voltage (max): 24V
- ✓ Rated output current: 4.2A
- ✓ I/O isolation: 500V
- ✓ Operating temperature: -15~+60°C
- ✓ Safety certifications: EAC
- ✓ 3 year warranty
-
BrandMean Well
-
SeriesSD Series
-
Power Rating100.8 Watt
-
Output Voltage24 Volt
-
Rated Current4.2 Ampere
-
Input Voltage9.5V~18V
-
No of Output1
-
Dimming ControlNon Dimmable
-
Standards MetEAC
-
Operation ModeConstant Voltage
-
Operating Temperature-15°C~60°C
-
Warranty3 Year
-
Length7.83 in
-
Width3.86 in
-
Height1.5 in
-
Weight1.43 lb
::specification::
Frequently Asked Questions
Can I use the SD-100A-24 for 24V PLC or control-panel loads from a low-voltage DC source?
Yes, it delivers constant voltage 24V output from a listed 9-18V input range. Its output is rated for 4.2A and 100.8W, which suits moderate-power 24V DC loads.
Is the SD-100A-24 appropriate for 24V automation devices in mobile or battery-backed systems?
It can be used where the source stays within the listed 9-18V range and the load requires 24V DC. The converter is rated for up to 4.2A output current and 100.8W total output power.
Can this model support 24V embedded or industrial communication equipment?
Yes, it is intended for constant voltage 24V applications that stay within its 100.8W limit. The unit provides up to 4.2A, so it is better suited to lower-power 24V equipment than to heavier 24V loads.
Is the SD-100A-24 suitable for outdoor use or unconditioned indoor spaces?
The listed operating temperature range is -15°C to +60°C, which defines the environmental range in the specs. No IP rating is shown, so the product information does not describe it as weatherproof or outdoor-rated.
How does the SD-100A-24 compare with the other SD-100A versions?
The SD-100A-5 is rated at 100W, 5V, 18A, the SD-100A-12 is rated at 102W, 12V, 8.5A, and the SD-100A-24 is rated at 100.8W, 24V, 4.2A. They are all in the same product group, with the main difference being the output voltage and corresponding current.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other SD-100A Models
1 other model| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well SD-100A-5 DC-DC Converter - 100W - 9.5~18V in 5V out 18A | 100W | 5V | 18A | Indoor | $38.15 | View |
