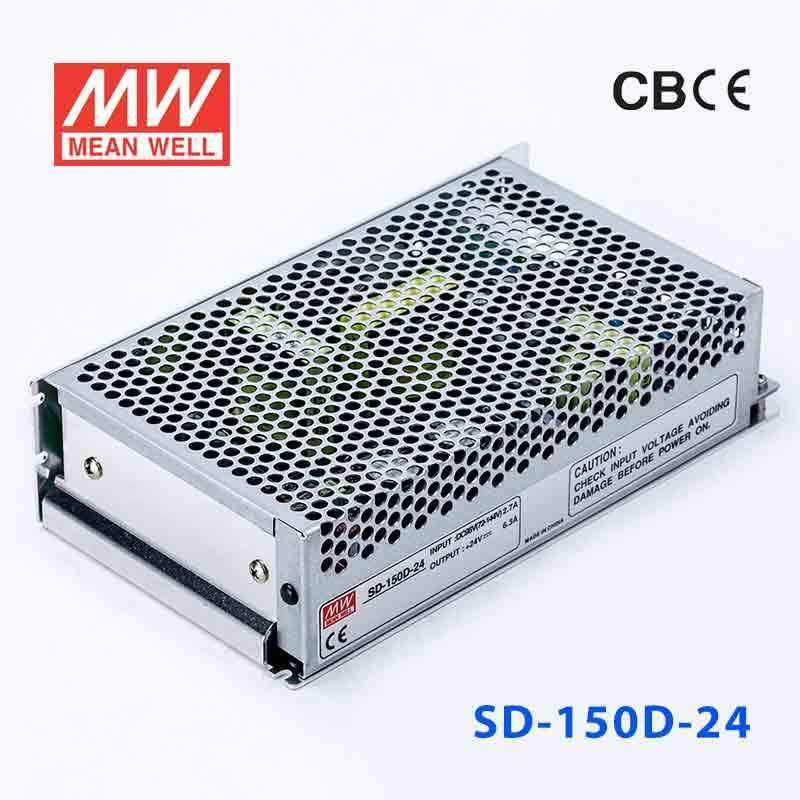

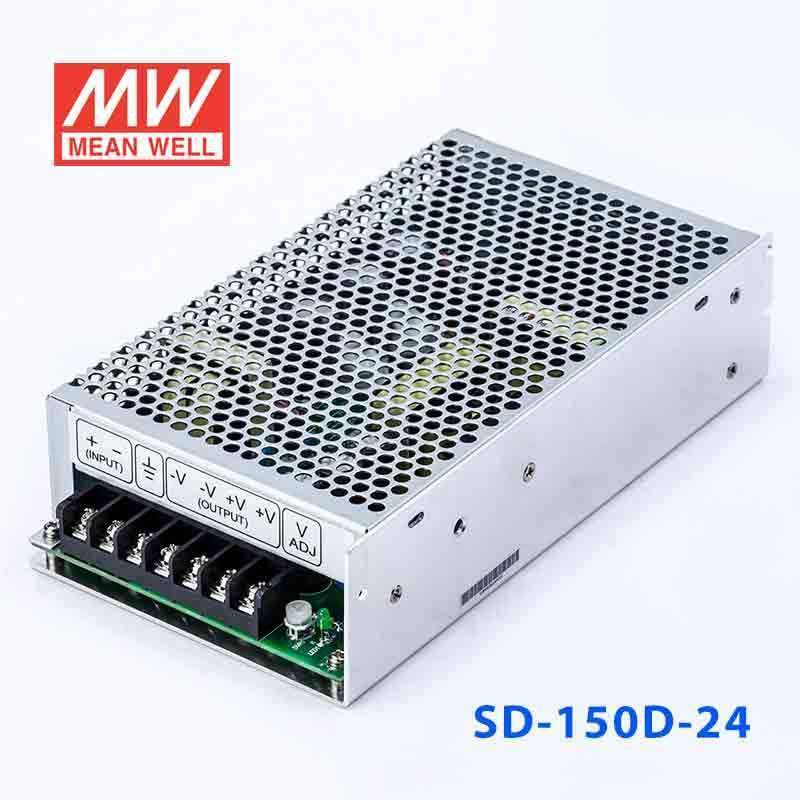

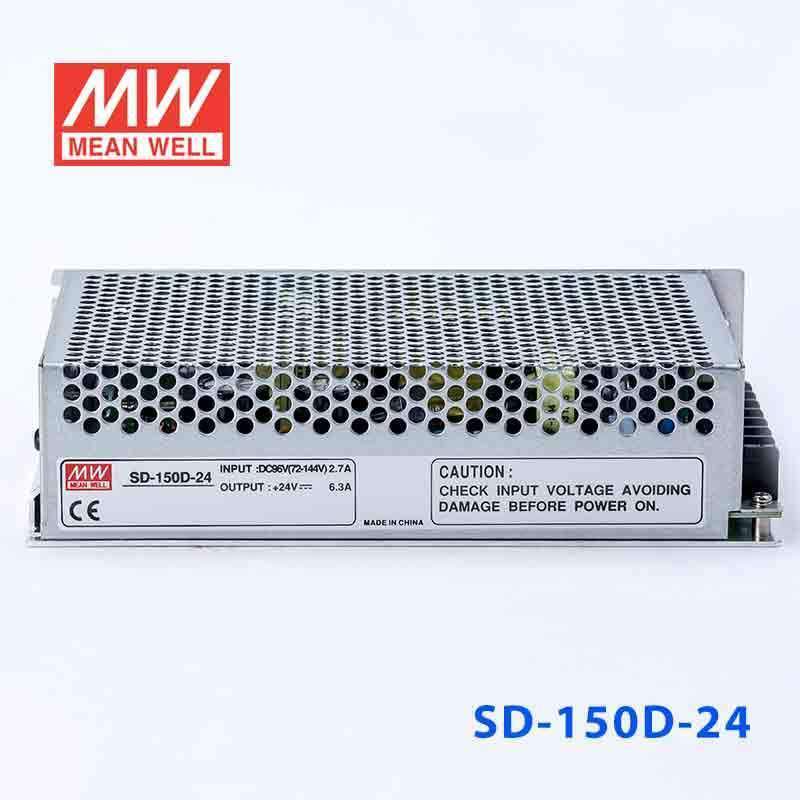

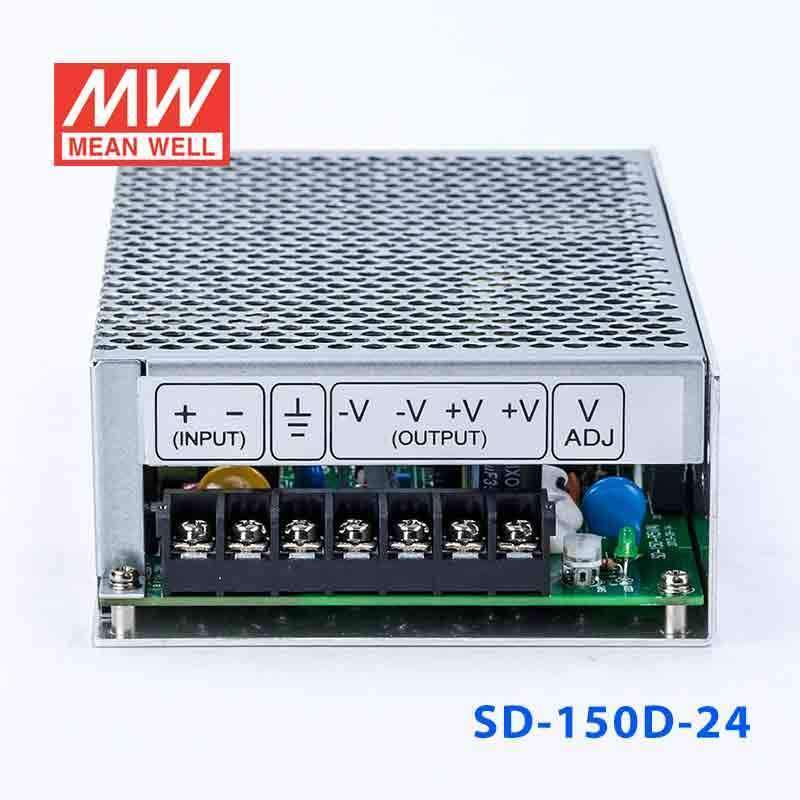

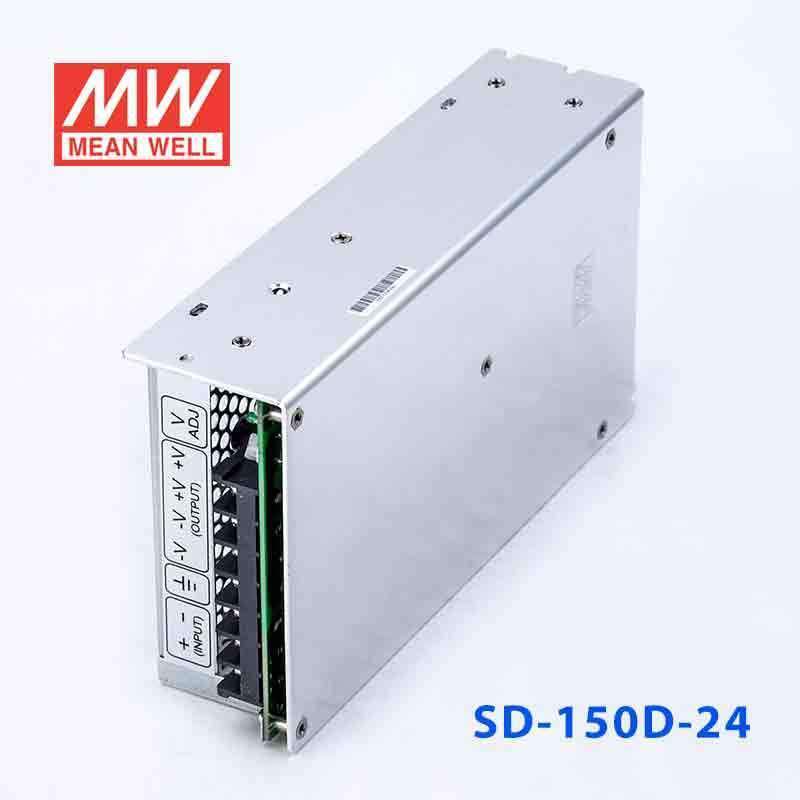

Mean Well SD-150D-24 DC-DC Converter - 150W - 72~144V in 24V out 6.5A
·2:1wide inputrange
·Protections: Short circuit/Overload/Overvoltage
·1500VACI/Oisolation
·Built-inEMIfilter,lowripplenoise
·100% full load burn-intest
·24V and 48Vinput voltage design refertoLVD
·Lowcost
·Highreliability
·2yearswarranty
-
BrandMean Well
-
SeriesSD Series
-
Power Rating151.2 Watt
-
Output Voltage24 Volt
-
Rated Current6.5 Ampere
-
Input Voltage72V~144V
-
No of Output1
-
Dimming ControlNone
-
Standards MetEAC
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~60°C
-
Warranty3 Year
-
Length7.83 in
-
Width4.33 in
-
Height1.97 in
-
Weight1.9 lb
::specification::
Frequently Asked Questions
Can the SD-150D-24 power a 24V automation or control load from a 72-144V DC source?
Yes, this converter is designed for 72-144V input and delivers constant 24V output. It is rated for up to 6.5A and 151.2W, which fits 24V automation loads within those limits.
Is this a good fit for 24V embedded or industrial communications equipment on a higher-voltage DC bus?
It is suitable when the source is within the 72-144V input range and the load requires regulated 24V DC. The available output is 6.5A at 24V, with a total rating of 151.2W.
Can I use the SD-150D-24 for 24V signaling or control hardware in equipment that runs from high-voltage DC?
Yes, it is intended for stepping down 72-144V input to a constant 24V output. That makes it appropriate for 24V signaling and control hardware that does not exceed 6.5A or 151.2W.
Will the SD-150D-24 handle indoor industrial environments with temperature variation?
The published operating temperature range is -10°C to +60°C. Since no IP rating is listed, it is best used in protected indoor cabinets or enclosures rather than exposed outdoor areas.
How does the SD-150D-24 compare with the other 24V SD-150 models?
The 24V SD-150 models are SD-150B-24, SD-150C-24, and SD-150D-24, and all three are rated at 151.2W and 6.5A. Their distinction is the input range: 19-36V for B, 36-72V for C, and 72-144V for D. The matching 12V versions are SD-150B-12, SD-150C-12, and SD-150D-12, each rated at 150W and 12.5A.
