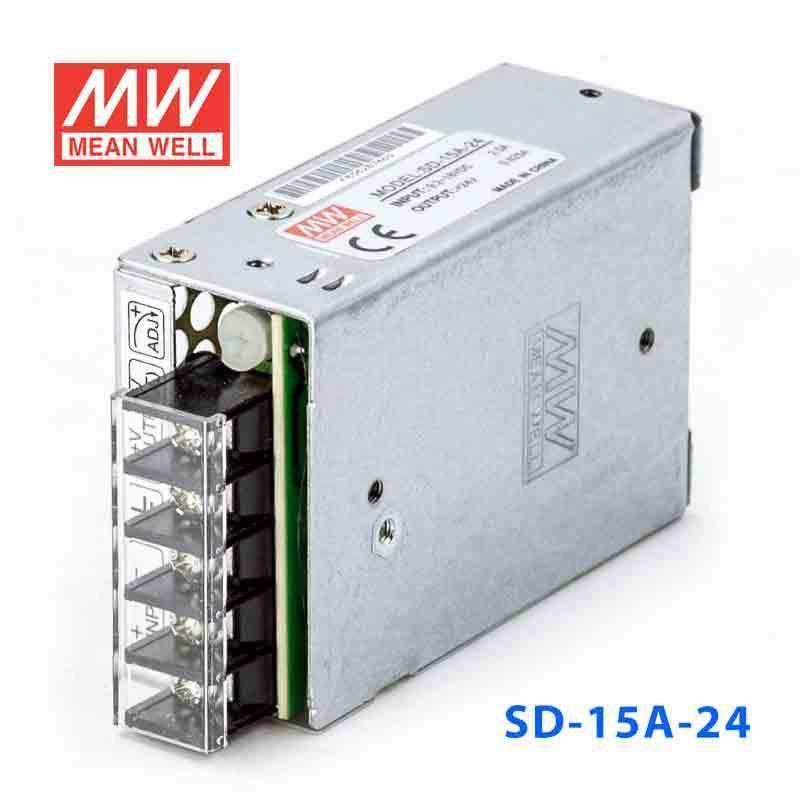

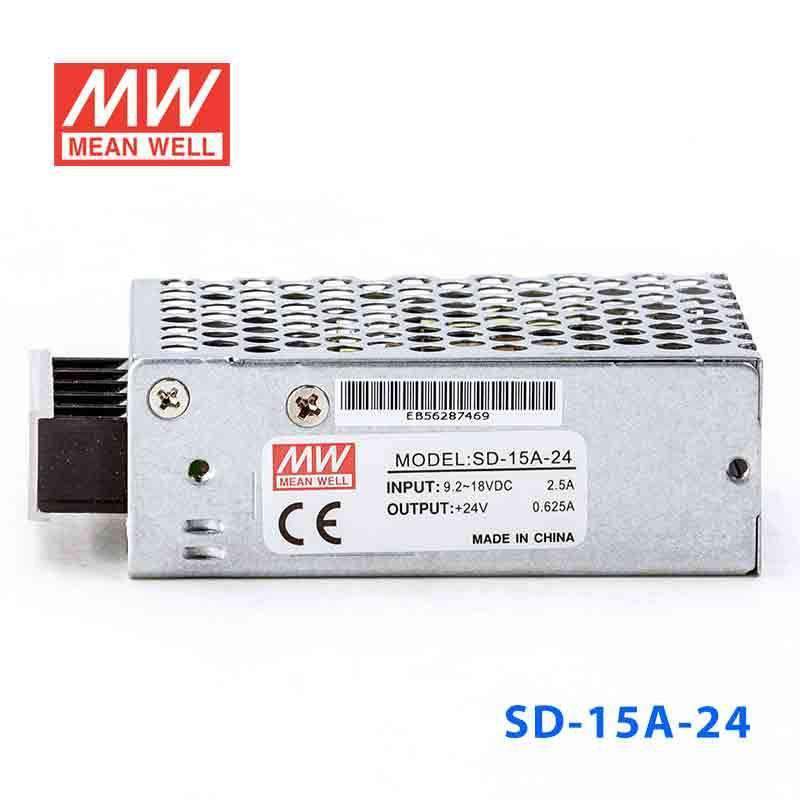

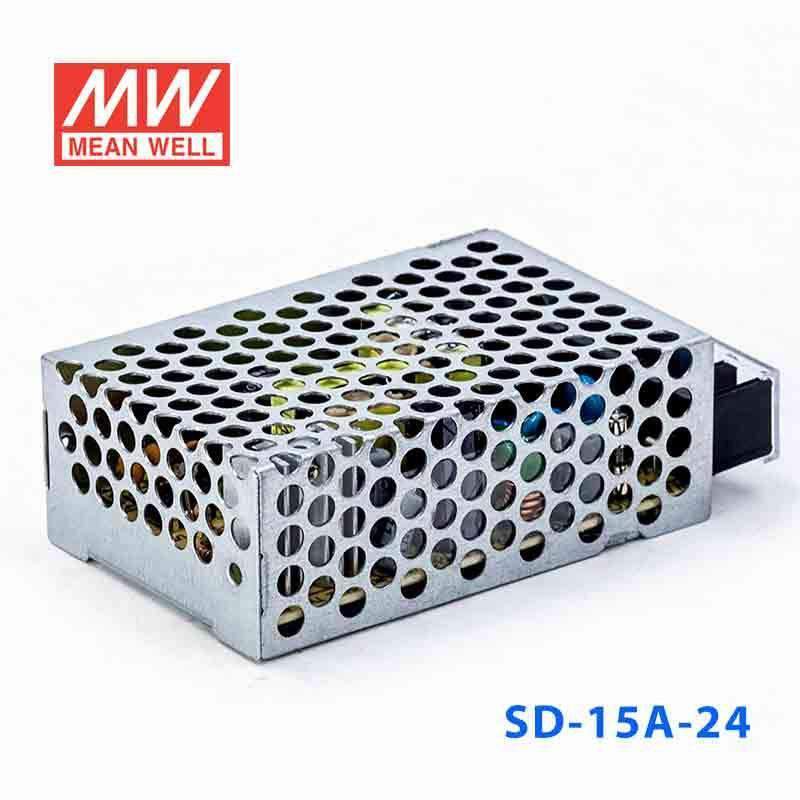

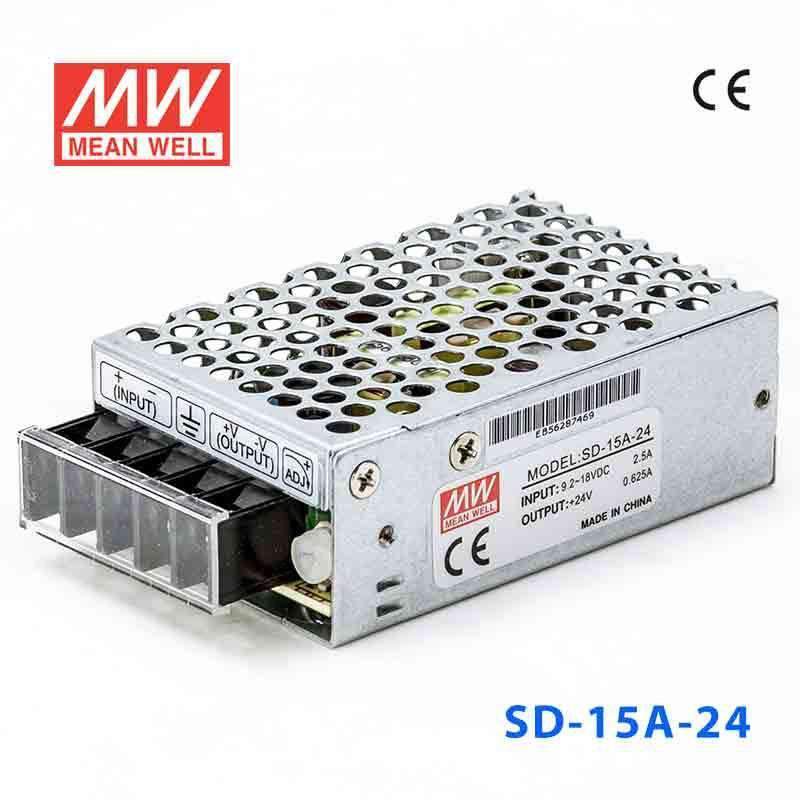

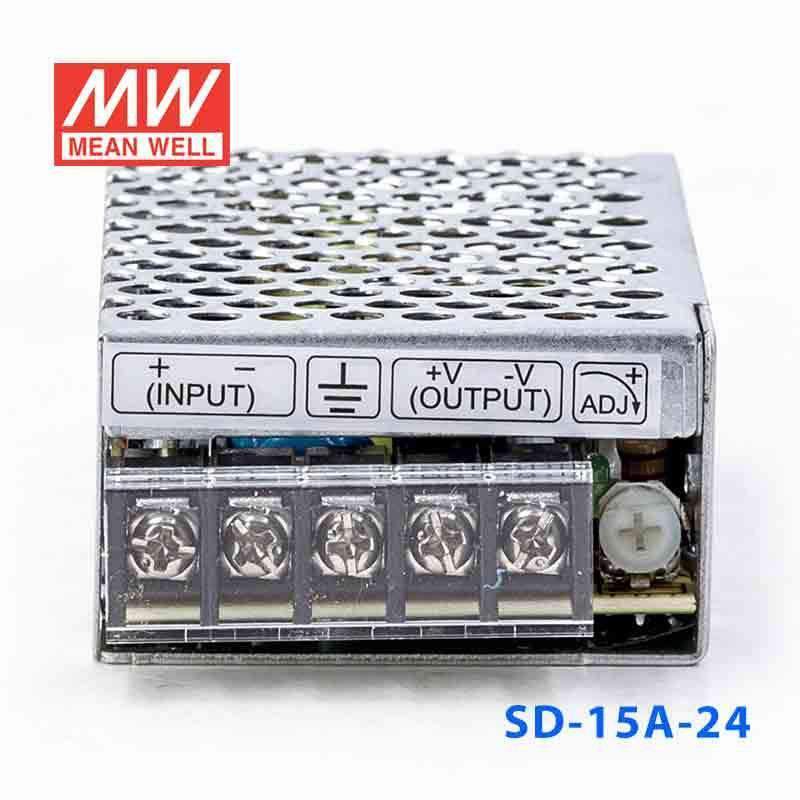

Mean Well SD-15A-24 DC-DC Converter - 15W - 9.2~18V in 24V out 625mA
1.0 (1 review)Notify me when it's back in stock
Your order will be processed within 24 hours
Mean Well SD-15A-24 DC-DC Converter - 15W - 9.2~18V in 24V out 625mA
The SD-15A is a 15W Mean Well DC-DC converter (input: 9.2~18VDC, operating temperature: -20~+85°C).
Key Features
- ✓ Input voltage: 9.2~18VDC
- ✓ Output voltage (max): 24V
- ✓ Rated output current: 0.625A
- ✓ I/O isolation: 500V
- ✓ Operating temperature: -20~+85°C
- ✓ Safety certifications: EAC
- ✓ 3 year warranty
-
BrandMean Well
-
SeriesSD Series
-
Power Rating15 Watt
-
Output Voltage24 Volt
-
Rated Current0.62 Ampere
-
Input Voltage9.2V~18V
-
No of Output1
-
Dimming ControlNon Dimmable
-
Standards MetEAC
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~85°C
-
Warranty3 Year
-
Length3.07 in
-
Width2.01 in
-
Height1.1 in
-
Weight0.4 lb
::specification::
Frequently Asked Questions
Can I use the SD-15A-24 to run a small 24V industrial sensor or transmitter from a 9-18 input source?
Yes, if the device needs a constant 24V output and draws no more than 0.62A. This converter provides 15W total and accepts a 9-18 input range, so it is intended for low-power 24V industrial or embedded loads.
Is the SD-15A-24 a good choice for a compact 24V automation accessory in a tight enclosure?
It is designed for small low-power 24V loads, with a 78.0 × 51.0 × 28.0 mm housing and 0.18 kg weight. The output is limited to 24V at 0.62A, so it fits light auxiliary devices rather than higher-current 24V equipment.
Can this model power a 24V embedded or control module from a low-voltage source?
It can when the source stays within the 9-18 input range and the module requires constant voltage output. The 15W capacity makes it suitable for smaller 24V control or embedded electronics that remain under 0.62A.
Is the SD-15A-24 suitable for outdoor installations or wide temperature swings?
The specified operating temperature range is -20°C to +85°C. However, no IP rating is provided in the listed specs, so the product data does not state outdoor or weather-exposed suitability.
How does the SD-15A-24 compare with the other SD-15A output options?
The SD-15A family includes SD-15A-5 at 15W, 5V, 3A; SD-15A-12 at 15W, 12V, 1.25A; and SD-15A-24 at 15W, 24V, 0.62A. Each version uses the same 9-18 input range, constant voltage mode, -20°C to +85°C temperature range, 78.0 × 51.0 × 28.0 mm dimensions, 0.18 kg weight, EAC certification, and 3-year warranty.
