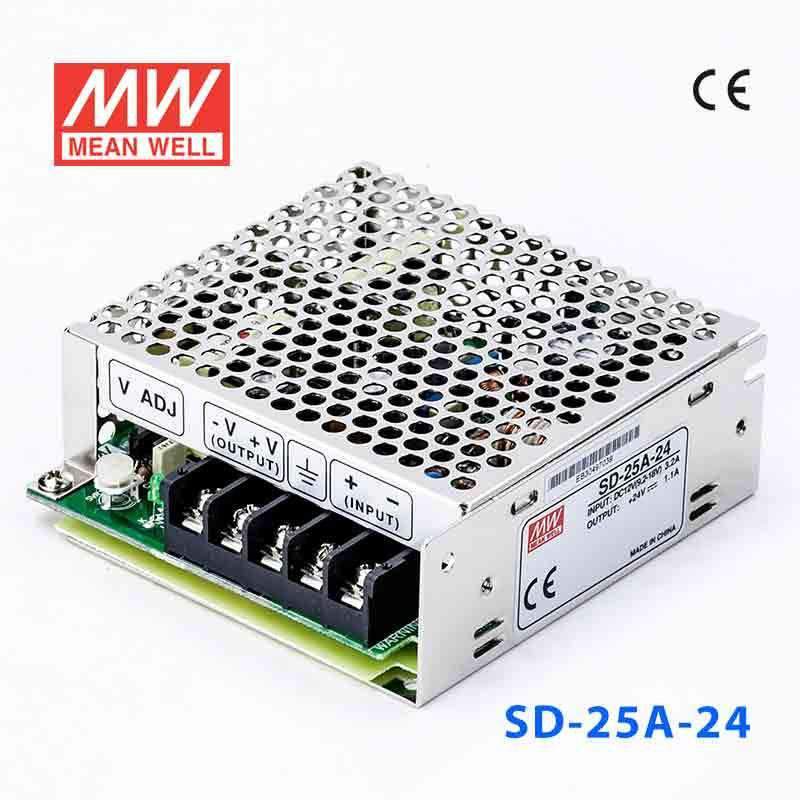

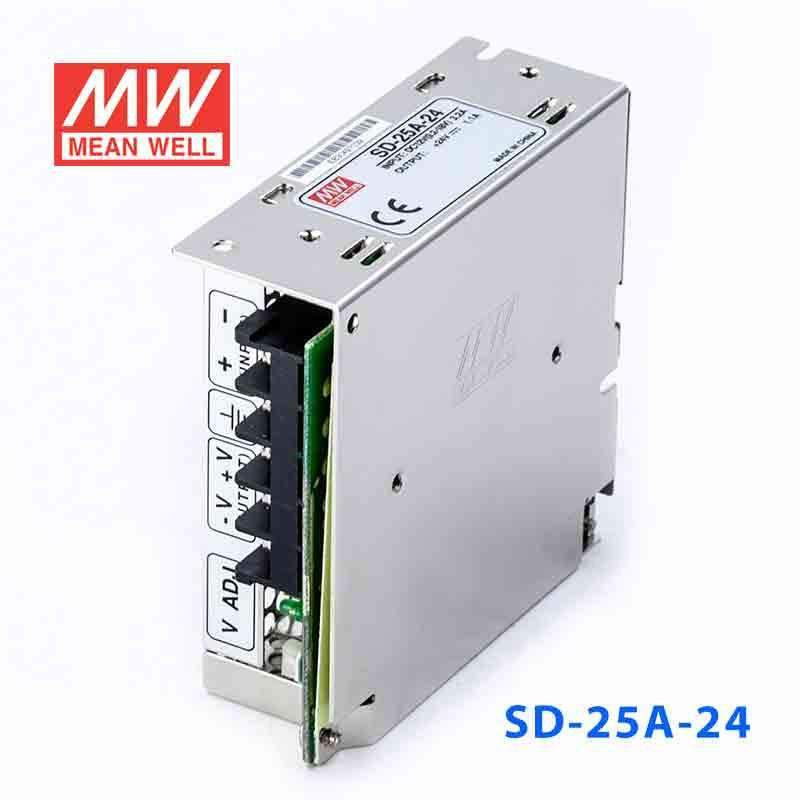

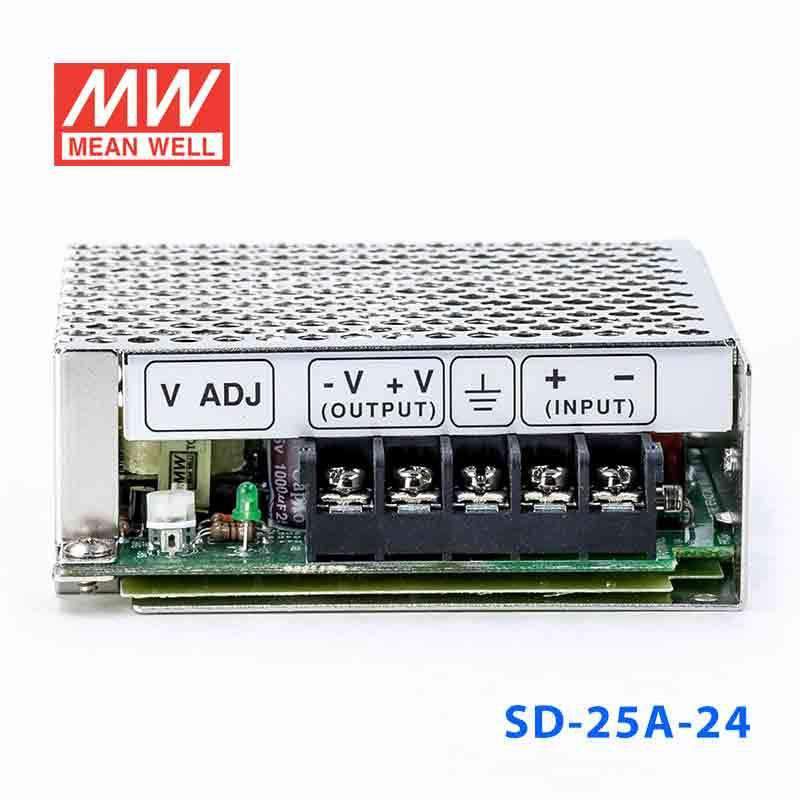

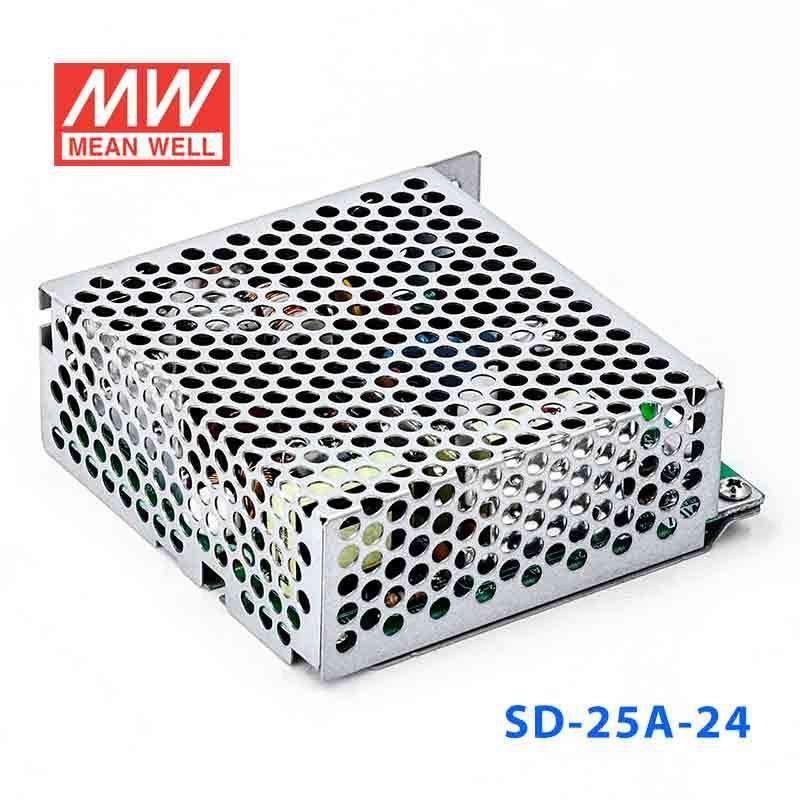

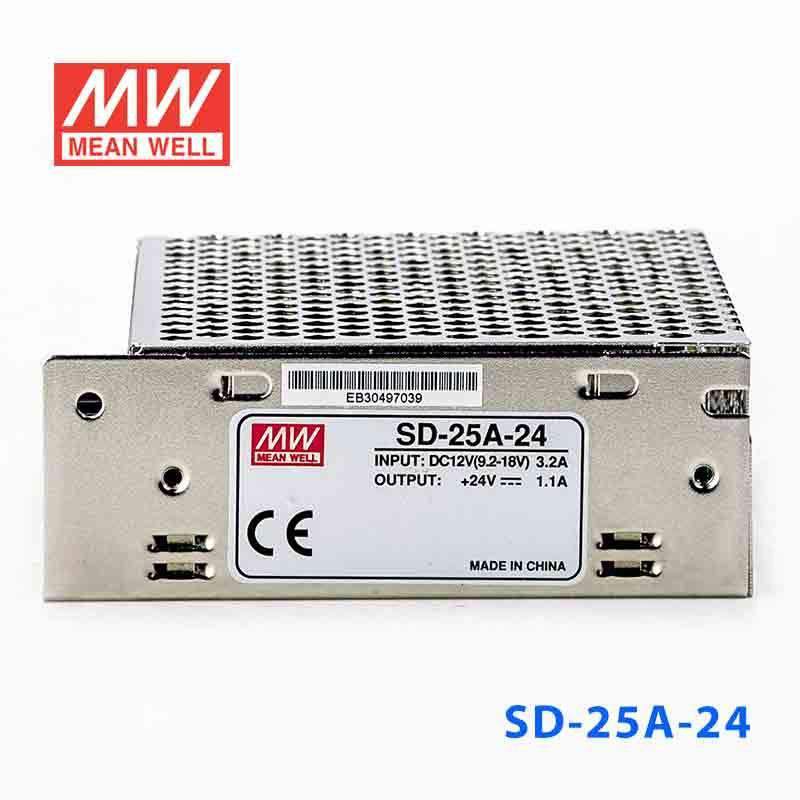

Mean Well SD-25A-24 DC-DC Converter - 25W - 9.2~18V in 24V out 1.1A
·2:1wide inputrange
·Protections: Short circuit/Overload/Overvoltage
·1500VACI/Oisolation
·Built-inEMIfilter,lowripplenoise
·100% full load burn-intest
·Fixed switching frequencyat83KHz
·Lowcost
·Highreliability
2yearswarranty
-
BrandMean Well
-
SeriesSD Series
-
Power Rating26.4 Watt
-
Output Voltage24 Volt
-
Rated Current1.1 Ampere
-
Input Voltage9.2V~18V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCE,EAC
-
Operation ModeConstant Voltage
-
Operating Temperature-10°C~60°C
-
Warranty2 Year
-
Length3.9 in
-
Width3.82 in
-
Height1.42 in
-
Weight0.84 lb
::specification::
Frequently Asked Questions
Can I use the SD-25A-24 for a low-power 24V automation device?
It can be used for a 24V constant-voltage automation load that stays within 1.1A and 26.4W. The listed input range is 9-18VAC.
Is the SD-25A-24 suitable for 24V industrial sensors or transmitters?
Yes, if the 24V sensor or transmitter requires constant-voltage power and draws no more than 1.1A. The converter is rated for 26.4W output.
Can this converter power a 24V embedded control module?
It is appropriate for a 24V embedded control module when the load remains at or below 1.1A and 26.4W. It is designed as a constant-voltage unit with 9-18VAC input.
How does the SD-25A-24 compare with the other SD-25A output options?
The SD-25A family includes SD-25A-12 at 25.2W, 12V, 2.1A; SD-25A-24 at 26.4W, 24V, 1.1A; and SD-25A-5 at 25W, 5V, 5A. They share the same listed 9-18VAC input range, with the output rating changing by model.
Is the SD-25A-24 rated for outdoor environments?
The specs show an operating temperature range of -10°C to +60°C, but no IP rating is provided. That supports temperature planning, but it does not confirm outdoor or moisture-resistant use.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other SD-25A Models
2 other models| Model | Power | Voltage | Current | IP Rating | Price | |
|---|---|---|---|---|---|---|
| Mean Well SD-25A-5 DC-DC Converter - 25W - 9.2~18V in 5V out 5A | 25W | 5V | 5A | Indoor | $24.92 | View |
| Mean Well SD-25A-12 DC-DC Converter - 25W - 9.2~18V in 12V out 2.1A | 25.2W | 12V | 2.1A | Indoor | $24.95 | View |
