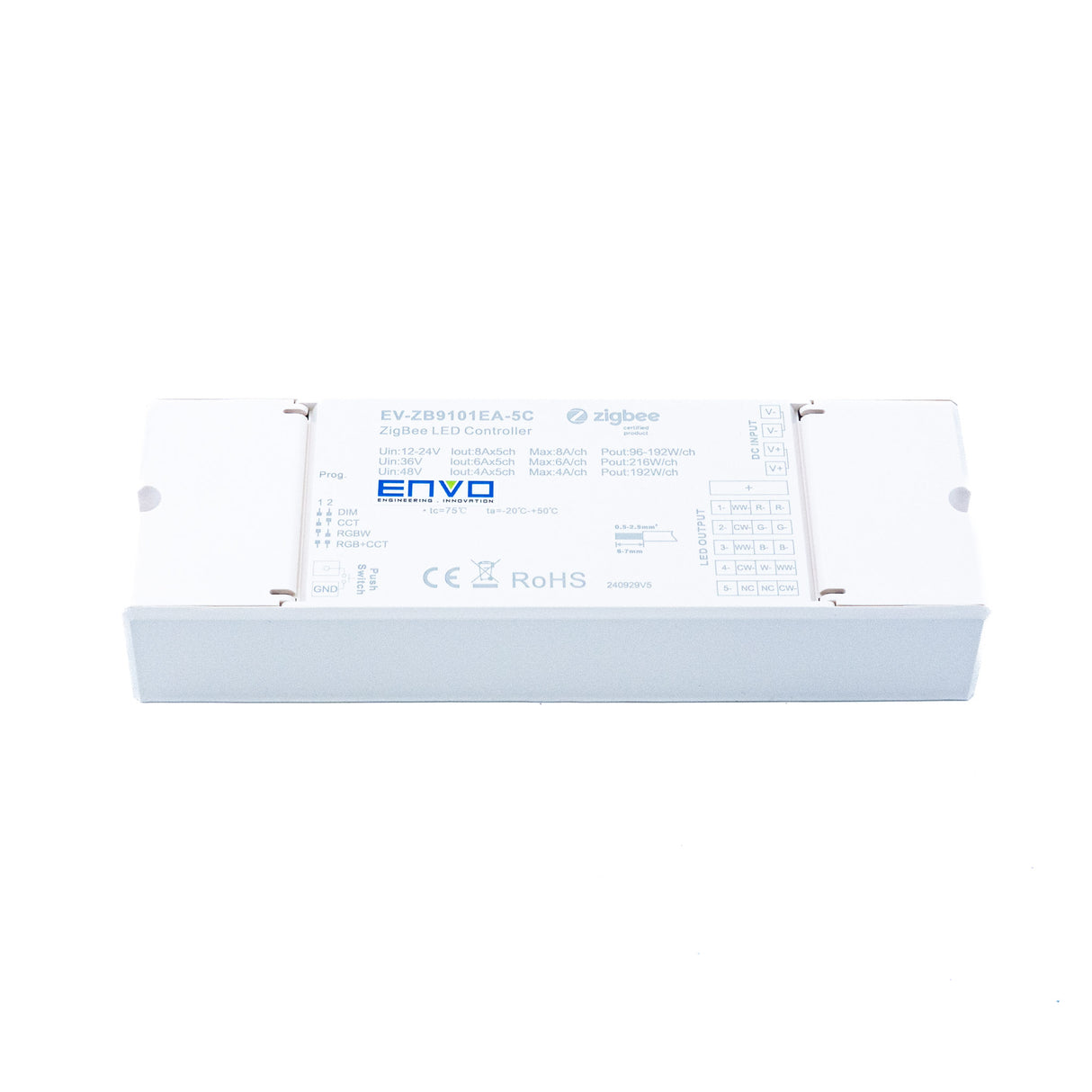

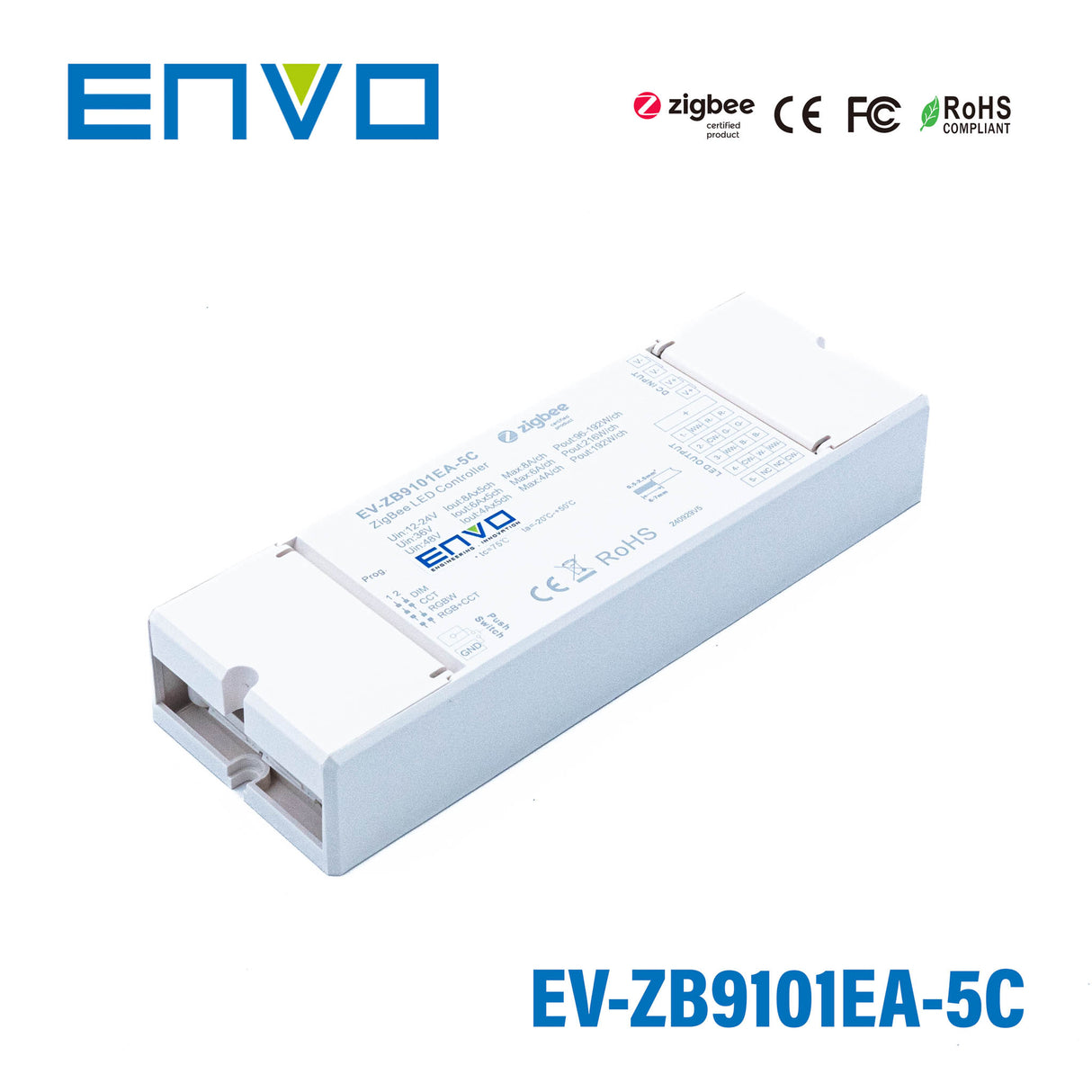

ENVO ZigBee 5 Channel Controller 12-48V 4-8A per Channel
Notify me when it's back in stock
Your order will be processed within 24 hours
ENVO ZigBee 5 Channel Controller 12-48V 4-8A per Channel
The EV-ZB9101EA-5C is a 480W ENVO AC-DC constant voltage LED driver (input: 12~48VDC, output: 12V, operating temperature: -20~+50°C).
Key Features
- ✓ Input voltage: 12~48VDC
- ✓ Output voltage: 12V
- ✓ Rated output current: 8A
- ✓ Zigbee controllable
- ✓ Operating temperature: -20~+50°C
- ✓ Safety certifications: CE, RoHS
- ✓ 5 year warranty
-
BrandEnvo
-
SeriesENVO Zigbee Series
-
Power Rating480 Watt
-
Output Voltage12 Volt
-
Rated Current8 Ampere
-
Input Voltage12V~48V
-
No of Output5
-
Dimming ControlZigbee
-
Standards MetCE,ROHS
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~50°C
-
Warranty5 Year
-
Length6.69 in
-
Width2.32 in
-
Height1.14 in
::specification::
Frequently Asked Questions
What kinds of LED lighting can the ENVO ZigBee 5 Channel Controller support?
This controller supports four selectable device modes in one unit: DIM, CCT, RGBW, and RGB+CCT. That makes it suitable for single-color dimming, tunable white, RGBW, and RGB+CCT constant-voltage LED lighting applications. It is designed for 12-48VDC systems and can serve a wide range of commercial and residential LED control needs.
Is this controller compatible with ZigBee hubs and remotes?
Yes. The ENVO ZigBee 5 Channel Controller uses ZigBee 3.0 and is described as compatible with universal ZigBee gateway or hub products as well as universal ZigBee remotes. It also supports direct pairing to a compatible ZigBee remote via Touchlink and supports find-and-bind mode.
What are the voltage and current limits for this model?
This model accepts a 12-48VDC constant-voltage input. Output current is rated up to 8A per channel at 12V or 24V, up to 6A per channel at 36V, and up to 4A per channel at 48V. The connector current rating is listed as a maximum of 20A.
How much output power can this controller handle?
The output power depends on the operating voltage. It supports up to 96W per channel at 12V, 192W per channel at 24V, 216W per channel at 36V, and 192W per channel at 48V. The product data also lists a 480W power rating for this model.
Can this ZigBee controller work without a central coordinator?
Yes. According to the product specification, it supports a self-forming ZigBee network without a coordinator. That can make it useful in applications where a standalone ZigBee control approach is preferred.
Is the ENVO ZigBee 5 Channel Controller suitable for demanding environments?
It is rated for ambient temperatures from -20°C to +50°C, with a maximum casing temperature of 75°C. The housing is IP20, so it is intended for dry indoor environments rather than exposure to moisture. This makes it better suited to protected installations than wet or outdoor locations.
What makes this model different from a single-function LED controller?
A key differentiator is that it combines four control modes in one controller: DIM, CCT, RGBW, and RGB+CCT. Instead of using separate controllers for different LED types, this model offers broader application flexibility within a single ZigBee 3.0 device. It is positioned as a universal controller for multiple constant-voltage LED lighting formats.
What warranty is offered for this controller?
The listed warranty period for the ENVO ZigBee 5 Channel Controller is 5 years. That can be a useful consideration for buyers evaluating long-term reliability and lifecycle value for LED control projects.
