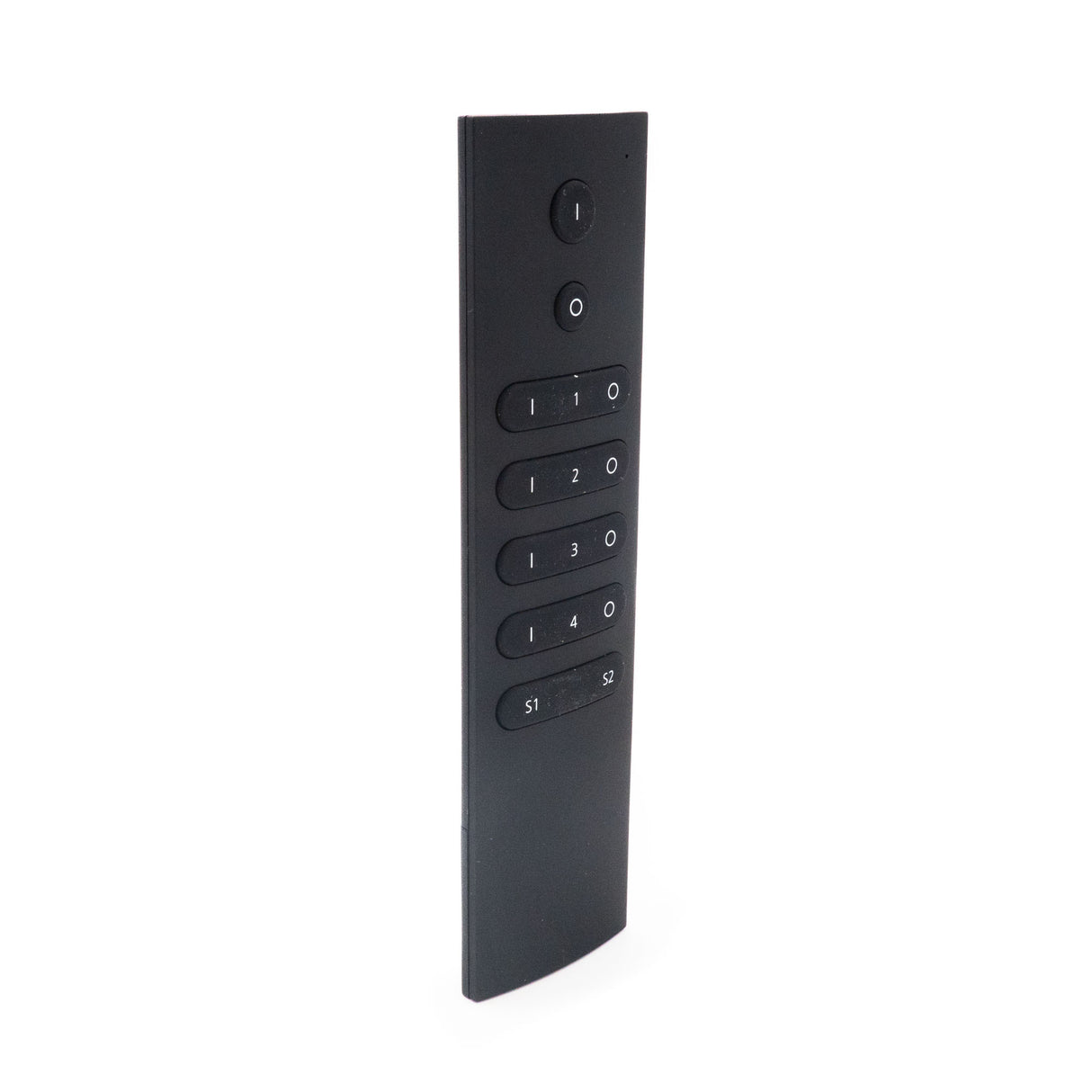

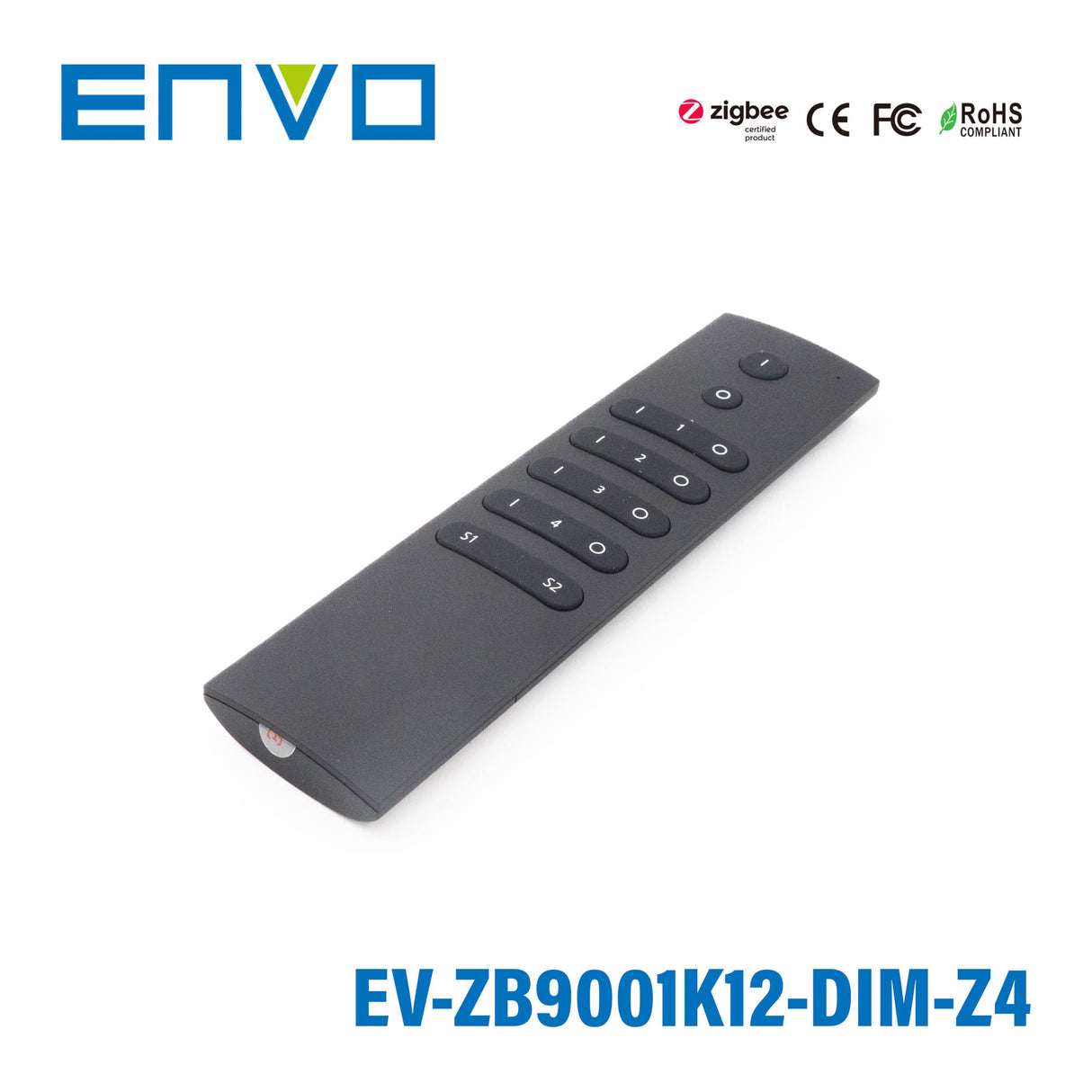

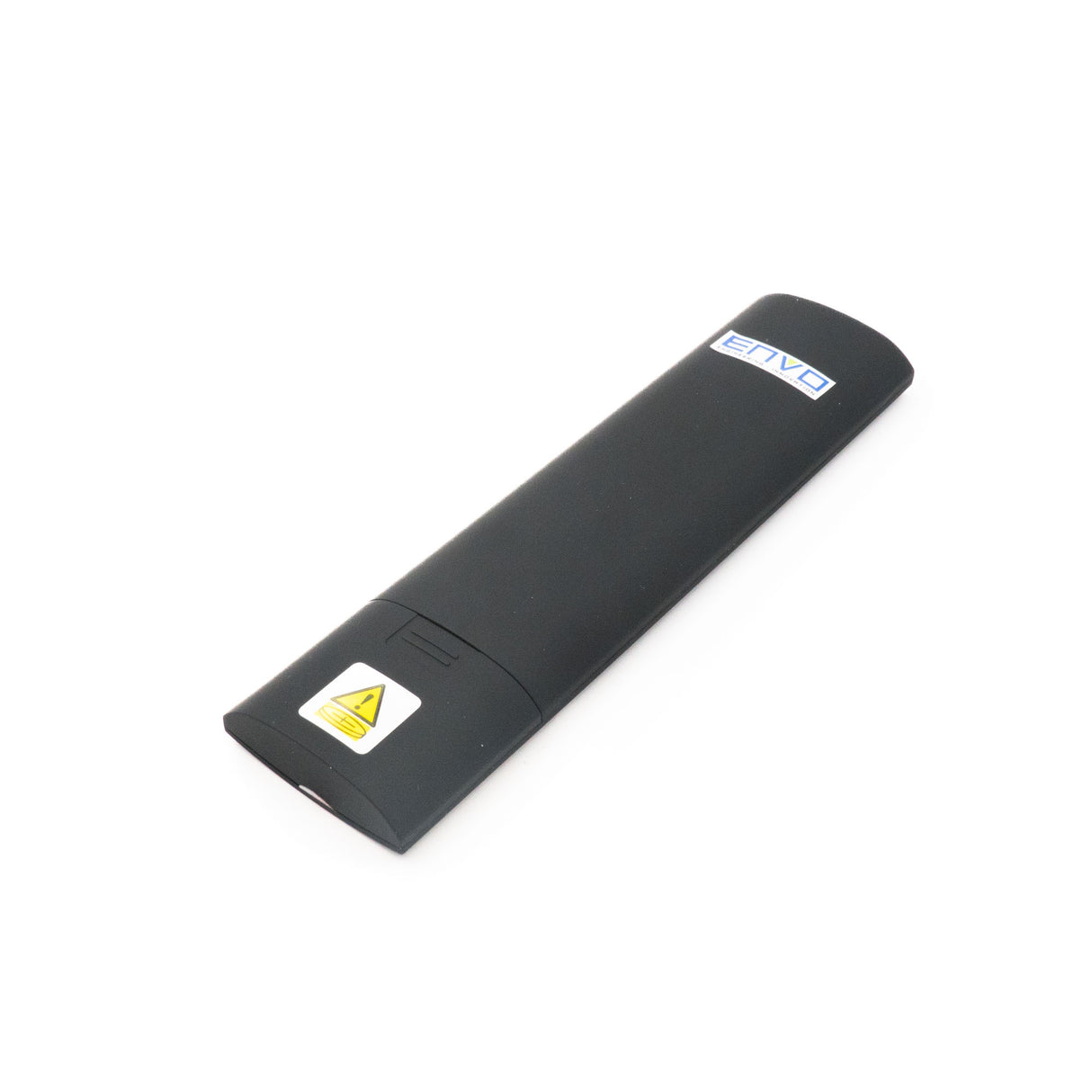

ENVO ZigBee Classic Remote Single Colour - 4 Zones
Notify me when it's back in stock
Your order will be processed within 24 hours
ENVO ZigBee Classic Remote Single Colour - 4 Zones
Features:
- ZigBee dimmer switch based on ZigBee 3.0
- Enables to pair ZigBee lighting devices via touchlink commissioning without coordinator
- Supports find and bind mode to pair with ZigBee lighting devices in the same network
- Supports 4 groups for binding max. 30 lighting devices
- 2.4 GHz global operation
- Long battery life mesh technology
- Transmission range up to 30m
- Compatible with universal ZigBee Gateway products
- Compatible with universal single color ZigBee lighting devices
- This device contains a button lithium battery that shall be stored and disposed properly.
- DO NOT expose the device to moisture.
General Specification
Protocol
ZigBee 3.0
Operation Voltage
3VDC (CR2032)
Transmission Frequency
2.4GHz
Transmission Range (free field)
30m
Dimming Range
0.1%-100%
Protection Type
IP20
Dimension (LxWxH)
150x38.6x12mm
-
BrandEnvo
-
SeriesENVO Zigbee Series
-
Output Voltage3 Volt
-
No of Output1
-
Dimming ControlZigbee
-
Standards MetCE,FCC,ROHS
-
Operation ModeConstant Voltage
-
Operating Temperature-20°C~50°C
-
Warranty5 Year
-
Length5.91 in
-
Width1.52 in
-
Height0.47 in
::specification::
Frequently Asked Questions
What does the ENVO ZigBee Classic Remote Single Colour - 4 Zones control?
This model is a ZigBee 3.0 remote designed for single-colour ZigBee lighting devices. It supports dimming from 0.1% to 100% and can manage up to 4 groups. It is intended for lighting control applications where separate zones need independent operation.
How many zones and devices can this remote manage?
The remote supports 4 zones for grouped control. It can bind a maximum of 30 lighting devices across those groups. That makes it suitable for multi-area commercial or residential lighting control within one ZigBee setup.
Is this remote compatible with standard ZigBee systems?
Yes, it is based on ZigBee 3.0 and is listed as compatible with universal ZigBee Gateway products. It is also compatible with universal single-colour ZigBee lighting devices. Compatibility should be evaluated against device type, since this model is specifically for single-colour lighting rather than RGB or RGBW control.
What is the wireless range of this ZigBee remote?
The stated transmission range is up to 30 metres in free-field conditions. Actual range can be reduced by walls, interference, and site layout. It operates on the 2.4 GHz frequency band used by ZigBee networks.
Is this remote suitable for outdoor or damp locations?
No, this model has an IP20 rating, which means it is intended for indoor use in dry locations. The product description also states that it should not be exposed to moisture. It is rated for ambient temperatures from -20°C to 50°C.
What power source does this remote use?

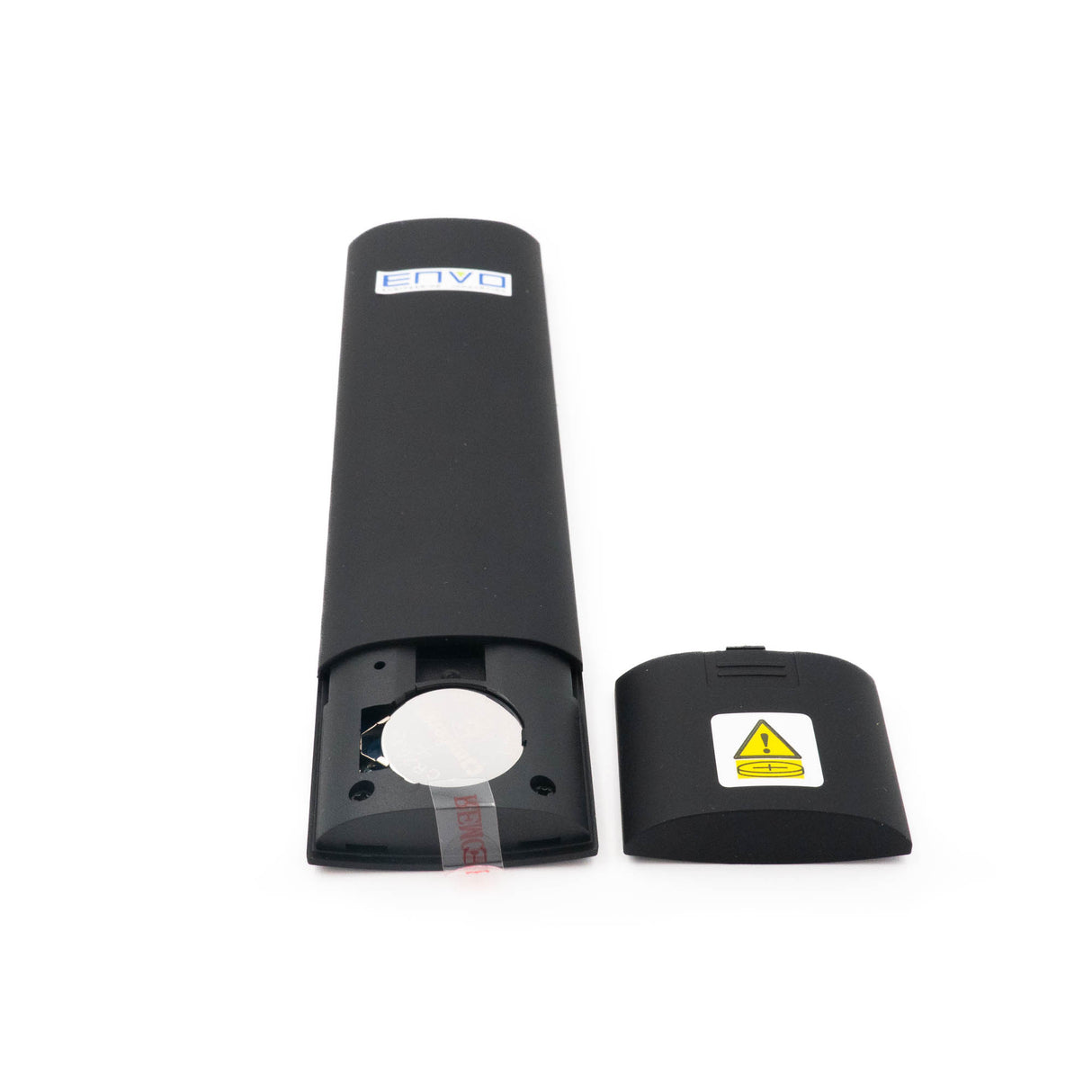

This remote operates on 3V DC from a CR2032 button battery. The product description notes long battery life and also states that the lithium button battery should be stored and disposed of properly. Its handheld form factor measures 150 x 38.6 x 12 mm.
