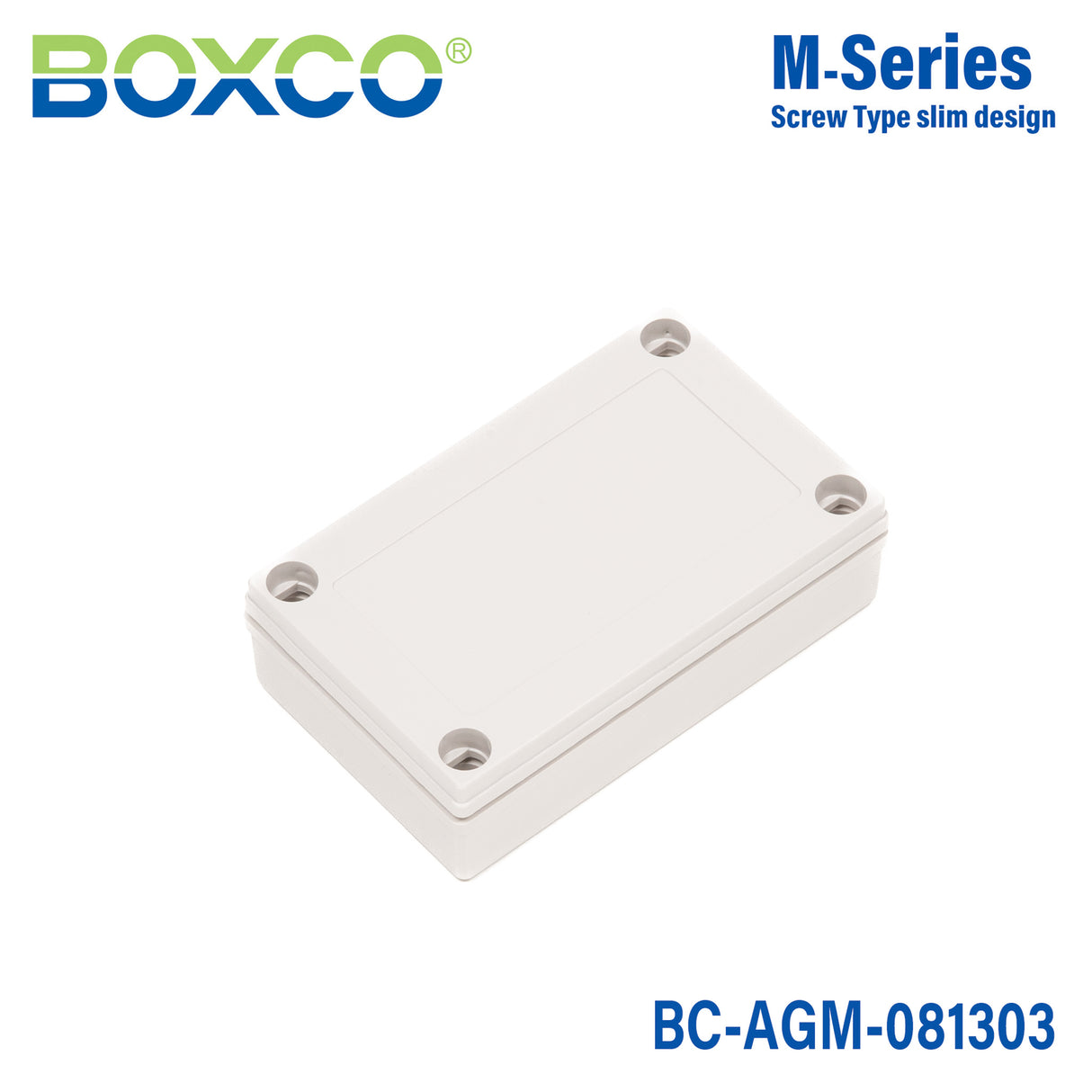

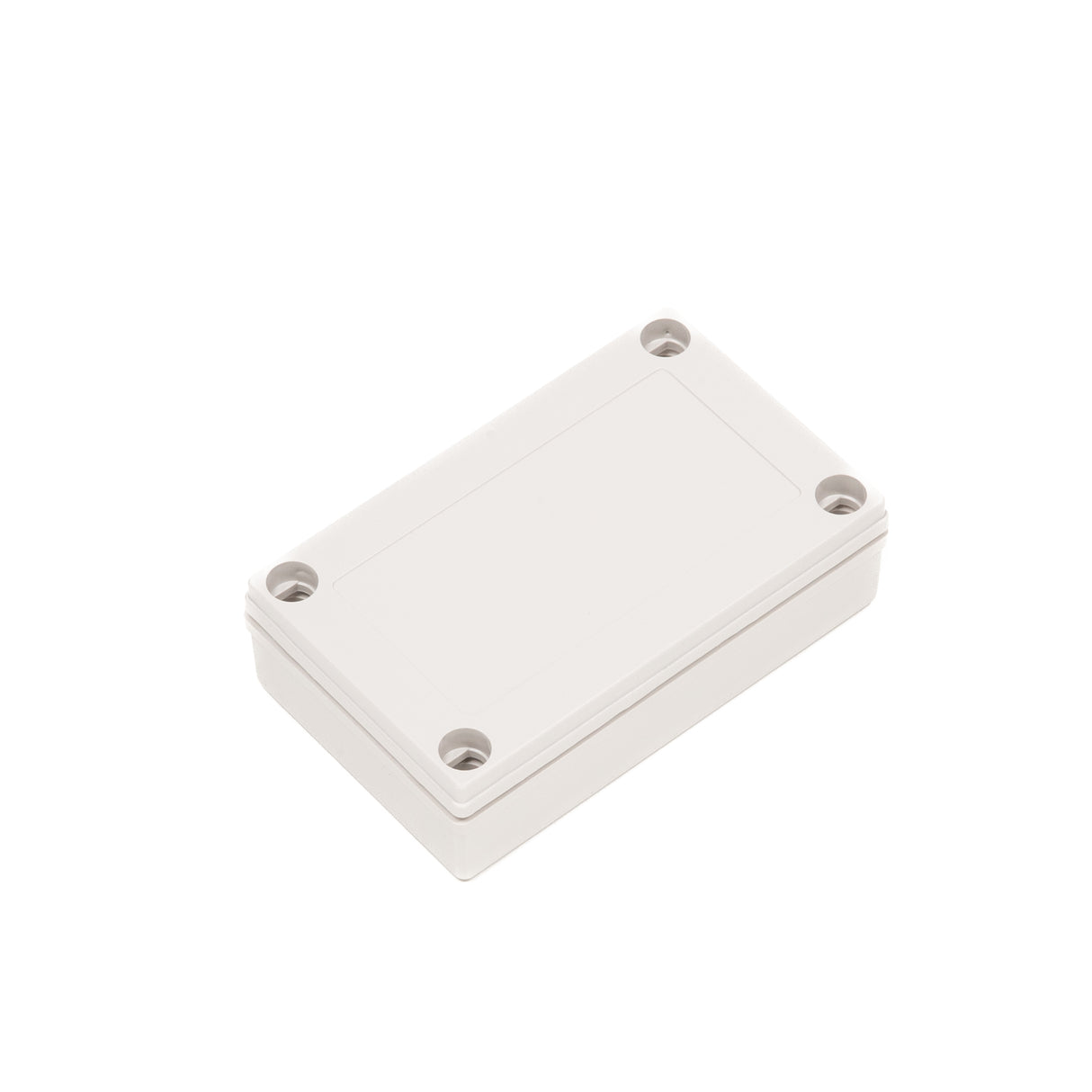

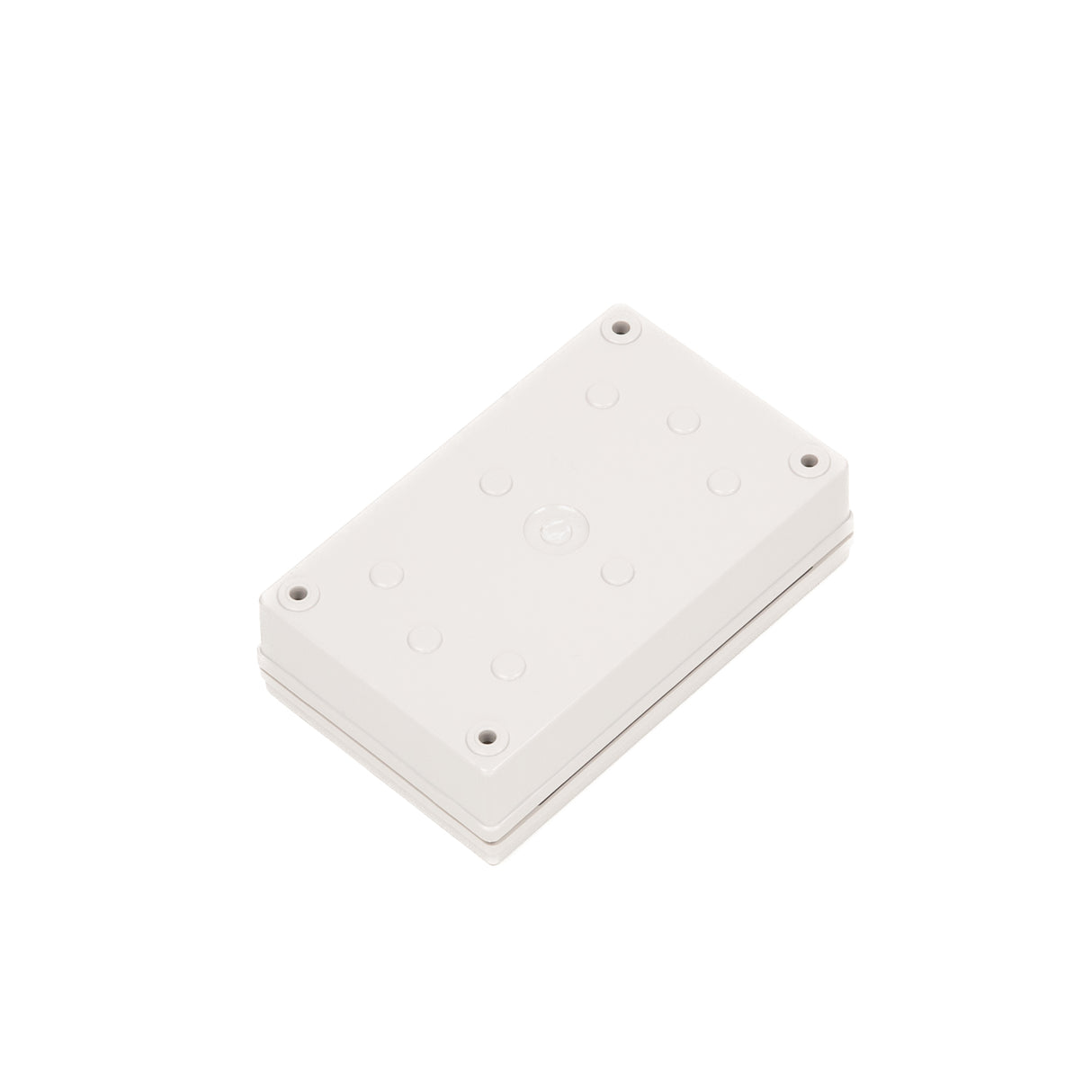

Boxco M-Series 3.15 x 5.12 x 1.38 Inches(80 x 130 x 35mm) Plastic E...
For Boxco M-Series, Ultraviolet Stabilizer is added to protect the enclosures for outdoor usage. Few colour changes will be noticed even after a long time of use. Anti-static material is used to protect sensitive electronic instruments from static electricity. It is made of high impact resistant material which is very strong against external impact and also prevents breakage during hole and press processing. Special spec can be added besides standard specification. We can supply optimized products with the spec and material you choose.
Features

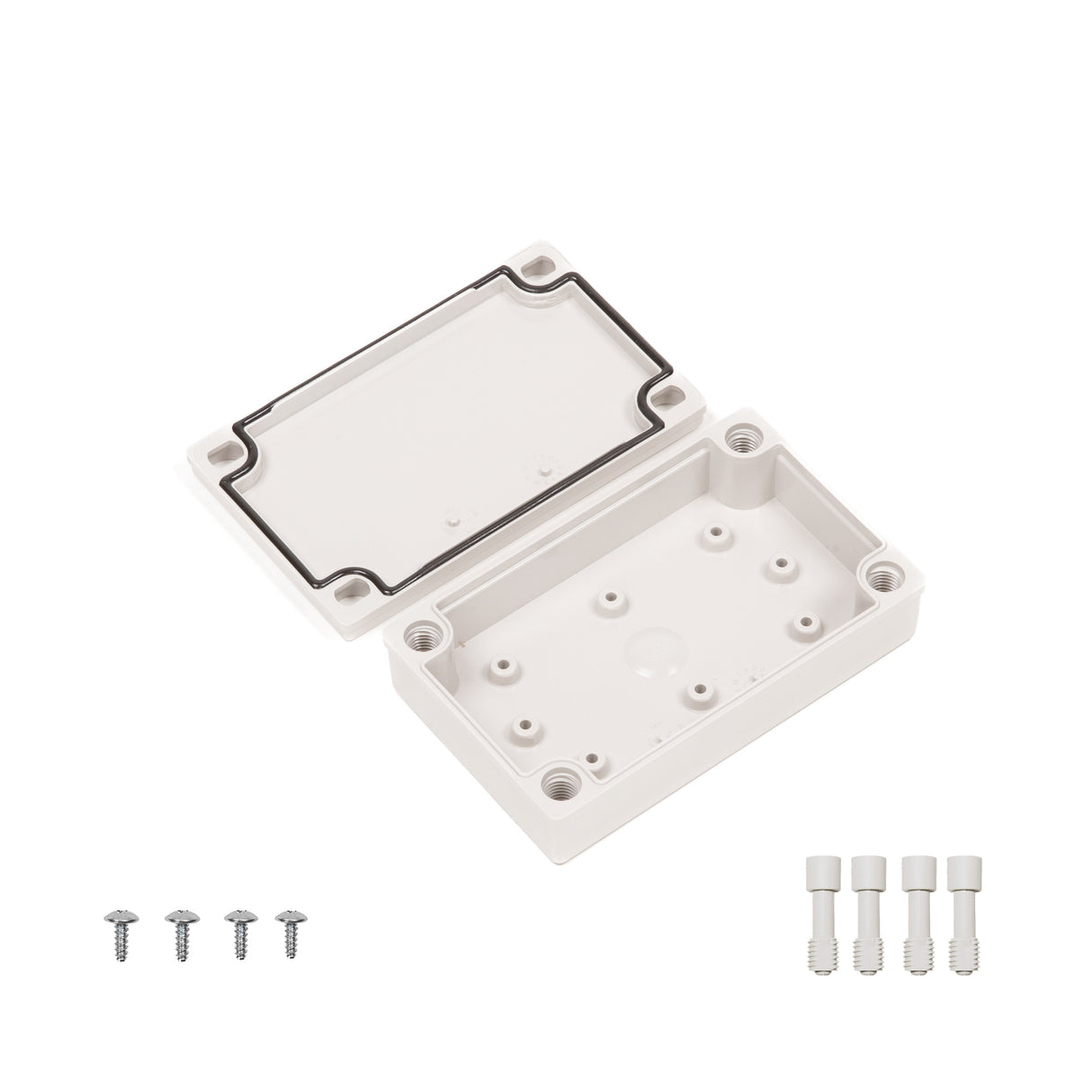

- Screw type with recessed cover
- Used for mounting membrane keypad
-
BrandBoxco
-
SeriesBoxco M Series
-
MaterialABS
-
Base ColorGrey
-
Cover ColorGrey
-
Standards MetCE,TUV,UL
-
Operating Temperature-40°C~70°C
-
Warranty1 Year
-
Length3.15 in
-
Width5.12 in
-
Height1.38 in
-
Weight0.28 lb
::specification::
Frequently Asked Questions
What applications is the Boxco M-Series BC-AGM-081303 enclosure best suited for?
This model is suited to protecting small electronic controls, monitoring components, and other equipment that needs a sealed plastic enclosure. Its recessed screw-type cover is also intended for applications that use a membrane keypad on the enclosure face.
Is this enclosure suitable for outdoor or washdown environments?
Yes. The BC-AGM-081303 is rated IP67, which indicates strong protection against dust and temporary water immersion, and the material includes an ultraviolet stabilizer for outdoor use. It is also rated IK08 for impact resistance, which helps it hold up in demanding industrial or commercial settings.
What are the key size and material specs for this enclosure?
This Boxco M-Series enclosure measures 3.15 x 5.12 x 1.38 inches, or 80 x 130 x 35 mm. It uses ABS plastic, has a grey cover, and weighs 0.126 kg.
What makes this screw-type enclosure different from a standard flat-cover box?
This version uses a screw-fastened cover with a recessed top design rather than a plain flat lid. That recessed cover style is useful when the enclosure needs to accommodate a membrane keypad while keeping a more protected surface profile.
Can this enclosure be used around sensitive electronic instruments?
Yes. The product description states that anti-static material is used to help protect sensitive electronic instruments from static electricity. That makes it a better fit for electronics-focused applications than a basic general-purpose plastic box without that stated feature.
What temperature range is this enclosure rated for?
The specified operating temperature range is -40 degrees C to 70 degrees C. That range supports use in both cold and warm environments, provided the rest of the assembled equipment is also rated for those conditions.
