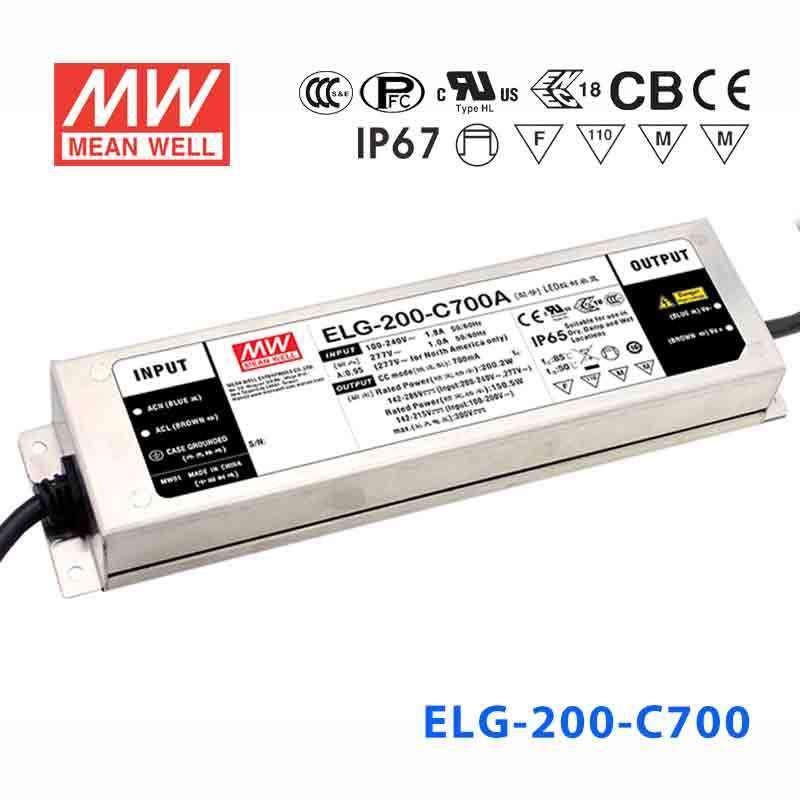

Mean Well ELG-200-C700A Power Supply 200W 700mA - Adjustable

Name: Mean Well ELG-200-C700A Power Supply 200W 700mA - Adjustable
Brand: Mean Well
SKU: ELG-200-C700A
Price: 45.4 USD
Availability: InStock

Key Features

✓ Input voltage range: 100~305VAC

✓ DC output voltage adjustable ±10%

✓ 3.75KVAC reinforced I/O isolation

✓ Protections: Short circuit / Over voltage / Over temperature

✓ Active PFC — meets international energy efficiency regulations

✓ Safety approvals: (type”HL”), CSA C22.2 No. 250.13-12;IEC/EN/AS/NZS 61347-1, IEC/EN/AS/NZS 61347-2-13 UL8750 EAC TP TC 004;BIS IS15885(for 12/12B/24/24B/36/36A/42A/48/48A/54A only) GB19510.14,GB19510.1; IP65 or IP67; KC61347 1 KC61347 2 13

✓ 3 years warranty

Frequently Asked Questions

Can I use the ELG-200-C700A to drive LED downlights in a commercial lighting retrofit?

Yes. The ELG-200-C700A delivers 700mA constant current across a CC voltage range of 142–286V, making it well suited for series-connected LED downlight arrays in commercial fixtures. Its 200.2W capacity handles large multi-lamp installations, and IP65 water resistance allows use in damp or dust-exposed ceiling voids.

Is the ELG-200-C700A suitable for outdoor architectural LED signage?

The ELG-200-C700A carries an IP65 water-resistant rating, which protects against directed water jets and dust ingress. It can be used in outdoor signage cabinets or channel-letter modules where the driver is housed in a protected enclosure. For fully exposed or submersion-risk installations, the IP67-rated variants in the same family offer a higher protection level.

Can this driver power a large LED array in a horticultural or industrial grow-light fixture?

The ELG-200-C700A supports input voltages from 100–305VAC, operates across -40°C to +85°C, and delivers 200.2W at a fixed 700mA. These characteristics suit demanding industrial or horticultural LED array applications where wide input range and thermal tolerance are needed. Verify that each LED module in your array has a forward voltage within the 142–286V CC range.

What LED loads are compatible with the ELG-200-C700A, and how many LEDs can it drive?

This driver operates in constant current mode at 700mA with a CC output voltage range of 142–286V. Compatible LED loads are those with a combined forward voltage that falls within that range when connected in series. The number of LEDs depends entirely on the forward voltage of each individual LED — do not assume a fixed LED count.

Does the ELG-200-C700A work in cold-storage or outdoor environments with low ambient temperatures?

Yes. The operating temperature range is -40°C to +85°C, so the driver functions reliably in cold-storage rooms, outdoor installations, and other low-temperature environments. The IP65 rating also protects the metal case against condensation and dust accumulation in these settings.

What is the difference between the ELG-200-C700A and the ELG-200-C700AB, ELG-200-C700B, ELG-200-C700D2, and ELG-200-C700DA?

All five share 200W output and 700mA constant current with a 142–286V CC range. The ELG-200-C700A (this unit) is adjustable-output only with IP65. The ELG-200-C700AB adds analog dimming to the adjustable version (IP65). The ELG-200-C700B is dimmable only with IP67. The ELG-200-C700D2 has a fixed 286V output at 0.7A with IP67. The ELG-200-C700DA supports DALI dimming protocol with IP67.

Can I use the ELG-200-C700A in an enclosure or luminaire rated for wet locations?

The driver itself is rated IP65, providing protection against water jets. When installed inside a luminaire or enclosure that is itself rated for wet locations, the system-level protection depends on the enclosure rating. For direct wet-location exposure without an additional enclosure, the IP67-rated variants such as the ELG-200-C700B or ELG-200-C700DA are more appropriate.
