Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

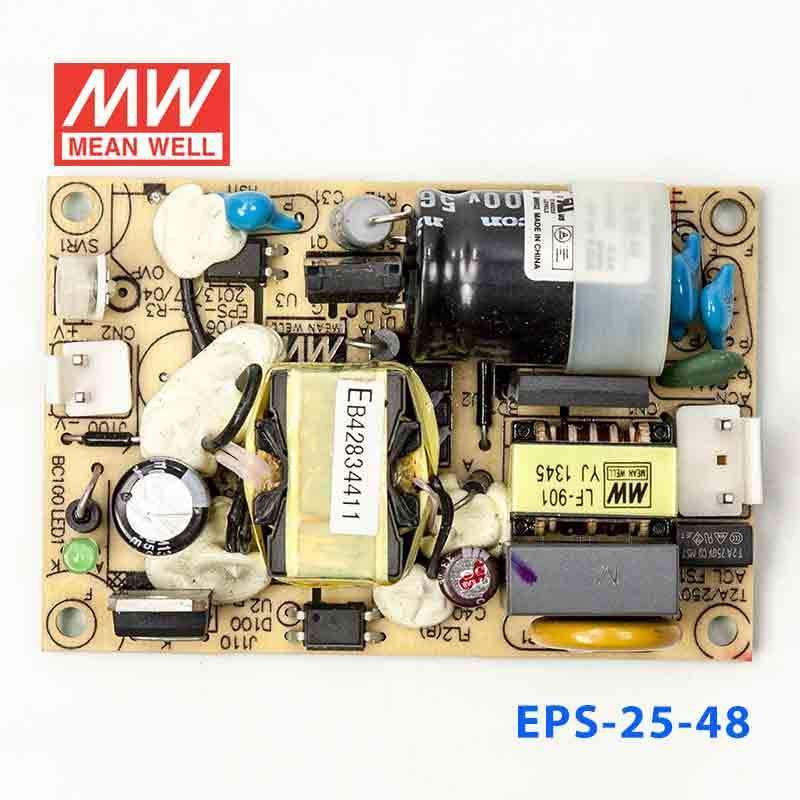

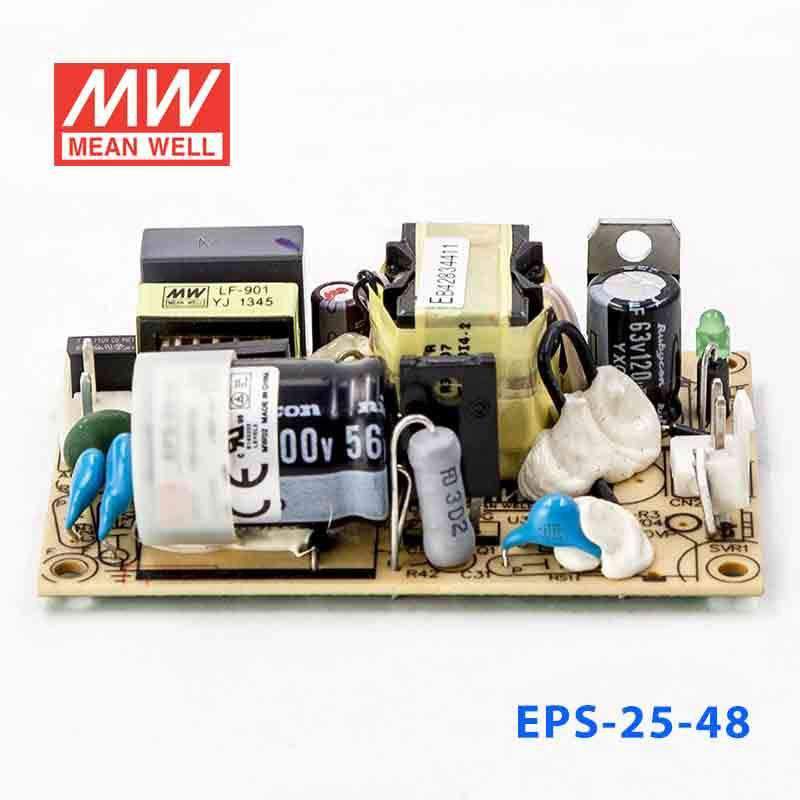

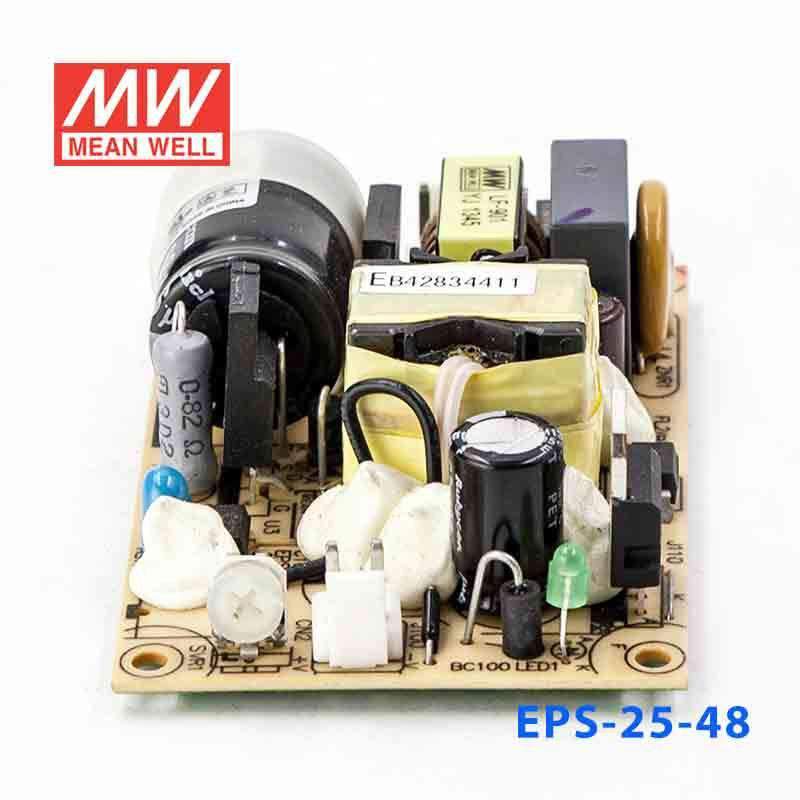

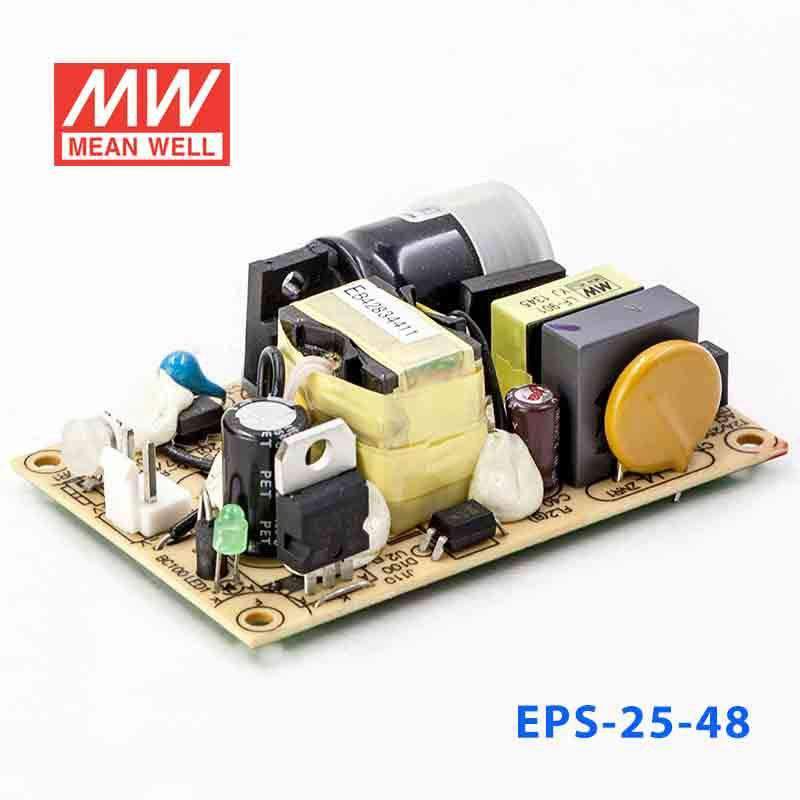

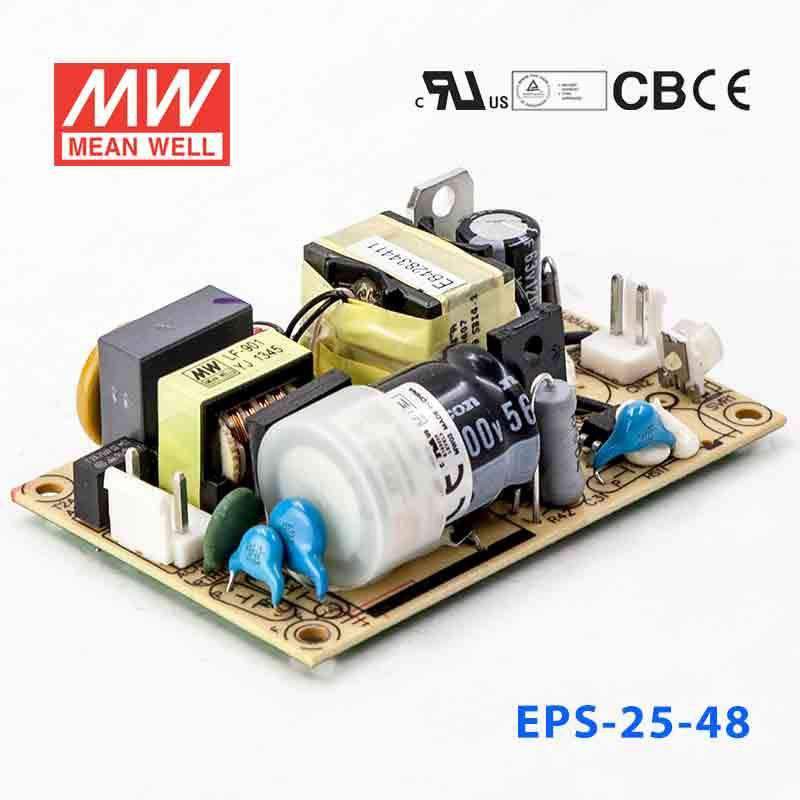

Mean Well EPS-25-48 Power Supply 25W 48V
The EPS-25 is a 25W Mean Well power converter (input range: 85~264VAC).
Key Features
- ✓ Input voltage range: 85~264VAC
- ✓ DC output voltage adjustable ±10%
- ✓ 3KVAC reinforced I/O isolation
- ✓ Protections: Over voltage
- ✓ Safety approvals: WITHSTAND VOLTAGE ISOLATION RESISTANCE EMC EMISSION EMC IMMUNITY MTBF OTHERS DIMENSION NOTE UL62368-1, TUV EN62368-1 , EAC TP TC 004
- ✓ 3 years warranty
-
BrandMean Well
-
SeriesEPS Series
-
Power Rating25.44 Watt
-
Output Voltage48 Volt
-
Rated Current0.53 Ampere
-
Input Voltage85V~264V
-
No of Output1
-
Dimming ControlNone
-
Standards MetCB,CE,EAC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length3 in
-
Width2 in
-
Height0.94 in
-
Weight0.18 lb
::specification::
Frequently Asked Questions
Can I use the EPS-25-48 for a 48V industrial controller or network appliance?
Yes, if the equipment is designed for constant-voltage 48V DC and draws no more than 0.53A or 25.44W. It is better suited to low-power 48V electronics than to higher-current 48V loads.
Is this a good fit for a 48V embedded communication or monitoring device?
It can be a fit when the device expects a regulated 48V input and its total load stays within 0.53A. For embedded communication, monitoring, or control hardware, the deciding factor is matching the 48V constant-voltage requirement and the 25.44W ceiling.
Can the EPS-25-48 power a small 48V automation subsystem?
Yes, for small 48V automation electronics that stay within 25.44W and 0.53A. It is intended for constant-voltage loads, so it should be matched to electronics and modules specified for 48V DC operation.
Can this 48V unit be used in low-temperature or high-temperature equipment enclosures?
The specified operating range is -30°C to +70°C, which covers a wide span for enclosed equipment. No IP rating is listed in the provided specs, so those specs do not establish exposed outdoor or wet-location suitability on their own.
What are the main differences between the EPS-25-48 and other EPS-25 versions?
The EPS-25 family includes 3.3V 5A at 16.5W, 5V 5A at 25W, 7.5V 3.4A at 25.5W, 12V 2.1A at 25.2W, 15V 1.7A at 25.5W, 24V 1.05A at 25.2W, 27V 0.95A at 25.65W, 36V 0.7A at 25.2W, and 48V 0.53A at 25.44W. This model is the 48V option in that group, with the lowest output current among the EPS-25 variants listed.
